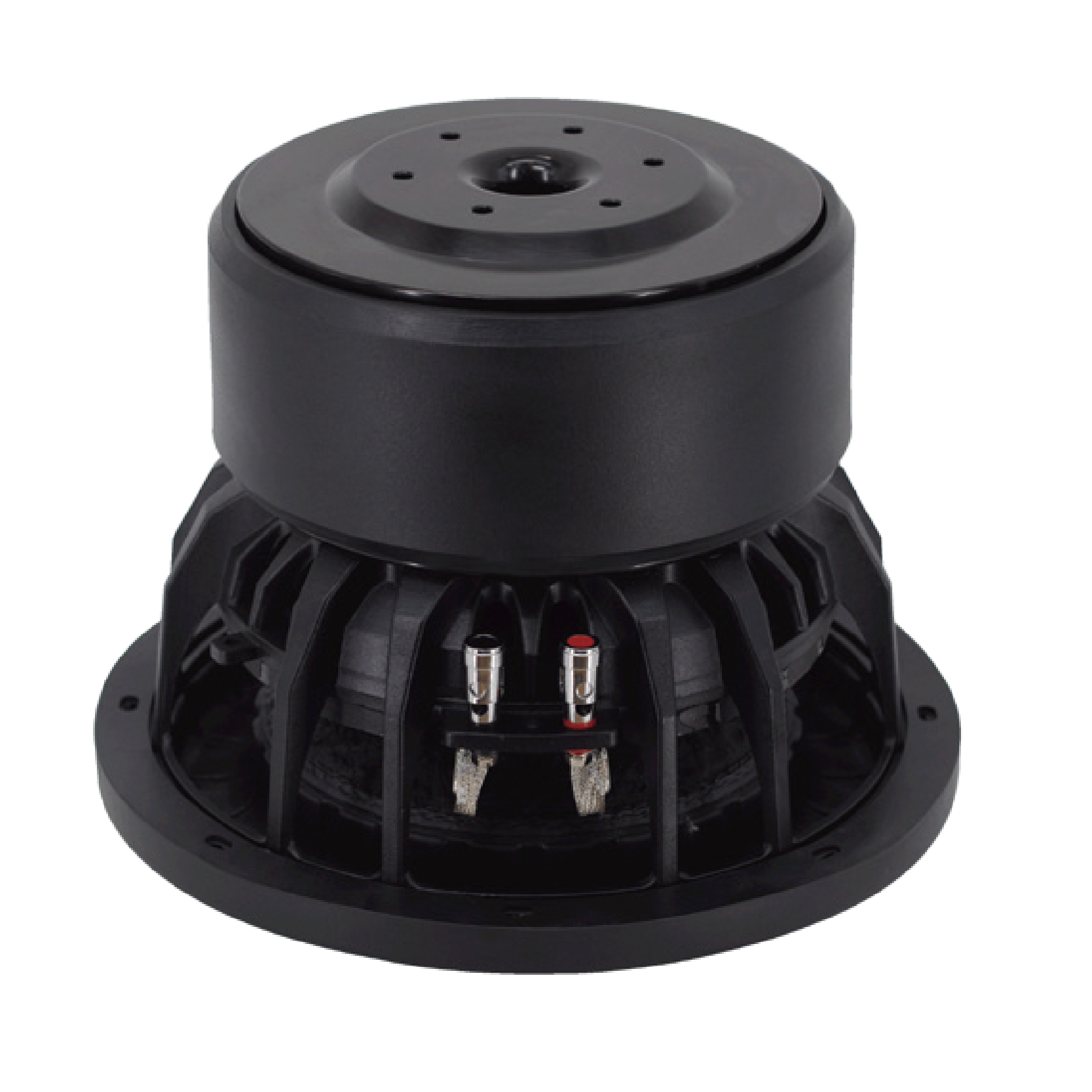

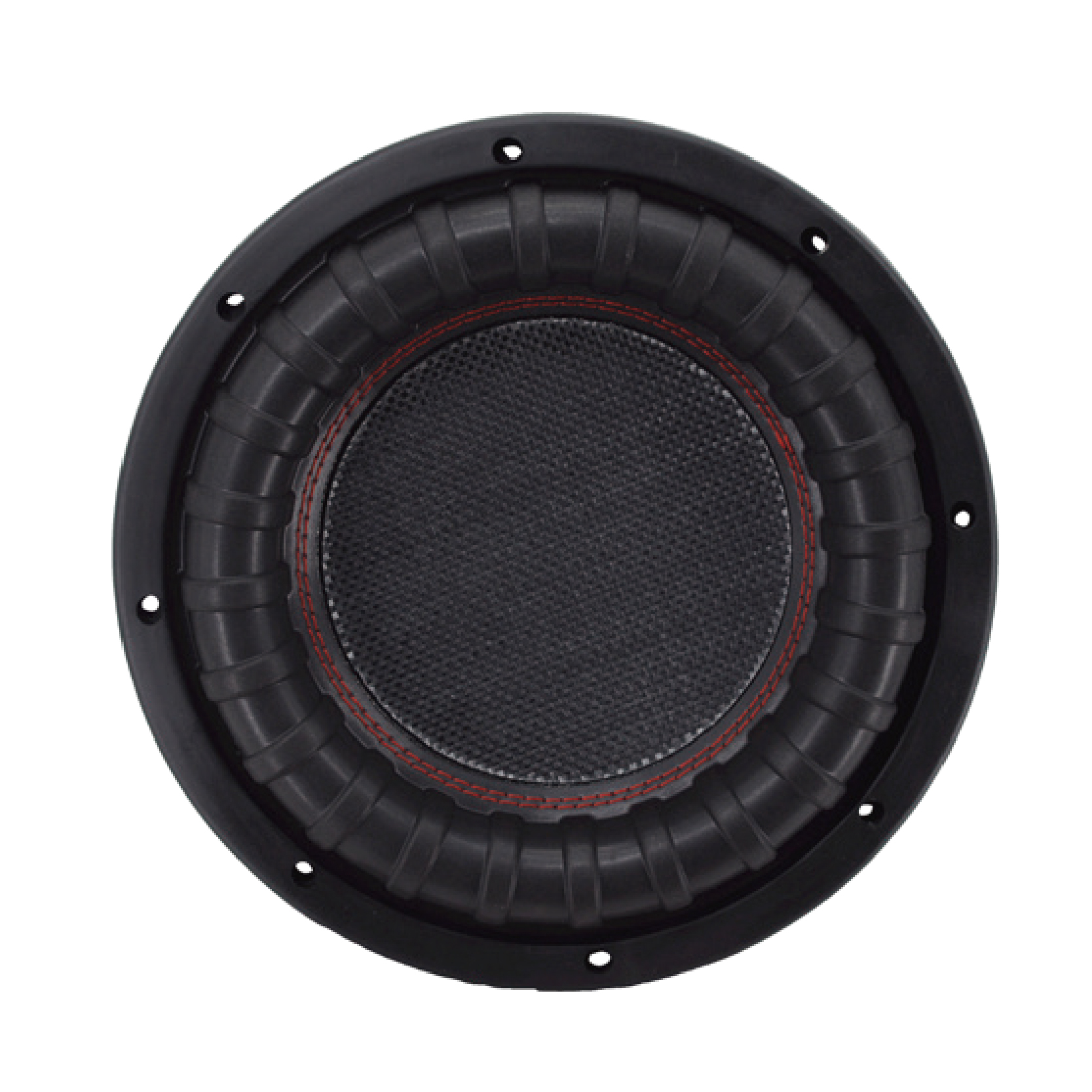

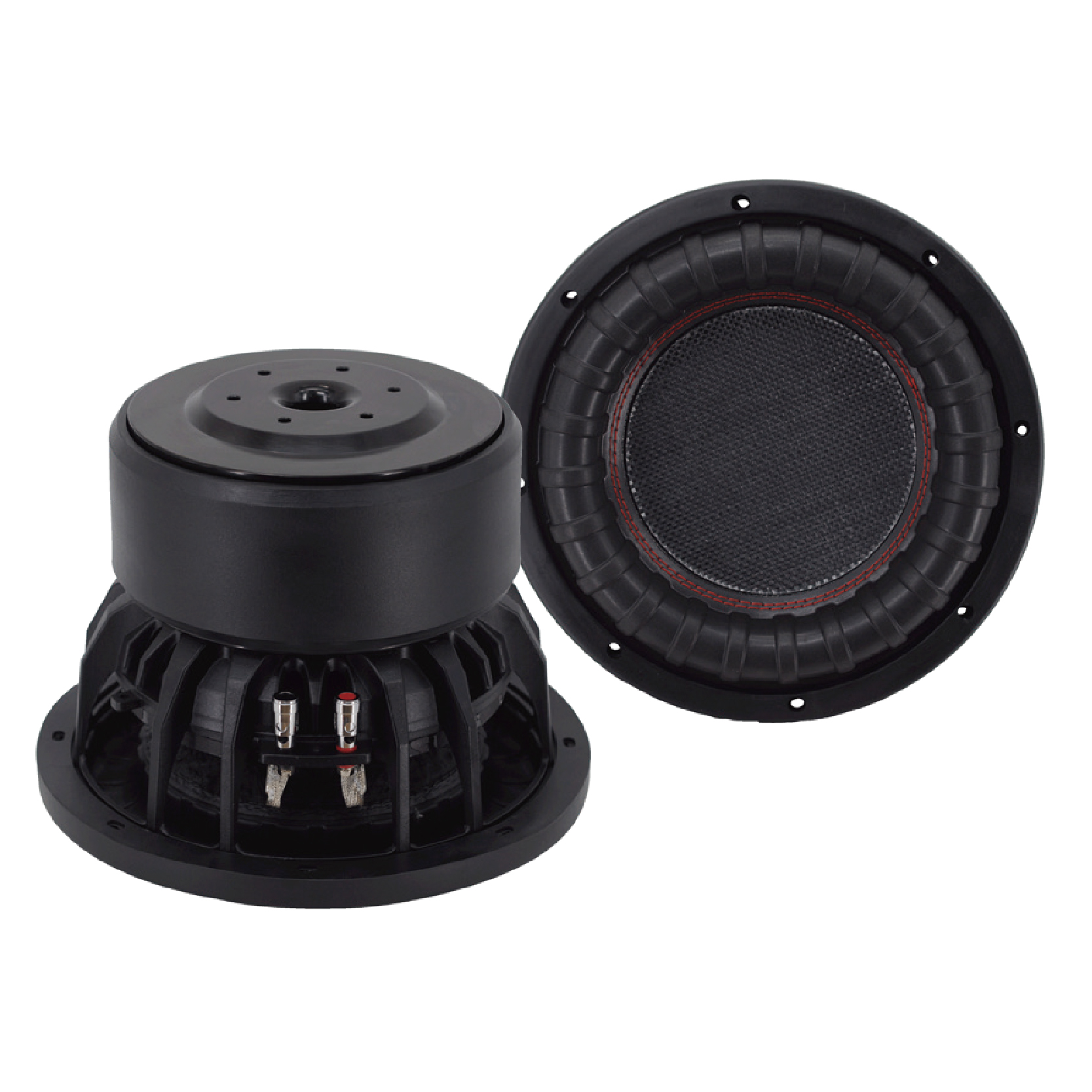

10SB1800
10″SUBWOOFER
- 4+4Ω nominal impedance
- 3.6+3.6Ω minimum impedance
- 2*1200 RMS capacity
- 2*600 AES capacity
- 81 dB sensitivity
- 41-1000 Hz response
- 75mm(3in) inside-outside voice coil
10SB1800 delivers the ultimate in powerful low–end performance with sustained power and a wide frequency range. Powerful bass output, combined with 81dB sensitivity and a large 75mm voice coil, ensures clarity and depth of sound quality, even at high power output, the low frequencies remain strong and stable. Whether it‘s in music or movies, it delivers incredible bass power, and immersive sound makes every low frequency more powerful.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 10.8/276 in/mm |
| MAX Power | 2×2400 Watts |
| RMS Power | 2×1200 Watts |
| Impedance | 4+4 Ohm |
| Resonance Frequency | 41 Hz |
| Frequency Response | 41-1000 Hz |
| Sensitivity(1W/1m) | 81 dB |
| Voice Coil Diameter | 3”/75mm |
| Voice Coil Material | BASV |
| Magnet | 232 Oz |
| FS | 41 Hz |
| RE | 3.6+3.6 ohm |
| Qms | 5.4 |
| Qes | 0.8 |
| Qts | 0.7 |
| BL | 17.7 T/m |
| MMS | 282 grams |
| Xmax | 19 mm |
| Sd | 380 cm² |
| Efficiency | 0.08 % |
| Overall Diameter | 10.8/276 in/mm |
| Bolt Circle Diameter | 9.9/253 in/mm |
| Baffle cutout Diameter | 5.6/244 in/mm |
| Depth | 8.3/212 in/mm |
| Net Weight | 14.75 kgs |
| Shipping Weight | 15.55 kgs |
| Shipping Box | 28.5X28.5X23.5cm |
Highlights
- 3”Inside/Out BASV voice coil wounded for hi-temp performance, 4+4ohms
- 1200watts continuous program power rating makes high acoustical output
- Sleek look, smooth figure
- 81dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber enhances sound performance with efficient acoustics.
Precision-tuned crossovers with selected capacitors, inductors, and resistors cater to Eastern listening.
Independent bass control via advanced acoustic algorithms ensures precise frequency distribution.
Transparent tones and clear textures make the music’s essence more accessible.
Powerful, elastic bass and realistic drums provide immersive listening across all vehicle types.
Exceptional clarity and rhythm create a captivating musical journey.
