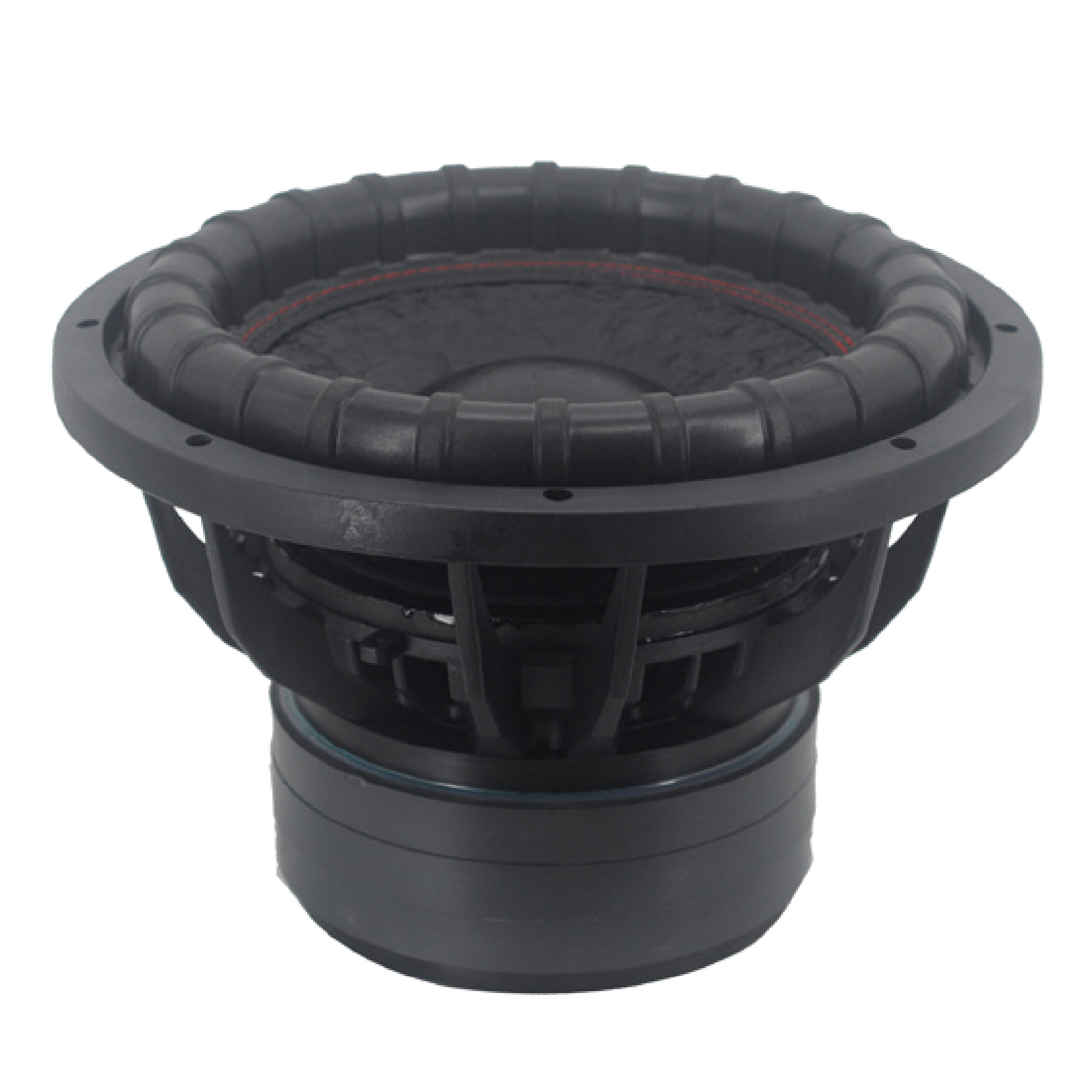

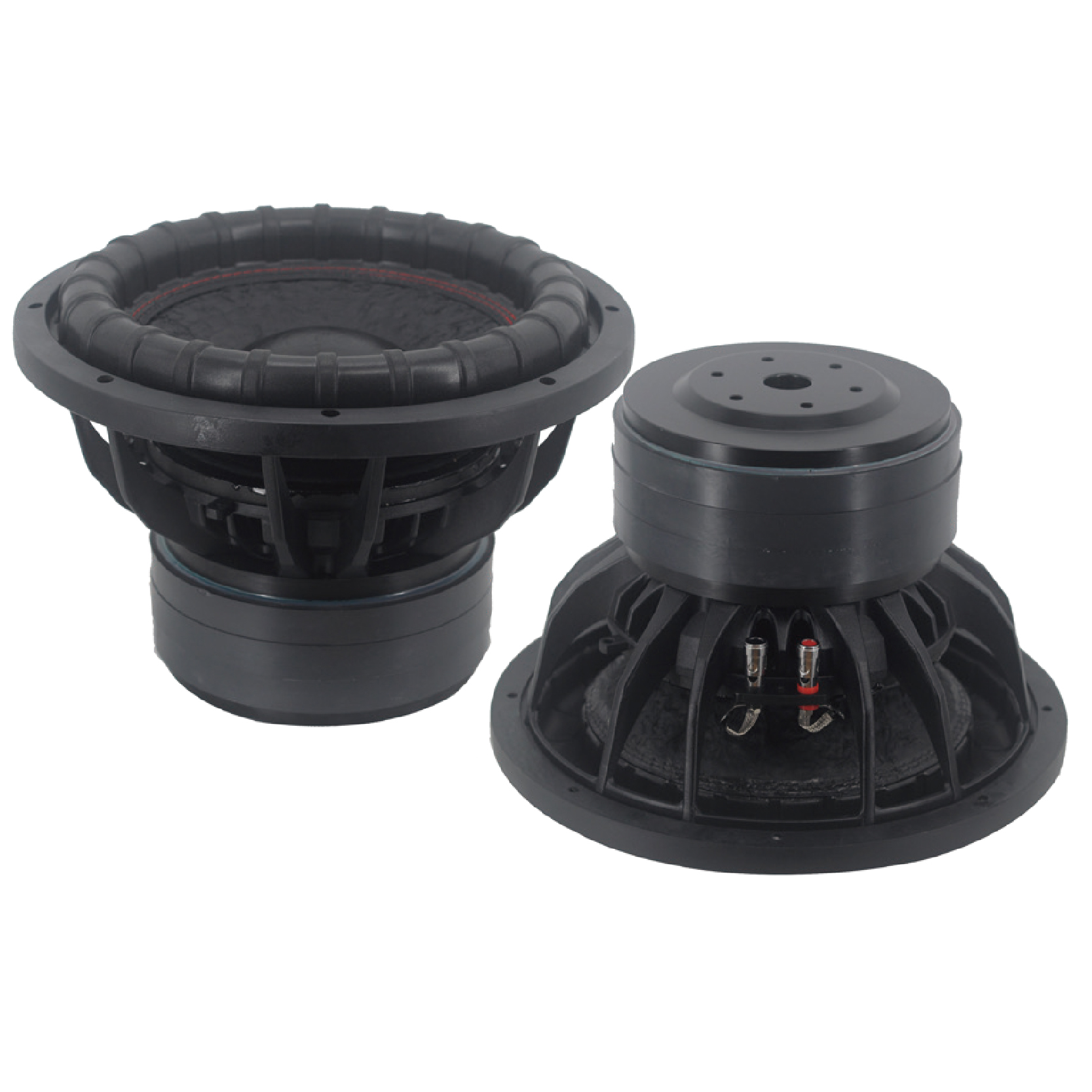

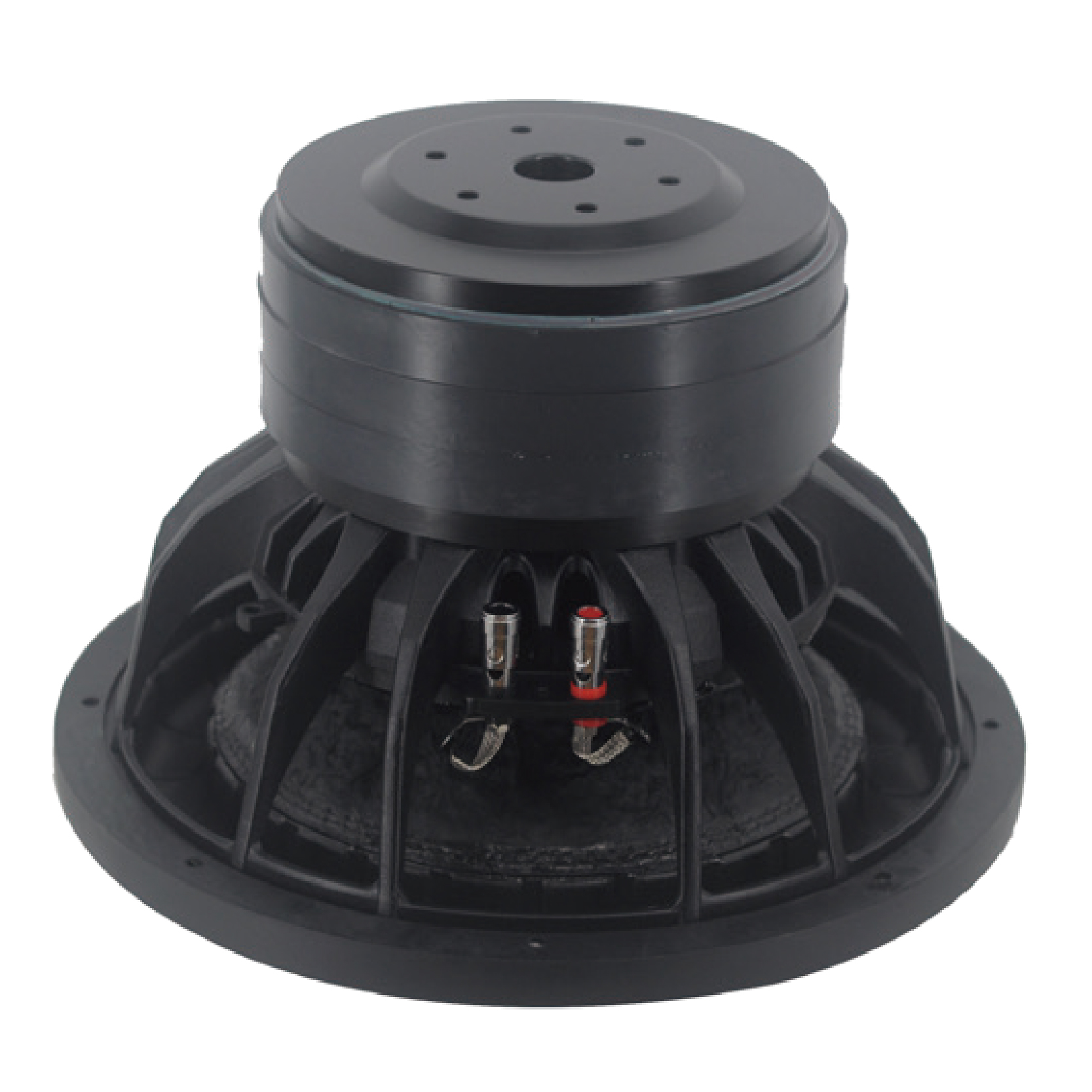

12SB1500

12″SUBWOOFER
  • 4+4Ω nominal impedance
  • 3.6+3.6Ω minimum impedance
  • 2*1500 RMS capacity
  • 86 dB sensitivity
  • 41-1000 Hz response
  • 75mm(3in) inside-outside voice coil

12SB1500 is a branch of the best-selling series, as a superior subwoofer for a variety of vehicles, it provides heavy bass with a stable structure.

Away from the hustle and bustle, it is suitable for us to feel the touch of pure music. Vocal fidelity has penetrating power, restores the true appearance of music rhythm, and gives you a superb music experience.

  • GENERAL SPECIFICATIONS
  • THIELE-SMALL PARAMETERS
  • EXTRA INFO
NOMINAL SPECIFICATIONS
Nominal Diameter12.5/328 in/mm
MAX Power2X3000 Watts
RMS Power2X1500 Watts
Impedance4+4 Ohm
Resonance Frequency41 Hz
Frequency Response41-1000 Hz
Sensitivity(1W/1m)86 dB
Voice Coil Diameter3”/75mm
Voice Coil MaterialPI
Magnet232 OZ
FS41 Hz
RE3.6+3.6 ohm
Qms8.0
Qes0.68
Qts0.63
BL30.5 T/m
MMS323 grams
Xmax19 mm
Sd491 cm²
Efficiency0.16 %
Overall Diameter12.8 /328 in/mm
Bolt Circle Diameter11.8/300 in/mm
Baffle cutout Diameter11.2 /285 in/mm
Depth8.8 /225 in/mm
Net Weight15 kgs
Shipping Weight16 kgs
Shipping Box33.5X33.5X23.5cm



Highlights
  • 3” PI voice coil wounded for hi-temp performance, 4+4 ohms
  • 2×3000 watts max power continuous program power rating makes the high acoustical output
  • Classic and stylish design, a tasteful choice.
  • 86 dB sensitivity, top in the similar class!
  • Excellent low-frequency ability, high fidelity response



Carefully tuned crossovers provide sound better suited to Eastern listening.
Enhanced bass control with precise acoustic algorithms.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Deep, powerful bass with realistic, elastic drum sounds.
Clear vocals and rich bass for an immersive music experience.
