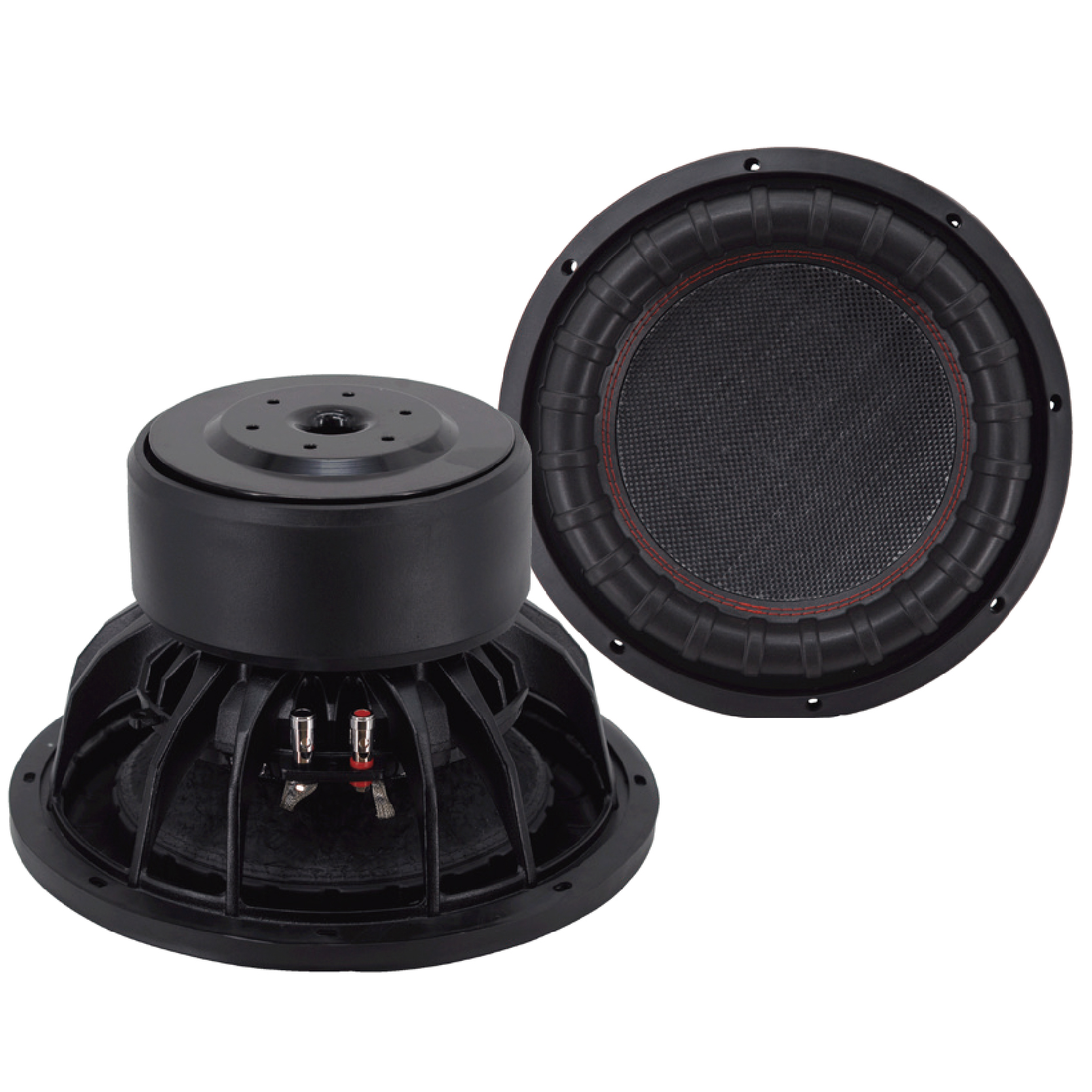

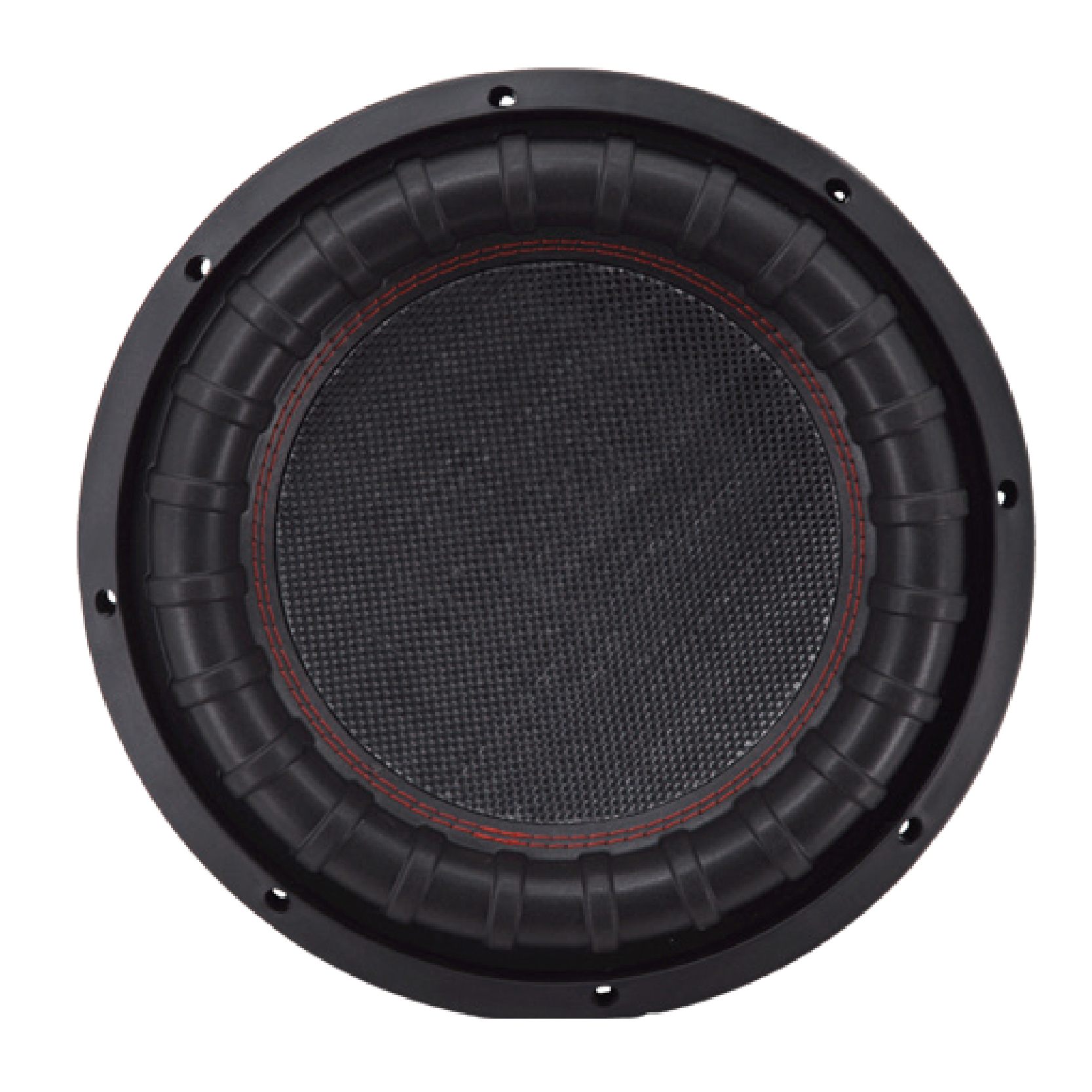

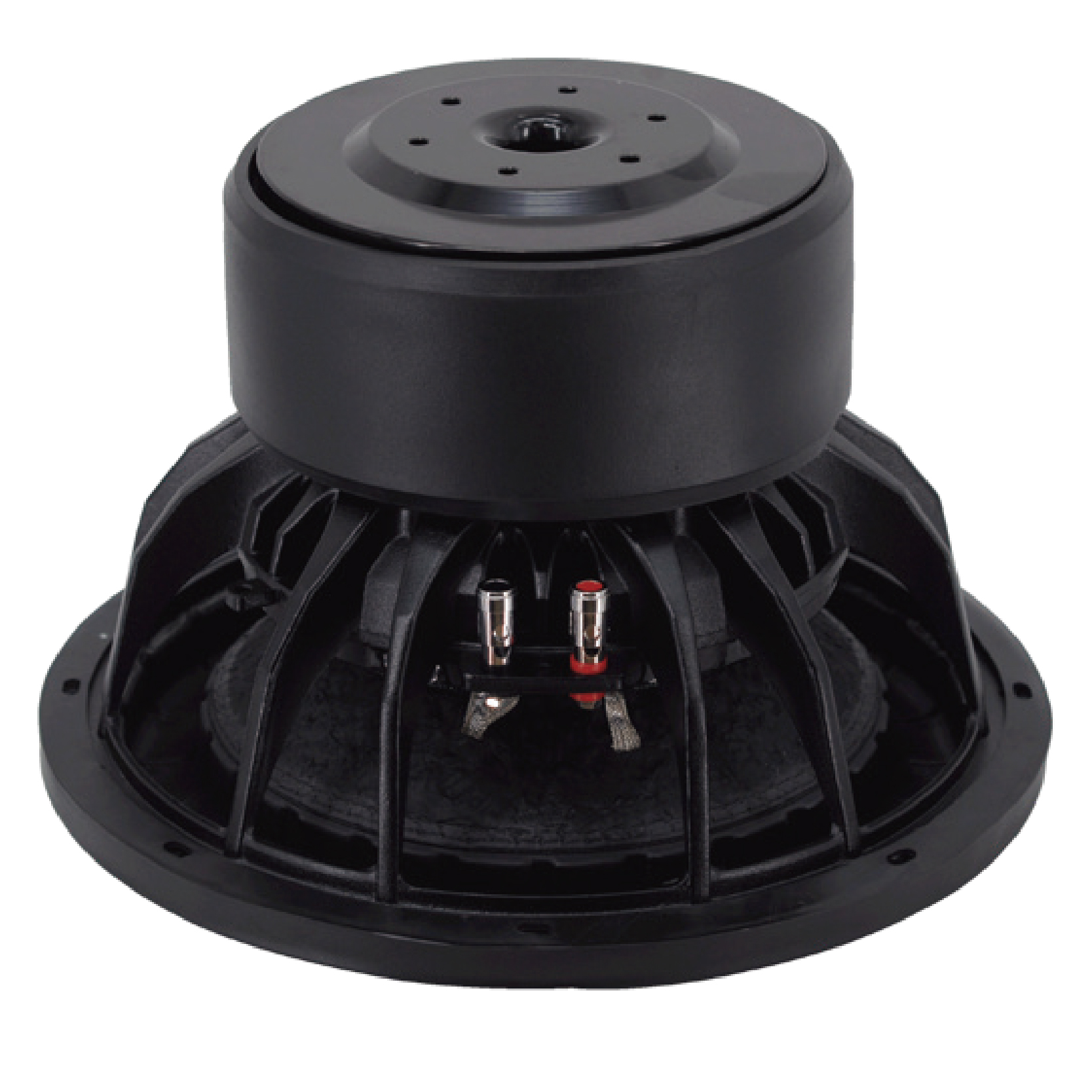

12SB1800

12″SUBWOOFER
  • 4+4Ω nominal impedance
  • 3.6+3.6Ω minimum impedance
  • 2*1500 RMS capacity
  • 82 dB sensitivity
  • 39-1000 Hz response
  • 75mm(3in) inside-outside voice coil

12SB1800 is built for bass, with strong power carrying capacity and excellent control. The voice coil construction provides efficient heat dissipation and long-lasting thrust for stability at high outputs. Its low-frequency response is as deep as 40Hz, resulting in a wide and powerful soundstage. Whether it is used for car audio modification or other places, it can release shocking low–frequency energy.

  • GENERAL SPECIFICATIONS
  • THIELE-SMALL PARAMETERS
  • EXTRA INFO
Nominal Diameter12.8/325 in/mm
MAX Power2×3000 Watts
RMS Power2×1500 Watts
Impedance4+4 Ohm
Resonance Frequency39 Hz
Frequency Response39-1000 Hz
Sensitivity(1W/1m)82 dB
Voice Coil Diameter3”/75mm
Voice Coil MaterialBASV
Magnet232 Oz



FS39 Hz
RE3.6+3.6 ohm
Qms5.6
Qes0.87
Qts0.75
BL19.7 T/m
MMS381 grams
Xmax19 mm
Sd470 cm²
Efficiency0.09 %



Overall Diameter12.8/325 in/mm
Bolt Circle Diameter11.7/300 in/mm
Baffle cutout Diameter11.1/285 in/mm
Depth8.8/225 in/mm
Net Weight15.1 kgs
Shipping Weight16.1 kgs
Shipping Box34.5X34.5X25cm

Highlights
  • 3”BASV voice coil wounded for hi-temp performance, 4+4 ohms
  • 2X3000 watts max power continuous program power rating makes the high acoustical output
  • Classic and stylish design, a tasteful choice.
  • 82 dB sensitivity, top in the similar class!
  • Excellent low-frequency ability, high fidelity response

This series began development in 2016 and was launched in 2017 after our engineers worked tirelessly to ensure top quality. Significant investment went into customizing the mold, as standard materials couldn’t meet our requirements. From design to material selection, every detail reflects the engineers’ dedication. With precise mechanical vibration damping, optimal q-value, and a special polymer material that balances lightness, stiffness, and damping, this speaker unit achieves high sensitivity and smooth, natural sound reproduction. Its high sound density, dynamic control, and clarity make it a remarkable speaker unit you won’t want to miss!
