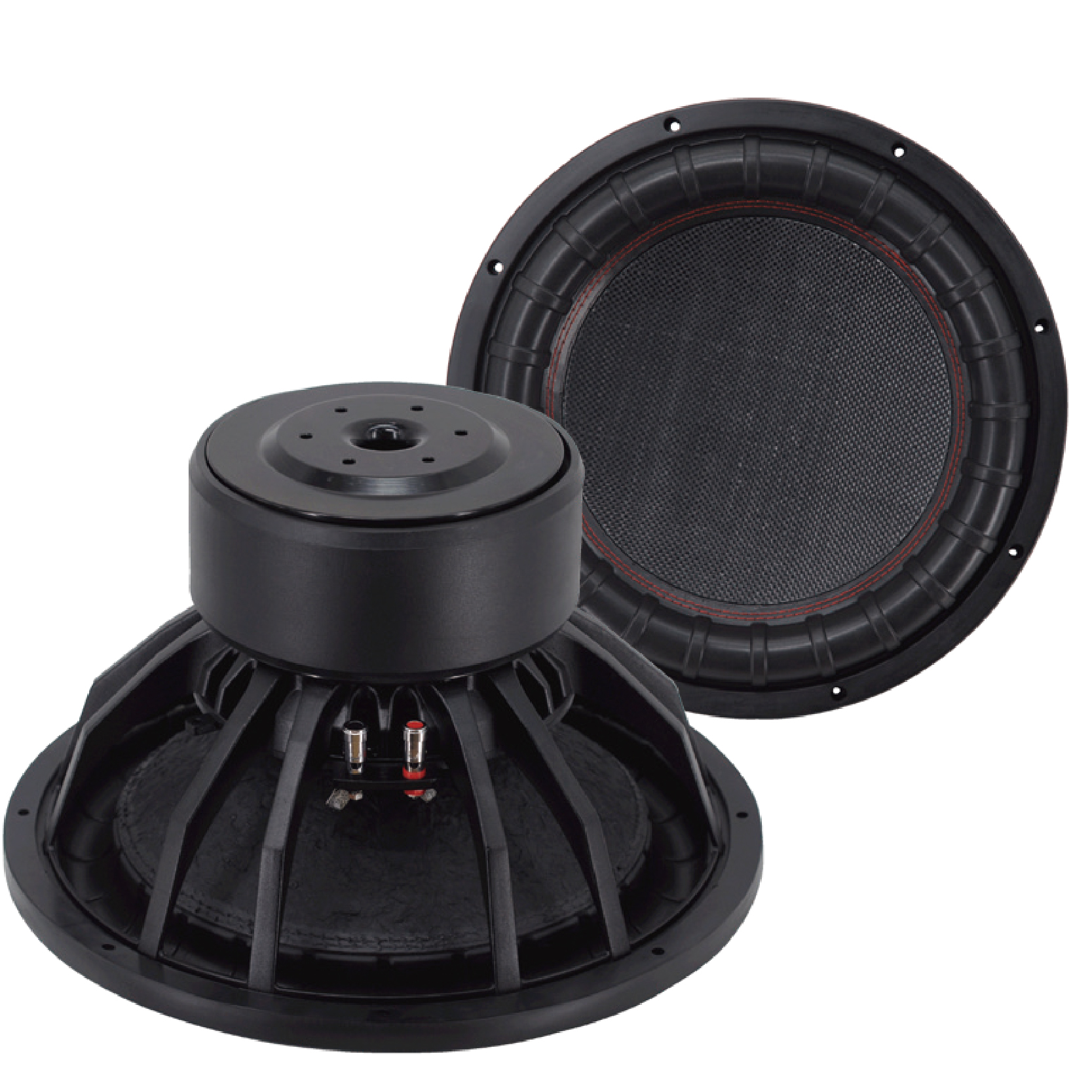

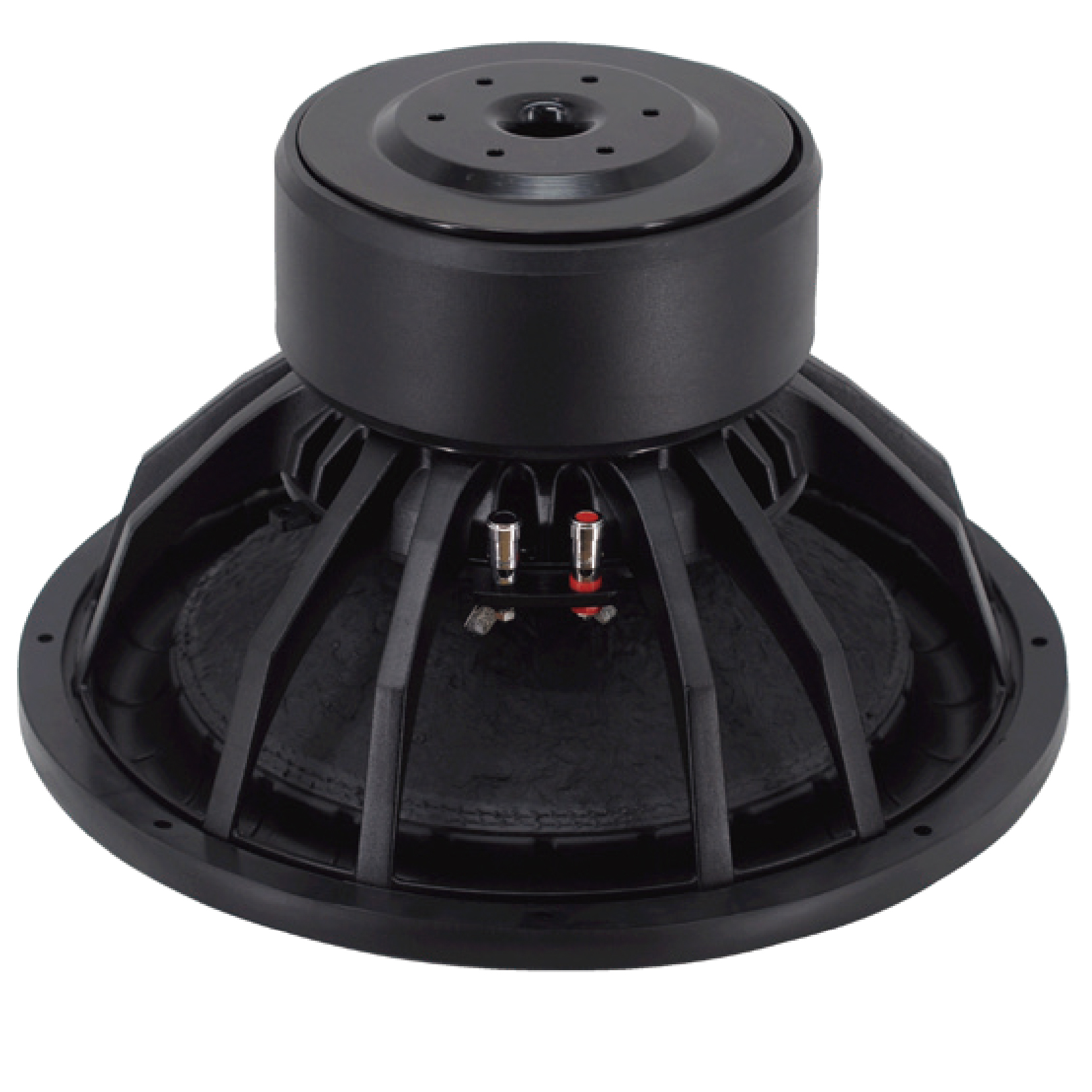

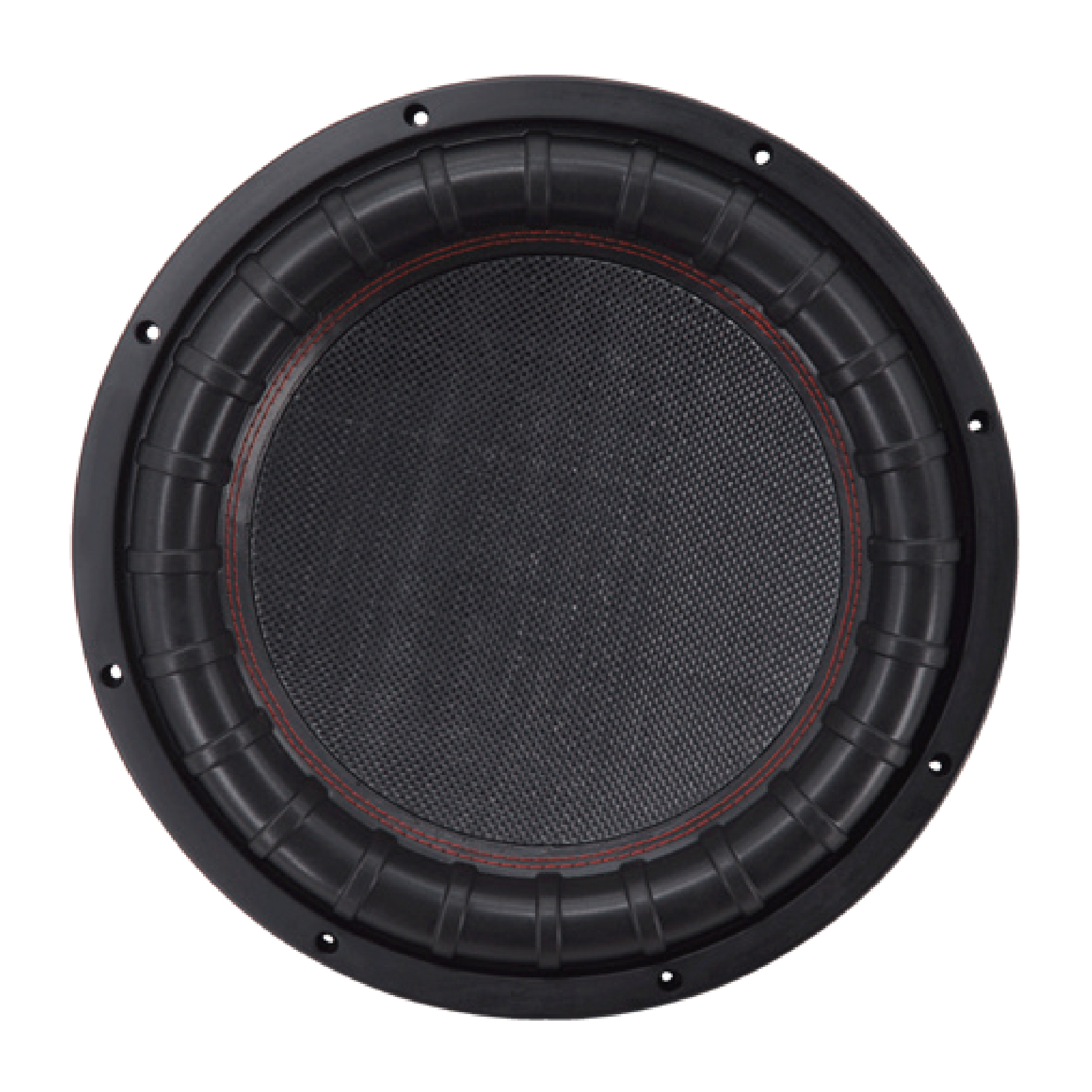

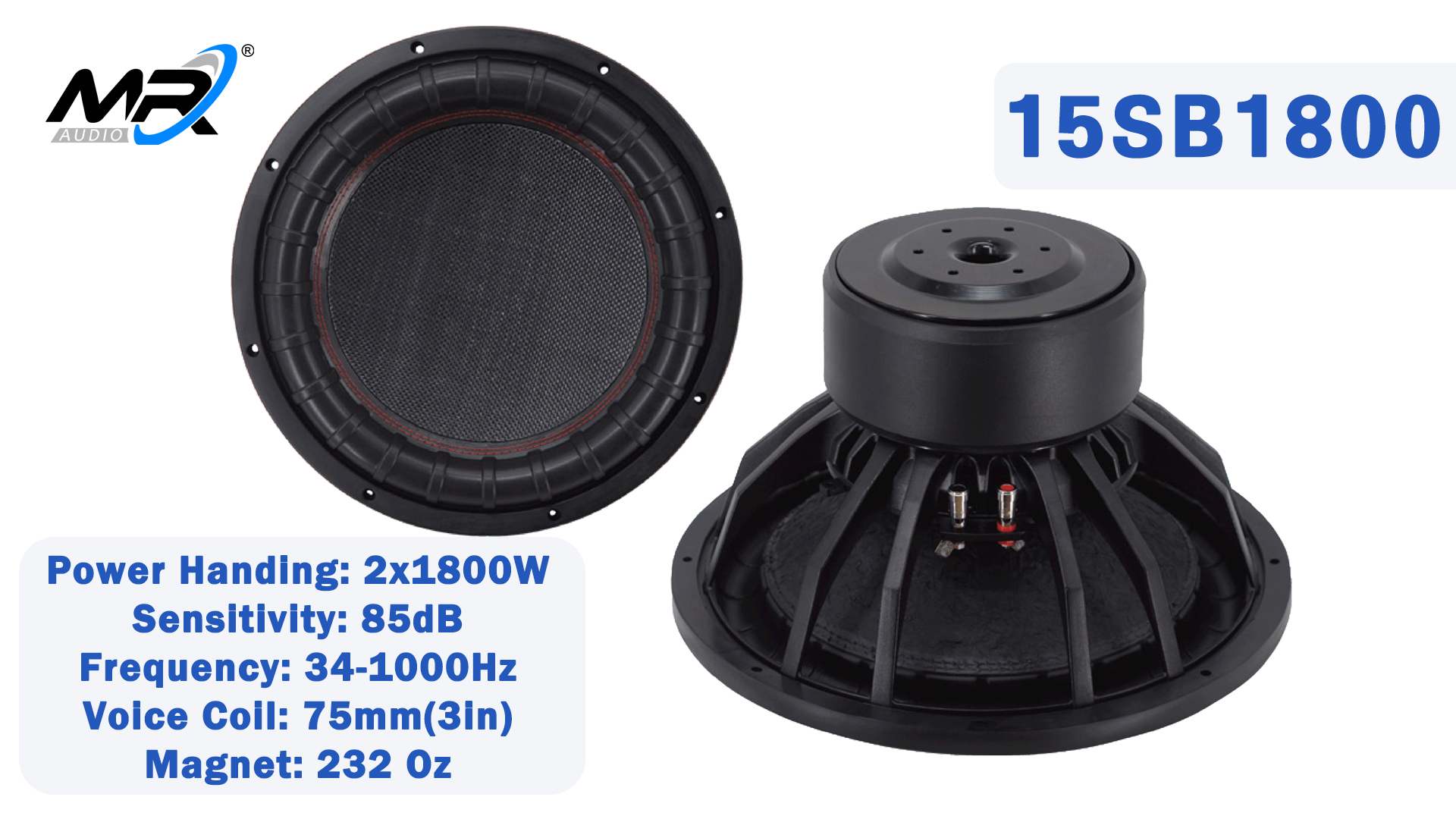

15SB1800
15″SUBWOOFER
- 4+4Ω nominal impedance
- 3.6+3.6Ω minimum impedance
- 2*1800W RMS capacity
- 2*900W AES capacity
- 85 dB sensitivity
- 34-1000 Hz response
- 75mm(3in) inside-outside voice coil
15SB1800 delivers precise power control and system compatibility to unleash a strong energy reserve for high–intensity operation. The low frequency is deep and powerful, and the transient response is excellent, meeting the stringent requirements of large systems for low frequency extension, making every shock more reliable and long-lasting. Built for professional–grade systems, it‘s the perfect choice for extreme low–frequency performance.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 15.4/395 in/mm |
| MAX Power | 2X3600 Watts |
| RMS Power | 2X1800 Watts |
| Impedance | 4+4 Ohm |
| Resonance Frequency | 34Hz |
| Frequency Response | 34-1000 Hz |
| Sensitivity(1W/1m) | 85 dB |
| Voice Coil Diameter | 3”/75mm |
| Voice Coil Material | BGSV |
| Magnet | 232 Oz |
| FS | 34 Hz |
| RE | 3.6+3.6 ohm |
| Qms | 5.2 |
| Qes | 0.95 |
| Qts | 0.8 |
| BL | 20 T/m |
| MMS | 517 grams |
| Xmax | 19 mm |
| Sd | 750 cm² |
| Efficiency | 0.14 % |
| Overall Diameter | 15.4 /395 in/mm |
| Bolt Circle Diameter | 14.7/376 in/mm |
| Baffle cutout Diameter | 14 /359 in/mm |
| Depth | 9.6 /247 in/mm |
| Net Weight | 15.6 kgs |
| Shipping Weight | 17.1 kgs |
| Shipping Box | 41X41X26.5cm |
Highlights
- 3”BASV voice coil wounded for hi-temp performance, 4+4 ohms
- 2X3600 watts max power continuous program power rating makes the high acoustical output
- Classic and stylish design, a tasteful choice.
- 85 dB sensitivity, top in the similar class!
- Excellent low-frequency ability, high fidelity response
Development of this series began in 2016 and launched in 2017 after meticulous engineering efforts to achieve top quality. Significant investment was made in custom molds, as standard materials couldn’t meet our standards. Utilizing a unique polymer material with light weight, high stiffness, and ideal damping, the design offers exceptional vibration control and sensitivity. With precise mechanical damping and optimized q-value, it delivers high sound density, dynamic control, and crystal-clear audio. The result is smooth, natural sound reproduction, making this rare speaker unit a must-have for audiophiles.
