15SB2000
15″SUBWOOFER
- 2+2Ω nominal impedance
- 2+2Ω minimum impedance
- 2000W RMS capacity
- 85 dB sensitivity
- 45-500 Hz response
- 75mm(3in) inside-outside voice coil
15SB2000 Deep low frequency, all under control. Combining system flexibility with efficient output, it provides a strong and stable sound energy release. Precisely focusing on the low frequency band, the bass is thick and powerful, and full of impact. Robust thermal management and durability for sustained high-load operation. Reimagining the low–frequency experience with professional performance is the ideal core for creating an immersive soundstage.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 15.4/395 in/mm |
| MAX Power | 4000 Watts |
| RMS Power | 2000 Watts |
| Impedance | 2+2 Ohm |
| Resonance Frequency | 45 Hz |
| Frequency Response | 45-500 Hz |
| Sensitivity(1W/1m) | 85 dB |
| Voice Coil Diameter | 3”/75mm |
| Voice Coil Material | BASV |
| Magnet | 232 Oz |
| FS | 45 Hz |
| RE | 2+2 ohm |
| Qms | 5.2 |
| Qes | 1.0 |
| Qts | 0.87 |
| BL | 18 T/m |
| MMS | 547 grams |
| Xmax | 25.5 mm |
| Sd | 830 cm² |
| Efficiency | 0.2 % |
| Overall Diameter | 15.4/395 in/mm |
| Bolt Circle Diameter | 14.7/376 in/mm |
| Baffle cutout Diameter | 14/359 in/mm |
| Depth | 9.6/247 in/mm |
| Net Weight | 14.9 kgs |
| Shipping Weight | 16.4 kgs |
| Shipping Box | 41X41X26.5cm |
Highlights
- A 15″ Subwooferprovides larger and more robust characteristics, with organized vibrations and the ability to layer large dynamic music.
- 2000 Watts, high output power, wide dynamic range, fast response time, strong impact, the sound is tense and stimulating, sounding strong and bold.
- 85dB compact, powerful bass with a majestic soundstage and soft handling.
- 75mm(3in) BASV voice coil wounded for hi-temp performance

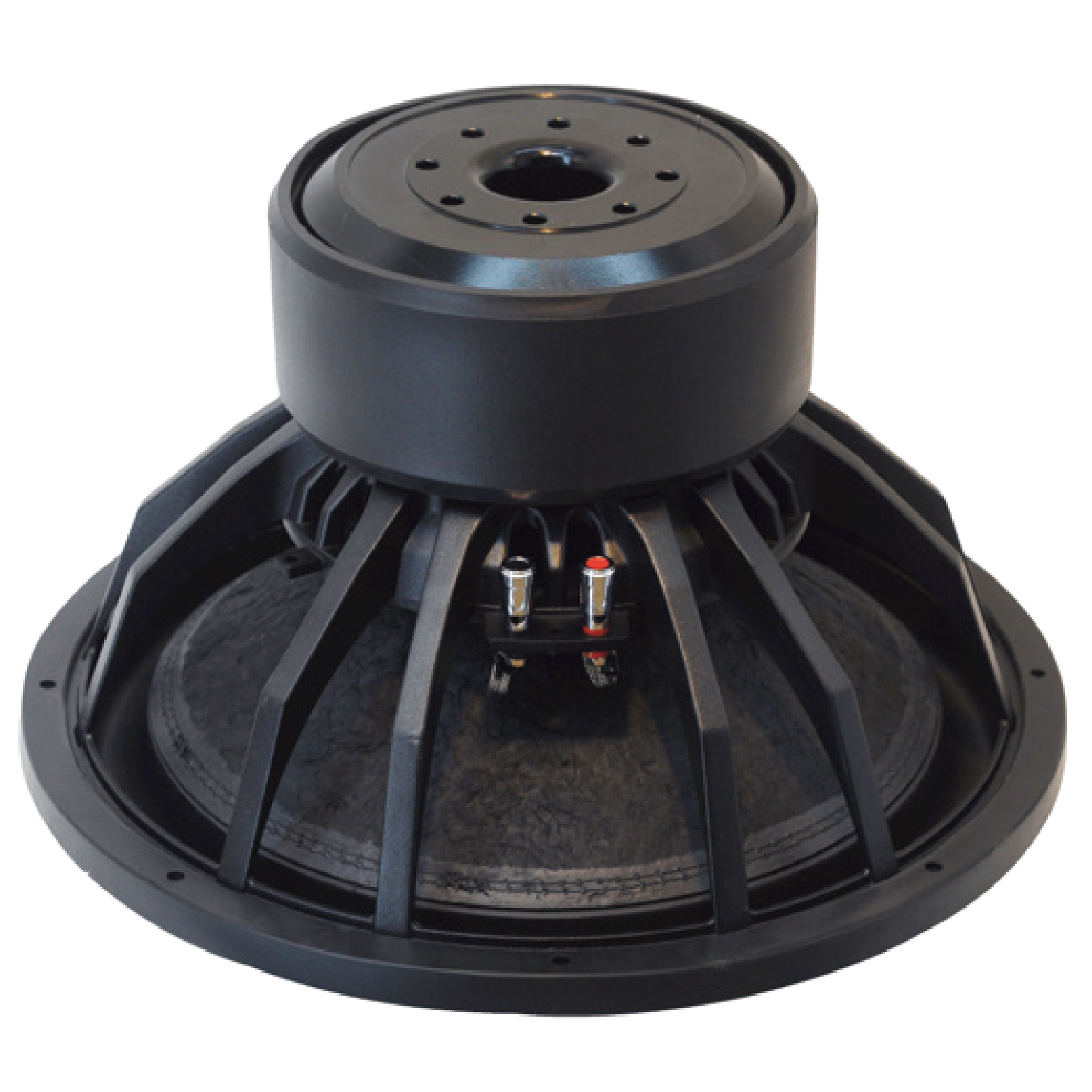

Ultra-large magnet, in addition to the large hole at the bottom, there are also small holes to ensure effective heat dissipation during work, and the thickened rubber edge ensures the freedom of bounce back and forth, making the low frequency more flexible. High-performance y35 magnet, strong and high-quality magnetism, guarantee a strong thrust and makes the sound shocking reproduction.
