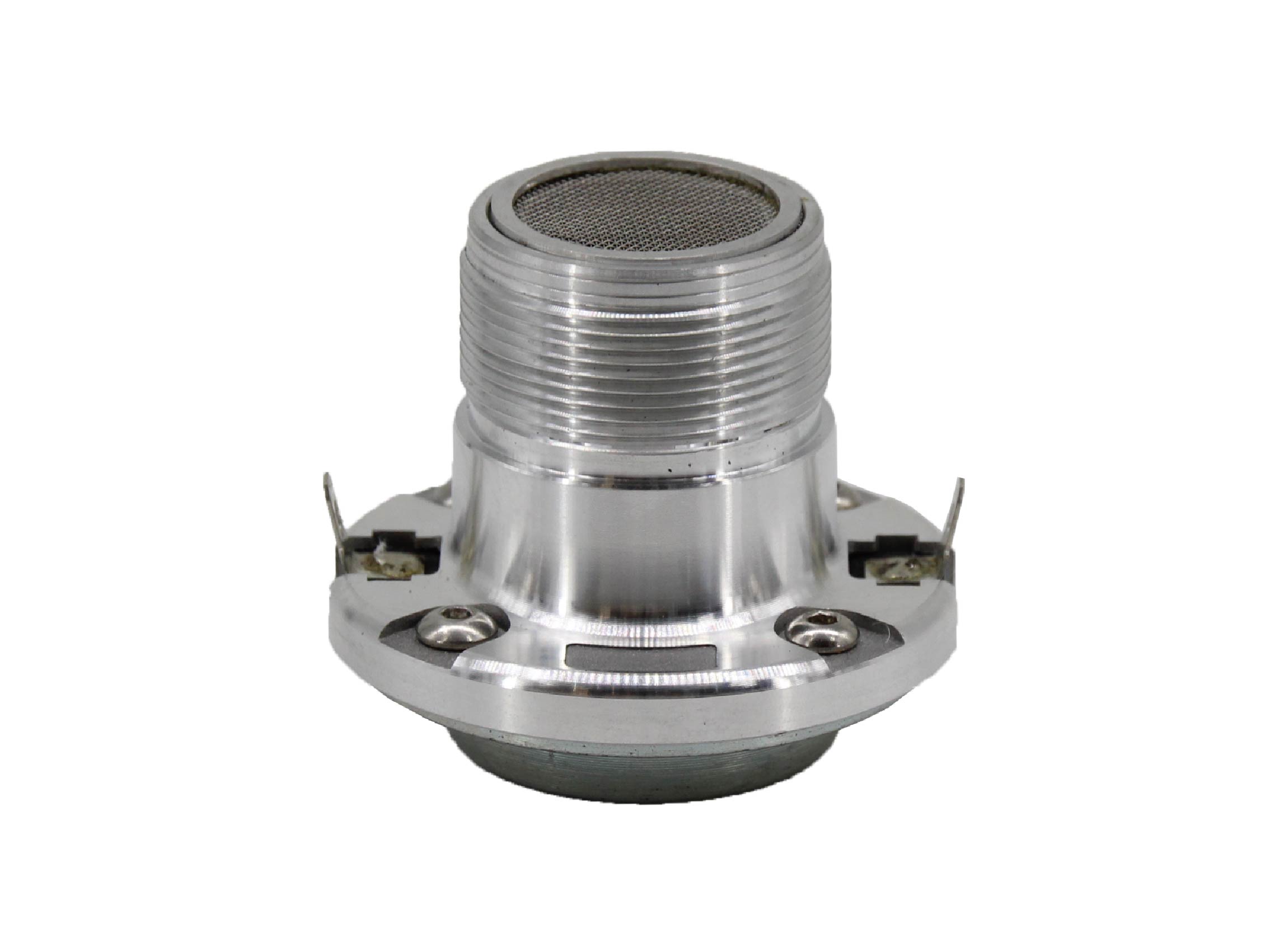

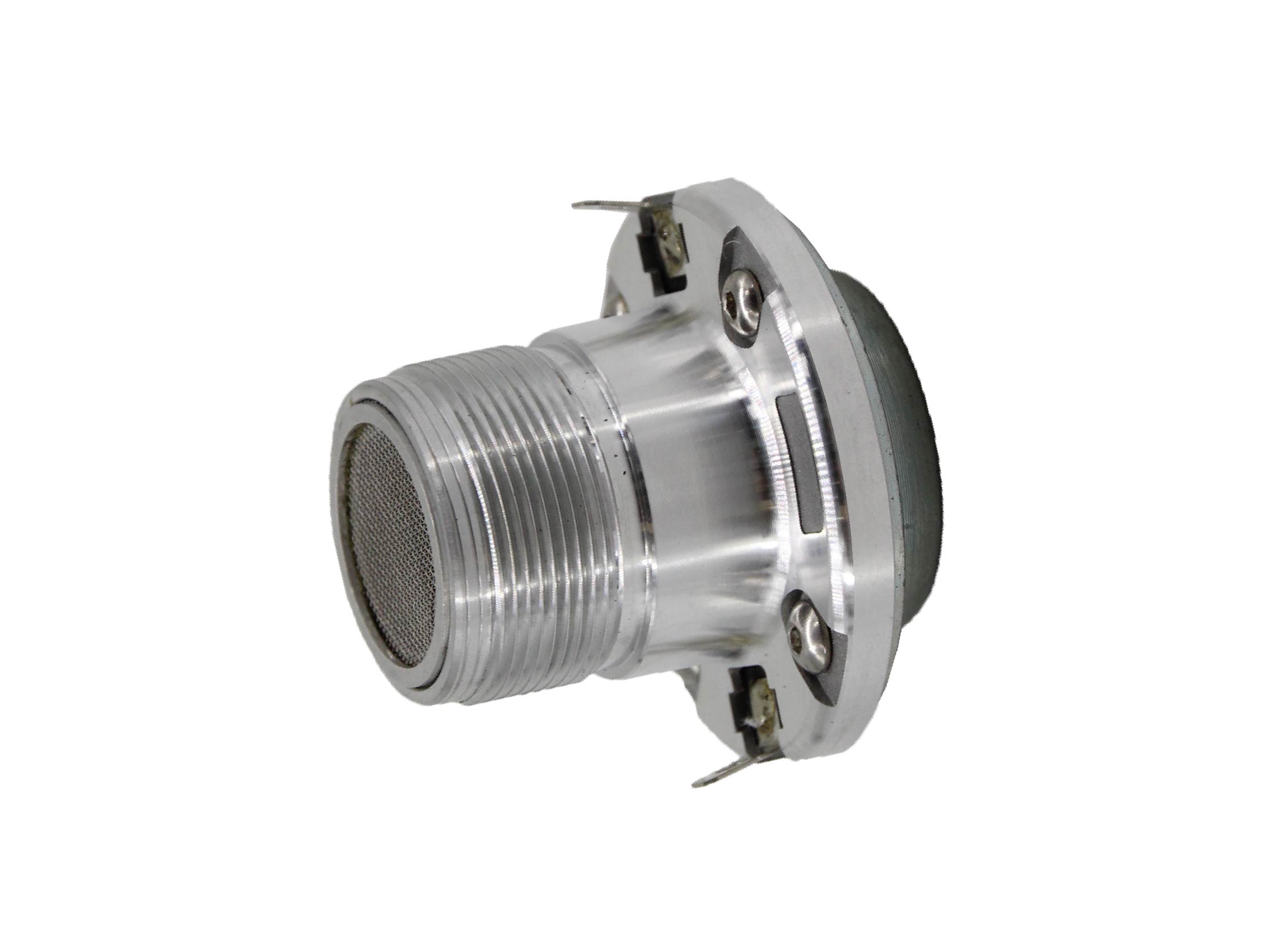

2414-5
Neodymium Super Tweeter
- 4Ω or 8Ω impedance
- 25W RMS capacity
- 105 dB sensitivity
- 1k-20k Hz response
- PEI diaphragm
- 25mm(1in) voice coil
2414–5 is designed for clear high frequencies, it drives quickly and responds precisely. At rated power, it can bring a penetrating high-frequency experience. The PEI diaphragm is combined with a wide frequency response, so whether it is vocal details or instrument extension, it can be accurately restored and layered. Highly adaptable and suitable for varieties of car audio systems. With its compact form factor and sharp sound quality, it‘s an ideal choice for users looking for high–frequency resolution and space efficiency.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 10/250 in/mm |
| MAX Power | 1000 Watts |
| RMS Power | 500 Watts |
| Impedance | 4+4 Ohm |
| Resonance Frequency | 35 Hz |
| Frequency Response | 35-400 Hz |
| Sensitivity(1W/1m) | 83 dB |
| Voice Coil Diameter | 2.4”/60.6mm |
| Voice Coil Material | BASV |
| Magnet | 112 Oz |
| FS | 35 Hz |
| RE | 3.2+3.2 ohm |
| Qms | 5.4 |
| Qes | 0.82 |
| Qts | 0.71 |
| BL | 13 T/m |
| MMS | 207 grams |
| Xmax | 21 mm |
| Sd | 340 cm² |
| Efficiency | 0% |
| Le(1k Hz) | 49 mH |
| Overall Diameter | 10/262 in/mm |
| Bolt Circle Diameter | 6.1/243 in/mm |
| Baffle cutout Diameter | 9/232 in/mm |
| Depth | 6.7/172 in/mm |
| Net Weight | 7.25 kgs |
| Shipping Weight | 8.05 kgs |
| Shipping Box | 28.5X28.5X20cm |
Highlights
- 10’’Inside/Out BASV voice coil wounded for hi-temp performance, 4+4ohms
- 800watts continuous program power rating makes high acoustical output
- Sleek look, smooth figure
- 81dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber has a more efficient sound performance.
Carefully selected capacitors, inductors, resistors, professional debugging out of the sound crossover better suited to Eastern listening.
Shock bass
Through a reasonable acoustic algorithm, the bass channel for independent and precise control and frequency distribution.
Digital audio dynamic processing, 3D surround
