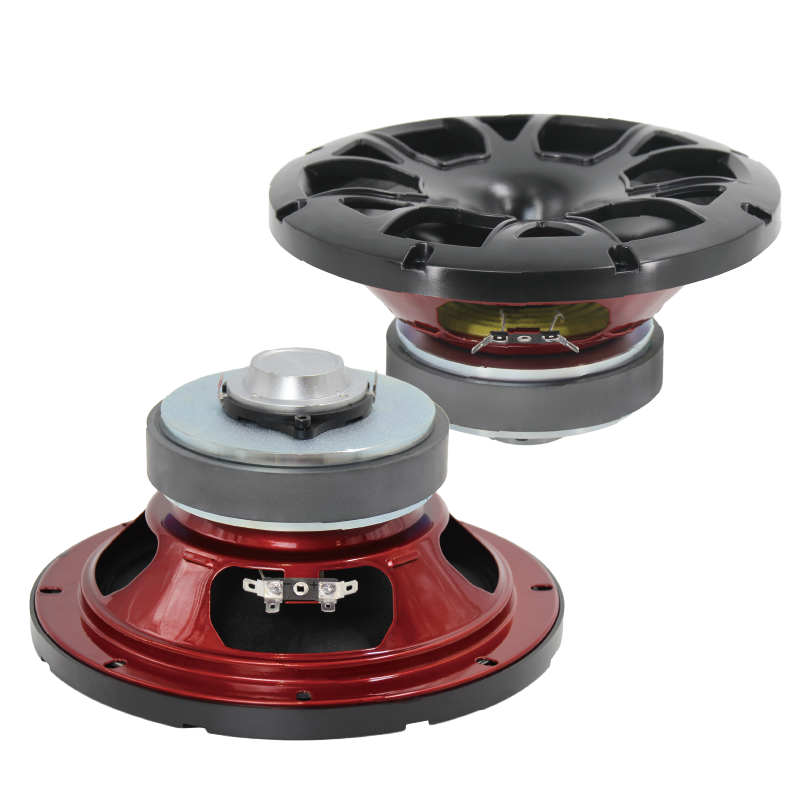

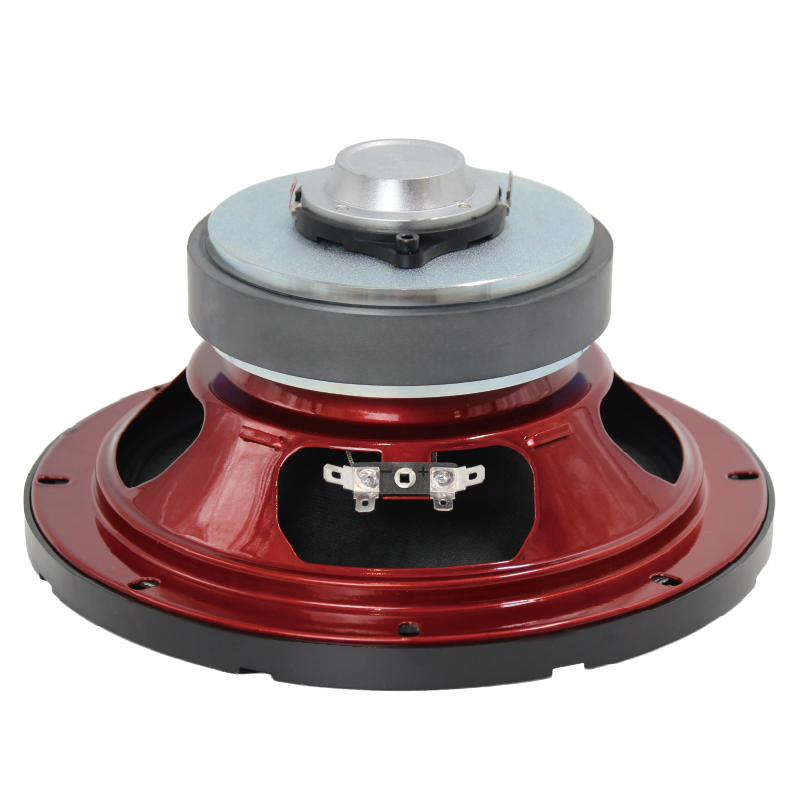

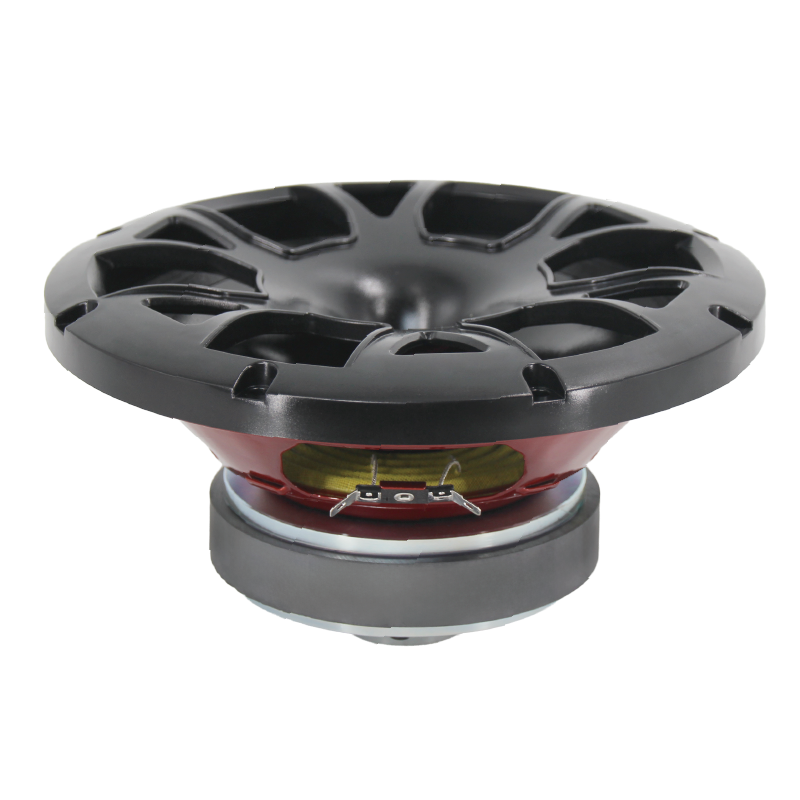

65FH24

6.5” Coaxial Speaker

  • 4Ω nominal impedance
  • 3.8Ω minimum impedance
  • 120W RMS capacity
  • 93 dB sensitivity
  • 125-20K Hz response
  • 38.6 mm(1.5 in) voice coil
65FH24 Designed for superior sound reproduction, this speaker excels at producing lifelike vocals and intricate instrument details.The speaker offers a wide, smooth frequency response that enhances both music and speech. High power handling allows it to perform consistently without compromising sound quality. Its rugged construction ensures reliability and durability over time.
  • GENERAL SPECIFICATIONS
  • DRIVER SPECIEICATIONS
  • THIELE SMALL PARAMETERS
  • EXTRA INFO
Nominal Chassis Diameter6.5/165 in/mm
MAX Power240 Watts
RMS Power120 Watts
Impedance4 Ohm
Resonance Frequency125 Hz
Frequency Response125-6000 Hz
Sensitivity(1W/1m)93 dB
Voice Coil Diameter1.5” / 38mm
Winding materialCCAW
Magnet33 Oz



MAX Power50 Watts
RMS Power25 Watts
Impedance8 Ohm
Frequency Response2k-20k Hz
Sensitivity（1W/1m)102 dB
Voice Coil Diameter1” / 25mm
Winding materialCCAW
FS125 Hz
Vas2.8 L
RE3.8 Ohm
Qms12
Qes1.1
Qts1.0
BL5.5 T/m
MMS9.4 grams
Sd3.5 mm
Efficiency132 cm²
Le(1k Hz)1.1 %
EBP136
Overall Diameter6.6/168 in/mm
Baffle Circle Diameter6.1/154 in/mm
Baffle Cutout Diameter5.4/142 in/mm
Depth4.1/105 in/mm
Net Weight2.1 kgs
Shipping Weight2.6 kgs
Shipping Box19X19X14 cm
