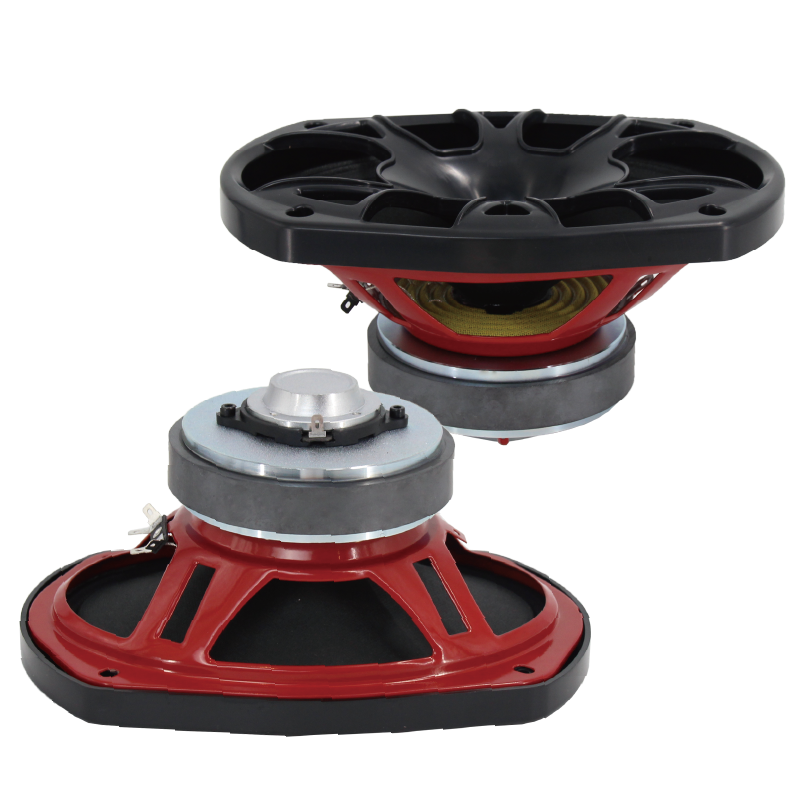

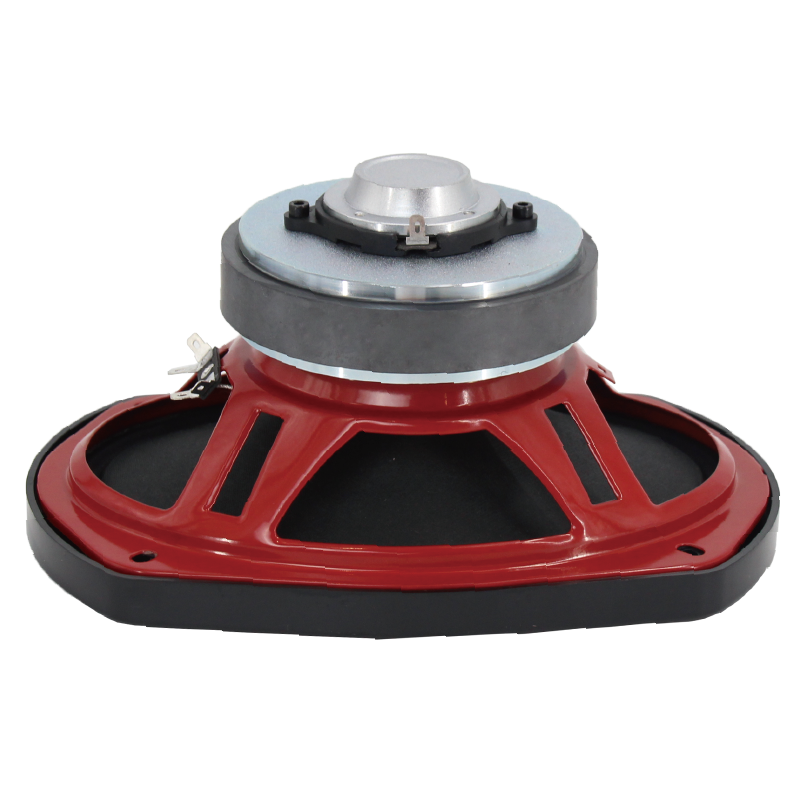

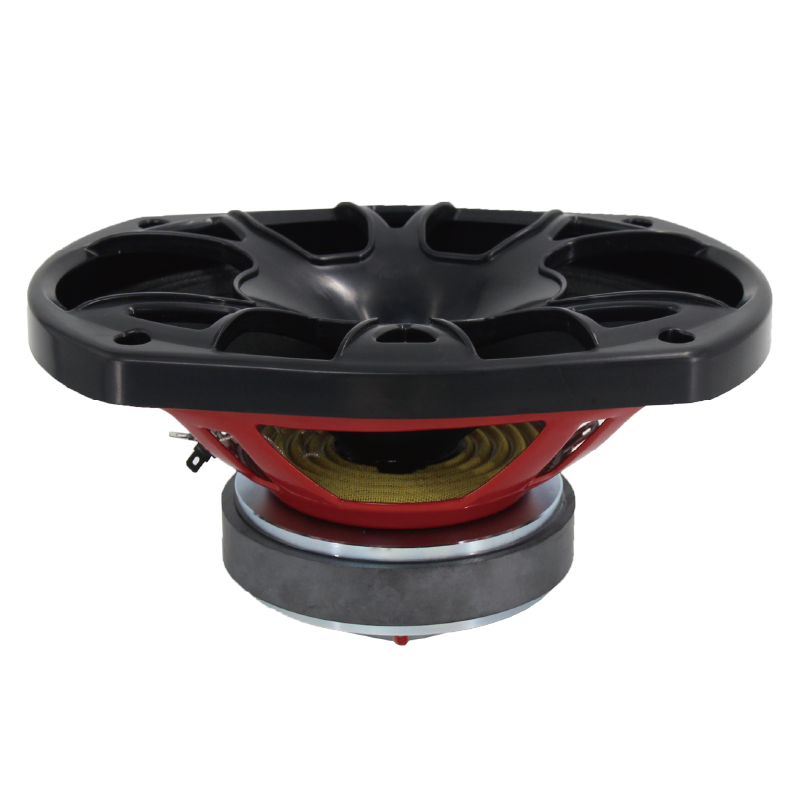

69FH24

6X9” Coaxial Speaker

  • 4Ω nominal impedance
  • 3.8Ω minimum impedance
  • 150W RMS capacity
  • 93 dB sensitivity
  • 110-20K Hz response
  • 38.6 mm(1.5 in) voice coil
69FH24 offers exceptional midrange clarity, making it perfect for reproducing vocals and detailed instrument tones.With a smooth, extended frequency response, it fills the gap between woofers and tweeters with precision. High power handling means it can operate without distortion, even in demanding setups. The durable construction ensures that it will withstand years of use.
  • GENERAL SPECIFICATIONS
  • DRIVER SPECIFICATIONS
  • THIELE SMALL PARAMETERS
  • EXTRA INFO
Nominal Chassis Diameter6X9/161.5X235 in/mm
MAX Power300 Watts
RMS Power150 Watts
Impedance4 Ohm
Resonance Frequency110 Hz
Frequency Response110-6000 Hz
Sensitivity(1W/1m)93 dB
Voice Coil Diameter1.5” / 38mm
Winding materialCCAW
Magnet33 Oz
MAX Power50 Watts
RMS Power25 Watts
Impedance8 Ohm
Frequency Response2k-20k Hz
Sensitivity（1W/1m)102 dB
Voice Coil Diameter1” / 25.5mm
Winding materialKCCAW



FS110 Hz
Vas19 L
RE3.8 Ohm
Qms9.3
Qes0.9
Qts0.8
BL5 T/m
MMS11.7 grams
Sd3.5 mm
Efficiency222 cm²
Le(1k Hz)1.3 %
EBP97
Overall Diameter9.2X6.3/235×161.5 in/mm
Baffle Circle Diameter6.5X4.5/165×116 in/mm
Baffle Cutout Diameter8.5X5.9/217X150 in/mm
Depth4.9/125 in/mm
Net Weight2.2 kgs
Shipping Weight2.7 kgs
Shipping Box25X19X14 cm
