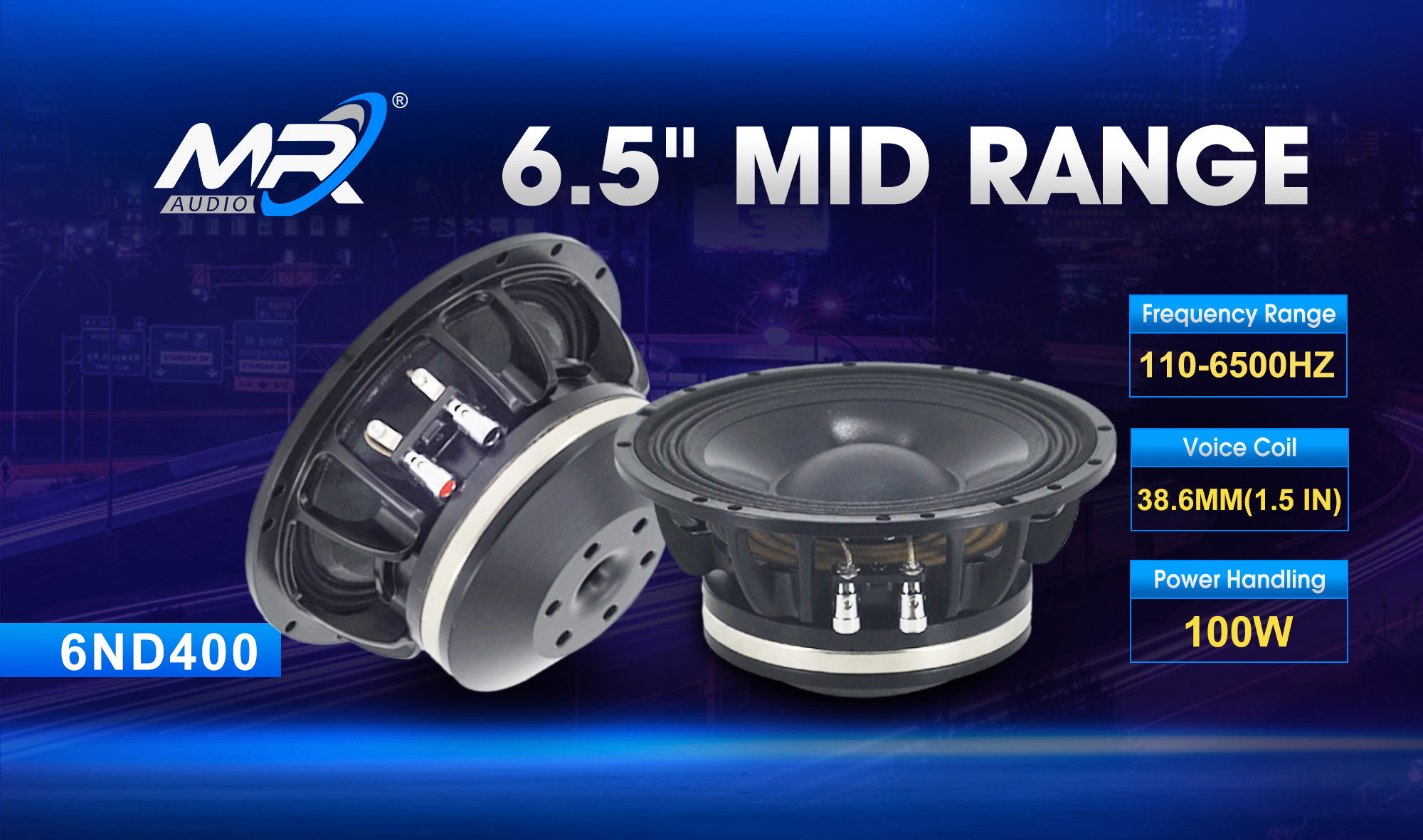

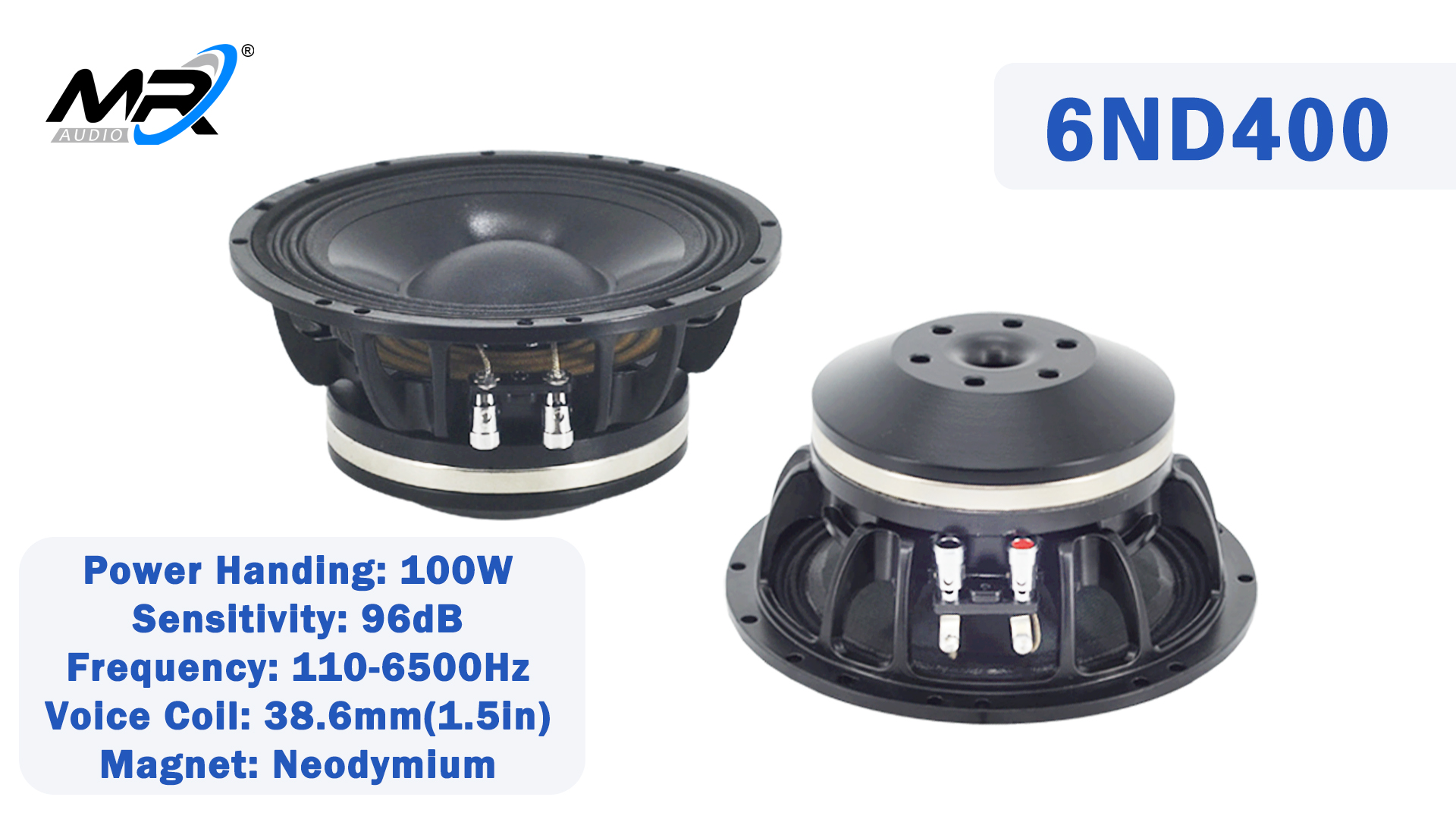

6ND400

6.5″Mid-Range Speaker
  • 8Ω nominal impedance
  • 6.2Ω minimum impedance
  • 100W RMS capacity
  • 96 dB sensitivity
  • 110-6500 Hz response
  • 38.6mm(1.5in) inside-outside voice coil

6ND400 is stable and strong, clear and direct. It optimizes the expansion space of the system and provides flexible drive options. Thermal efficiency and magnetron precision provide excellent midrange response and dynamic control. Ensure long-term high-output operation, and still stable sound in harsh environments; Outstanding system efficiency, easy pushing, and surging performance. It is an indispensable mid–range core unit in the construction of the system.

  • GENERAL SPECIFICATIONS
  • THIELE-SMALL PARAMETERS
  • EXTRA INFO
Nominal Diameter6.5/165 in/mm
MAX Power200 Watts
RMS Power100 Watts
Impedance8 Ohm
Resonance Frequency110 Hz
Frequency Response110-6500 Hz
Sensitivity(1W/1m)96 dB
Voice Coil Diameter1.5”/38.6mm
Voice Coil MaterialKSV
MagnetNeodymium
FS110 Hz
RE6.2 ohm
Qms10
Qes0.31
Qts0.3
BL15 T/m
MMS14 grams
Xmax3 mm
Sd127 cm²
Efficiency1.3 %
Overall Diameter6.5/165 in/mm
Bolt Circle Diameter5.9/151 in/mm
Baffle cutout Diameter5.7/145 in/mm
Depth3.2/82 in/mm
Net Weight1.85 kgs
Shipping Weight2.35 kgs
Shipping Box18.5X18.5X10.5cm

Highlights

  • 1.5”Inside/Out KSV voice coil wounded for hi-temp performance
  • 100 watts continuous power rating makes high acoustical output
  • Sleek look, smooth figure
  • 96dB sensitivity, Superior voice reproduction performance.
  • Powerful sound , high fidelity response

Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Enhanced bass control with precise acoustic algorithms.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Deep, powerful bass with realistic, elastic drum sounds.
Clear vocals and rich bass for an immersive music experience.
