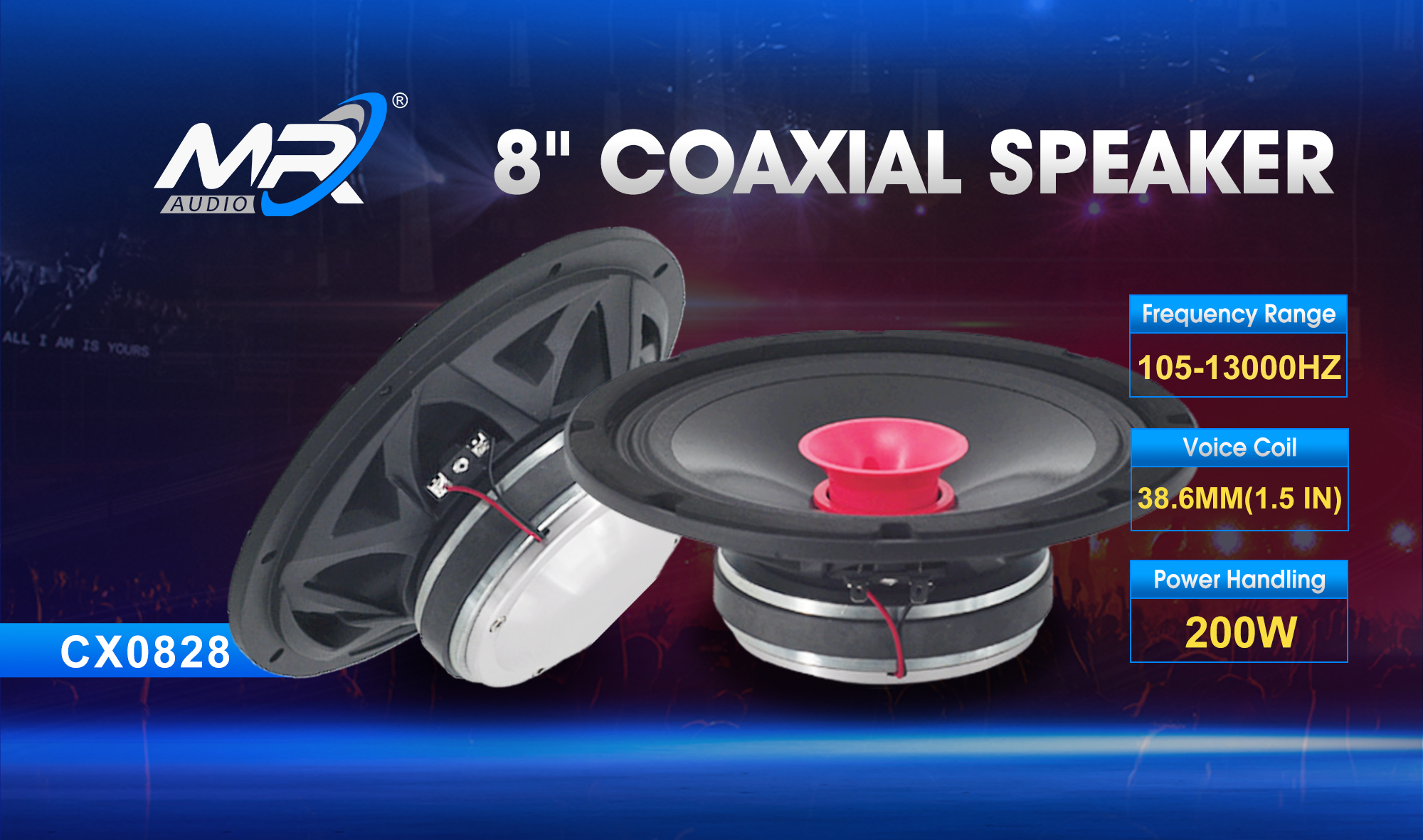

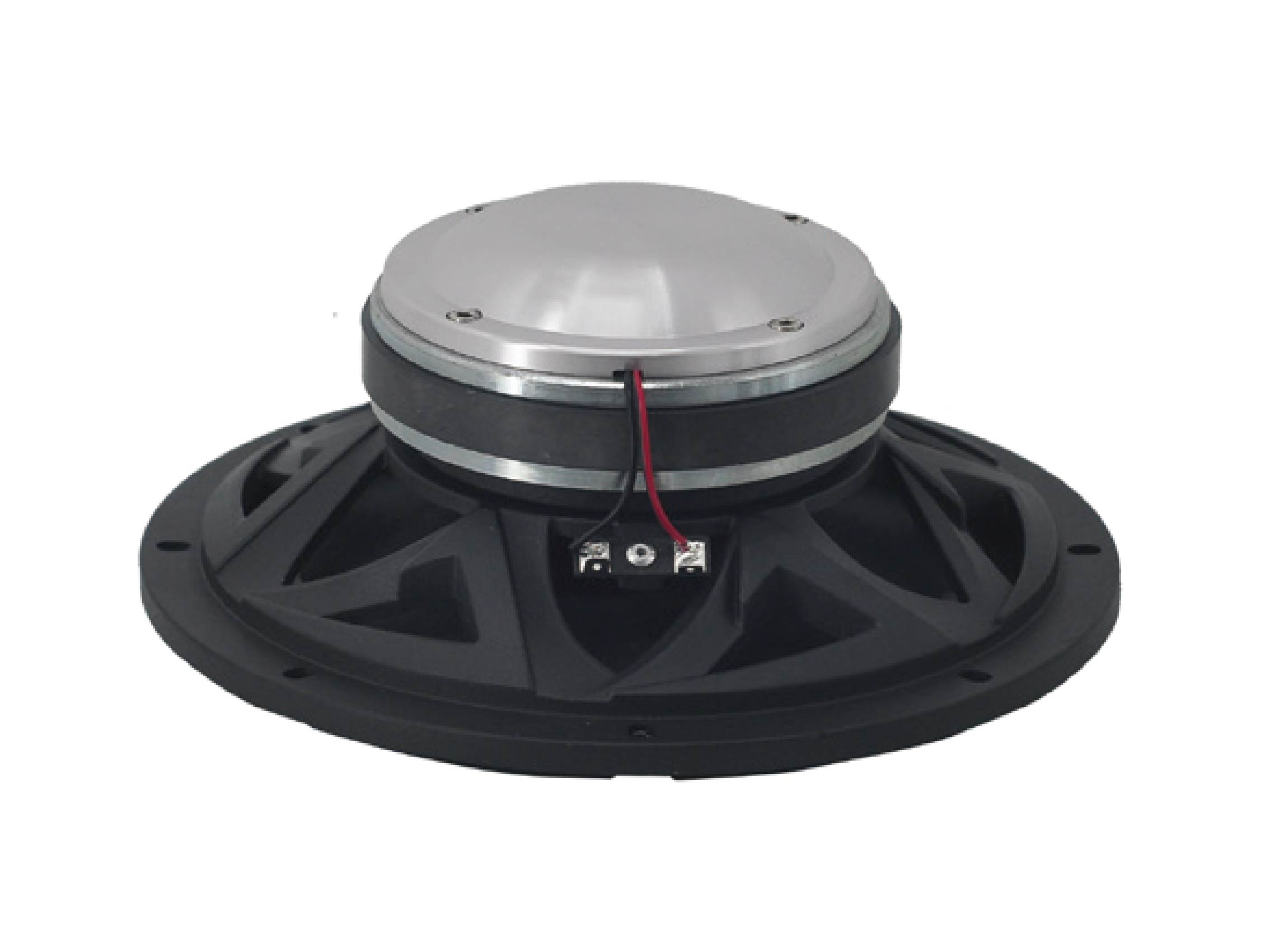

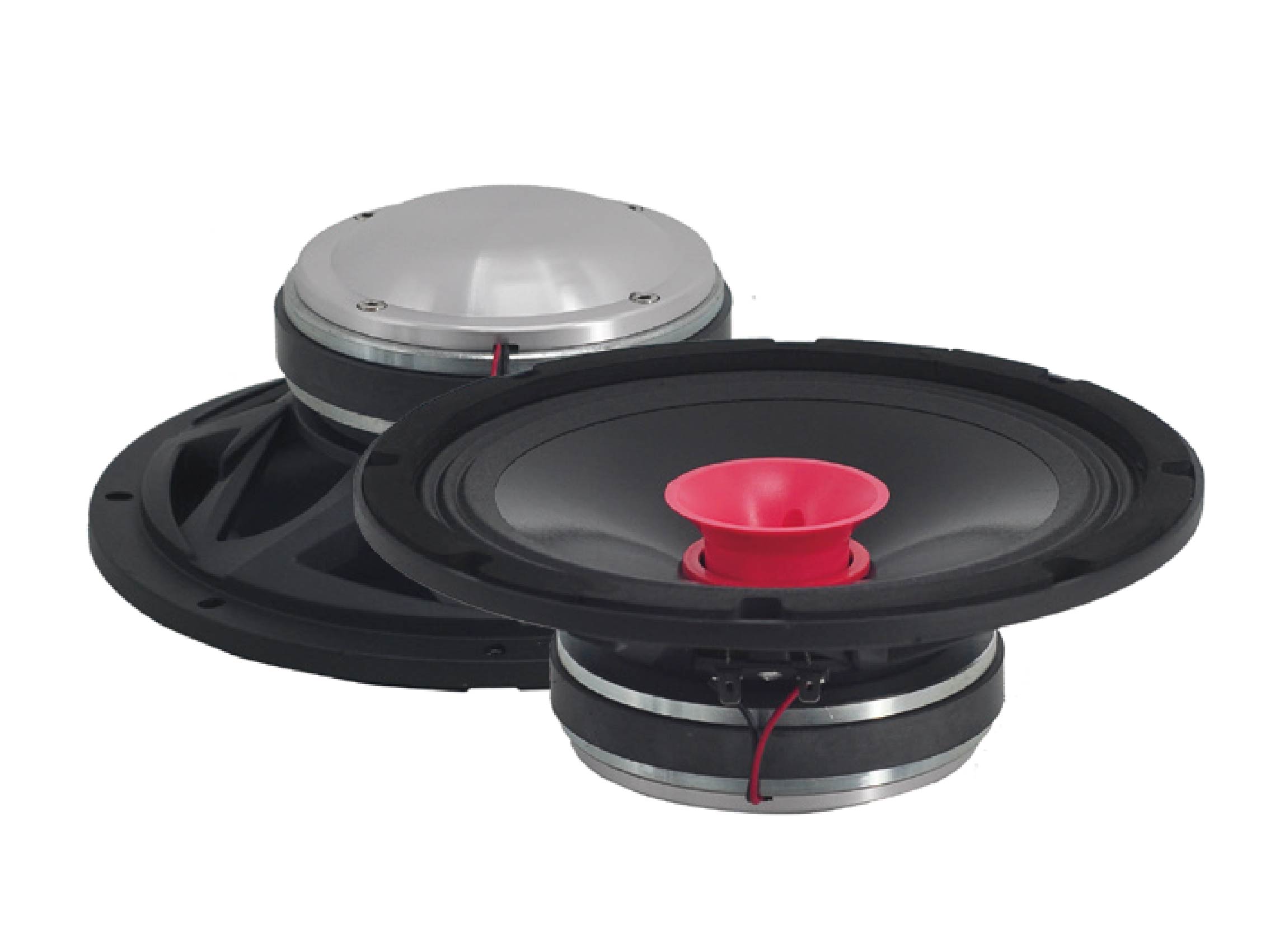

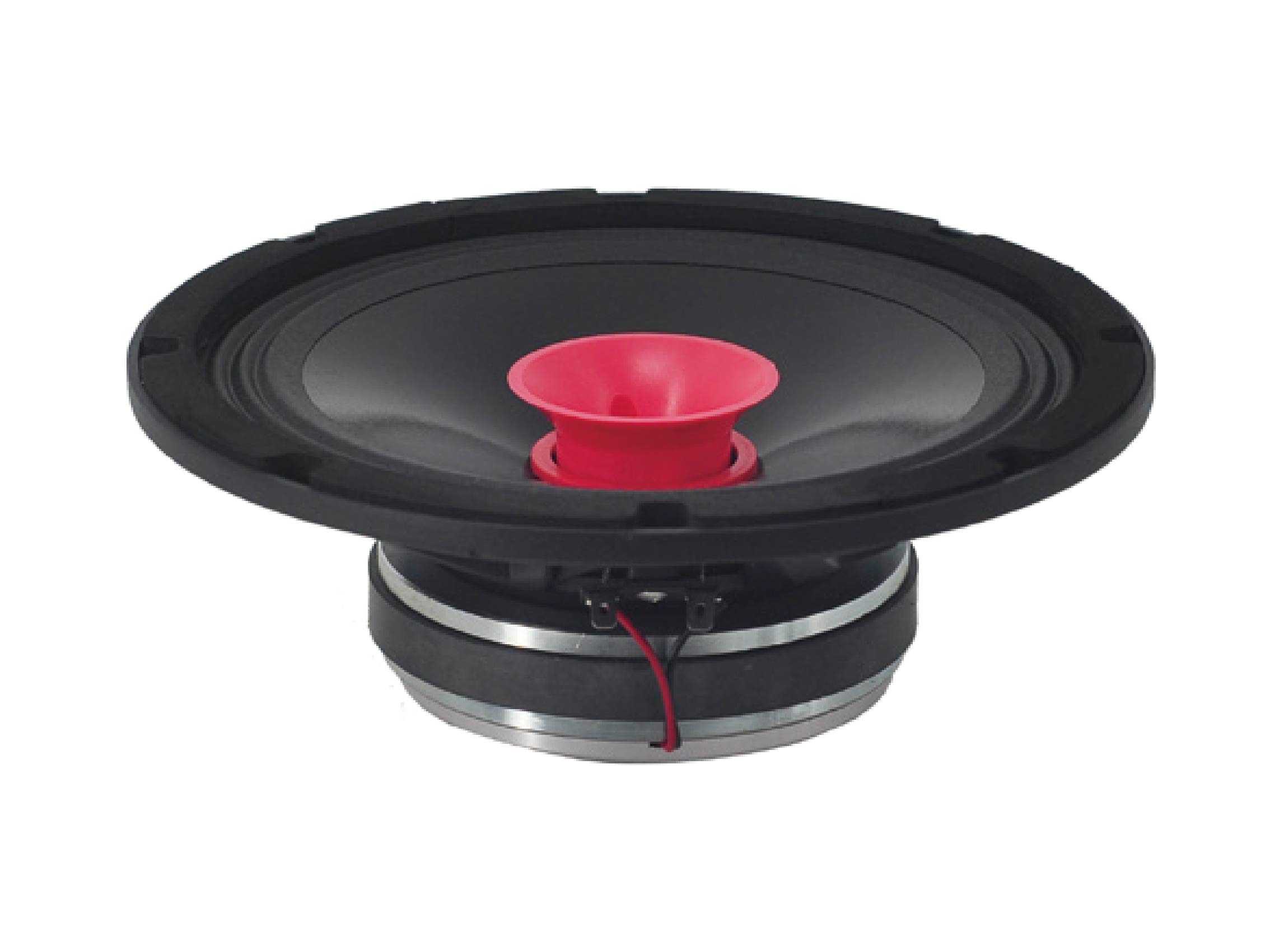

CX0828
8″Coaxial Speaker
- 4Ω nominal impedance
- 3.8Ω minimum impedance
- 120W RMS capacity
- 92/97 dB sensitivity
- 110-20K Hz response
- 38.6mm(1.5in) / 25mm(1in) inside-outside voice coil
CX0828 creates a 3D and immersive musical atmosphere in the car. The sense of energy is abundant, and there is no fear of dynamic changes, and every sound detail is accurately restored. Transient response and heat dissipation efficiency ensure stable and durable play back for a long time. It is highly compatible and easily adapts to a variety of systems, making it an ideal choice for sound quality upgrades. Let the music and driving synchronize and surge.
- GENERAL SPECIFICATIONS
- DRIVER SPECIFICATIONS
- THIELE SMALL PARAMETERS
- EXTRA INFO
| Nominal Chassis Diameter | 8/210 in/mm |
| MAX Power | 240 Watts |
| RMS Power | 120 Watts |
| Impedance | 4 0hm |
| Resonance Frequency | 110 Hz |
| Frequency Response | 110-4000 Hz |
| Sensitivity(1W/1m) | 92 dB |
| Voice Coil Diameter | 1.5” / 38mm |
| Winding material | KEI |
| Magnet | 20 Oz |
| Impedance | 4 0hm |
| Frequency Response | 3k-20k Hz |
| Sensitivity(1W/1m) | 97 dB |
| Voice Coil Diameter | 1” / 25mm |
| Winding material | CCAW |
| Diaphragm Material | Titanium |
| FS | 110 Hz |
| Vas | 6 L |
| RE | 3.8 ohm |
| Qms | 5.6 |
| Qes | 0.7 |
| Qts | 0.66 |
| BL | 8 T/m |
| MMS | 20 grams |
| Sd | 214 cm² |
| Efficiency | 1.1 % |
| Le(1k Hz) | 0.34 mH |
| EBP | 167 |
| Overall Diameter | 8/210 in/mm |
| Baffle Cutout Diameter | 7.6/195 in/mm |
| Depth | 3.3/85 in/mm |
| Net Weight | 1.85 kgs |
| Shipping Weight | 2.25 kgs |
| Shipping Box | 23.5X23.5X13.5 cm |
