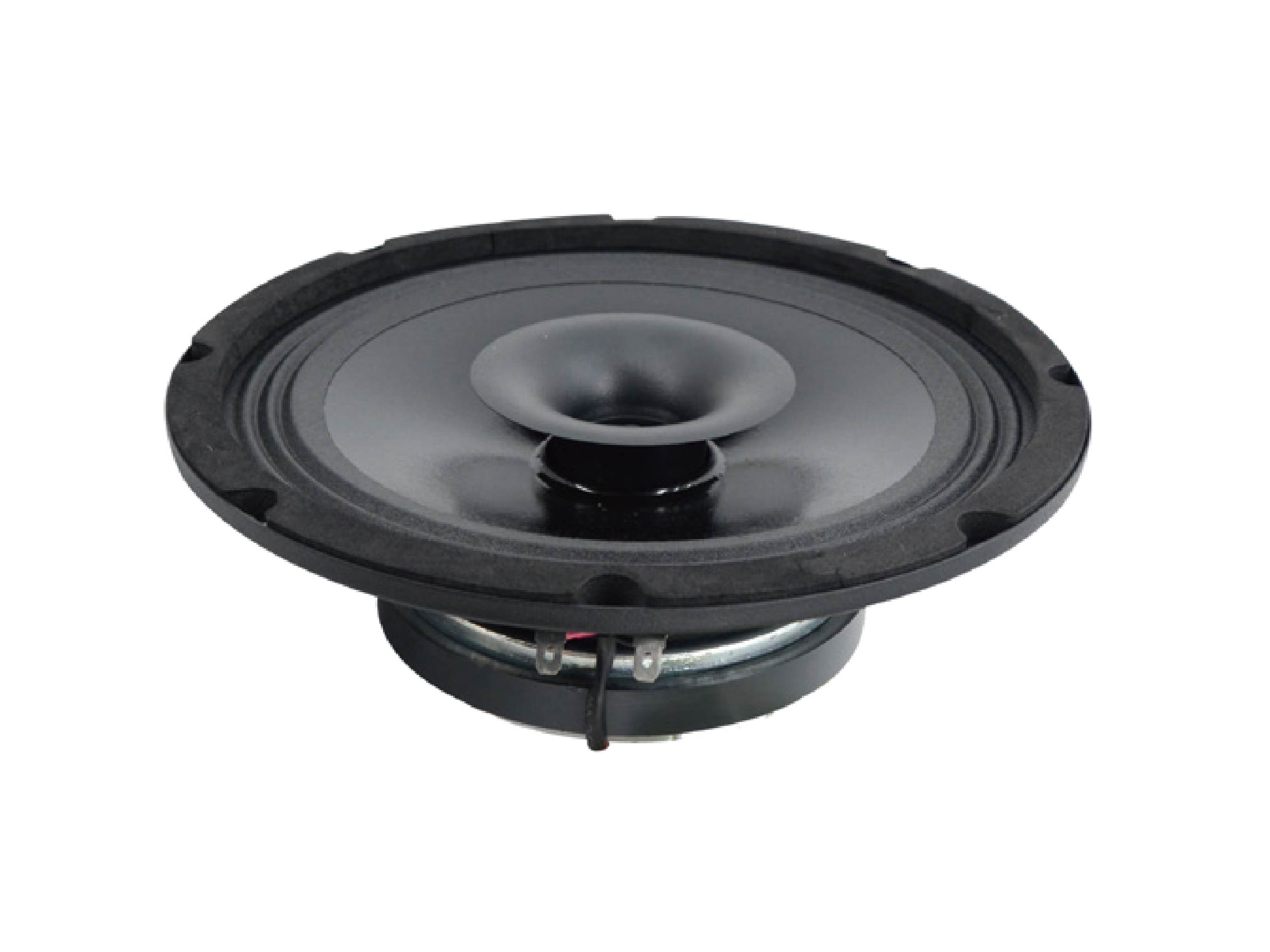

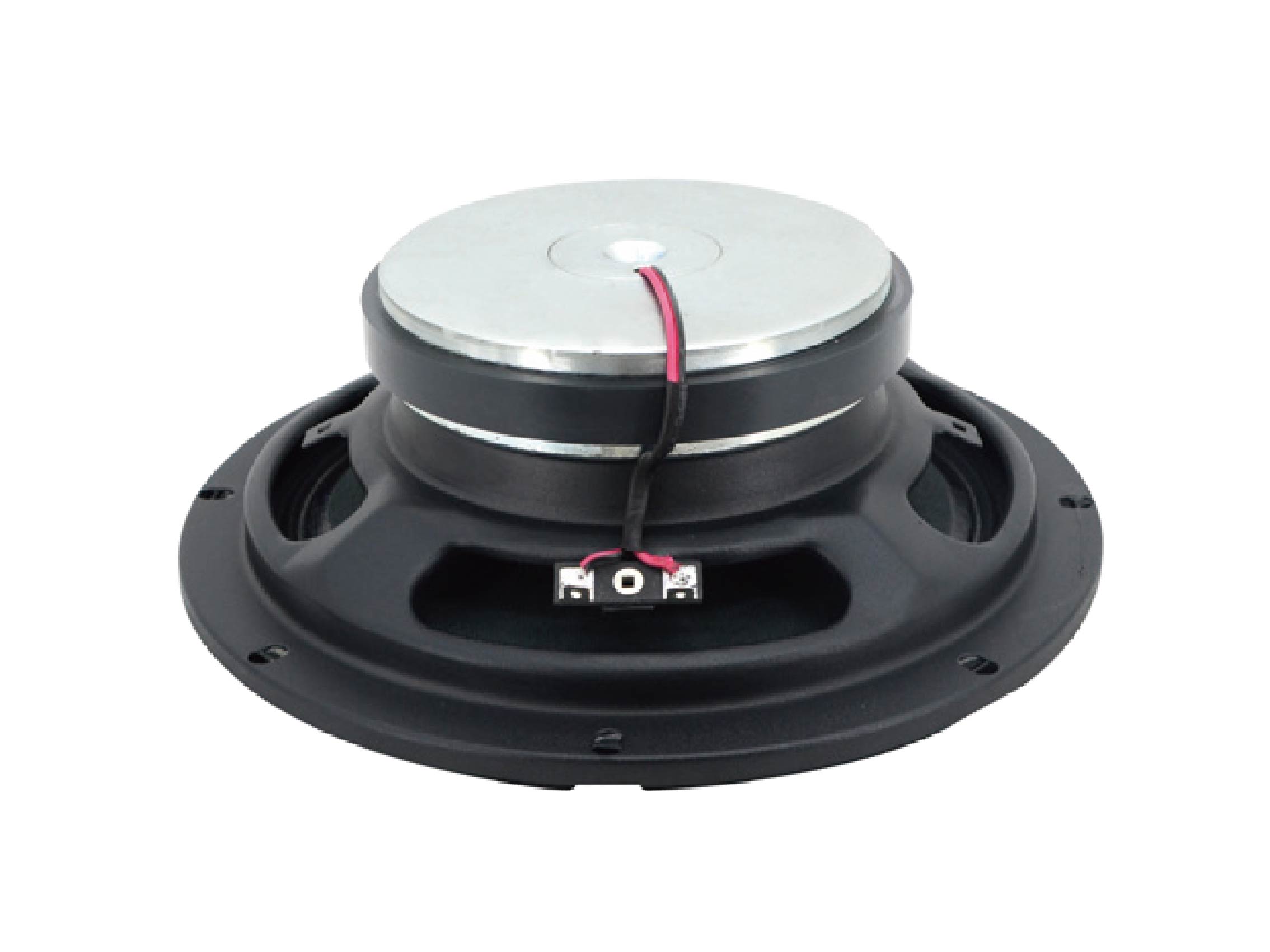

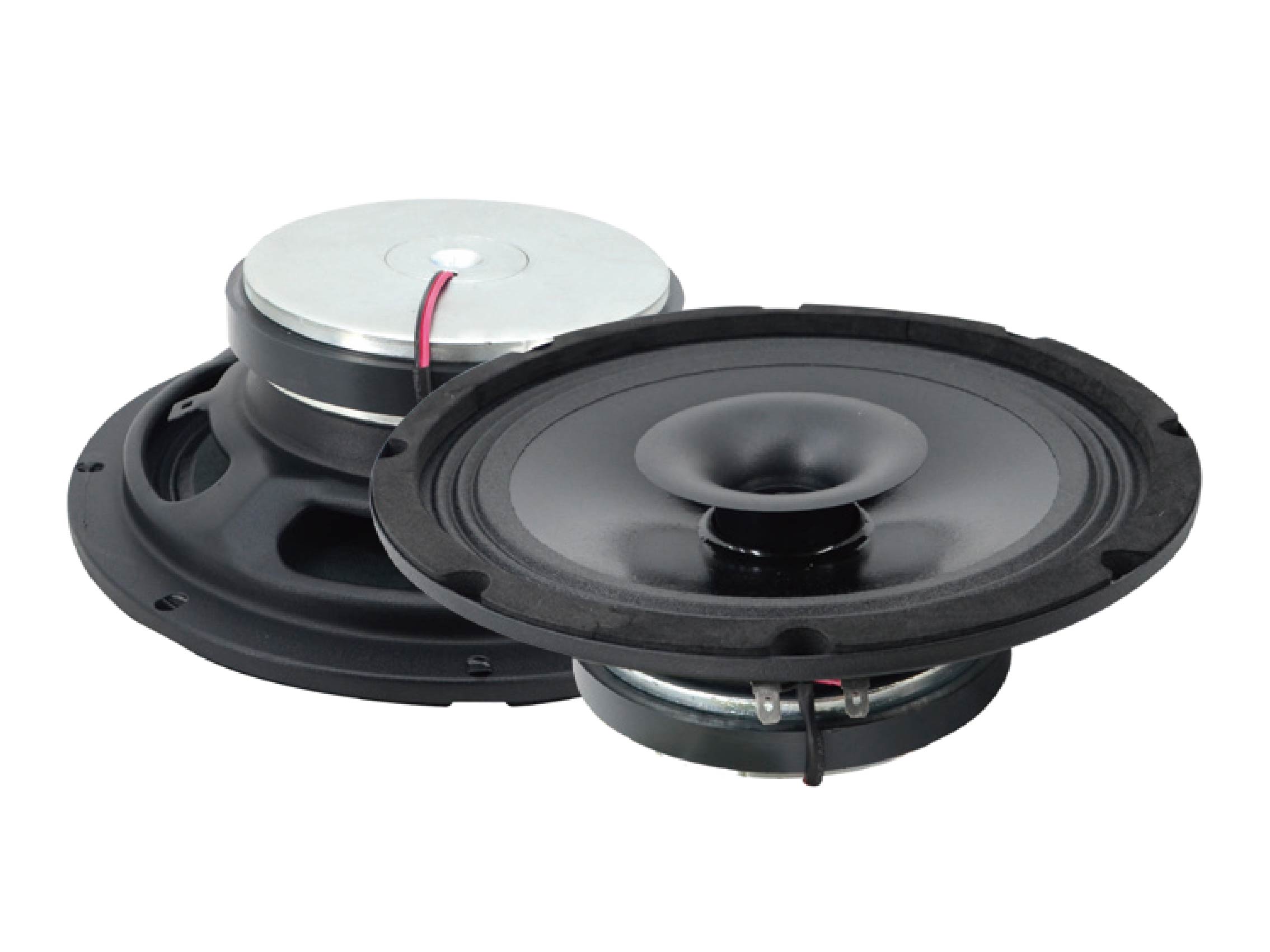

CX0838
8″Coaxial Speaker
- 4Ω nominal impedance
- 3.6Ω minimum impedance
- 160W RMS capacity
- 80W AES capacity
- 95 dB sensitivity
- 100-20000 Hz response
- 38.6mm(1.5in) inside-outside voice coil
CX0838 unleashes a immersive listening experience in the confined spaces of the vehicle. Deliver full sound pressure and rich detail, with power and resolution. Ultra-wide frequency response range, easy to control a variety of styles. Power carrying capacity and thermal stability guarantee Hi-Fi performance even at high output for long periods of time. Let the listening be sublimated in the cabin – unleashing the true aesthetics of sound.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 10/250 in/mm |
| MAX Power | 1000 Watts |
| RMS Power | 500 Watts |
| Impedance | 4+4 Ohm |
| Resonance Frequency | 35 Hz |
| Frequency Response | 35-400 Hz |
| Sensitivity(1W/1m) | 83 dB |
| Voice Coil Diameter | 2.4”/60.6mm |
| Voice Coil Material | BASV |
| Magnet | 112 Oz |
| FS | 35 Hz |
| RE | 3.2+3.2 ohm |
| Qms | 5.4 |
| Qes | 0.82 |
| Qts | 0.71 |
| BL | 13 T/m |
| MMS | 207 grams |
| Xmax | 21 mm |
| Sd | 340 cm² |
| Efficiency | 0% |
| Le(1k Hz) | 49 mH |
| Overall Diameter | 10/262 in/mm |
| Bolt Circle Diameter | 6.1/243 in/mm |
| Baffle cutout Diameter | 9/232 in/mm |
| Depth | 6.7/172 in/mm |
| Net Weight | 7.25 kgs |
| Shipping Weight | 8.05 kgs |
| Shipping Box | 28.5X28.5X20cm |
Highlights
- 10’’Inside/Out BASV voice coil wounded for hi-temp performance, 4+4ohms
- 800watts continuous program power rating makes high acoustical output
- Sleek look, smooth figure
- 81dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Enhanced bass control with precise acoustic algorithms.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Deep, powerful bass with realistic, elastic drum sounds.
Clear vocals and rich bass for an immersive music experience.
