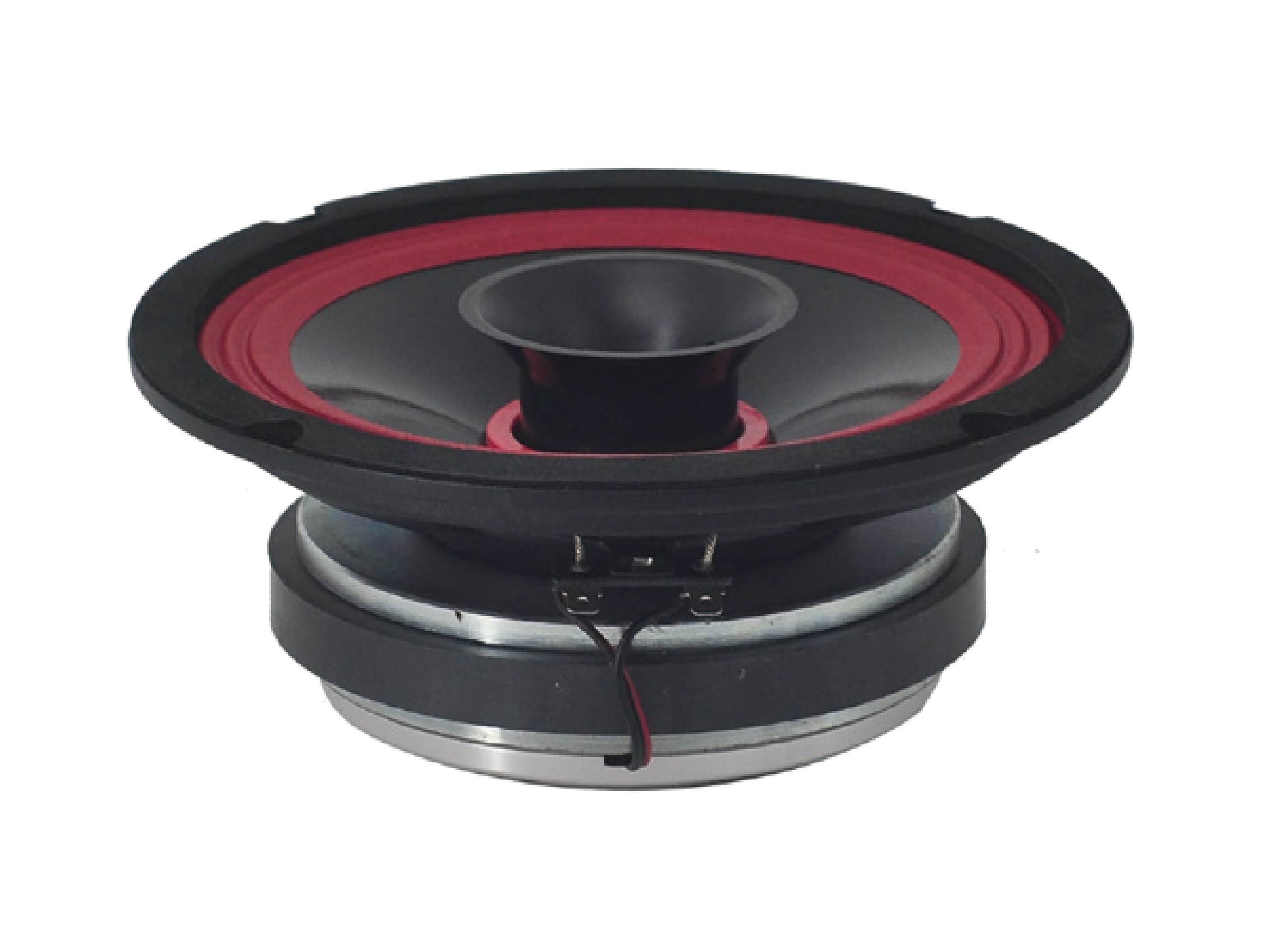

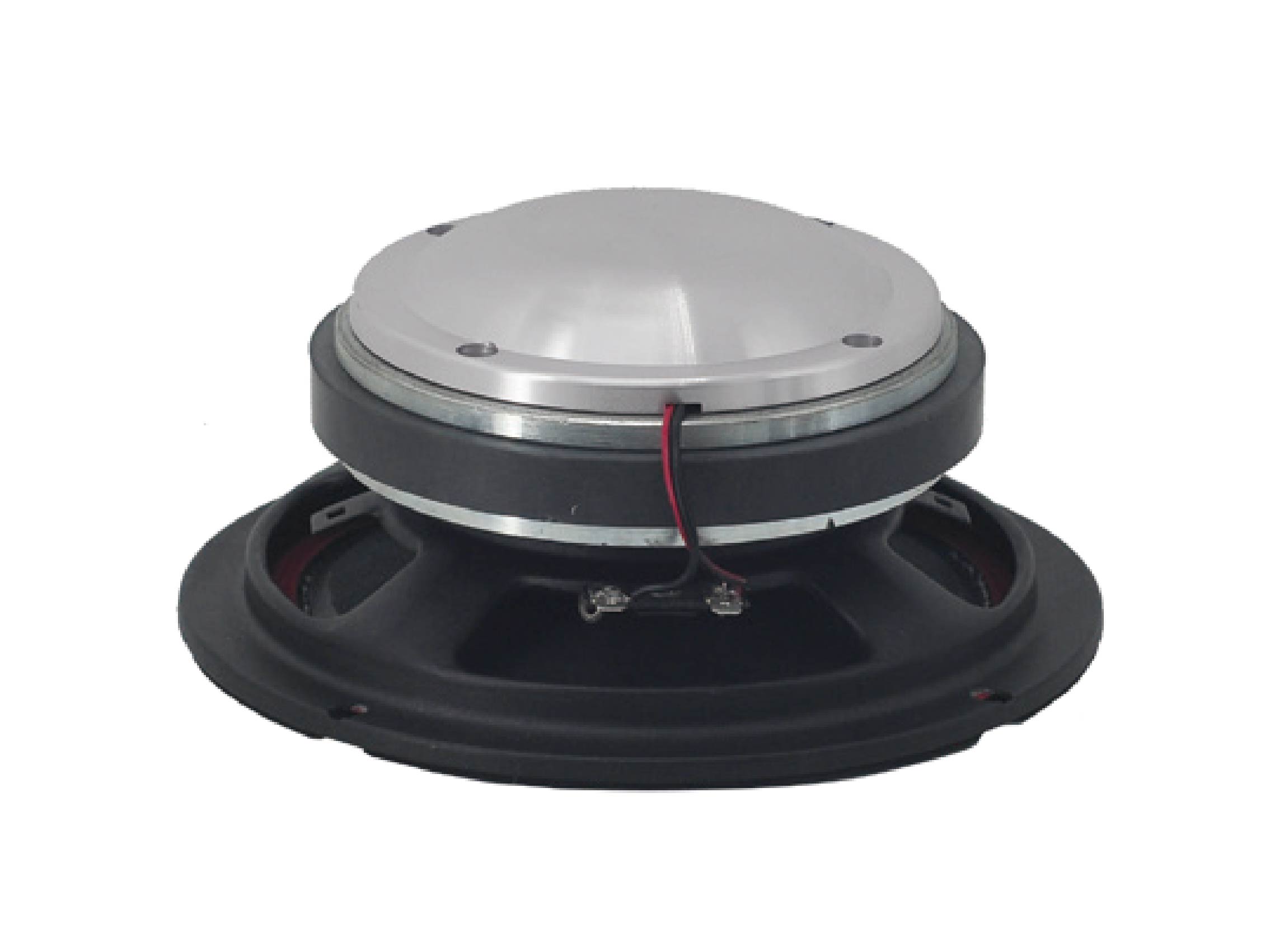

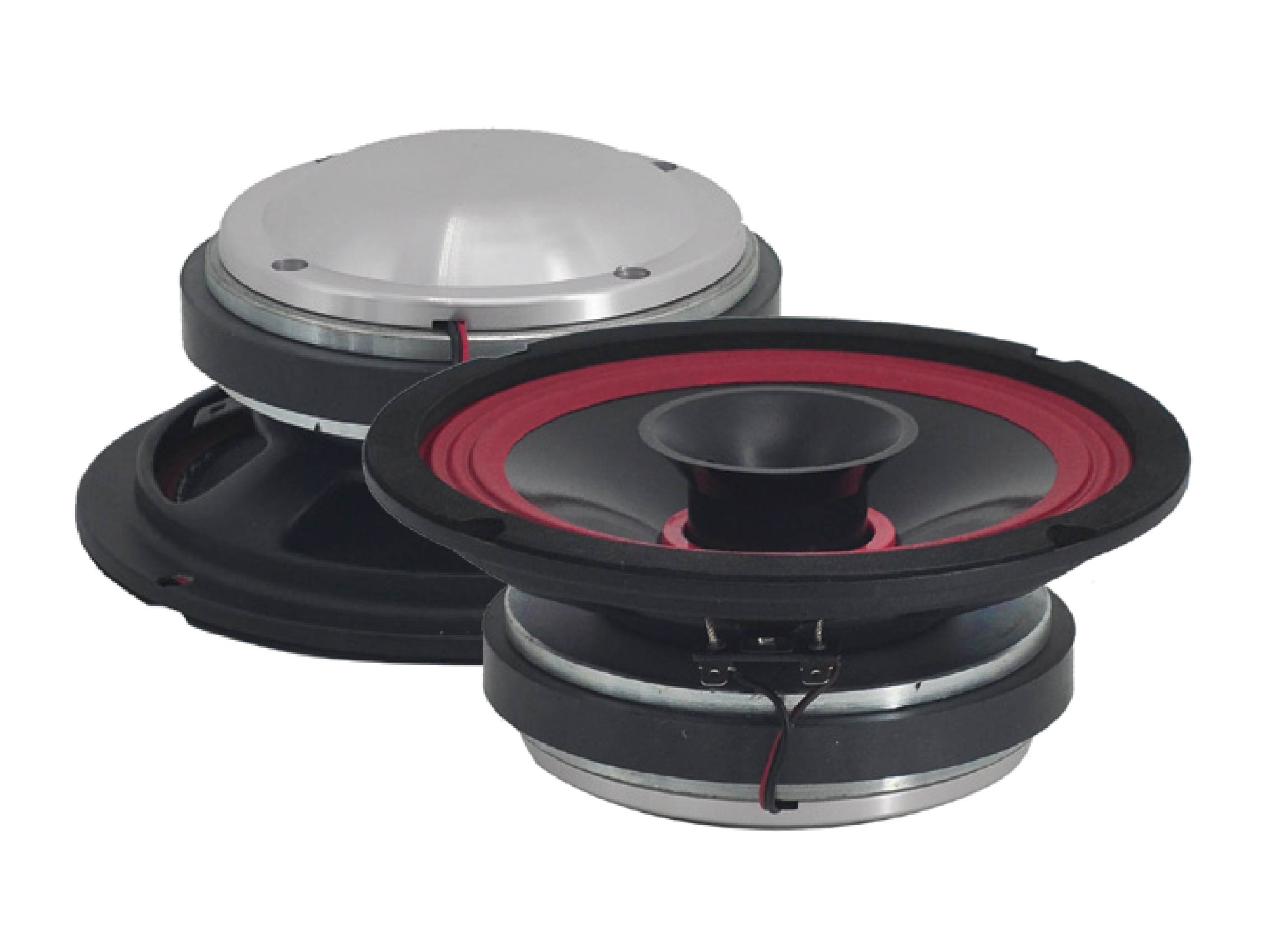

CX6527
6.5″Coaxial Speaker
- 4Ω nominal impedance
- 3.6Ω minimum impedance
- 100W RMS capacity
- 92/97 dB sensitivity
- 175-20K Hz response
- 38.6mm(1.5in) / 25mm(1in) inside-outside voice coil
CX6527 combines high performance with a compact design. Clear, full sound performance erupts in a confined space, with details advancing layer by layer. Wide frequency response makes melody clear and perceptible. Transient response and heat resistance ensure stable playback for a long time. Precise positioning and concentrated sound field enhance the overall listening experience. The integrated structure releases the stereo sense and creates a surround auditory feast in the car.
- GENERAL SPECIFICATIONS
- DRIVER SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Chassis Diameter | 6.5/165 in/mm |
| MAX Power | 200 Watts |
| RMS Power | 100 Watts |
| Impedance | 4 Ohm |
| Resonance Frequency | 175 Hz |
| Frequency Response | 175-4500 Hz |
| Sensitivity(1W/1m) | 92 dB |
| Voice Coil Diameter | 1.5” / 38mm |
| Winding material | KEI |
| Magnet | 20 Oz |
| Impedance | 8 Ohm |
| Frequency Response | 3k-20k Hz |
| Sensitivity（1W/1m) | 97 dB |
| Voice Coil Diameter | 1” / 25mm |
| Winding material | CCAW |
| Diaphragm Material | Titanium |
| FS | 175 Hz |
| Vas | 2 L |
| RE | 3.6 ohm |
| Qms | 9.2 |
| Qes | 1 |
| Qts | 0.97 |
| BL | 6.7 T/m |
| MMS | 12 grams |
| Sd | 137 cm² |
| Efficiency | 0.8 % |
| Le(1k Hz) | 0.37 mH |
| EBP | 180 |
| Overall Diameter | 6.5/165 in/mm |
| Baffle Cutout Diameter | 6.1/155 in/mm |
| Depth | 3.1/78 in/mm |
| Net Weight | 1.7 kgs |
| Shipping Weight | 2 kgs |
| Shipping Box | 18.5X18.5X10.5 cm |
Highlights
- 10’’Inside/Out BASV voice coil wounded for hi-temp performance, 4+4ohms
- 800watts continuous program power rating makes high acoustical output
- Sleek look, smooth figure
- 81dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Enhanced bass control with precise acoustic algorithms.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Deep, powerful bass with realistic, elastic drum sounds.
Clear vocals and rich bass for an immersive music experience.
