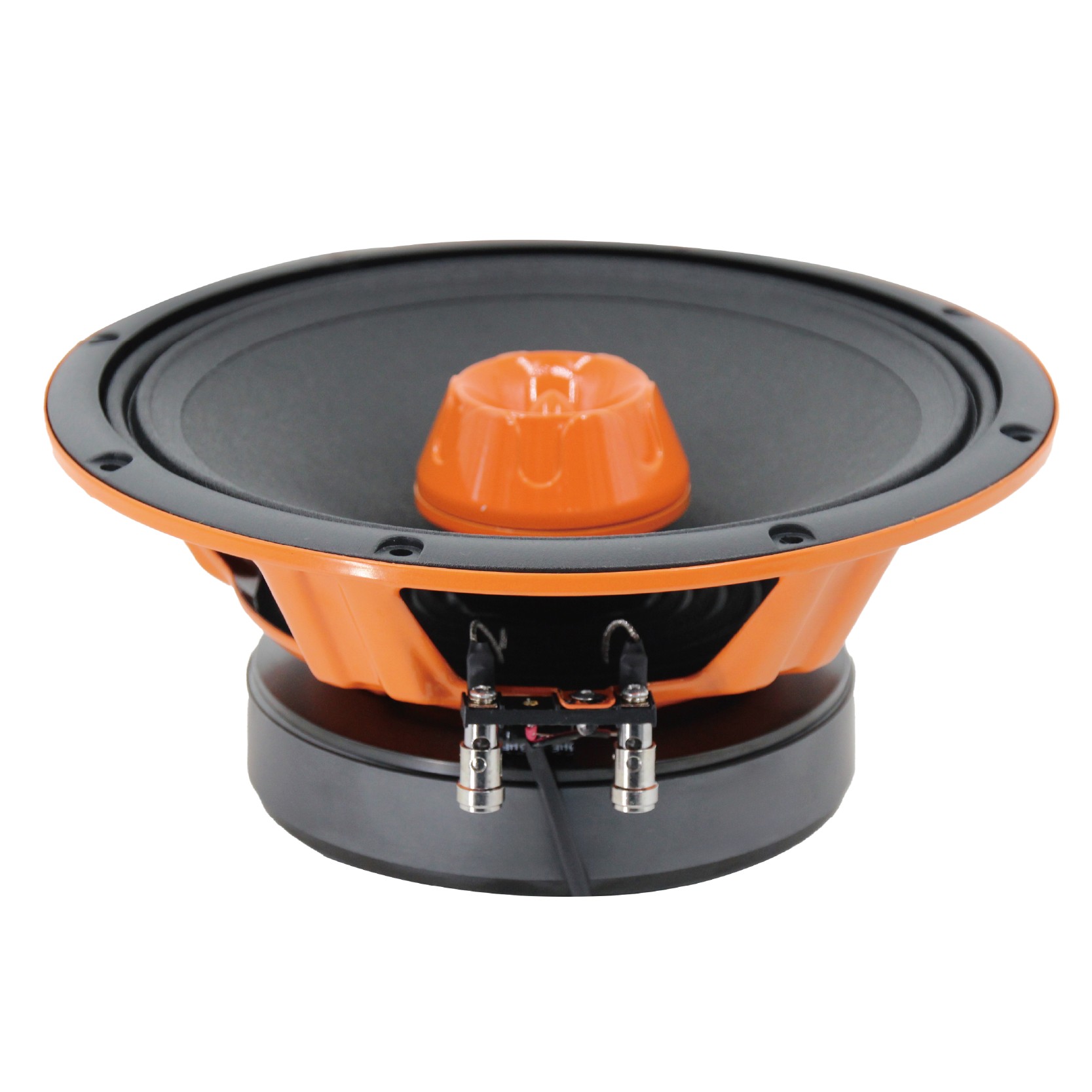

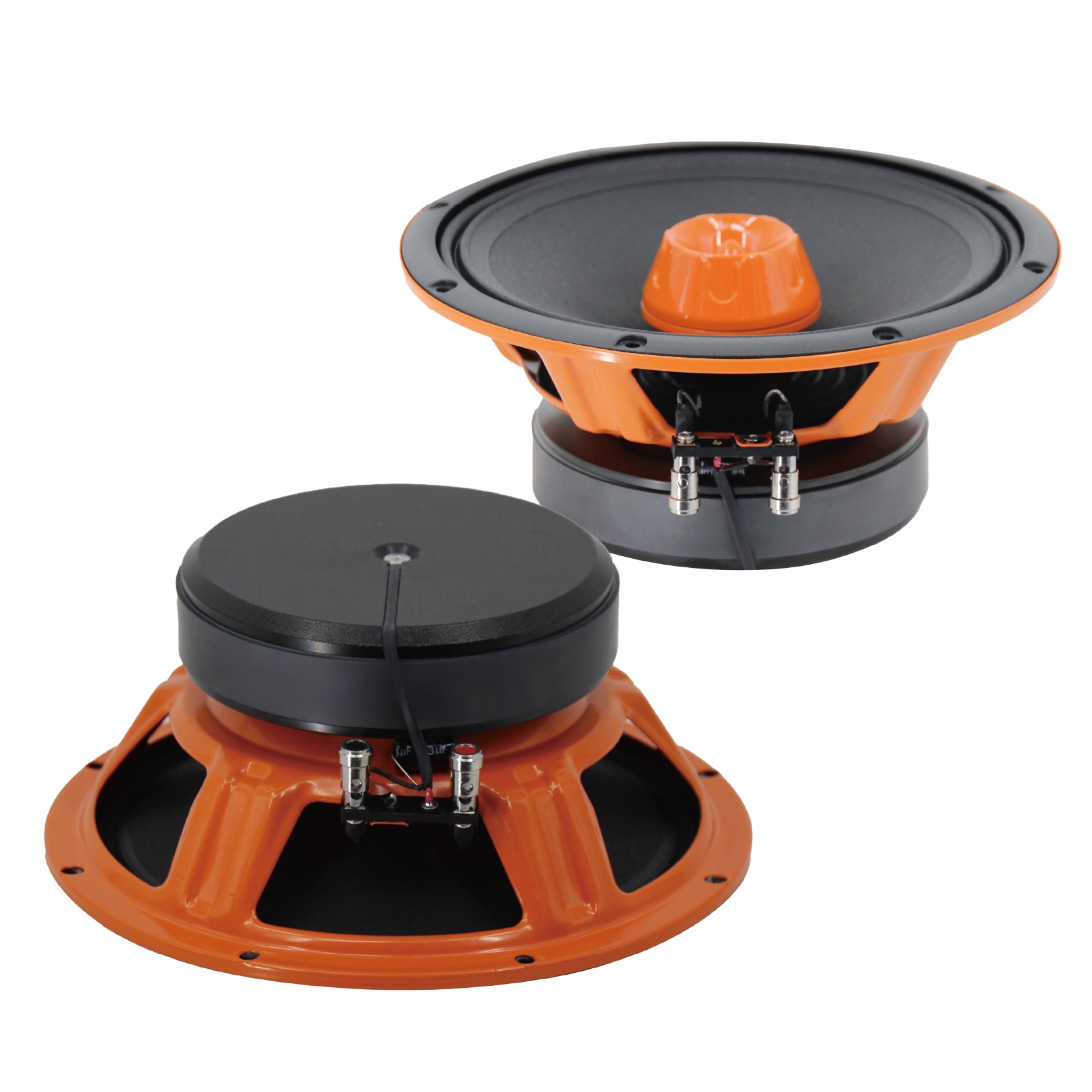

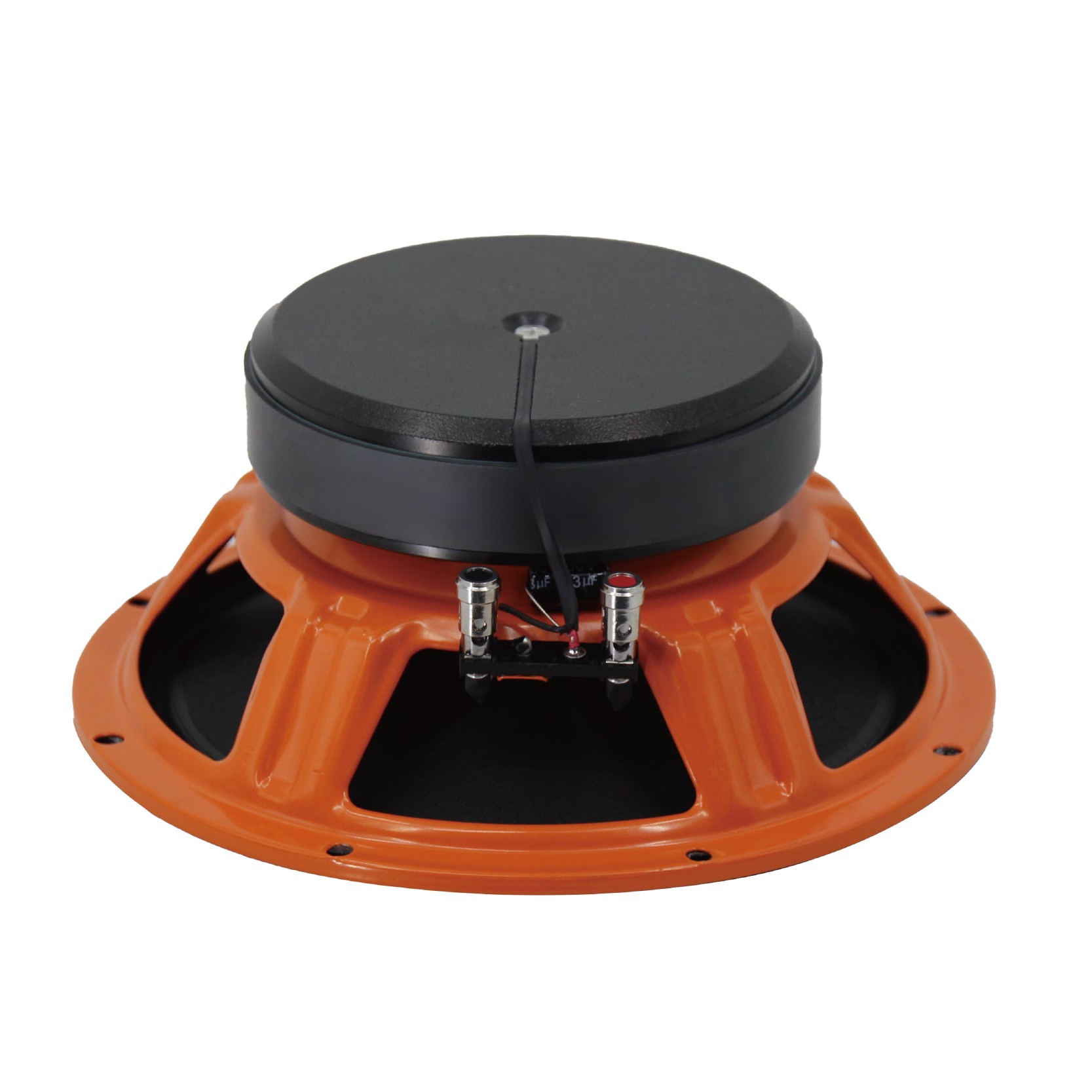

CX81SE

8” Mid-Range Speaker

  • 4Ω nominal impedance
  • 3.4Ω minimum impedance
  • 170W RMS capacity
  • 96 dB sensitivity
  • 100-20k Hz response
  • 38.6mm(1.5in) inside-outside voice coil

CX81SE Restoring the core of music, this midrange speaker showcases detailed and rich midrange frequencies with a natural, clear tone that provides a soothing listening experience. Its expertly designed structure ensures accurate sound reproduction, highlighting transparent vocals and seamless instrumental dynamics. The efficient magnetic circuit enhances sound clarity and positioning, delivering soft, warm midrange frequencies with excellent resolution.

Nominal Chassis Diameter8/205 in/mm
MAX Power340 Watts
RMS Power170 Watts
Impedance4 Ohm
Resonance Frequency100 Hz
Frequency Response100-20k Hz
Sensitivity(1W/1m)96 dB
Voice Coil Diameter1.5” / 38.6mm
Winding materialCCAW
Magnet40 Oz



FS100 Hz
Vas14.4 dm3
RE3.4 ohm
Qms9.97
Qes0.50
Qts0.48
BL7.9 T/m
MMS14.1 grams
Xmax2.2 mm
Sd240 cm²
Efficiency2.80 %
EBP200



Overall Diameter8.2/208 in/mm
Bolt Cirde Diameter7.7/197 in/mm
Baffle cutout Diameter7.5/190 in/mm
Depth3.8/98 in/mm
Net Weight2.75 kgs
Shipping Weight2.85 kgs
Shipping Box23.5X23.5X13.5 cm
