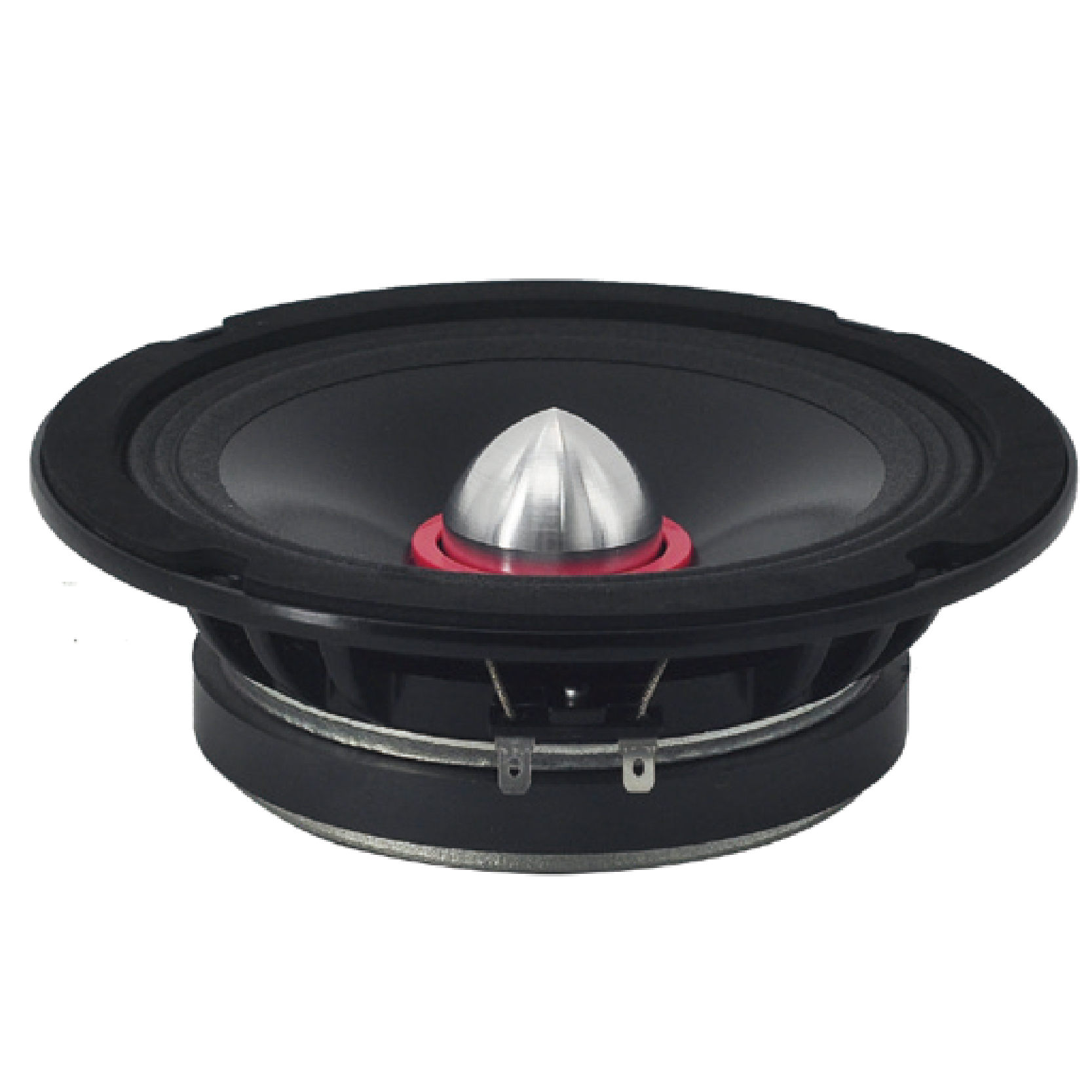

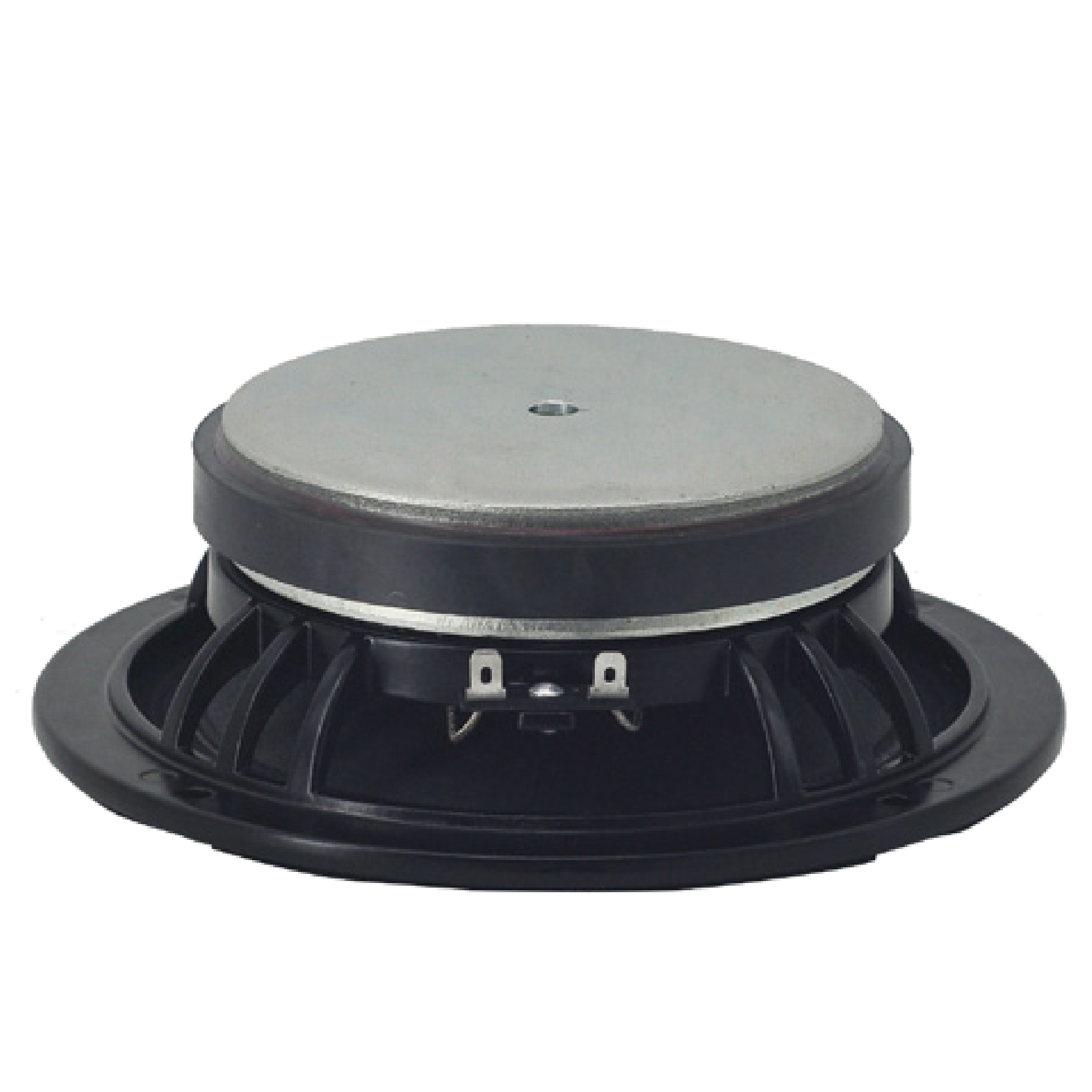

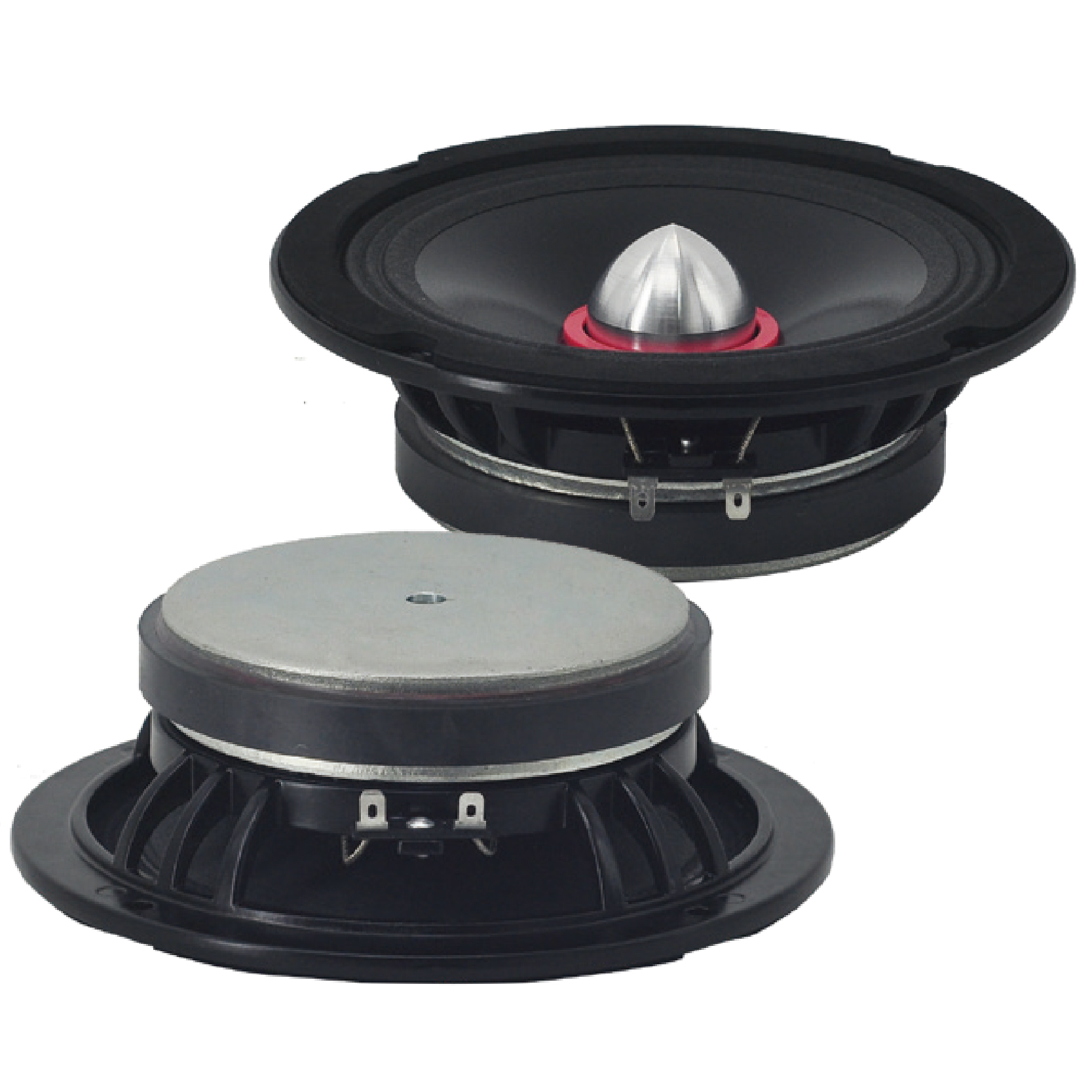

DB65
6.5″Mid-Range Speaker
- 4Ω nominal impedance
- 4Ω minimum impedance
- 40W RMS capacity
- 80W AES capacity
- 92 dB sensitivity
- 105-9500 Hz response
- 38mm(1.5in) inside-outside voice coil
DB65 is built for car audio systems to ensure efficient and smooth audio signal transmission. Excellent performance in the mid-band, balancing dynamics and clarity. The response smoothly connect from low to mid and high frequencies ensures that the details are truly restored. As a mid-range service in the audio system, it is ideal for building high-fidelity car sound fields. Clear, balanced, powerful – the true value of the midrange is heard from this moment.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 6.5/165 in/mm |
| MAX Power | 80 Watts |
| RMS Power | 40 Watts |
| Impedance | 4 Ohm |
| Resonance Frequency | 105 Hz |
| Frequency Response | 105-9500 Hz |
| Sensitivity(1W/1m) | 92 dB |
| Voice Coil Diameter | 1.5”/38mm |
| Voice Coil Material | KSV |
| Magnet | 20 Oz |
| FS | 105 Hz |
| RE | 4 ohm |
| Qms | 12 |
| Qes | 0.69 |
| Qts | 0.65 |
| BL | 8 T/m |
| MMS | 10 grams |
| Xmax | 2 mm |
| Sd | 123 cm² |
| Efficiency | 0.88 % |
| Overall Diameter | 6.5/175 in/mm |
| Bolt Circle Diameter | 6.3/160 in/mm |
| Baffle cutout Diameter | 5.5/139 in/mm |
| Depth | 2.3/58 in/mm |
| Net Weight | 1.6 kgs |
| Shipping Weight | 2 kgs |
| Shipping Box | 18.5X18.5X10.5cm |
Highlights
- 1.5”Inside/Out KSV voice coil wounded for hi-temp performance
- 40watts continuous power rating makes high acoustical output
- Sleek look, smooth figure
- 92dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Enhanced bass control with precise acoustic algorithms.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Deep, powerful bass with realistic, elastic drum sounds.
Clear vocals and rich bass for an immersive music experience.
