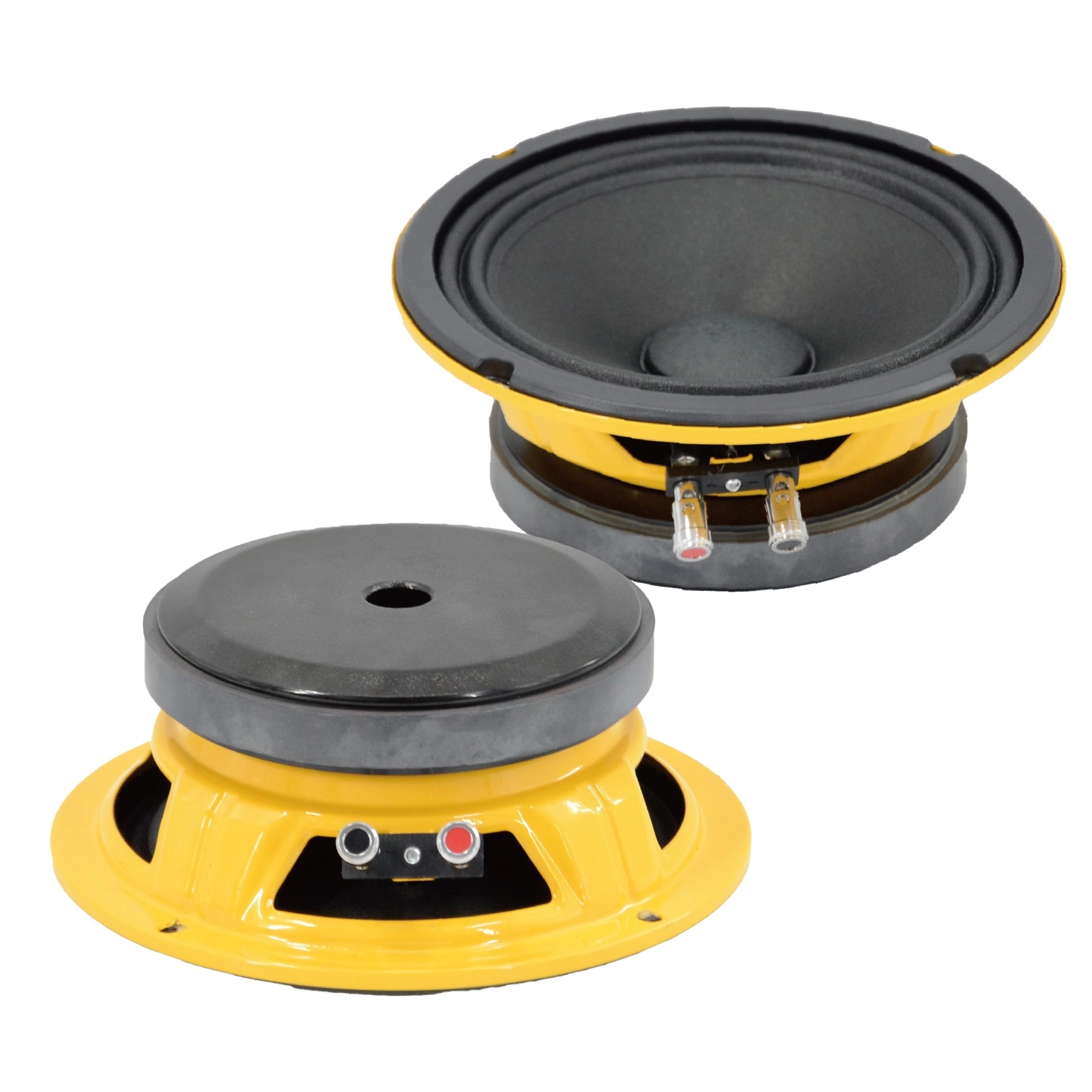

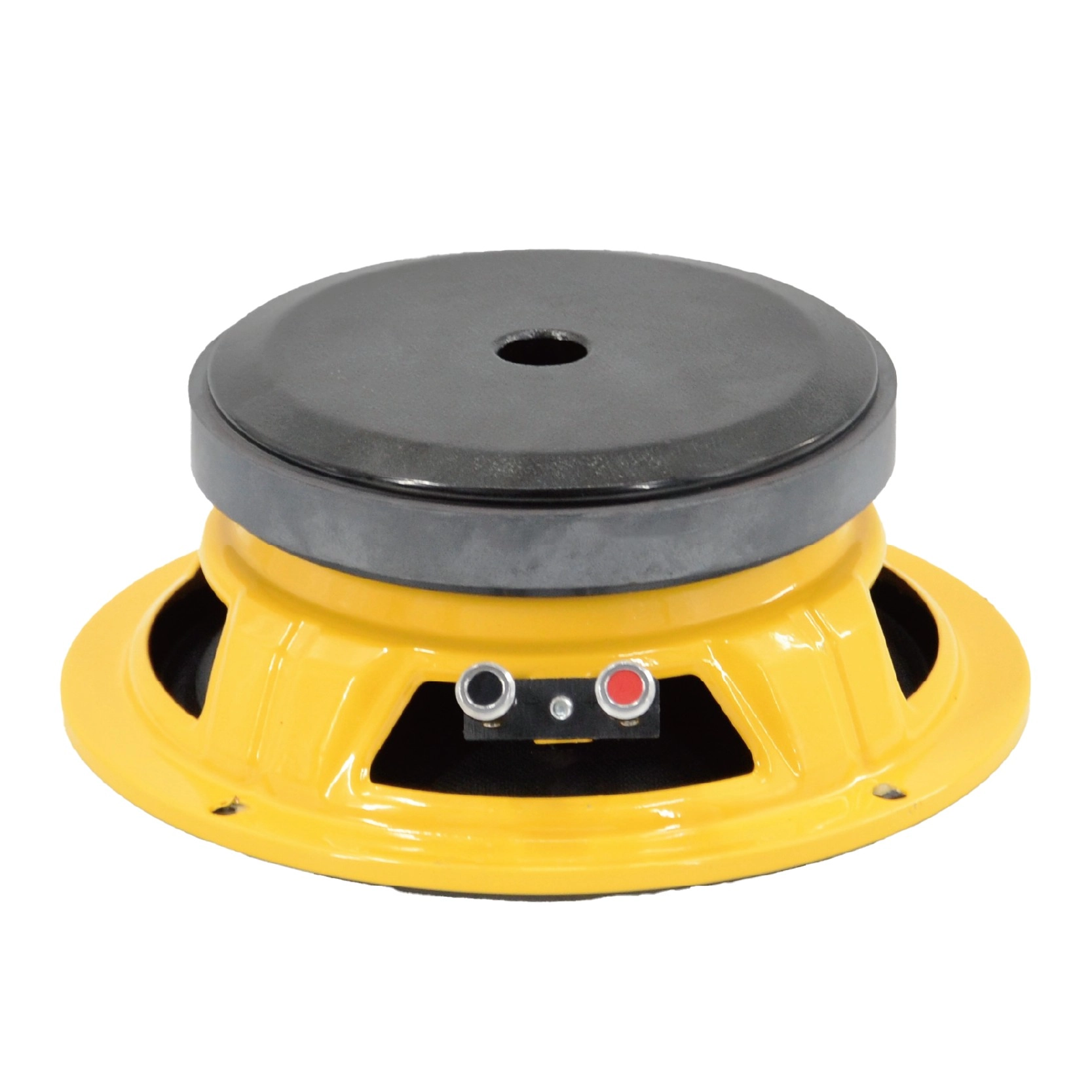

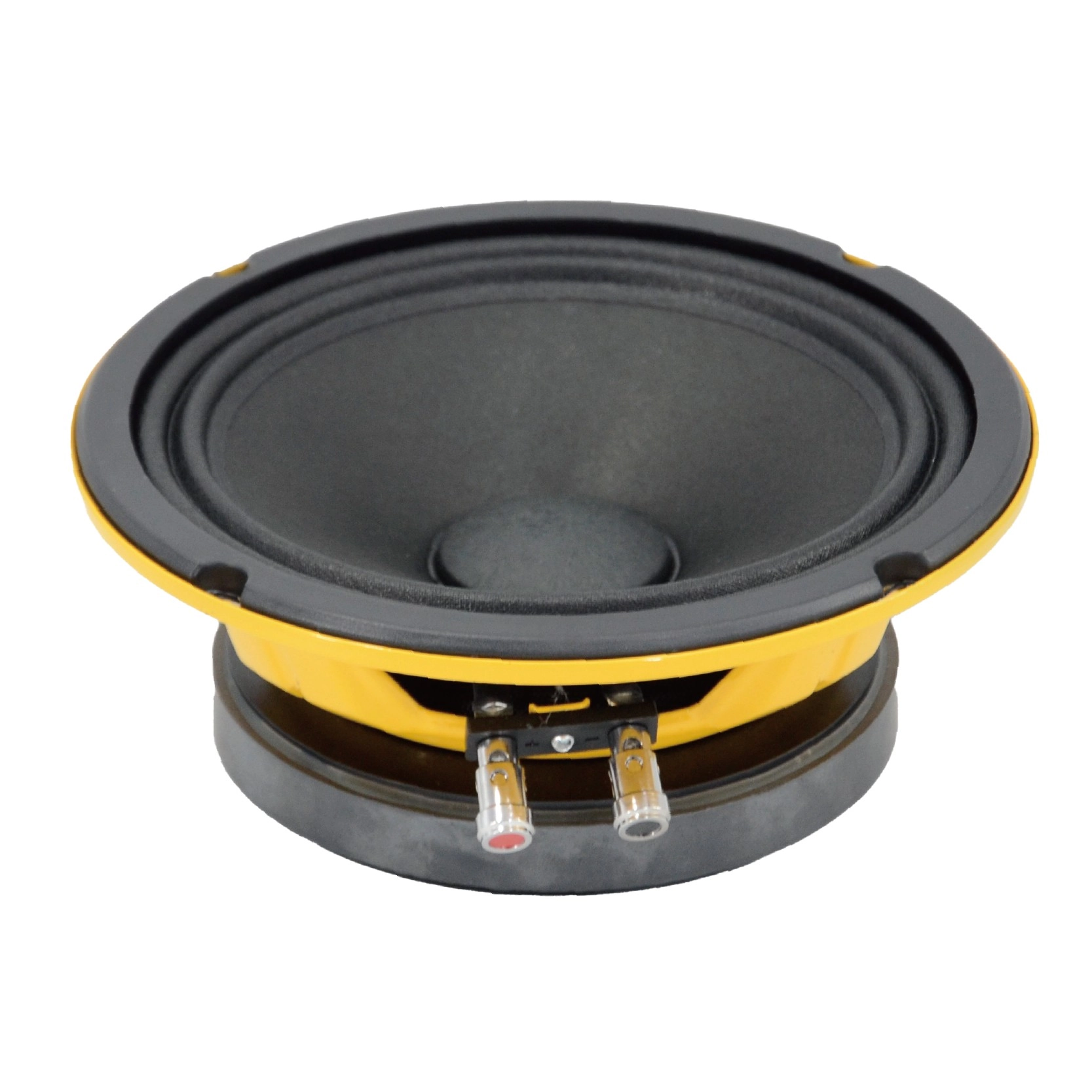

M80SQL

8” MidRange Speaker

  • 4Ω nominal impedance
  • 3.3Ω minimum impedance
  • 150W RMS capacity
  • 96 dB sensitivity
  • 109-17K Hz response
  • 38.6 mm(1.5 in) voice coil
M80SQL Offering crystal-clear vocals and precise instrument tones, this midrange speaker elevates the listening experience. The speaker maintains high clarity and balance, even under heavy power loads. With excellent durability, it can withstand continuous use in both casual and high-performance settings. Its smooth frequency response ensures a natural, lifelike sound.
Nominal Chassis Diameter8/205 in/mm
MAX Power300 Watts
RMS Power150 Watts
Impedance4 Ohm
Resonance Frequency109 Hz
Frequency Response109-17K Hz
Sensitivity(1W/1m)96 dB
Voice Coil Diameter1.5” / 38.6mm
Winding materialCCAW
Magnet22 Oz
120X45X13 mm
FS109 Hz
Vas9.24 L
RE3.3 ohm
Qms17.06
Qes0.7
Qts0.67
BL6.89 T/m
MMS14.7 grams
Xmax1.55 mm
Sd213.82 cm²
Efficiency1.67 %
EBP155
Overall Diameter8.2/208 in/mm
Bolt Cirde Diameter7.8/198 in/mm
Baffle cutout Diameter7.2/184 in/mm
Depth3.3/84 in/mm
Net Weight1.8 kgs
Shipping Weight2.0 kgs
Shipping Box24x24x14 cm
