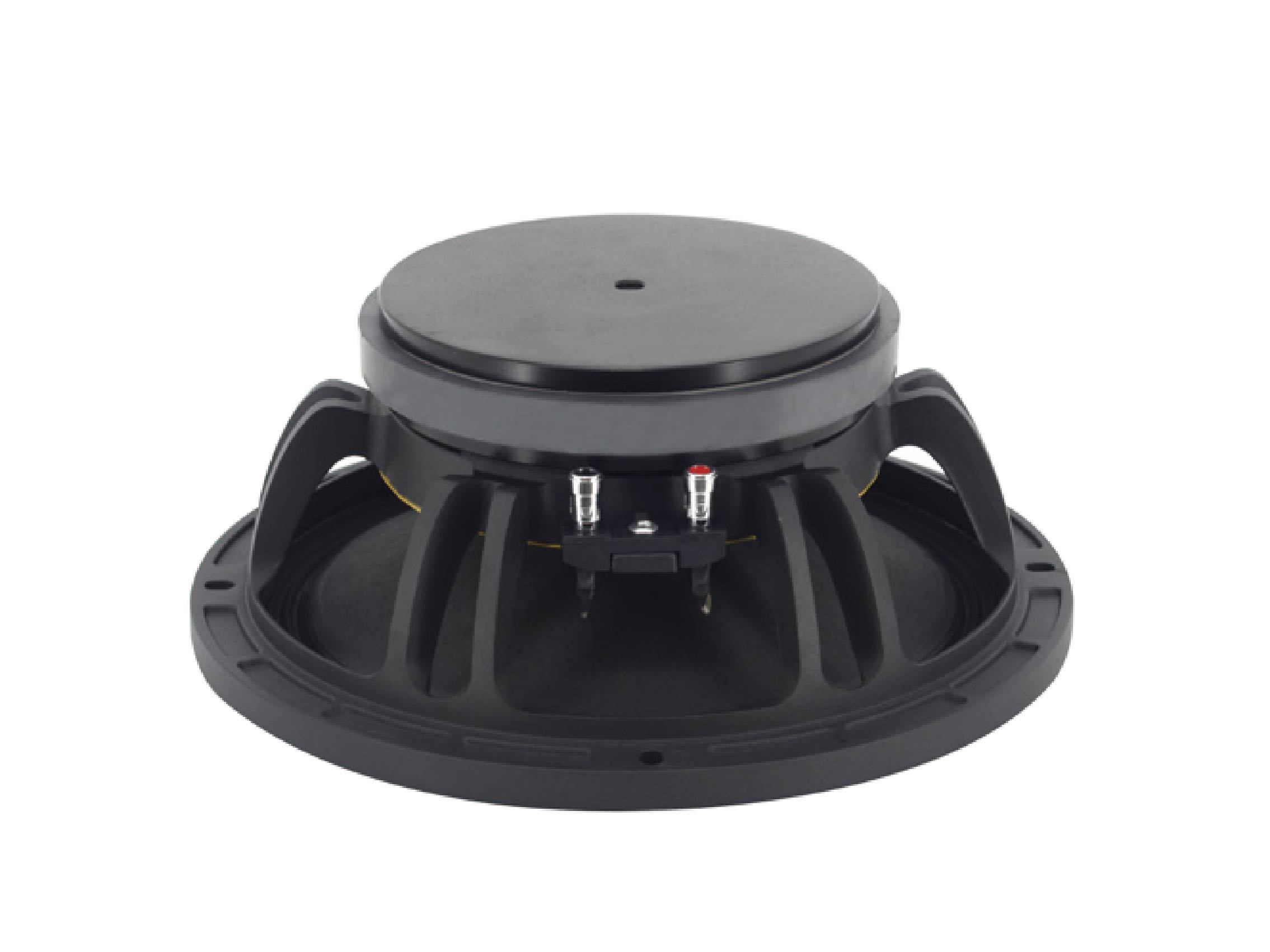

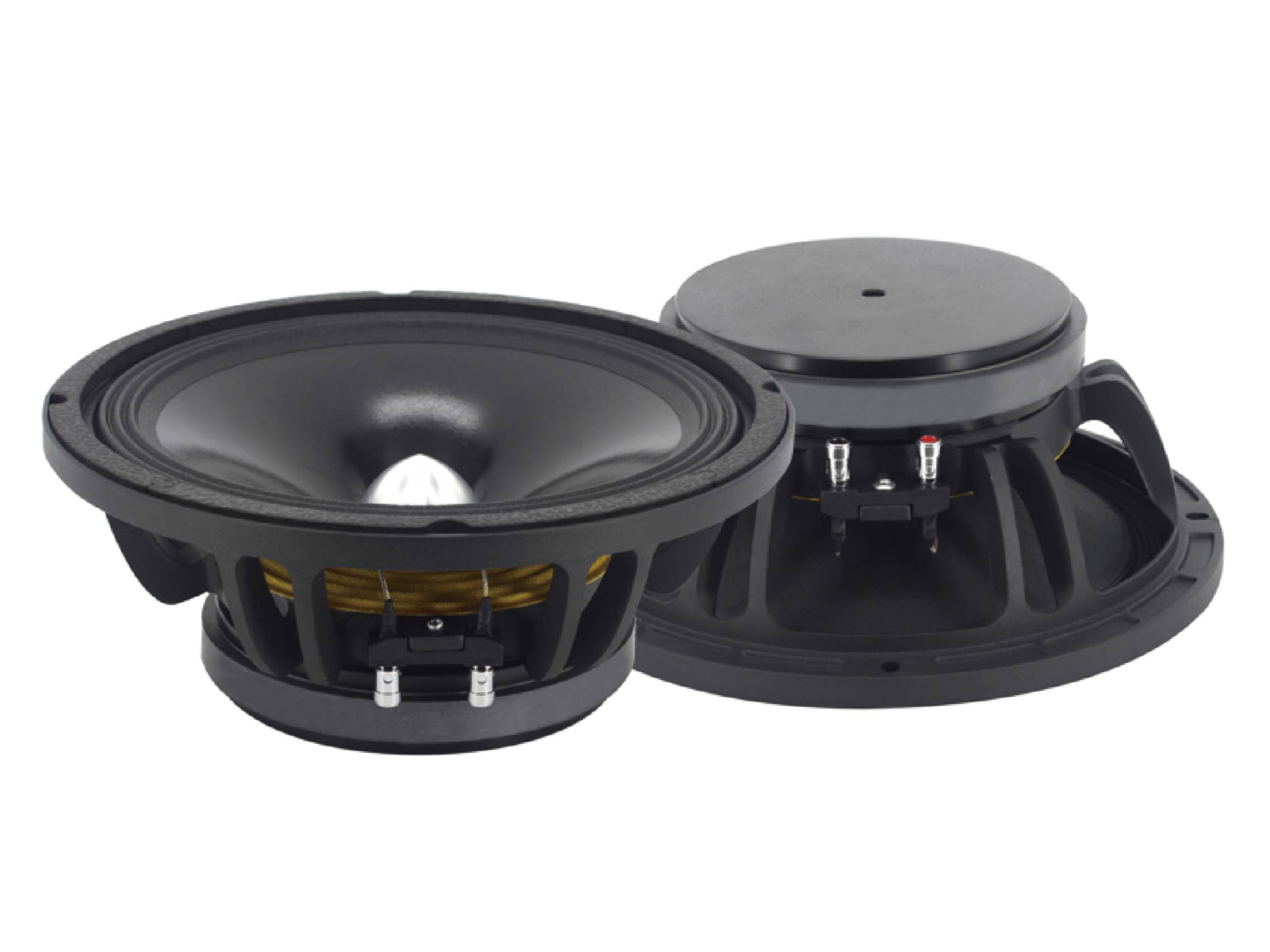

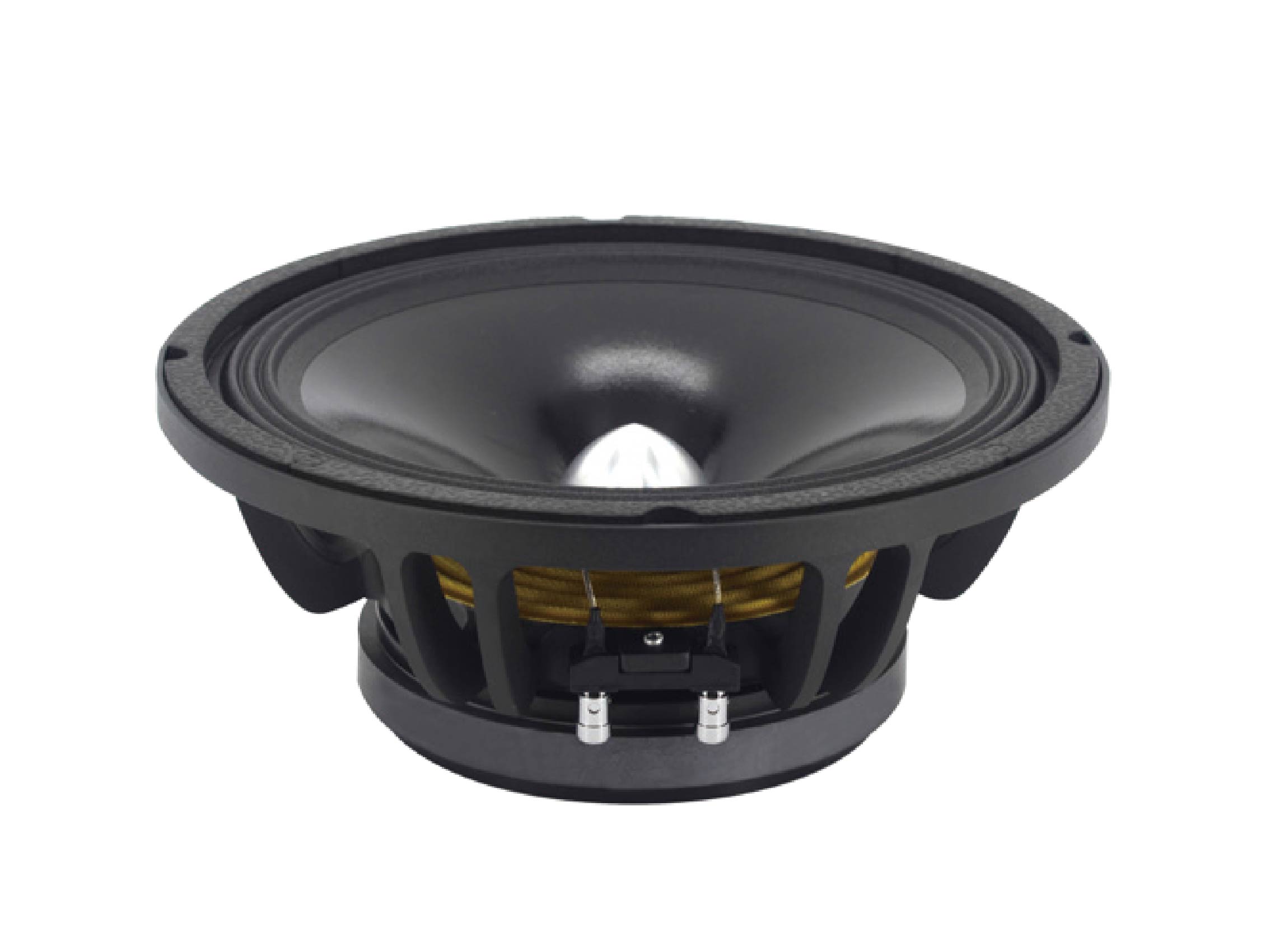

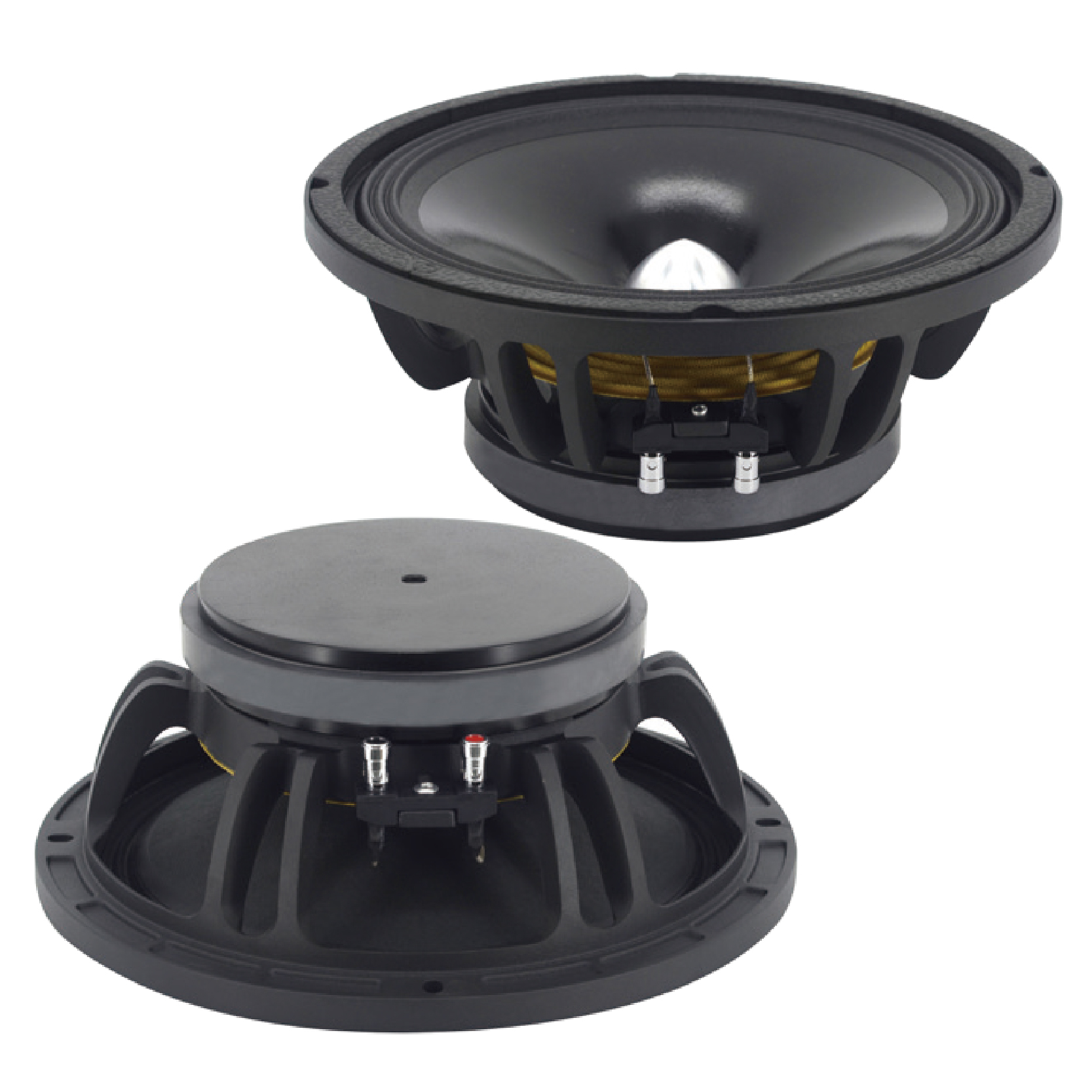

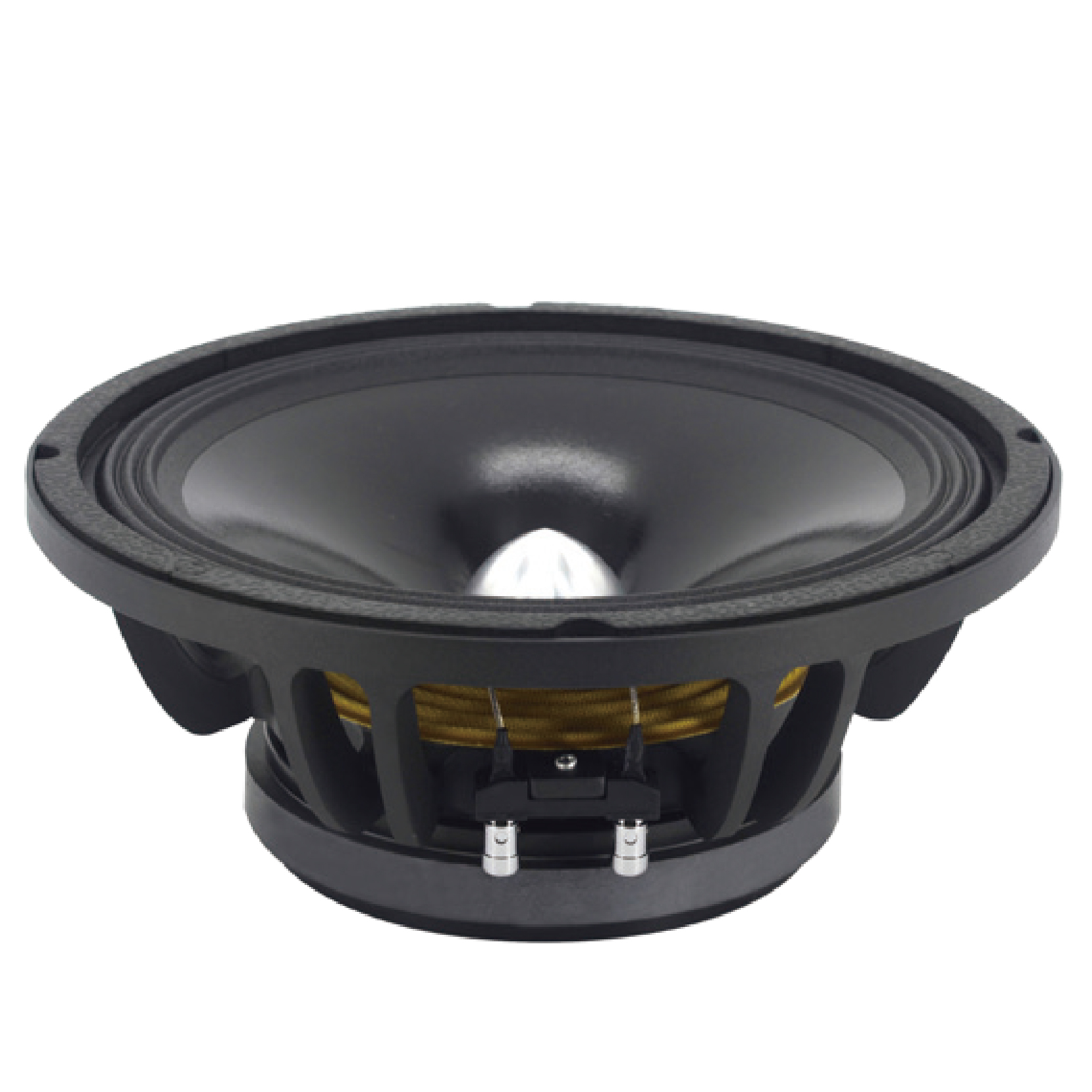

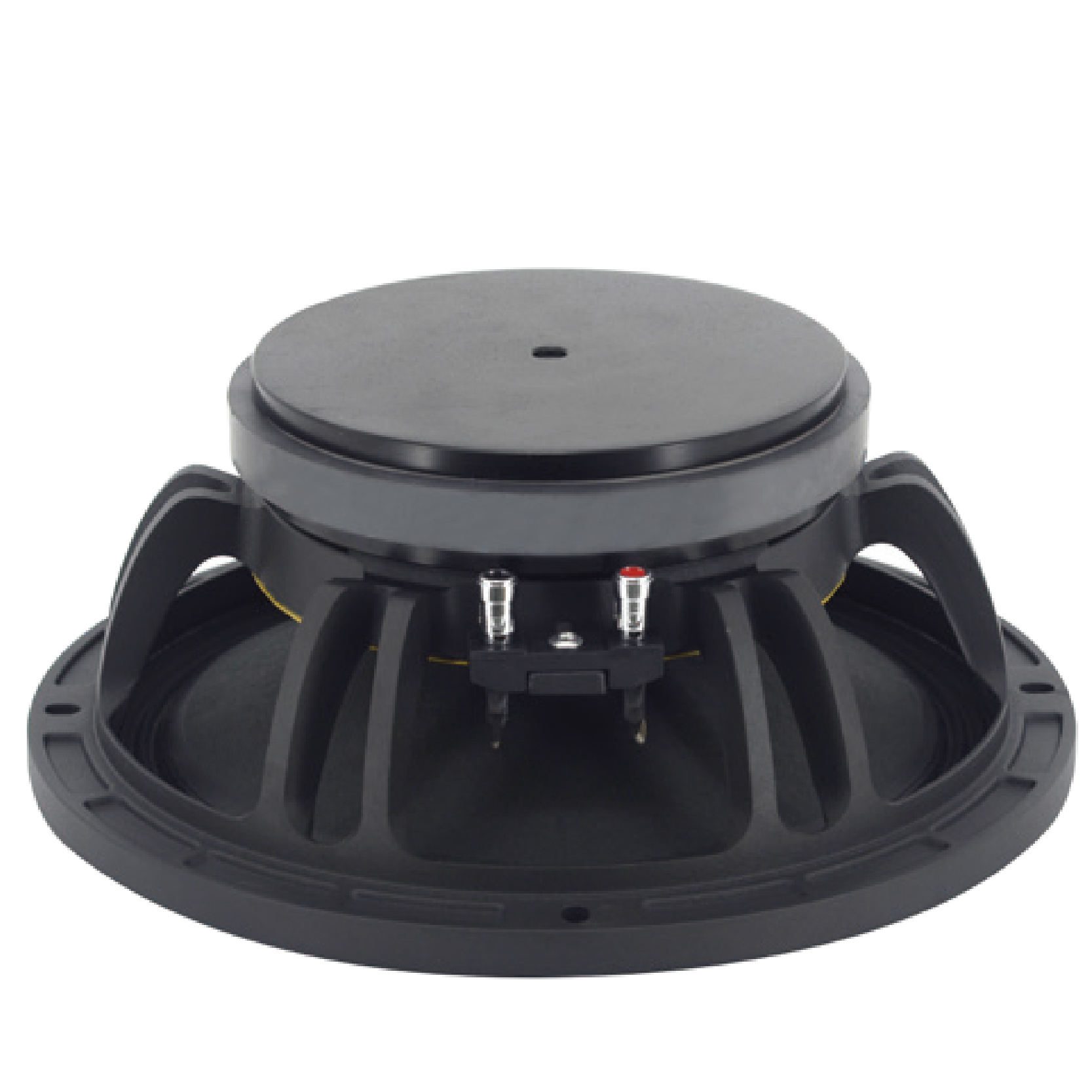

MD10
10″Mid-Range Speaker
- 4Ω nominal impedance
- 3.6Ω minimum impedance
- 400W RMS capacity
- 200W AES capacity
- 96 dB sensitivity
- 73-7000 Hz response
- 50mm(2in) inside-outside voice coil
MD10 unleashes a wide soundstage. It ensures stable output even at high dynamics, resulting in a powerful and layered midrange performance. The wide frequency response range accurately restores the thickness of the vocals and the texture of the instrument, and the sound waves of each frame are vivid. It provides high matching and driving efficiency for the audio system. Let every piece of music become an engine–like heartbeat resonance.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 10/250 in/mm |
| MAX Power | 1000 Watts |
| RMS Power | 500 Watts |
| Impedance | 4+4 Ohm |
| Resonance Frequency | 35 Hz |
| Frequency Response | 35-400 Hz |
| Sensitivity(1W/1m) | 83 dB |
| Voice Coil Diameter | 2.4”/60.6mm |
| Voice Coil Material | BASV |
| Magnet | 112 Oz |
| FS | 35 Hz |
| RE | 3.2+3.2 ohm |
| Qms | 5.4 |
| Qes | 0.82 |
| Qts | 0.71 |
| BL | 13 T/m |
| MMS | 207 grams |
| Xmax | 21 mm |
| Sd | 340 cm² |
| Efficiency | 0% |
| Le(1k Hz) | 49 mH |
| Overall Diameter | 10/262 in/mm |
| Bolt Circle Diameter | 6.1/243 in/mm |
| Baffle cutout Diameter | 9/232 in/mm |
| Depth | 6.7/172 in/mm |
| Net Weight | 7.25 kgs |
| Shipping Weight | 8.05 kgs |
| Shipping Box | 28.5X28.5X20cm |
Highlights
- 10’’Inside/Out BASV voice coil wounded for hi-temp performance, 4+4ohms
- 800watts continuous program power rating makes high acoustical output
- Sleek look, smooth figure
- 81dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Enhanced bass control with precise acoustic algorithms.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Deep, powerful bass with realistic, elastic drum sounds.
Clear vocals and rich bass for an immersive music experience.
