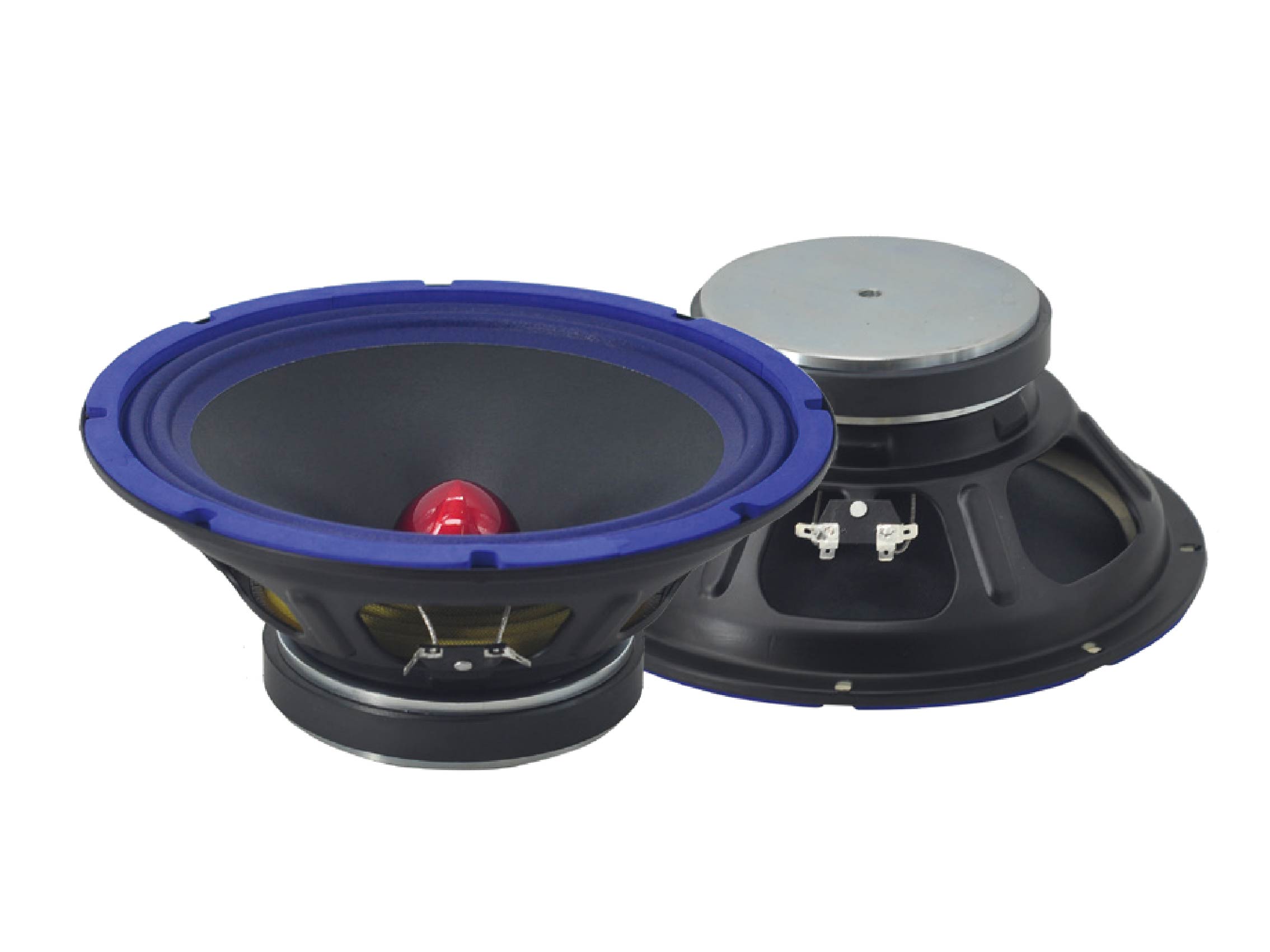

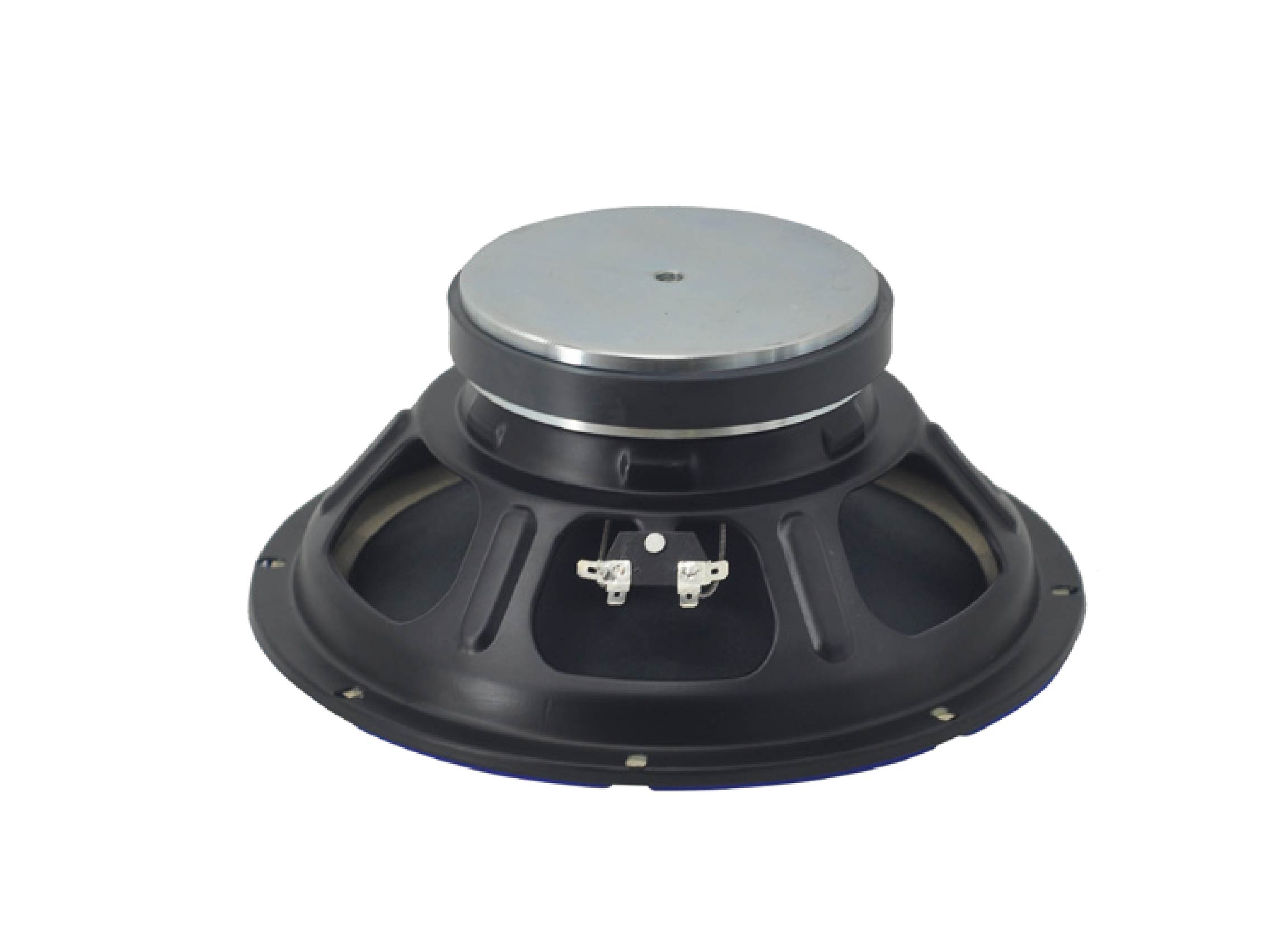

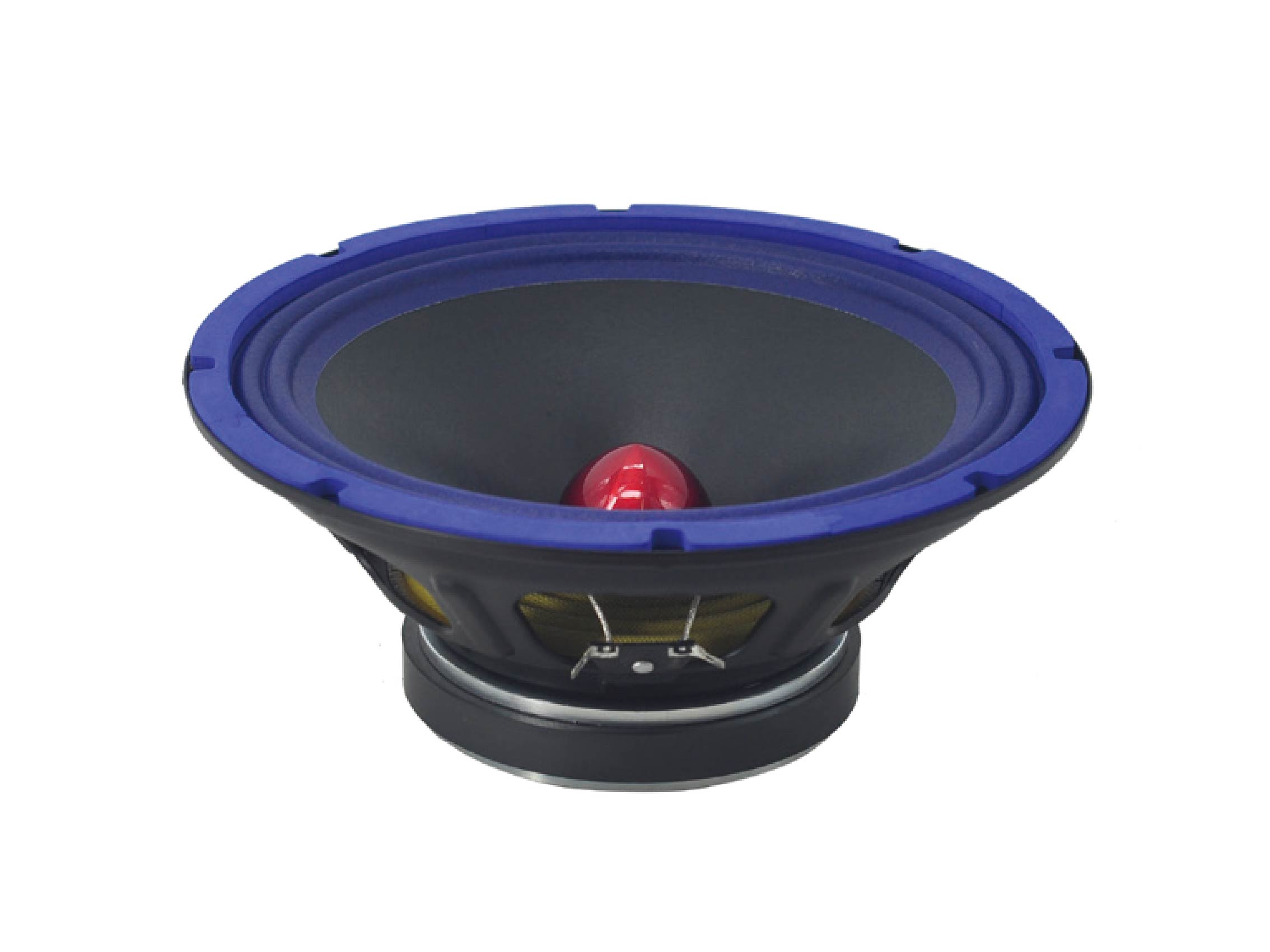

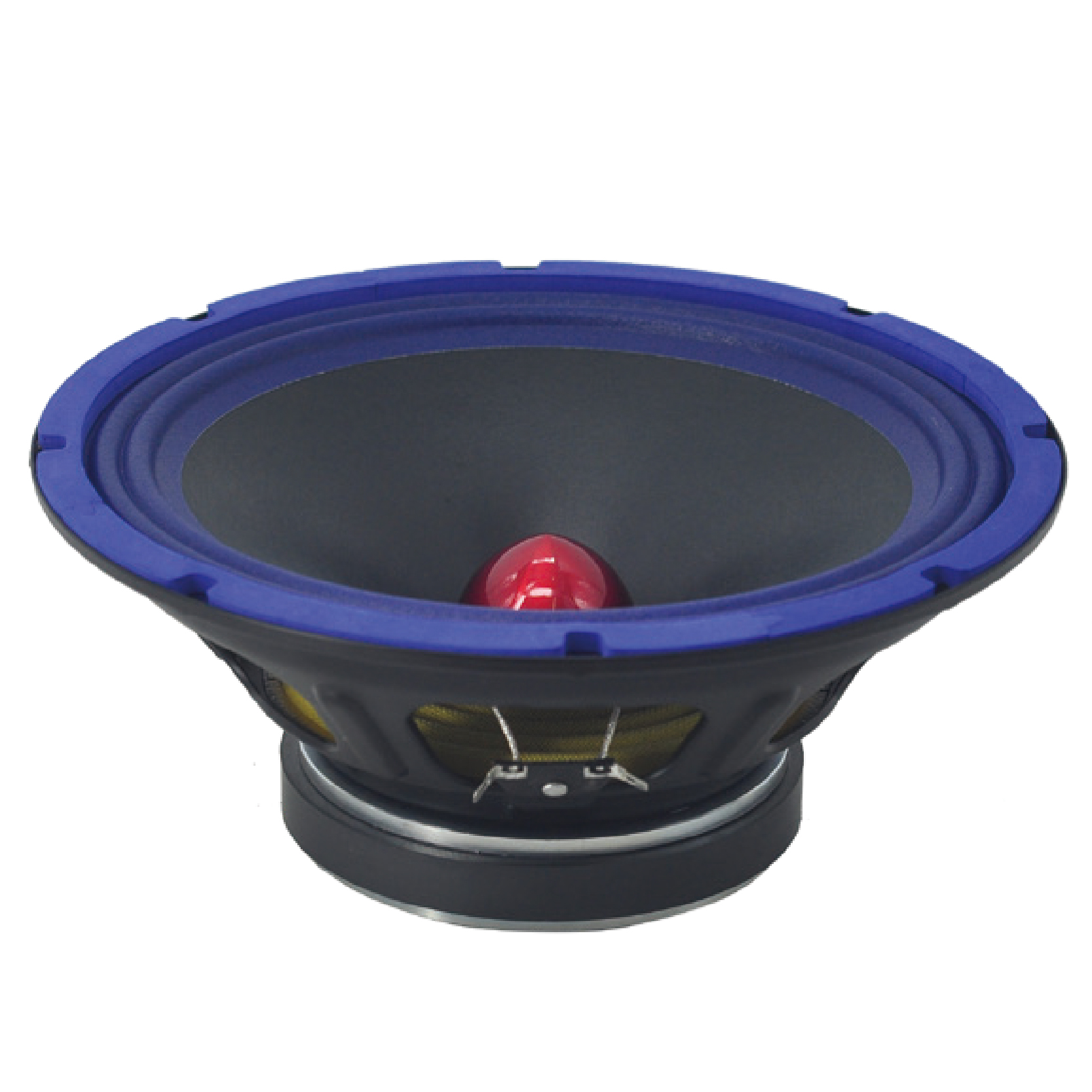

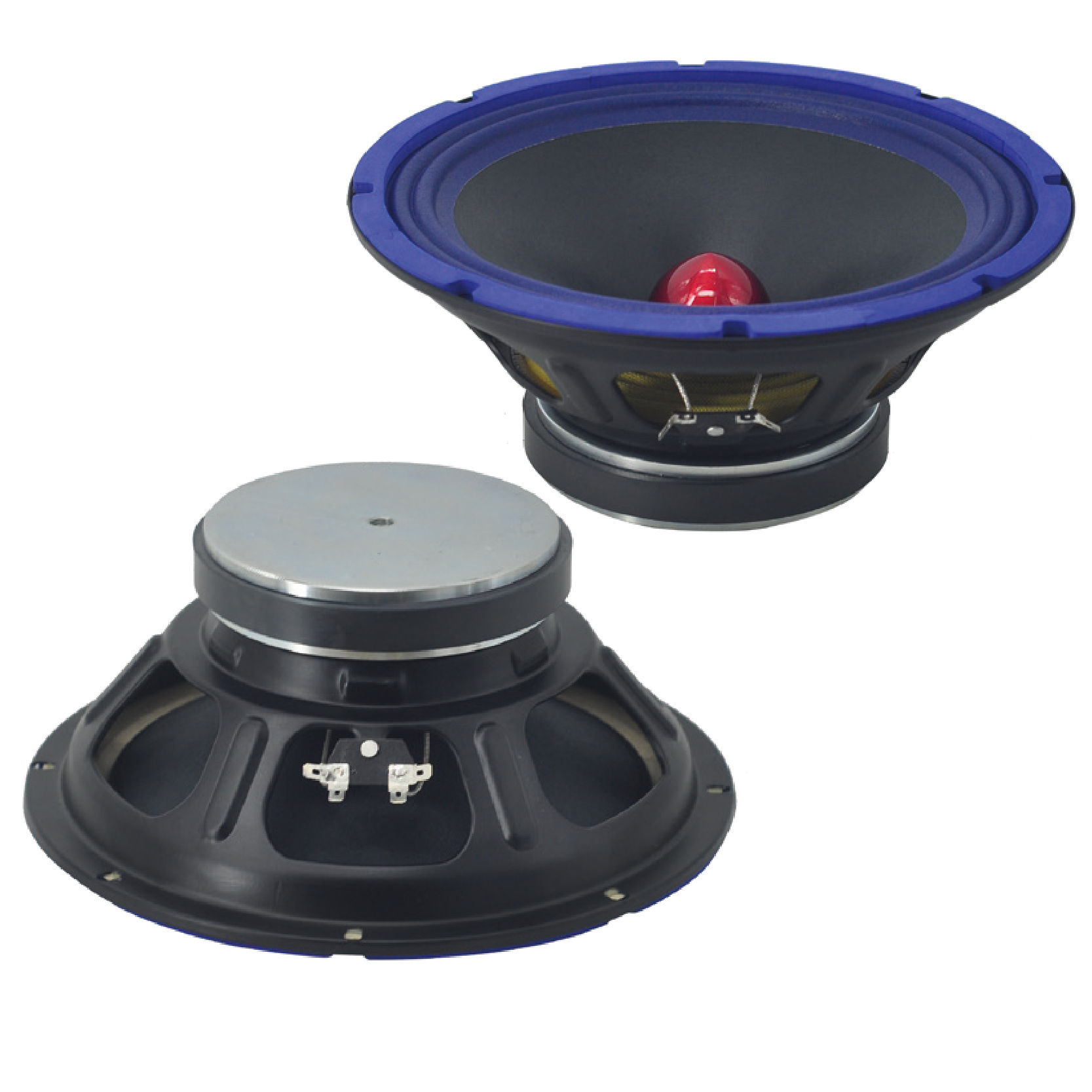

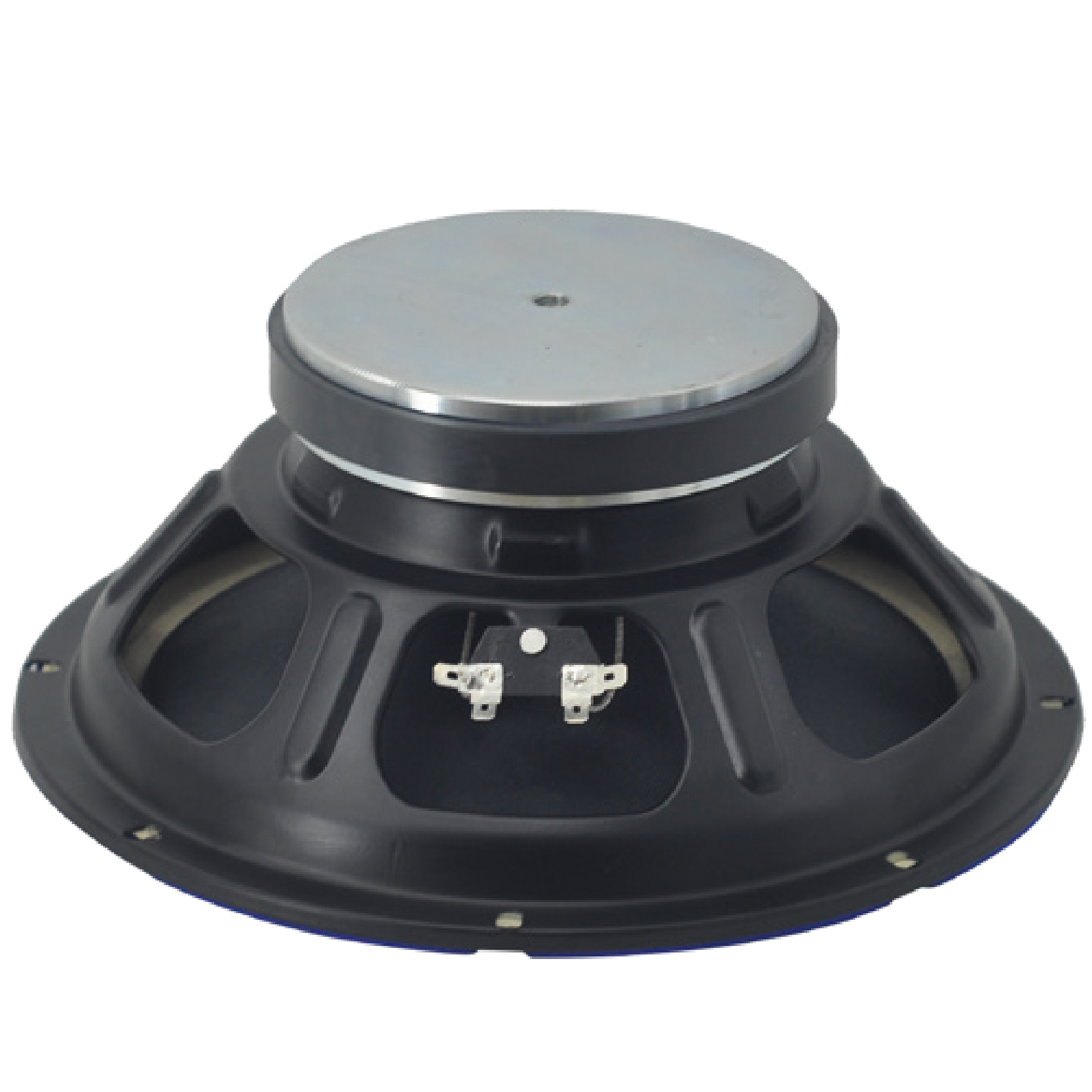

MD10D
10″Mid-Range Speaker
- 4Ω nominal impedance
- 3.6Ω minimum impedance
- 400W MAX capacity
- 200W RMS capacity
- 96 dB sensitivity
- 75-5000 Hz response
- 50.5mm(2in) inside-outside voice coil
MD10D accurately captures sound pulsations and unleashes abundant mid–frequency energy. It shows the layers and creates a real and natural sound texture. Excellent thermal management and responsiveness at high power outputs ensure clear sound details and dynamic performance. Whether it‘s passionate driving or quiet listening, it can output stably and inject a thick and agile mid–frequency “sound“ into the car audio system.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 10/260 in/mm |
| MAX Power | 400 Watts |
| RMS Power | 200 Watts |
| Impedance | 4 Ohm |
| Resonance Frequency | 75 Hz |
| Frequency Response | 75-5000 Hz |
| Sensitivity(1W/1m) | 96 dB |
| Voice Coil Diameter | 2”/50.5mm |
| Voice Coil Material | KEI |
| Magnet | 30 Oz |
| FS | 75 Hz |
| RE | 3.6 ohm |
| Qms | 4.8 |
| Qes | 0.5 |
| Qts | 0.45 |
| BL | 9 T/m |
| MMS | 25 grams |
| Xmax | 3.5 mm |
| Sd | 346 cm² |
| Efficiency | 2.4 % |
| Overall Diameter | 10/260 in/mm |
| Bolt Circle Diameter | 9.6/245 in/mm |
| Baffle cutout Diameter | 9/230 in/mm |
| Depth | 4/106 in/mm |
| Net Weight | 2.6 kgs |
| Shipping Weight | 3.2 kgs |
| Shipping Box | 28.5X28.5X15cm |
Highlights
- 2”Inside/Out KEI voice coil wounded for hi-temp performance
- 200watts continuous program power rating makes high acoustical output
- Sleek look, smooth figure
- 96dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
