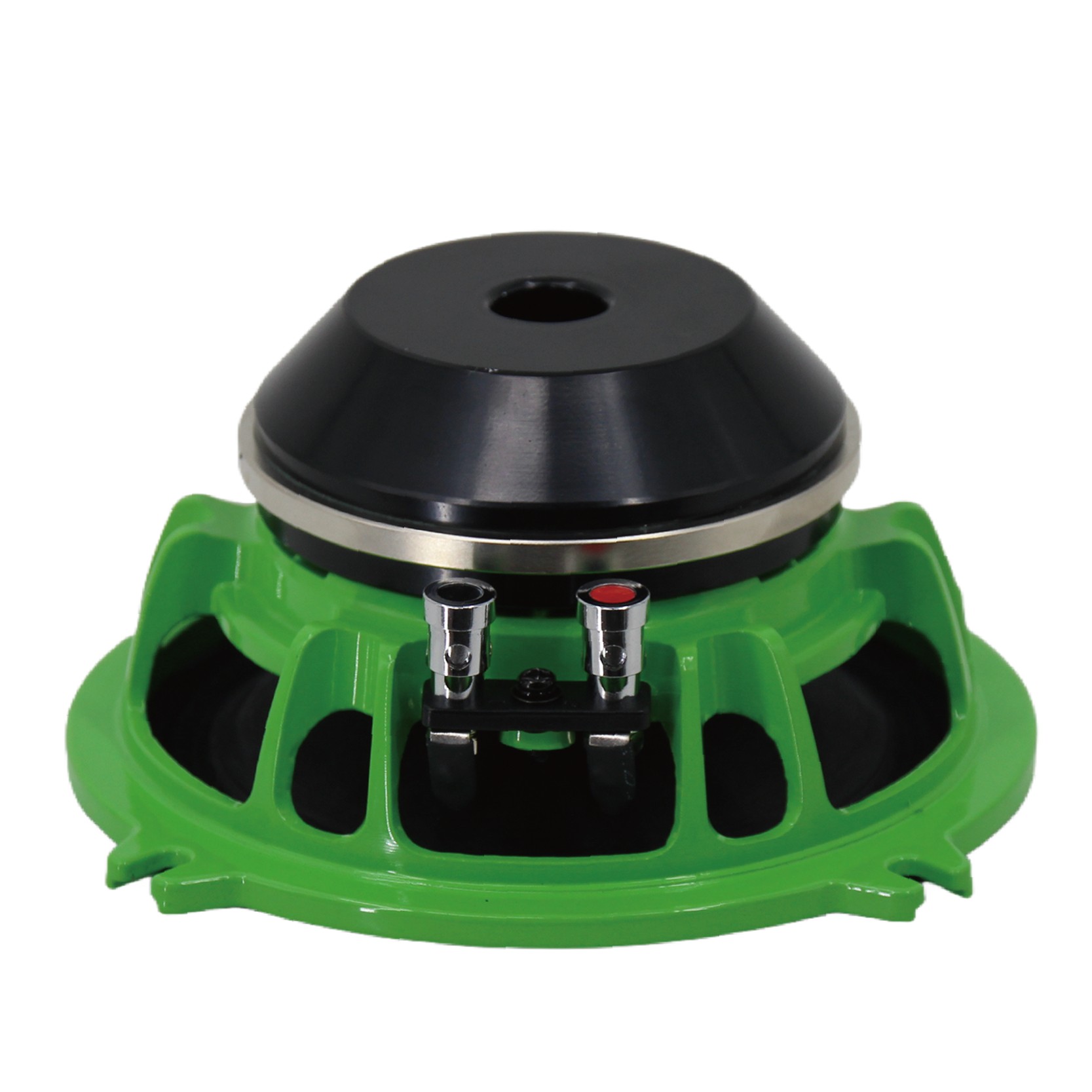

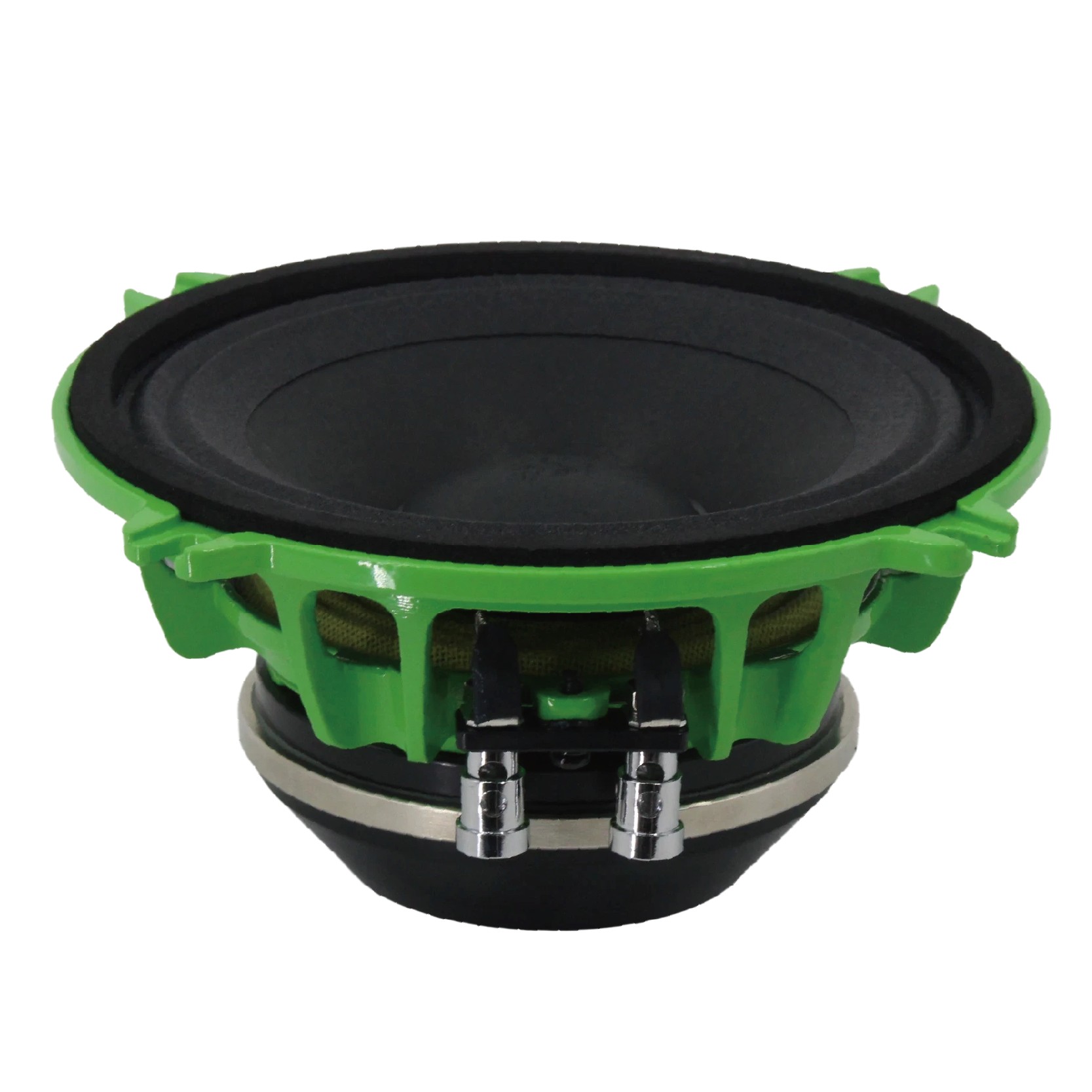

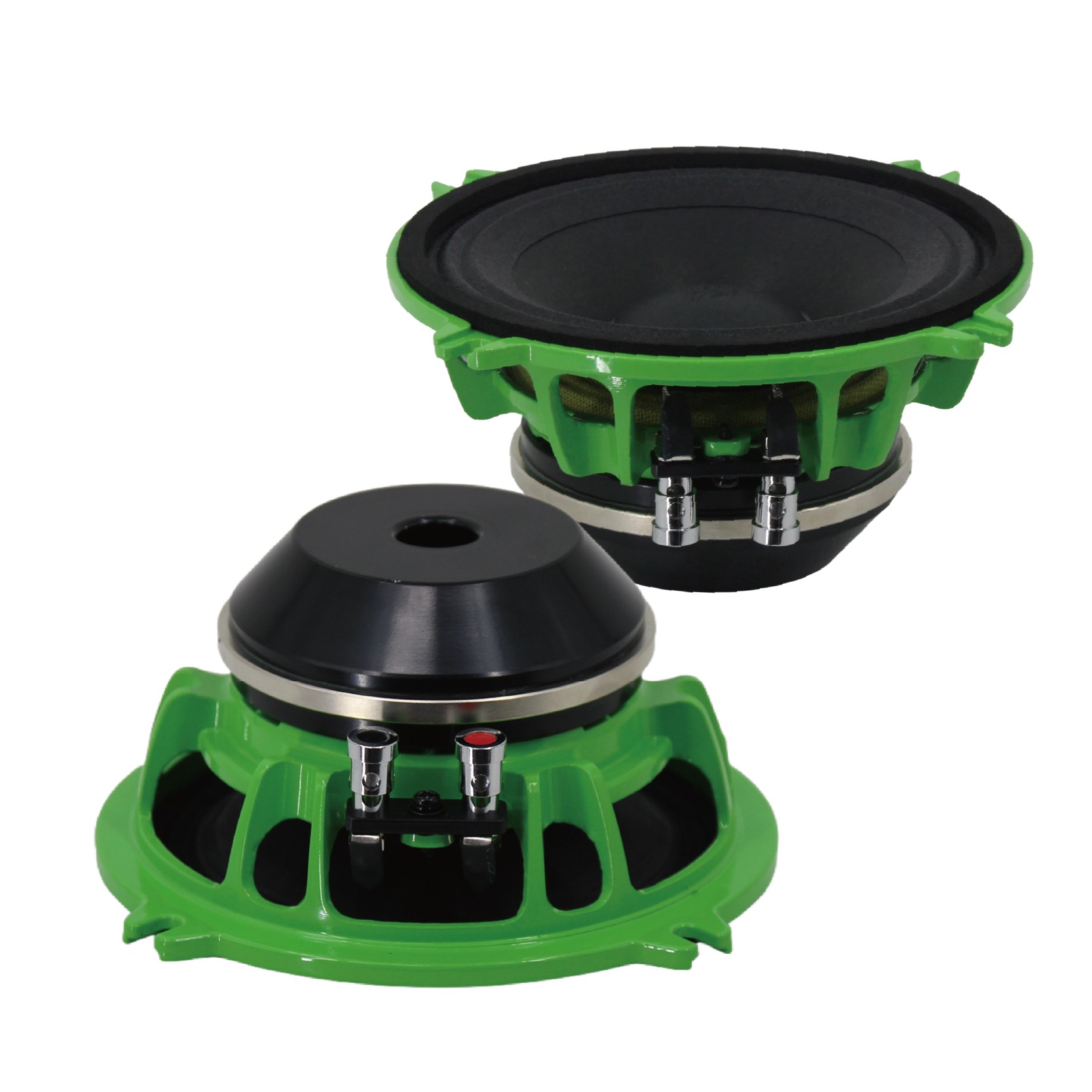

MD50N1

5” Mid-Range Speaker

  • 4Ω nominal impedance
  • 3.6Ω minimum impedance
  • 80W RMS capacity
  • 94 dB sensitivity
  • 176-16K Hz response
  • 38.6mm(1.5in) voice coil

MD50N1 accurately reproduces musical essence with intricate midrange details and a soft, natural tone free of harshness. A stable cavity structure ensures sound purity, delivering genuine vocal emotion and rich, complete instrument overtones. Strong magnetic drive provides precise soundstage focusing with distinct layers and smooth transitions. Its excellent resolution brings every melody to life, just like a live performance.

Nominal Chassis Diameter5/135 in/mm
MAX Power160 Watts
RMS Power80 Watts
Impedance 4 Ohm
Resonance Frequency176 Hz
Frequency Response176-16K Hz
Sensitivity(1W/1m)94 dB
Voice Coil Diameter1.5” / 38.6mm
Winding materialCCAW
MagnetNeodymium



FS176 Hz
Vas0.99 dm3
RE3.6 ohm
Qms10.5
Qes0.6
Qts0.57
BL7.2 T/m
MMS7.7 grams
Xmax2.1 mm
Sd83.3 cm²
Efficiency0.90 %
EBP298



Overall Diameter5.2/133 in/mm
Bolt Cirde Diameter5.6/142 in/mm
Baffle cutout Diameter4.8/121 in/mm
Depth2.7/68 in/mm
Net Weight0.95 kgs
Shipping Weight1.05 kgs
Shipping Box14X14X7.5 cm
