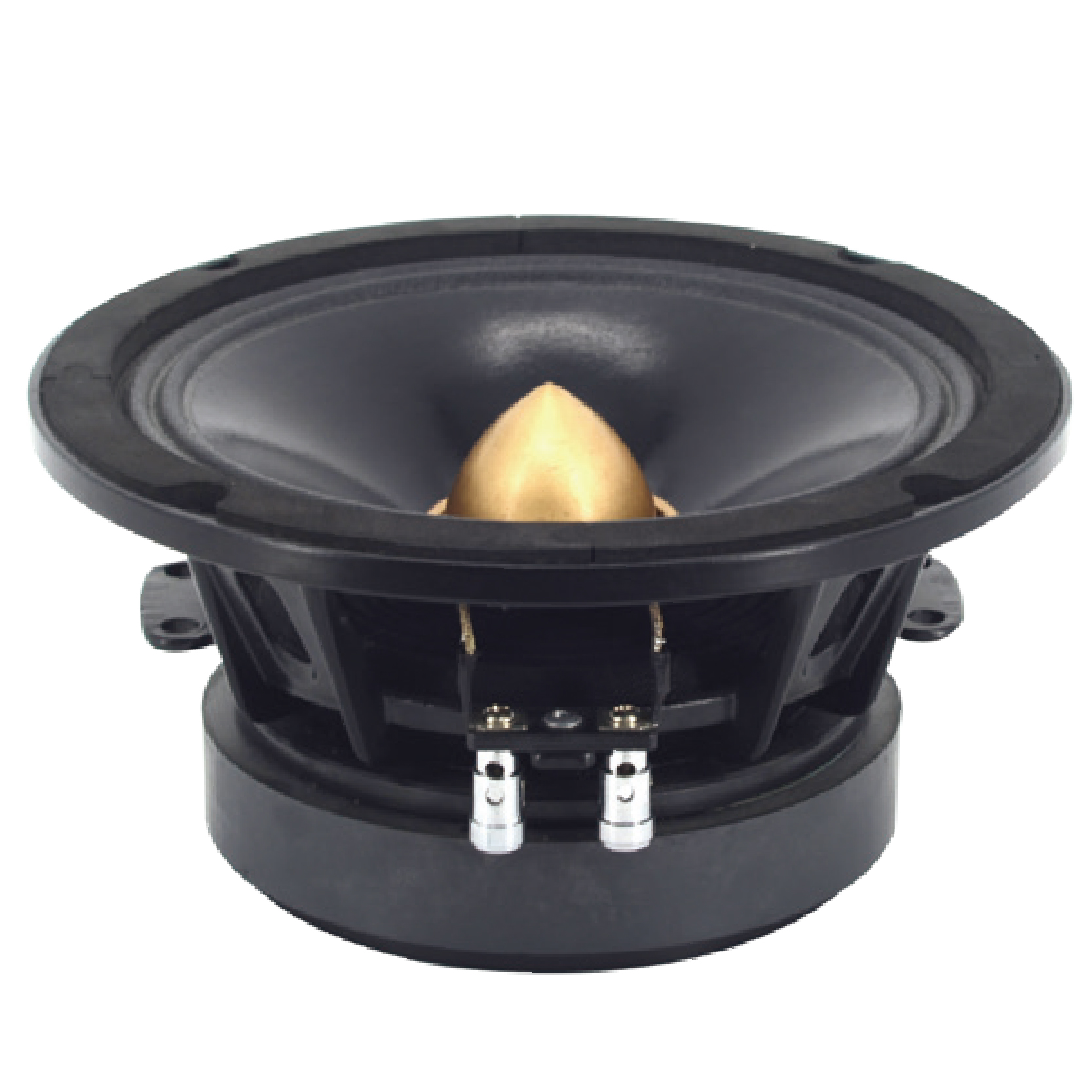

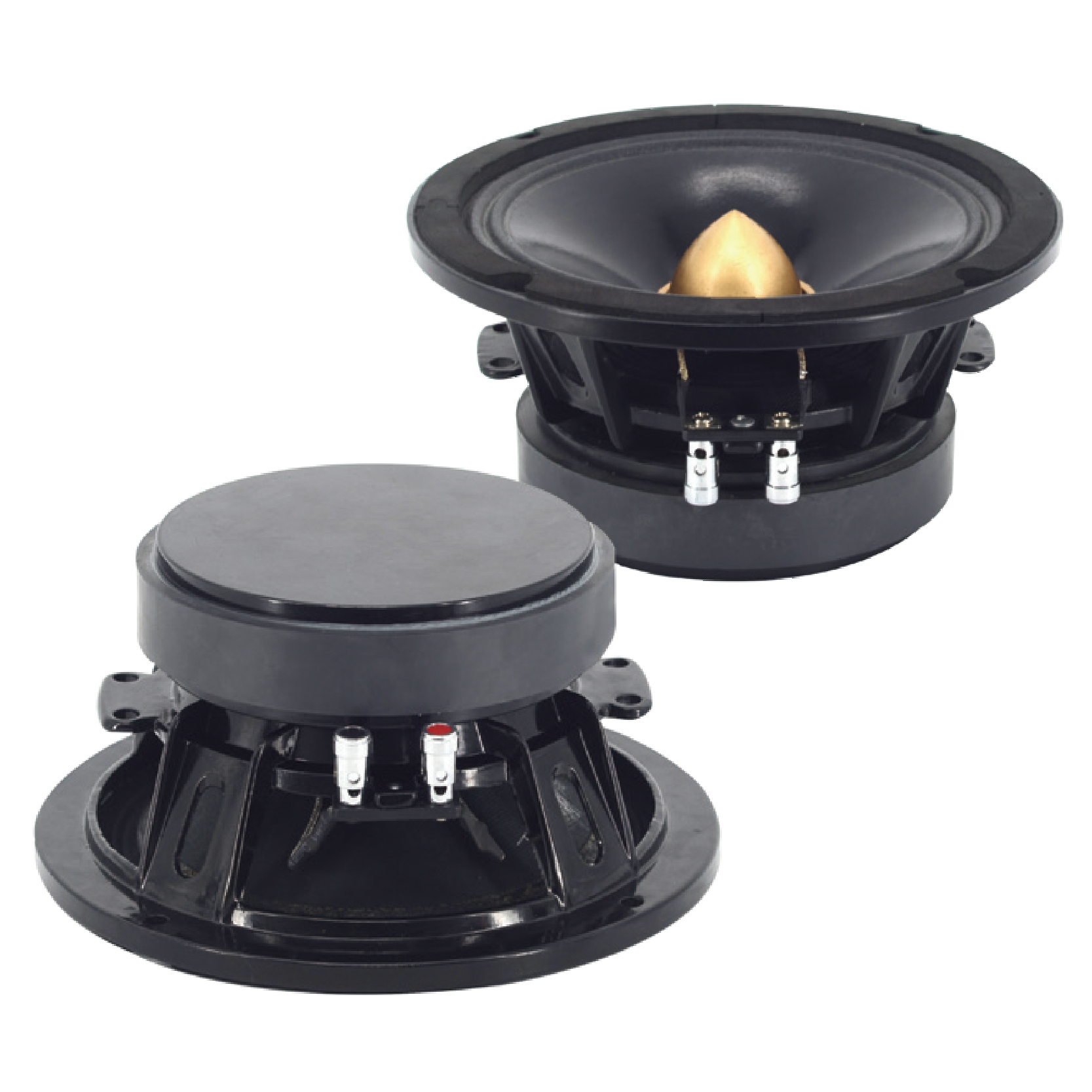

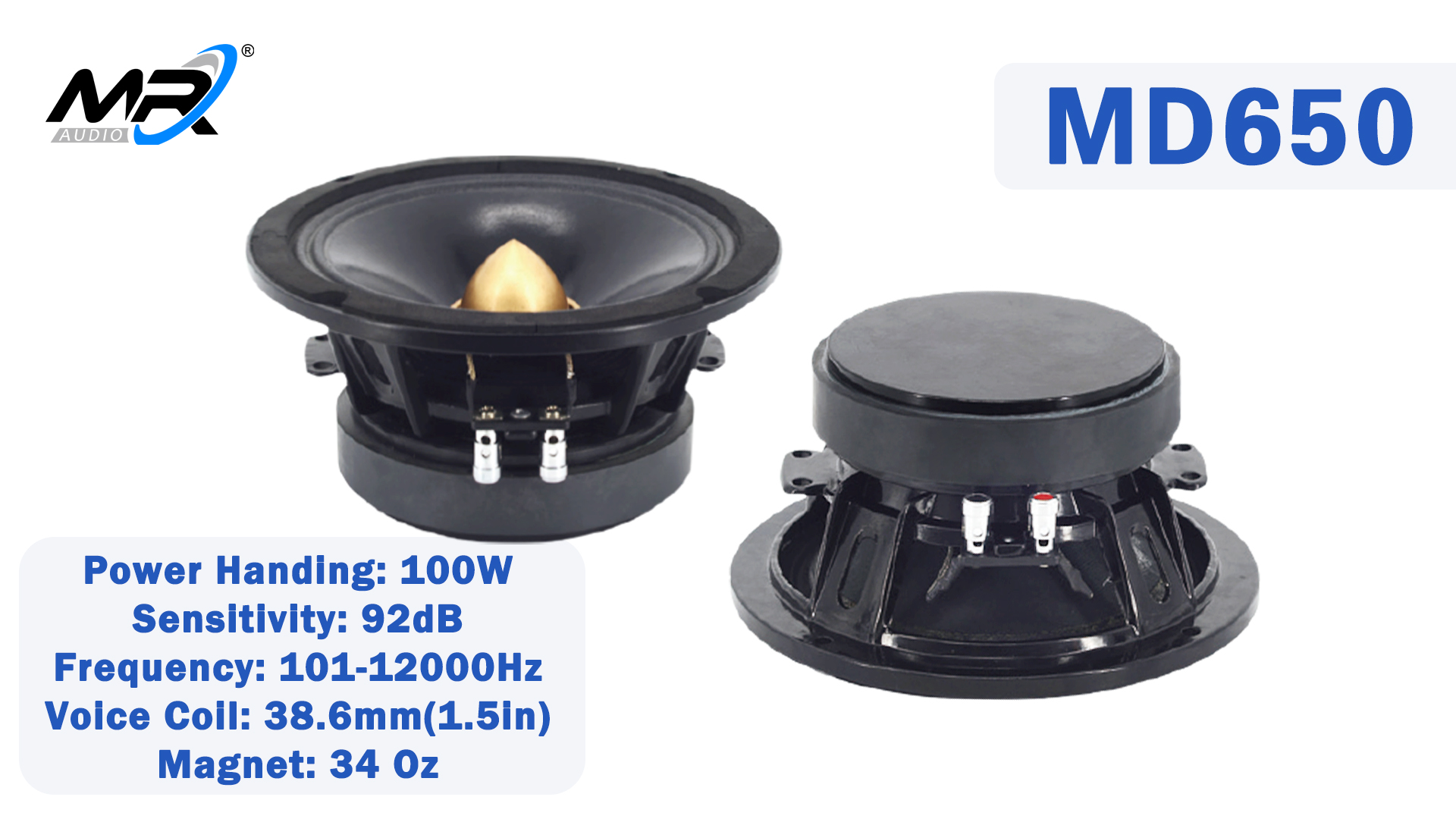

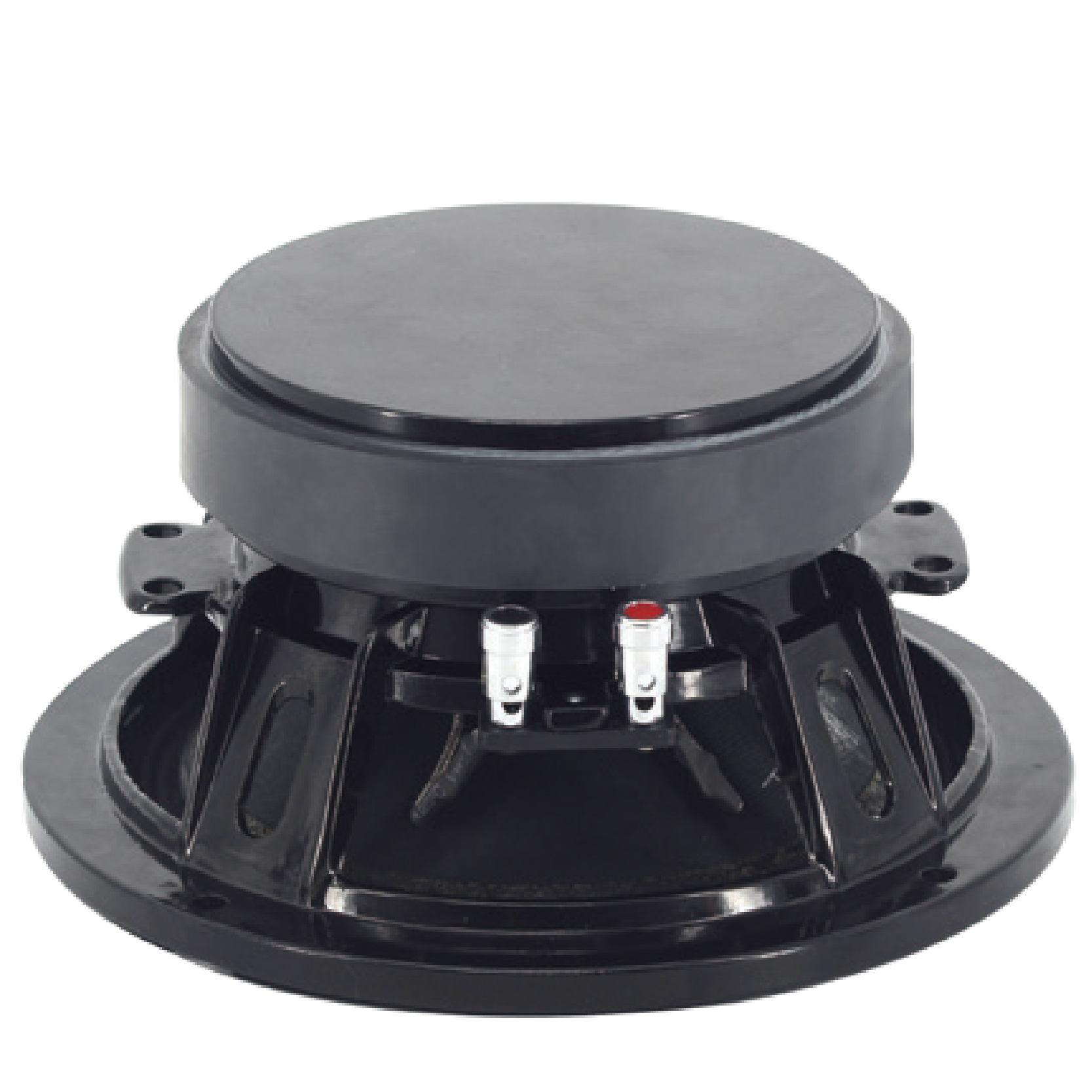

MD650
6.5″Mid-Range Speaker
- 4Ω nominal impedance
- 4Ω minimum impedance
- 200W MAX capacity
- 100W RMS capacity
- 92 dB sensitivity
- 101-12K Hz response
- 38.6mm(1.5in) inside-outside voice coil
MD650 flexibly responds to different power amplifier and system requirements, can be accurately adapted and stable output. Improve dynamic response speed, and build strong thickness and penetration in mid-frequency region. Uncompromising in the face of big dynamics and the sound is pure;Ensure the safety of the system load while releasing more power margin, bringing flexible wiring solutions and a tense sound experience to the car audio.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 6.8/173 in/mm |
| MAX Power | 200 Watts |
| RMS Power | 100 Watts |
| Impedance | 4 Ohm |
| Resonance Frequency | 101 Hz |
| Frequency Response | 101-12K Hz |
| Sensitivity(1W/1m) | 92 dB |
| Voice Coil Diameter | 1.5”/38.6mm |
| Voice Coil Material | KSV |
| Magnet | 34 Oz |
| FS | 101 Hz |
| RE | 4 ohm |
| Qms | 2.83 |
| Qes | 0.83 |
| Qts | 0.64 |
| BL | 6.6 T/m |
| MMS | 14 grams |
| Xmax | 3.5 mm |
| Sd | 346 cm² |
| Efficiency | 0.51 % |
| Overall Diameter | 6.8/173 in/mm |
| Bolt Circle Diameter | 6.3/161 in/mm |
| Baffle cutout Diameter | 5.8/147 in/mm |
| Depth | 3.3/85 in/mm |
| Net Weight | 1.8 kgs |
| Shipping Weight | 2.8 kgs |
| Shipping Box | 18.5X18.5X10.5cm |
Highlights
- 1.5”Inside/Out KSV voice coil wounded for hi-temp performance
- 100watts continuous program power rating makes high acoustical output
- Sleek look, smooth figure
- 92dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
