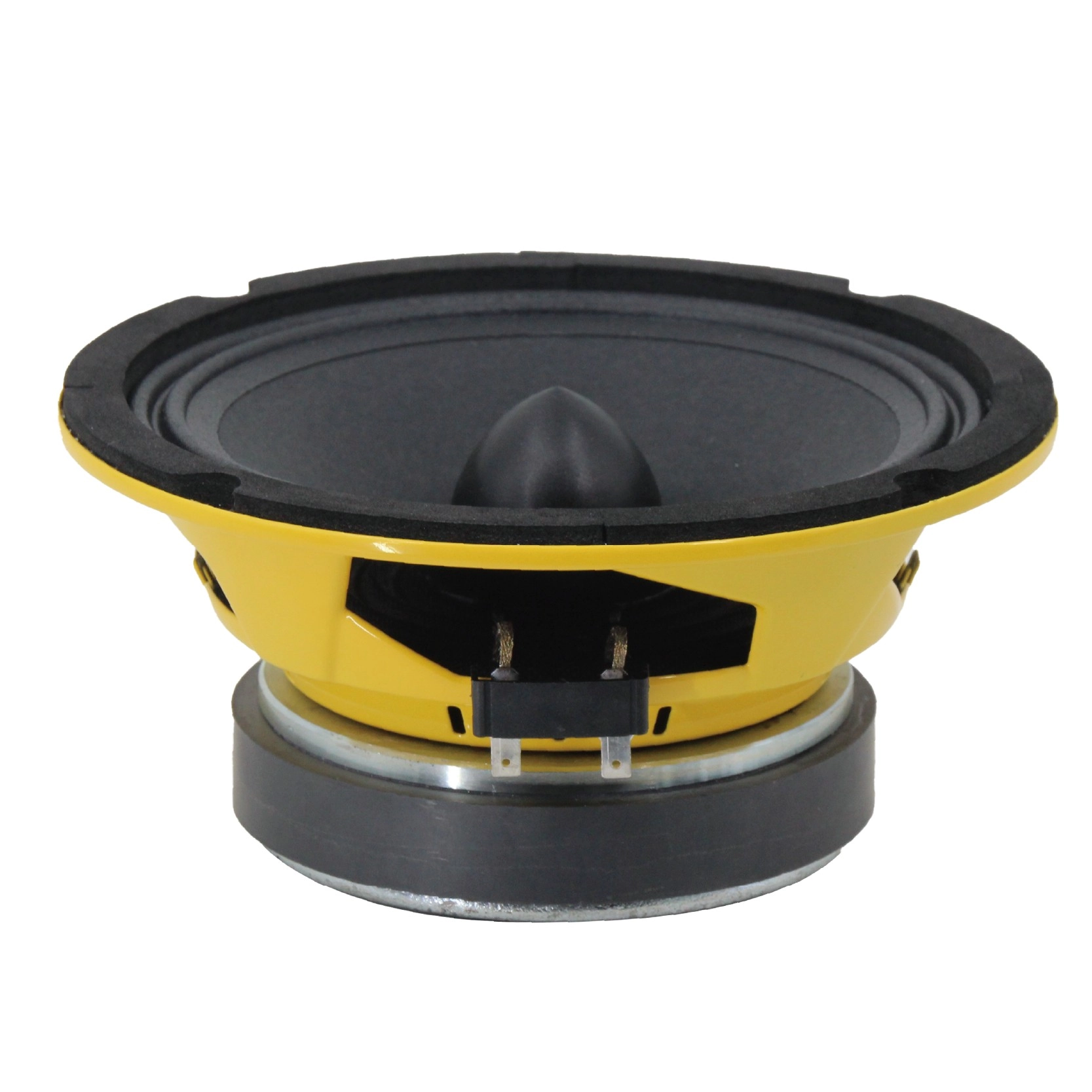

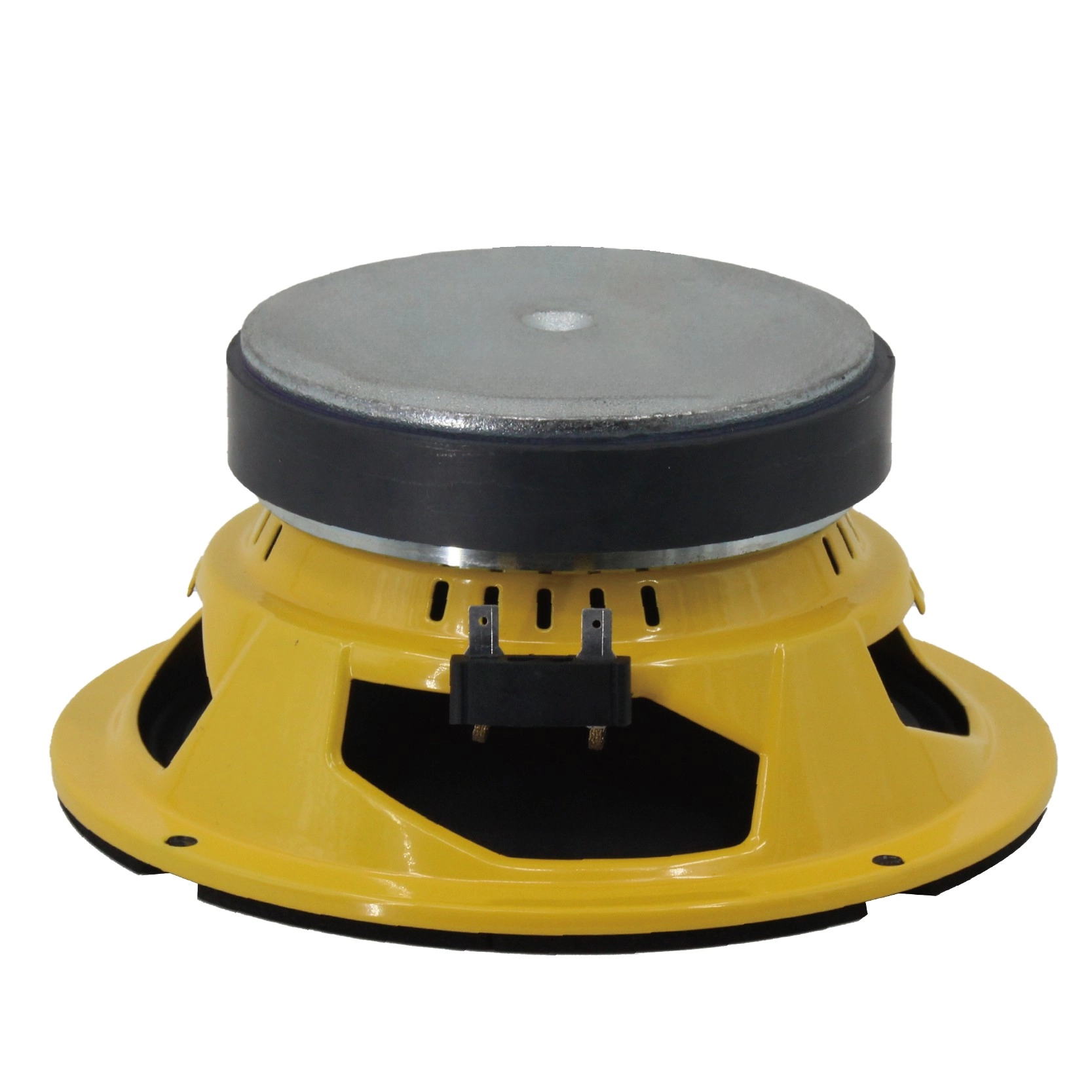

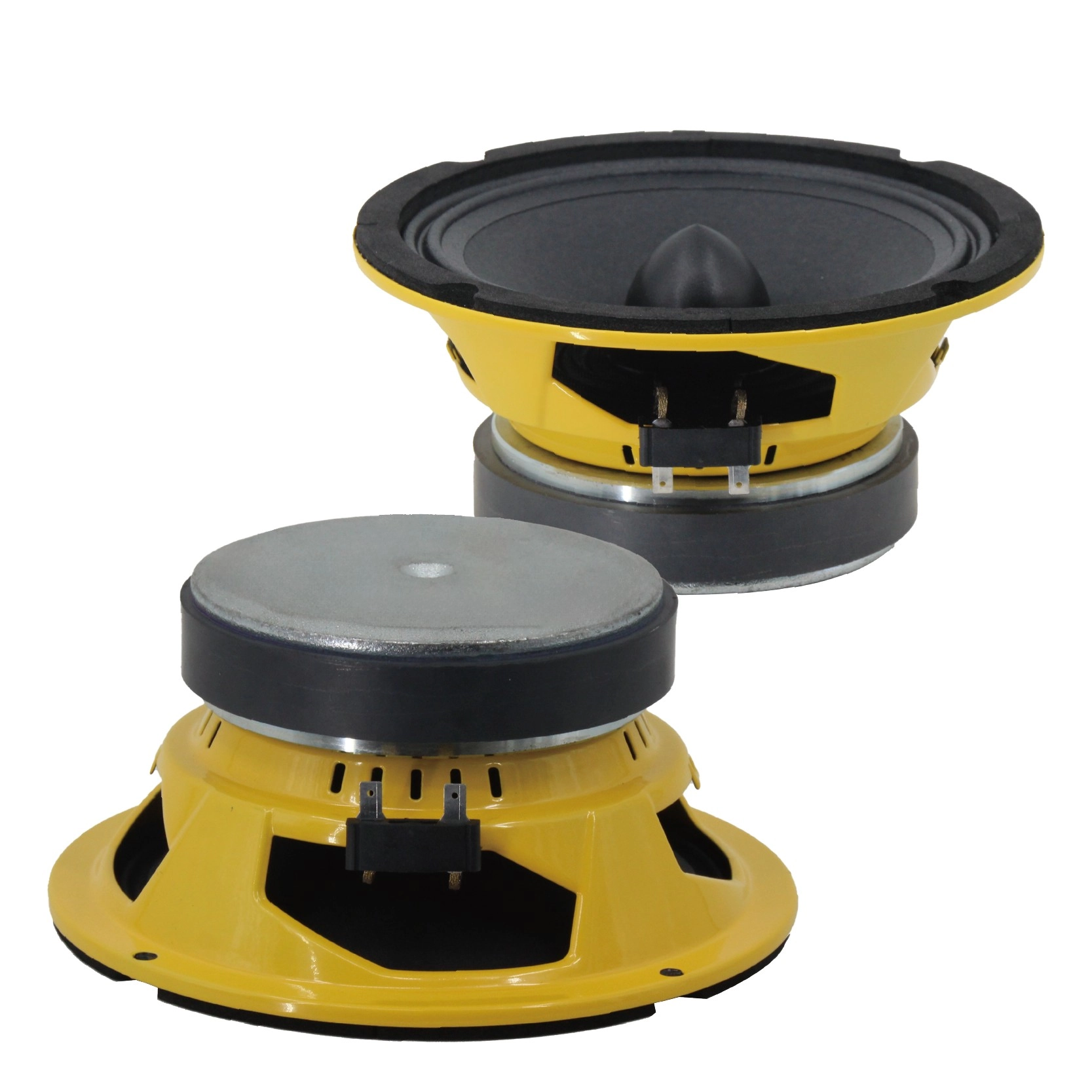

MD65G1

6.5” Mid-Range Speaker

  • 4Ω nominal impedance
  • 3.5Ω minimum impedance
  • 100W RMS capacity
  • 94 dB sensitivity
  • 100-10000 Hz response
  • 38.6 mm(1.5 in) voice coil

MD65G1 This midrange speaker brings music back to its roots, providing an expansive, detailed midrange with clean, natural tones for an immersive listening experience. Its expertly designed architecture guarantees precise sound with transparent vocals and harmonious instrumentals. A high-efficiency magnetic circuit elevates sound positioning and depth, offering soft, warm midrange frequencies and superb resolution.

  • GENERAL SPECIFICATIONS
  • THIELE SMALL PARAMETERS
  • EXTRA INFO
Nominal Chassis Diameter6.7/170 in/mm
MAX Power200 Watts
RMS Power100 Watts
Impedance4 0hm
Resonance Frequency100 Hz
Frequency Response100-10000 Hz
Sensitivity(1W/1m)94 dB
Voice Coil Diameter1.5” / 38.6mm
Winding materialKSV
Magnet23 Oz



FS100 Hz
Vas3.14 dm3
RE3.5 ohm
Qms17.078
Qes0.902
Qts0.857
BL5.9 T/m
MMS9.755 grams
Xmax2.05 mm
Sd136.85 cm²
Efficiency1.09 %
EBP164.2
Overall Diameter6.7/170 in/mm
Bolt Cirde Diameter6.25/159 in/mm
Baffle cutout Diameter5.9/150 in/mm
Depth3/76 in/mm
Net Weight1.54 kgs
Shipping Weight1.85 kgs
Shipping Box18.5X18.5X10.5 cm
