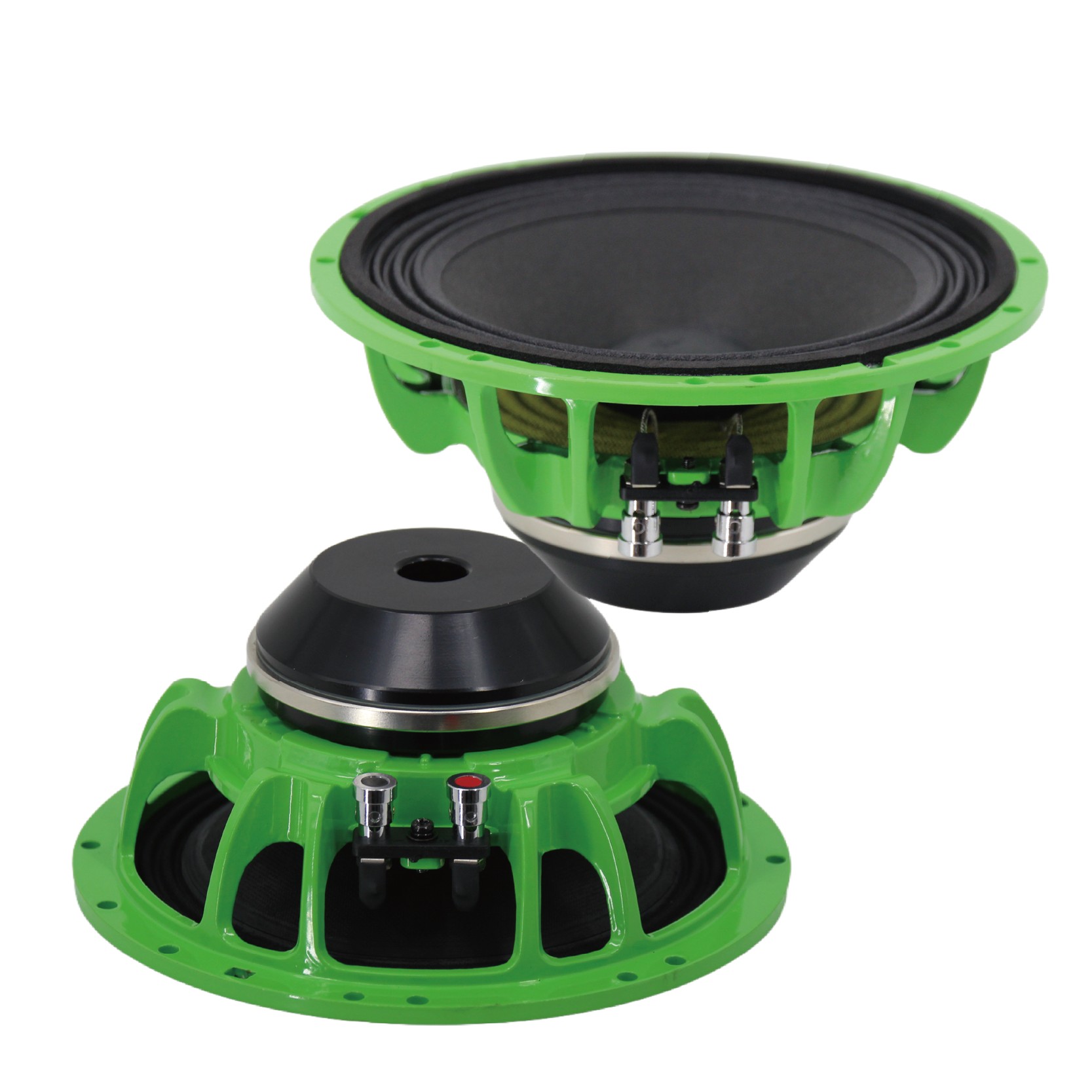

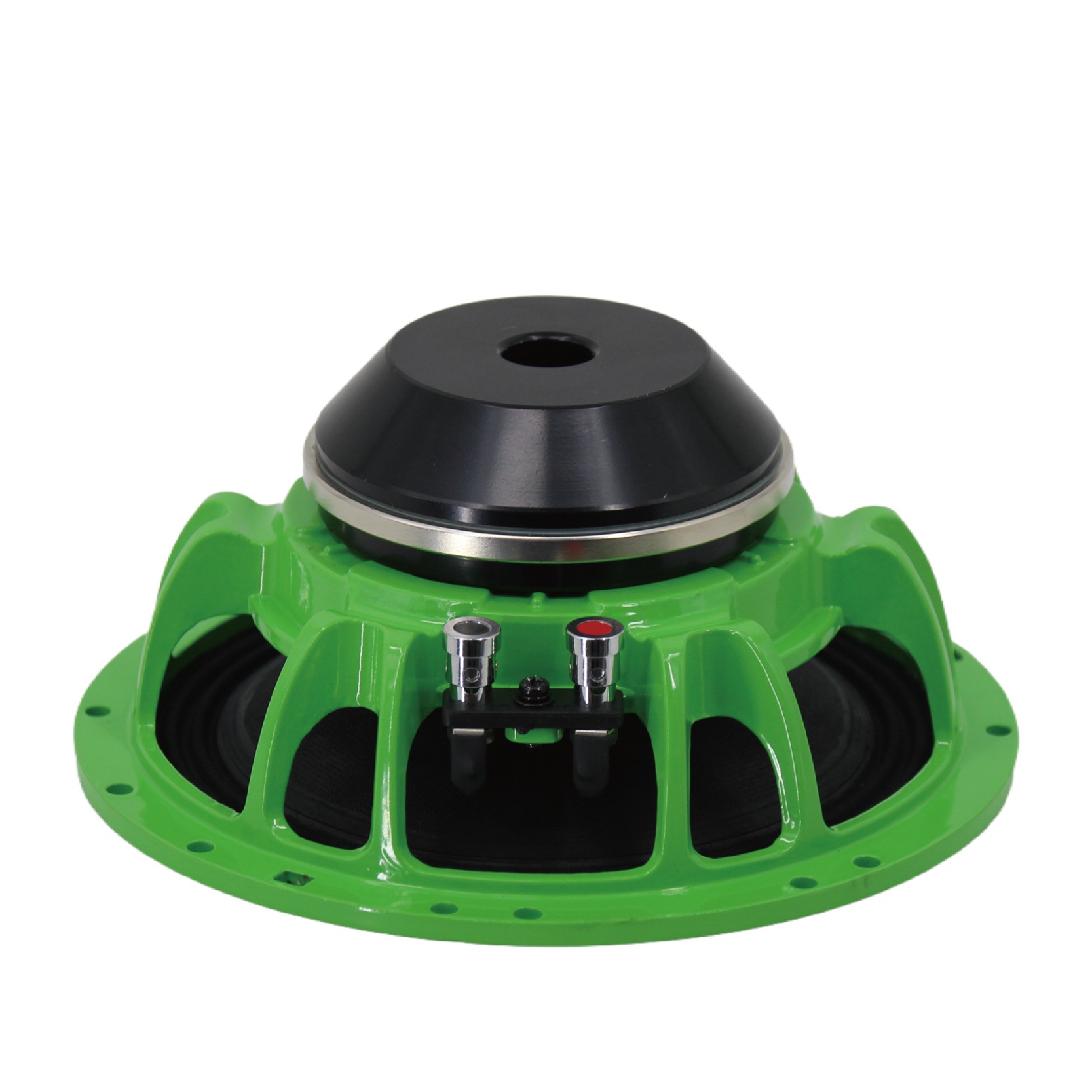

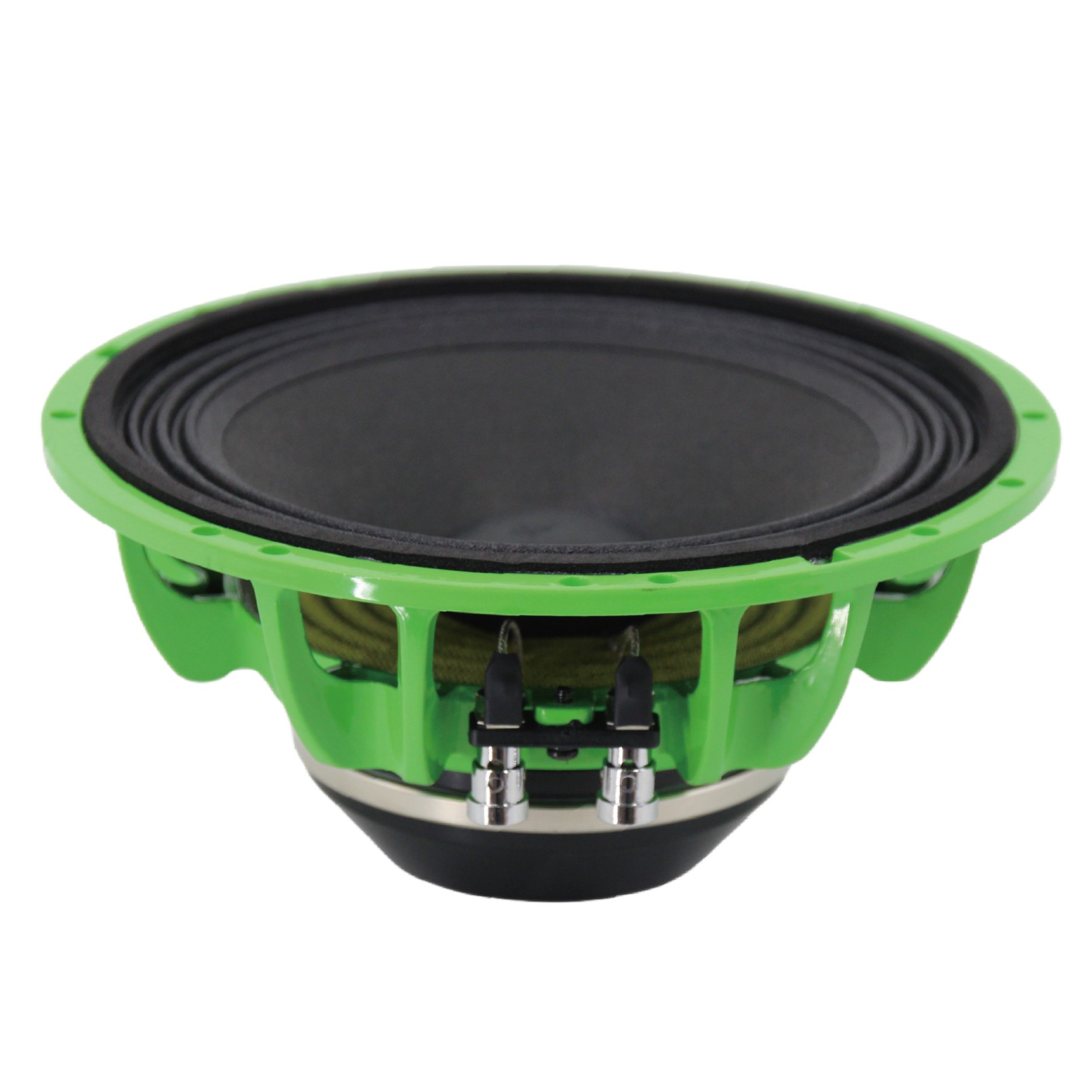

MD65N1

6.5” Mid-Range Speaker

  • 4Ω nominal impedance
  • 3.2Ω minimum impedance
  • 80W RMS capacity
  • 94.5 dB sensitivity
  • 126-15K Hz response
  • 38.6mm(1.5in) voice coil

MD65N1 truly restores musical origin with rich, delicate midrange details and a clean, natural tone for pure comfortable listening. A precisely designed structure ensures accurate sound with transparent, expressive vocals and natural smooth instrument dynamics. An efficient magnetic circuit strengthens positioning and layering with warm soft midrange and excellent resolution.

  • GENERAL SPECIFICATIONS
  • THIELE SMALL PARAMETERS
  • EXTRA INFO
Nominal Chassis Diameter6.5/165 in/mm
MAX Power160 Watts
RMS Power80 Watts
Impedance4 0hm
Resonance Frequency126 Hz
Frequency Response126-15K Hz
Sensitivity(1W/1m)94.5 dB
Voice Coil Diameter1.5” / 38.6mm
Winding materialCCAW
MagnetNeodymium



FS126 Hz
Vas3.2 dm3
RE3.6 ohm
Qms11.7
Qes0.59
Qts0.56
BL7.0 T/m
MMS10.3 grams
Xmax2.1 mm
Sd122.7 cm²
Efficiency1.0 %
EBP213



Overall Diameter6.5/165 in/mm
Bolt Cirde Diameter6.2/158 in/mm
Baffle cutout Diameter5.8/147 in/mm
Depth3.1/78 in/mm
Net Weight1.05 kgs
Shipping Weight1.25 kgs
Shipping Box18.5X18.5X10.5 cm
