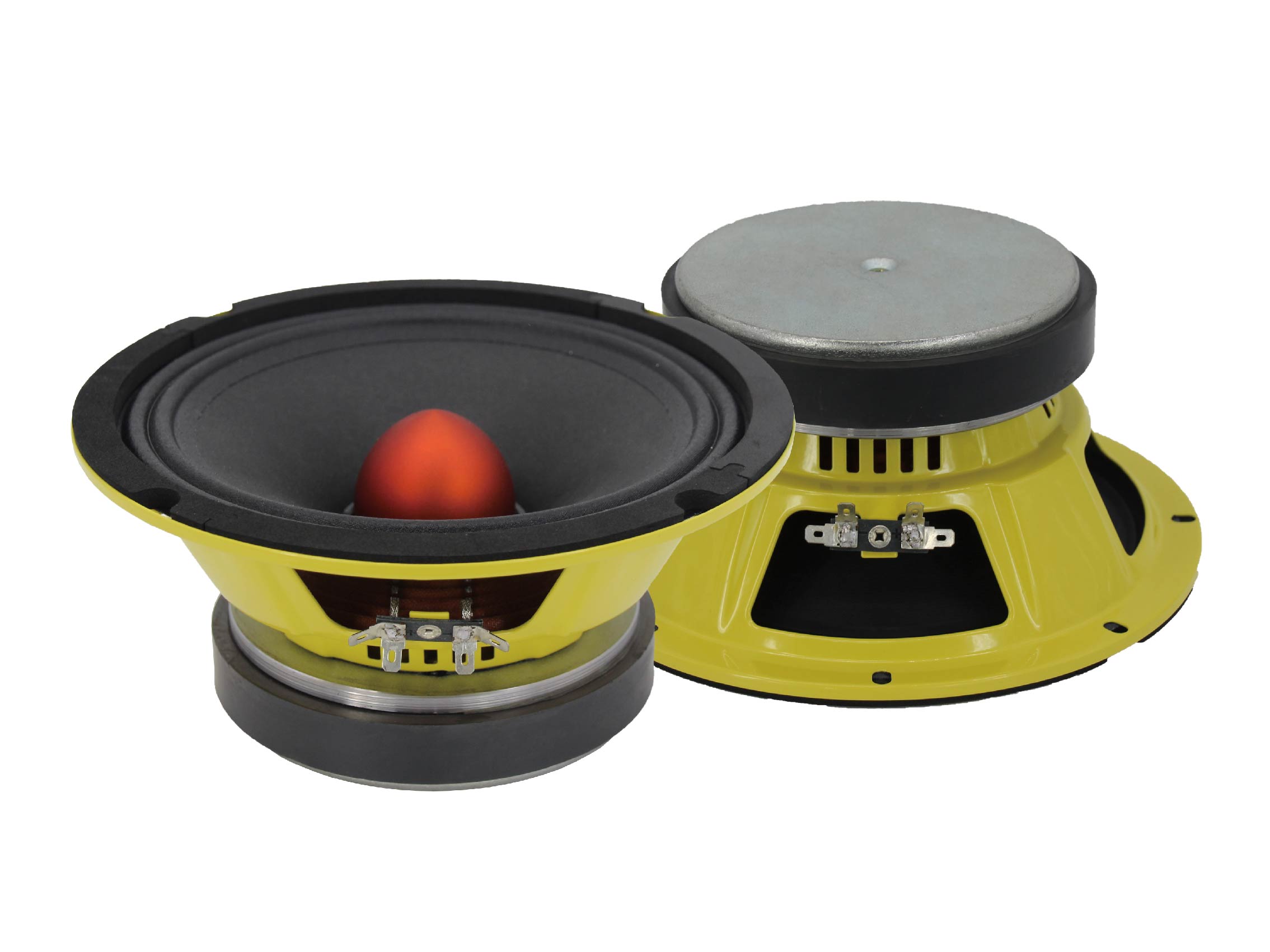

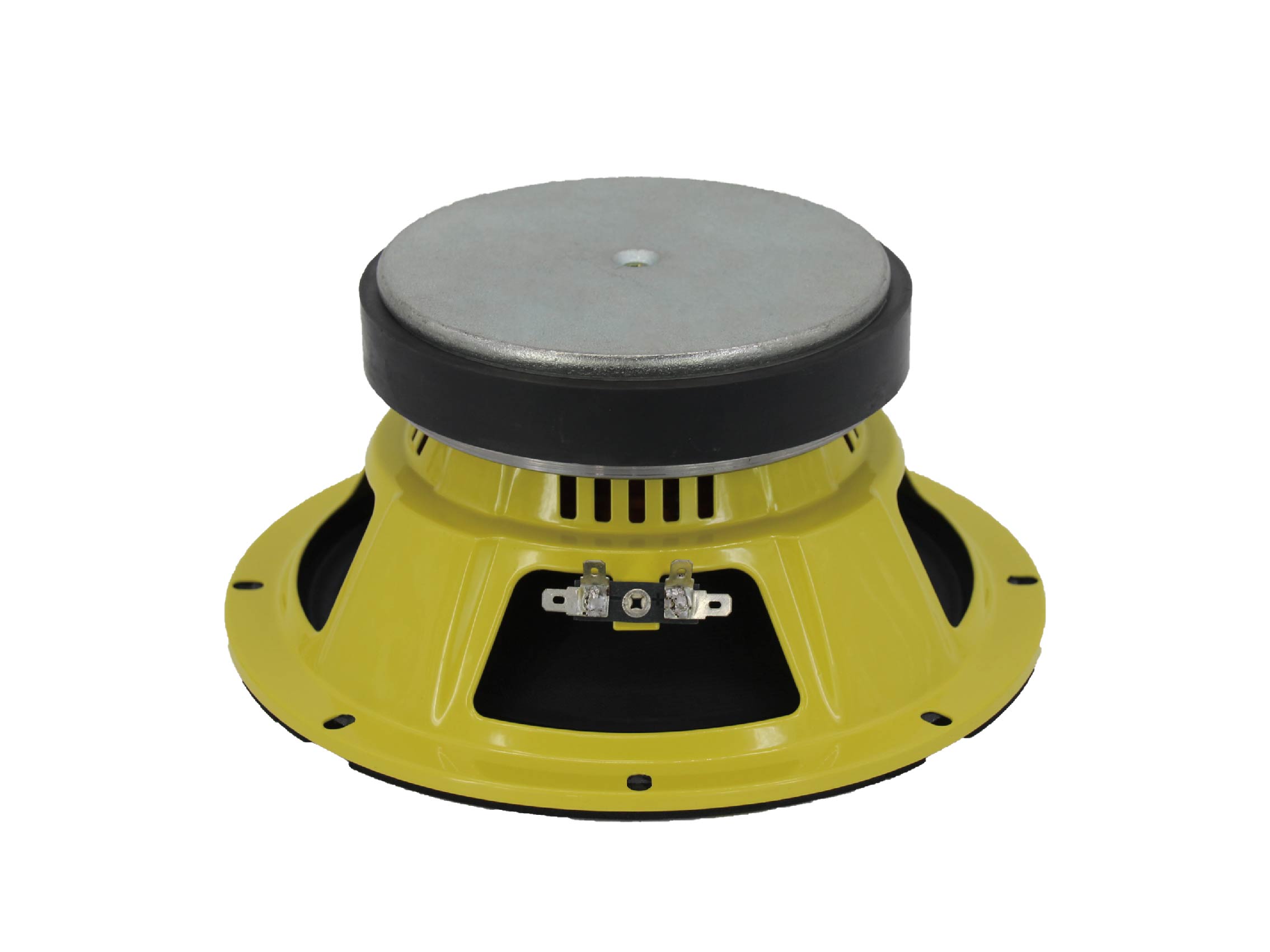

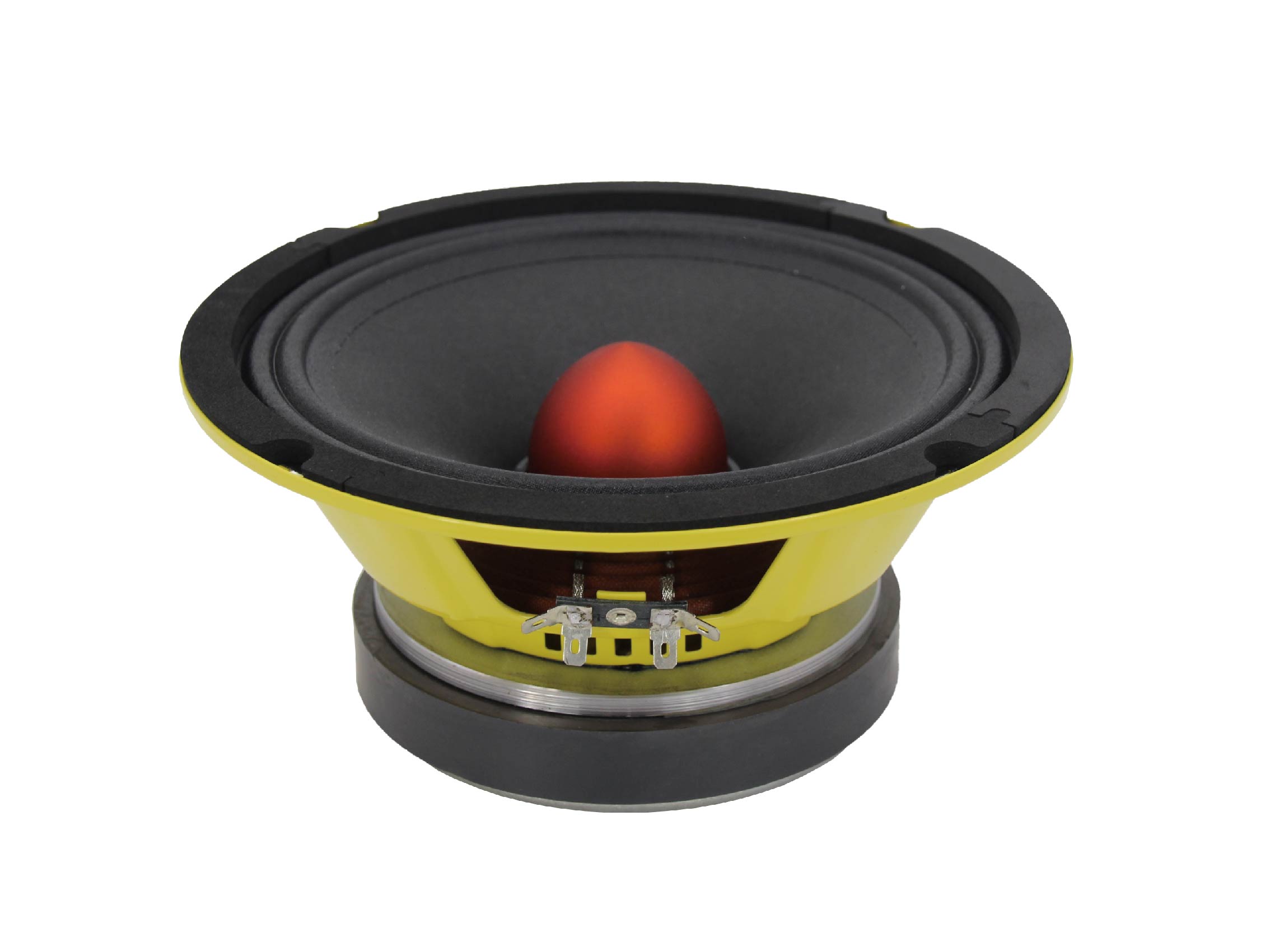

MD670

6.5″Mid-Range Speaker
  • 4Ω nominal impedance
  • 3.6Ω minimum impedance
  • 240W RMS capacity
  • 120W AES capacity
  • 93 dB sensitivity
  • 100-10000 Hz response
  • 38.6mm(1.5in) inside-outside voice coil

MD670 delivers a pure and clear soundstage core with powerful performance. It gives stable output at high temperatures and pressures, ensuring a sense of thickness and clarity in the mid-band, with precise levels of detail. Respond to large dynamic scenes without compromise, and restore the true density and impact of sound. It can easily wake up sound details, accurately represent sounds. Behind every melody, it‘s the backbone of your car‘s sound system.

  • GENERAL SPECIFICATIONS
  • THIELE-SMALL PARAMETERS
  • EXTRA INFO
Nominal Diameter10/250 in/mm
MAX Power1000 Watts
RMS Power500 Watts
Impedance4+4 Ohm
Resonance Frequency35 Hz
Frequency Response35-400 Hz
Sensitivity(1W/1m)83 dB
Voice Coil Diameter2.4”/60.6mm
Voice Coil MaterialBASV
Magnet112 Oz
FS35 Hz
RE3.2+3.2 ohm
Qms5.4
Qes0.82
Qts0.71
BL13 T/m
MMS207 grams
Xmax21 mm
Sd340 cm²
Efficiency0%
Le(1k Hz)49 mH
Overall Diameter10/262 in/mm
Bolt Circle Diameter6.1/243 in/mm
Baffle cutout Diameter9/232 in/mm
Depth6.7/172 in/mm
Net Weight7.25 kgs
Shipping Weight8.05 kgs
Shipping Box28.5X28.5X20cm

Highlights

  • 10’’Inside/Out BASV voice coil wounded for hi-temp performance, 4+4ohms
  • 800watts continuous program power rating makes high acoustical output
  • Sleek look, smooth figure
  • 81dB sensitivity, Superior voice reproduction performance.
  • Powerful sound , high fidelity response

Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Enhanced bass control with precise acoustic algorithms.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Deep, powerful bass with realistic, elastic drum sounds.
Clear vocals and rich bass for an immersive music experience.

6.5 MID RANGE SPEAKER
