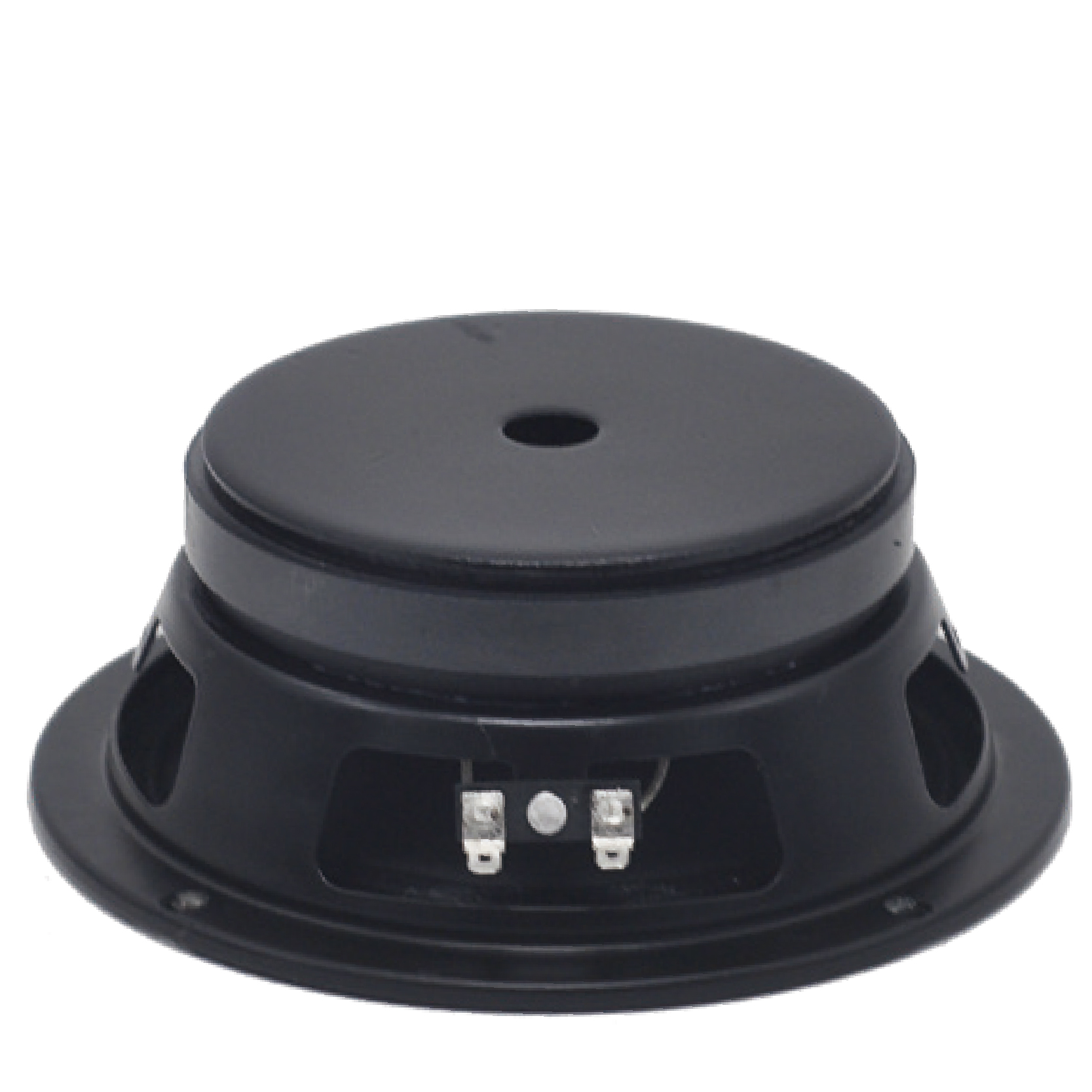

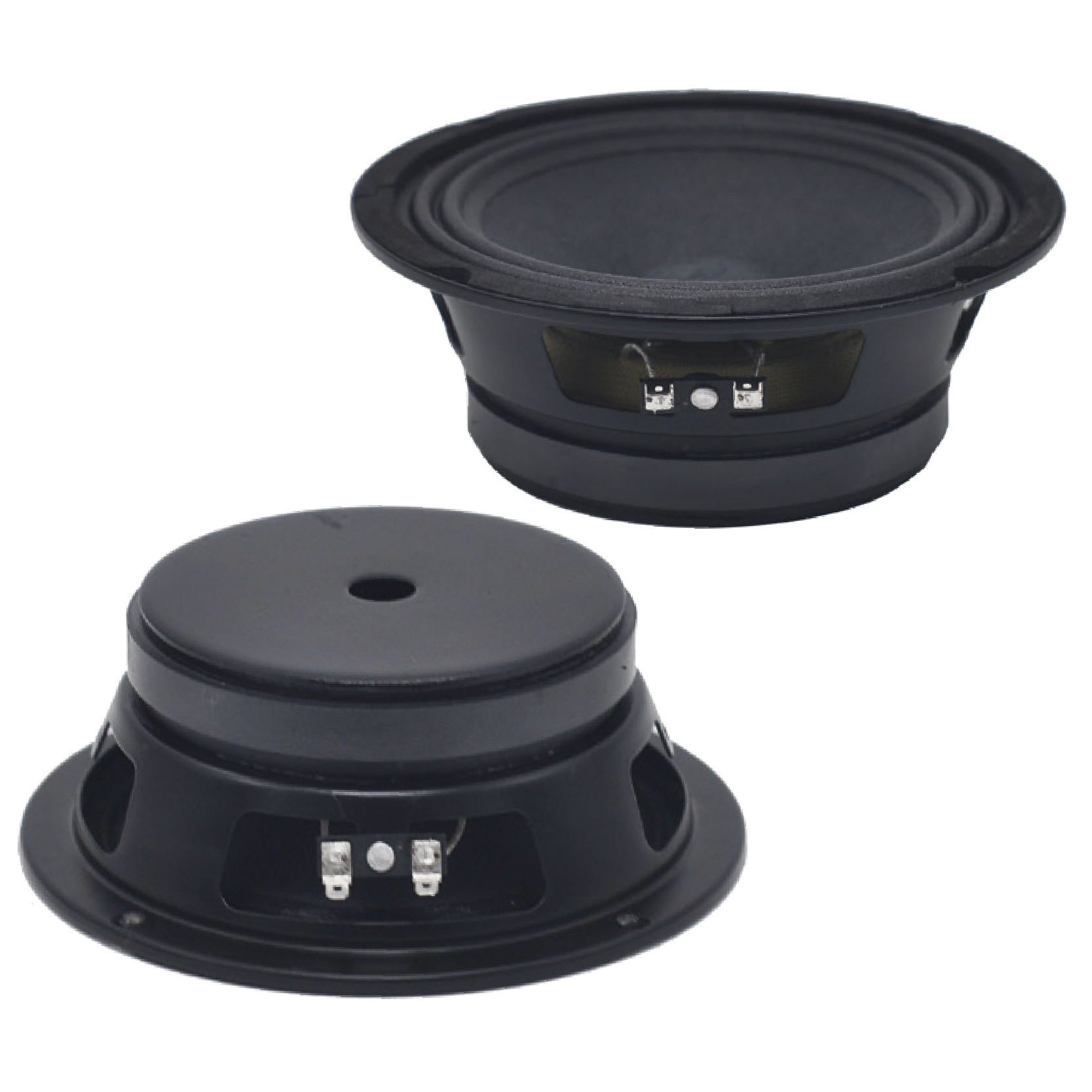

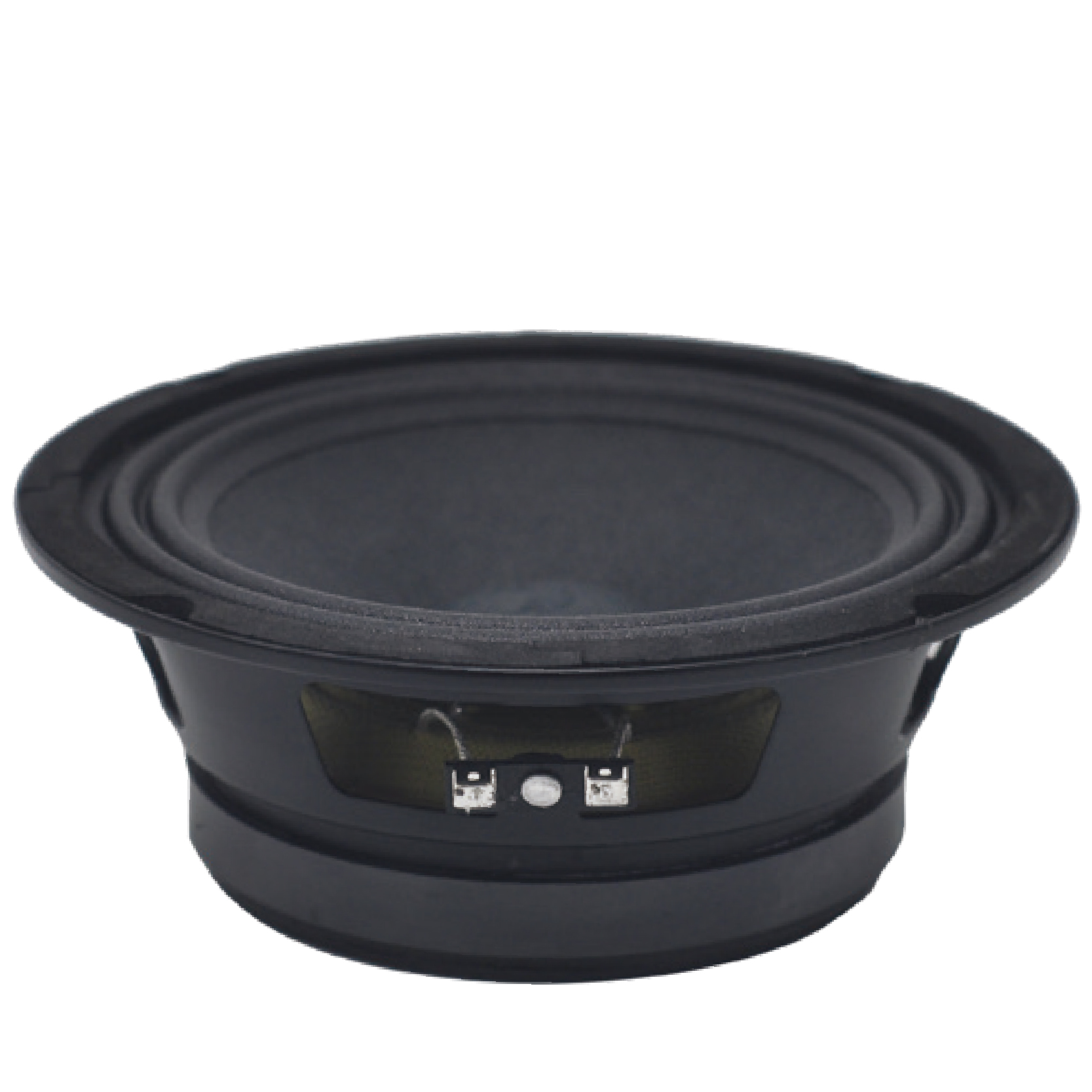

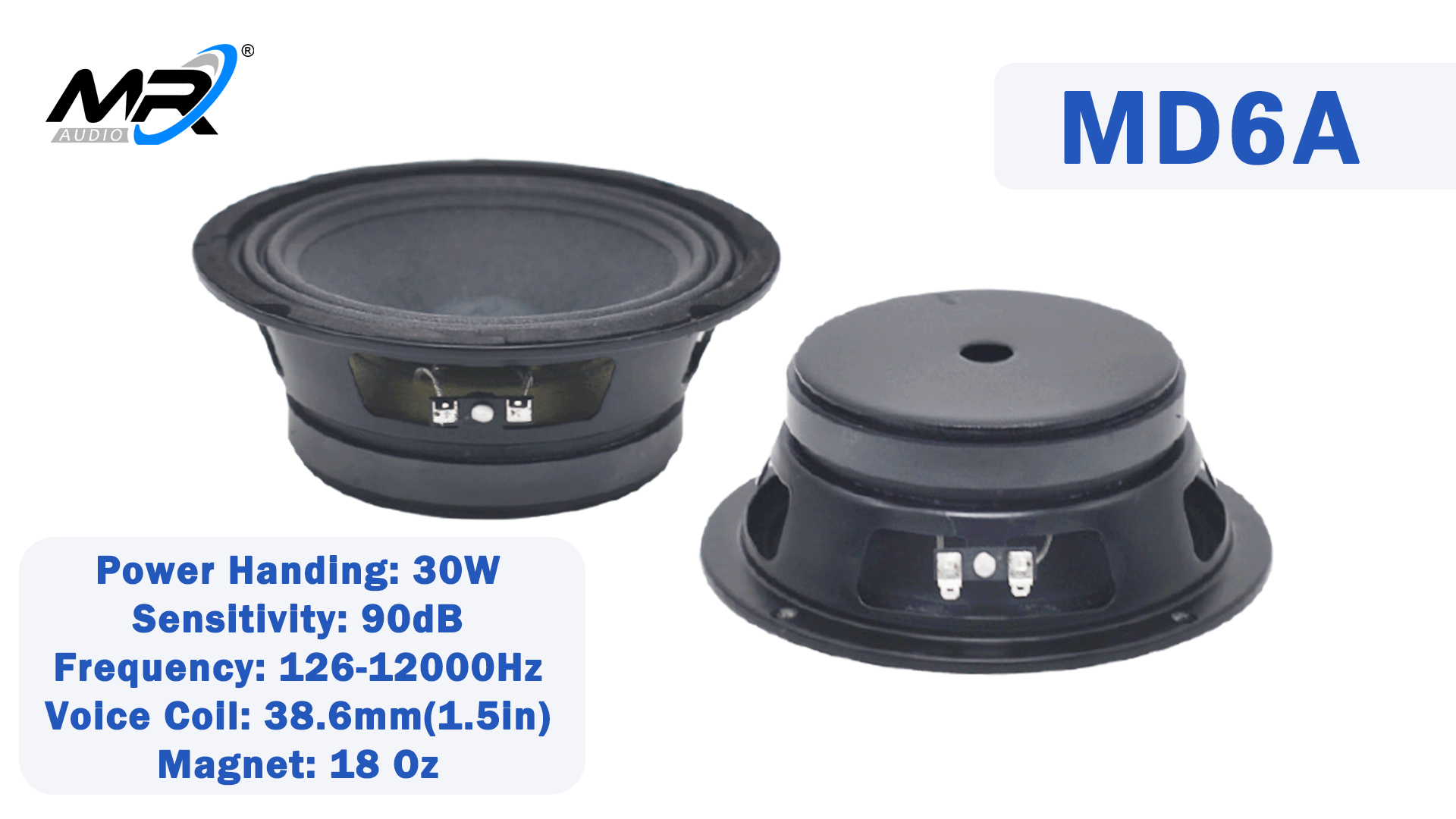

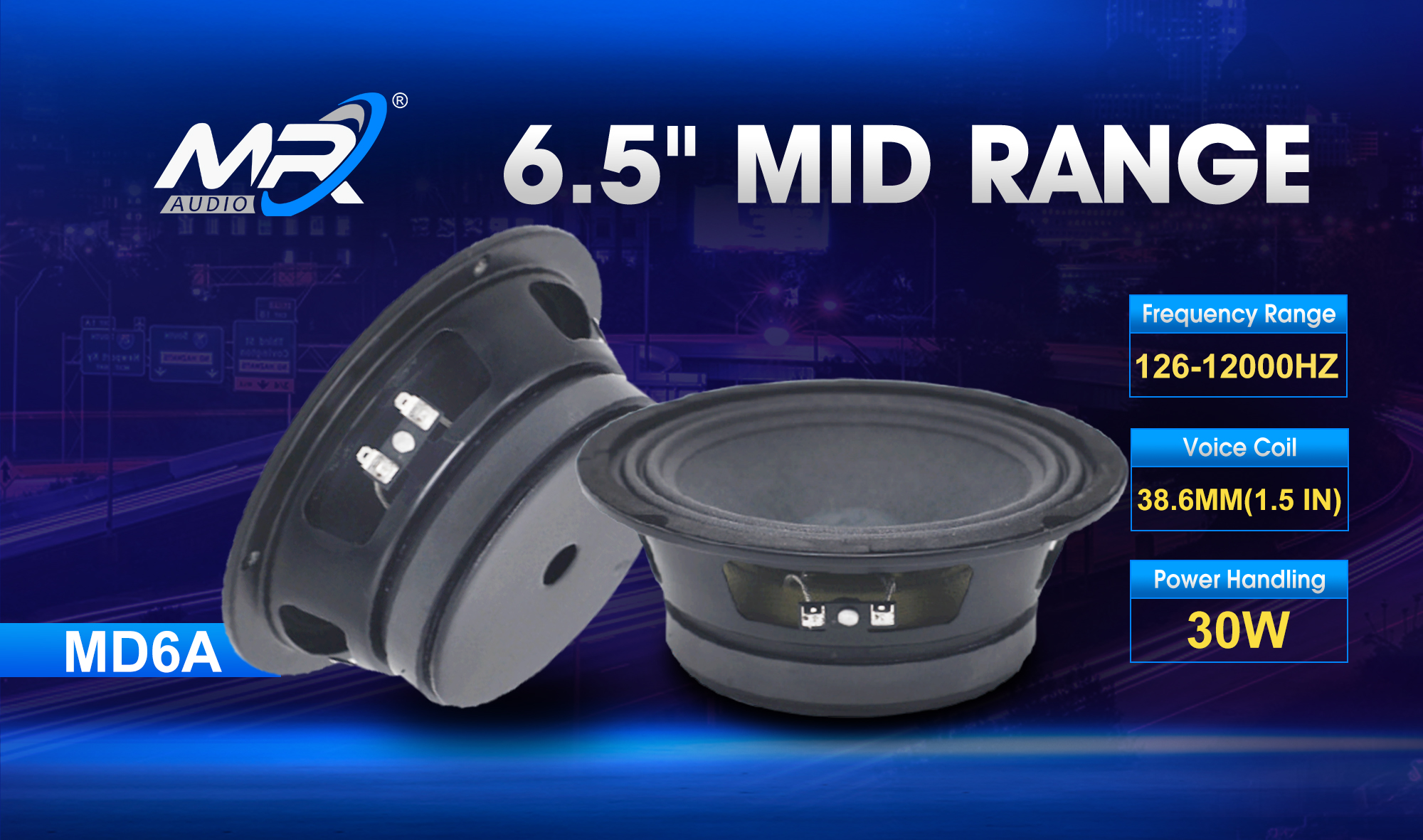

MD6A
6.5″Mid-Range Speaker
- 8Ω nominal impedance
- 5.6Ω minimum impedance
- 30W RMS capacity
- 15W AES capacity
- 90 dB sensitivity
- 126-12000 Hz response
- 38.6mm(1.5in) inside-outside voice coil
MD6A accurately matches a variety of audio systems to ensure efficient and stable output, and inject lasting momentum into passionate driving.Let every sound detail jump out, and the low-power driver can also burst out the shocking volume. Precise restoration of details, giving the cockpit a sense of realism as if it were a scene of concert. High temperature resistance and distortion resistance can interpret the ultimate driving listening experience.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 6.5/166 in/mm |
| MAX Power | 60 Watts |
| RMS Power | 30 Watts |
| Impedance | 8 Ohm |
| Resonance Frequency | 126 Hz |
| Frequency Response | 126-12000 Hz |
| Sensitivity(1W/1m) | 90 dB |
| Voice Coil Diameter | 1.5”/38.6mm |
| Voice Coil Material | KSV |
| Magnet | 18 Oz |
| FS | 126 Hz |
| RE | 5.6 ohm |
| Qms | 12.6 |
| Qes | 1.2 |
| Qts | 1.1 |
| BL | 6 T/m |
| MMS | 10 grams |
| Xmax | 2 mm |
| Sd | 119 cm² |
| Efficiency | 0.4 % |
| Overall Diameter | 6.5/166 in/mm |
| Bolt Circle Diameter | 6.1/155 in/mm |
| Baffle cutout Diameter | 5.6/142 in/mm |
| Depth | 2.5/65 in/mm |
| Net Weight | 1.55 kgs |
| Shipping Weight | 1.75 kgs |
| Shipping Box | 18.5X18.5X10.5cm |
Highlights
- 1.5”Inside/Out KSV voice coil wounded for hi-temp performance
- 30watts continuous power rating makes high acoustical output
- Sleek look, smooth figure
- 90dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Enhanced bass control with precise acoustic algorithms.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Deep, powerful bass with realistic, elastic drum sounds.
Clear vocals and rich bass for an immersive music experience.
