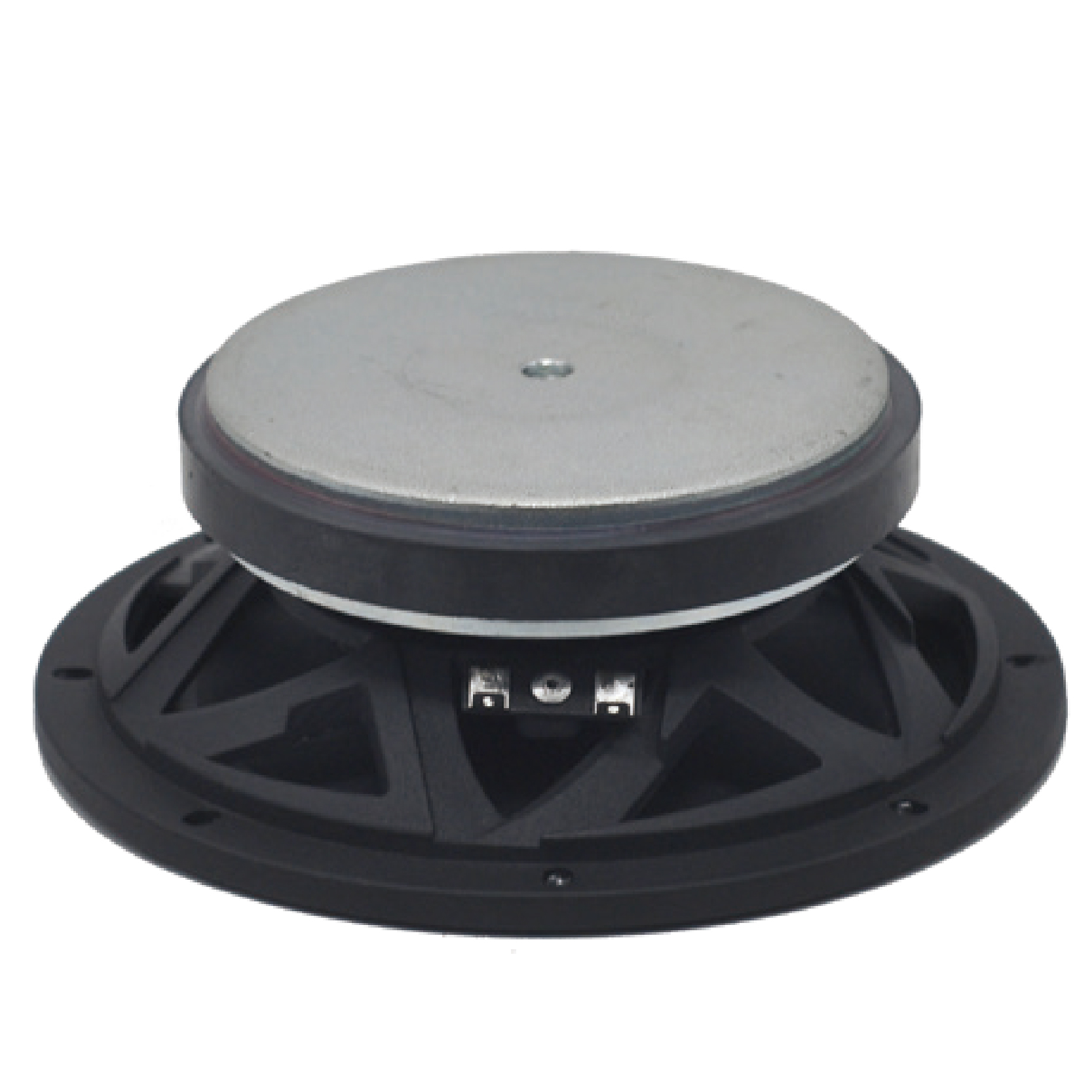

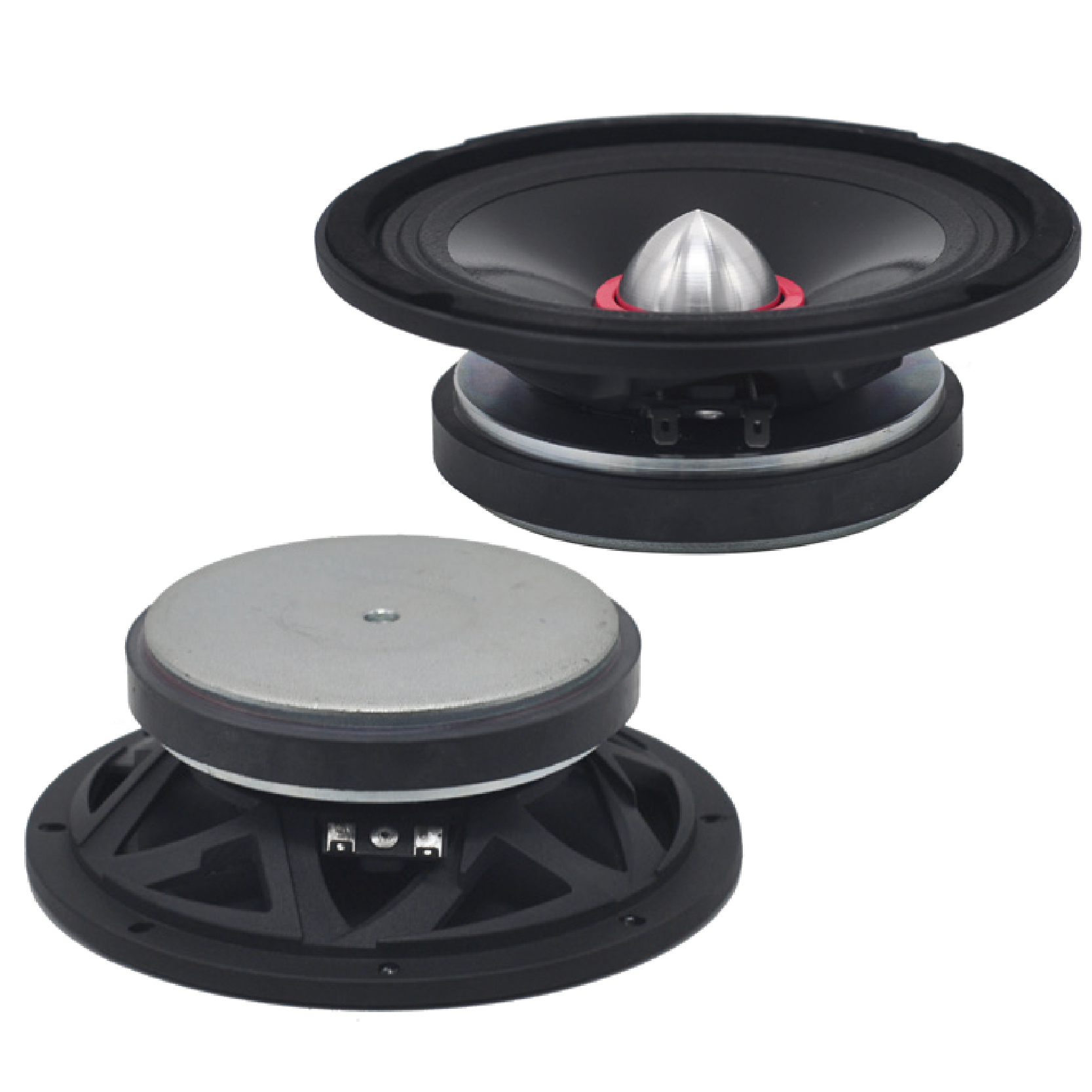

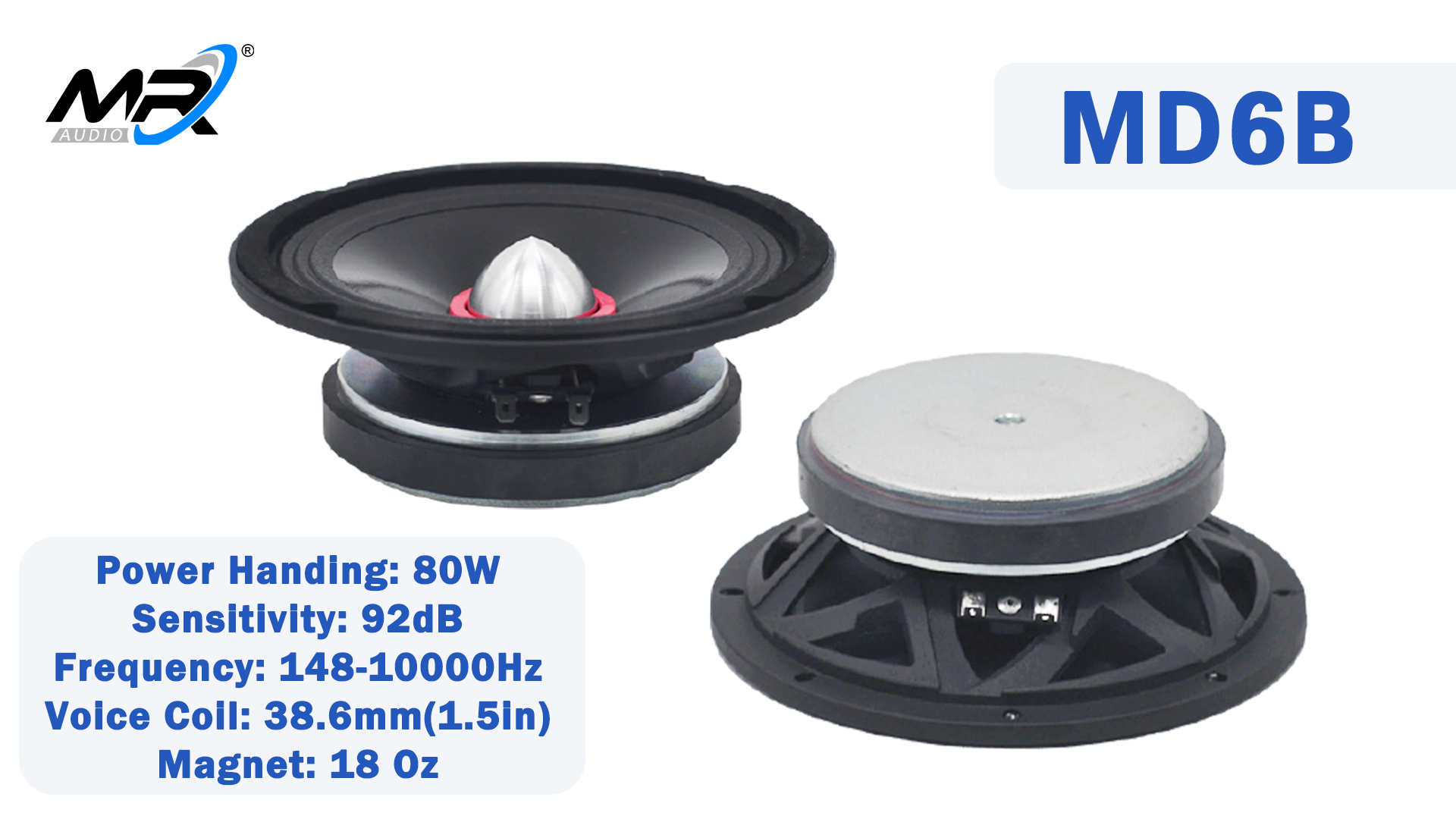

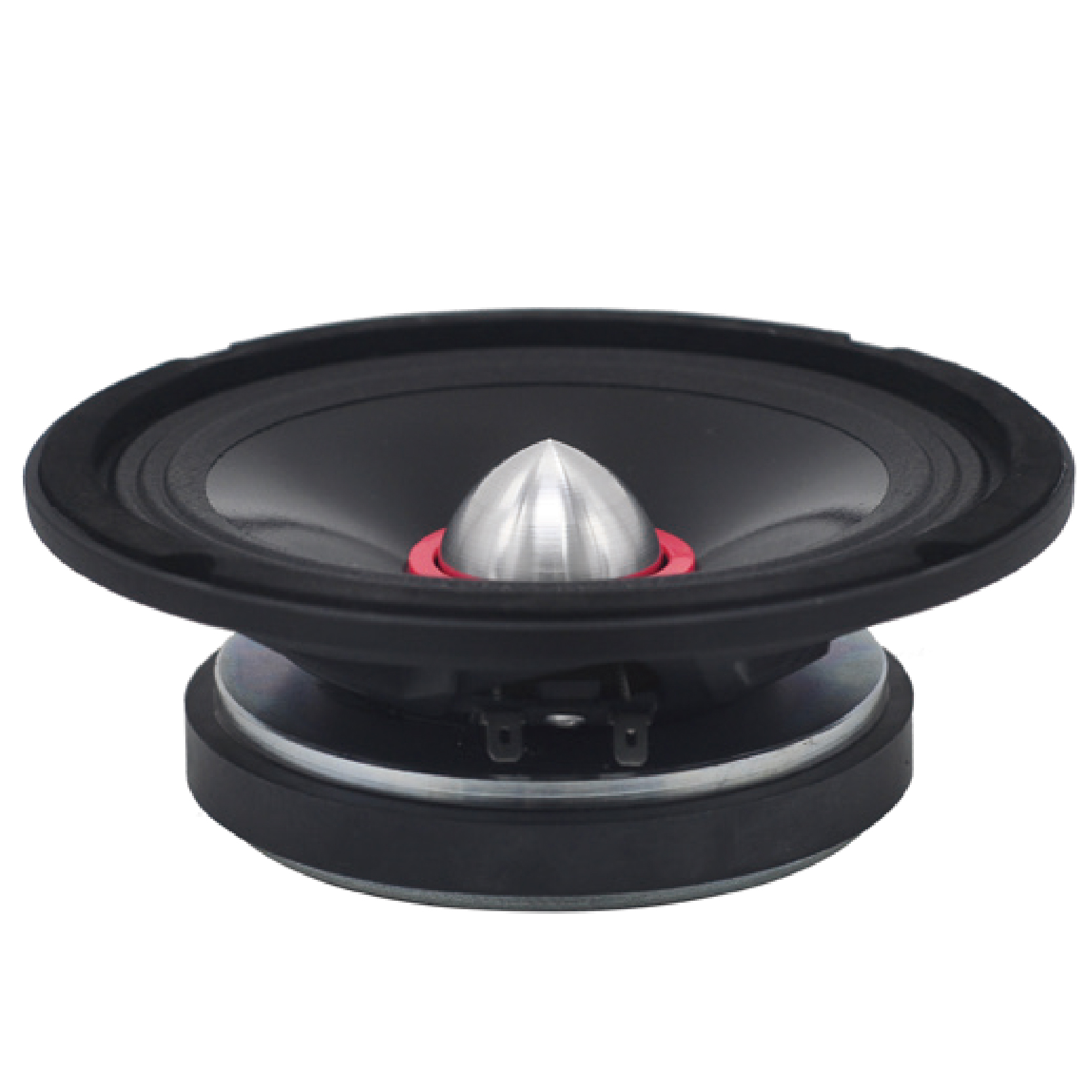

MD6B
6.5″Mid-Range Speaker
- 4Ω nominal impedance
- 3.6Ω minimum impedance
- 80W RMS capacity
- 40W AES capacity
- 92 dB sensitivity
- 148-10000 Hz response
- 38.6mm(1.5in) inside-outside voice coil
MD6B is calm and powerful, maintaining clear timbre layers and a stable sound stage in complex acoustic environments. It accurately restores details of both vocal and the instrument, showing rich sound texture. Its heat resistance and dynamic response speed allow it to maintain sound quality at high power outputs, with no noticeable compression. Its control and transient response make the details more realistic. It is not only a speaker, but also a precise carving of sound expression.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 6.5/170 in/mm |
| MAX Power | 160 Watts |
| RMS Power | 80 Watts |
| Impedance | 4 Ohm |
| Resonance Frequency | 148 Hz |
| Frequency Response | 148-10000 Hz |
| Sensitivity(1W/1m) | 92 dB |
| Voice Coil Diameter | 1.5”/38.6mm |
| Voice Coil Material | KSV |
| Magnet | 18 Oz |
| FS | 148 Hz |
| RE | 3.6 ohm |
| Qms | 7.5 |
| Qes | 0.66 |
| Qts | 0.61 |
| BL | 8 T/m |
| MMS | 11 grams |
| Xmax | 1 mm |
| Sd | 123 cm² |
| Efficiency | 1.0 % |
| Overall Diameter | 6.5/170 in/mm |
| Bolt Circle Diameter | 6.4/164 in/mm |
| Baffle cutout Diameter | 5.8/150 in/mm |
| Depth | 2.5/65 in/mm |
| Net Weight | 1.75 kgs |
| Shipping Weight | 2.25 kgs |
| Shipping Box | 18.5X18.5X10.5cm |
Highlights
- 1.5”Inside/Out KSV voice coil wounded for hi-temp performance
- 80watts continuous power rating makes high acoustical output
- Sleek look, smooth figure
- 92dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Enhanced bass control with precise acoustic algorithms.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Deep, powerful bass with realistic, elastic drum sounds.
Clear vocals and rich bass for an immersive music experience.
