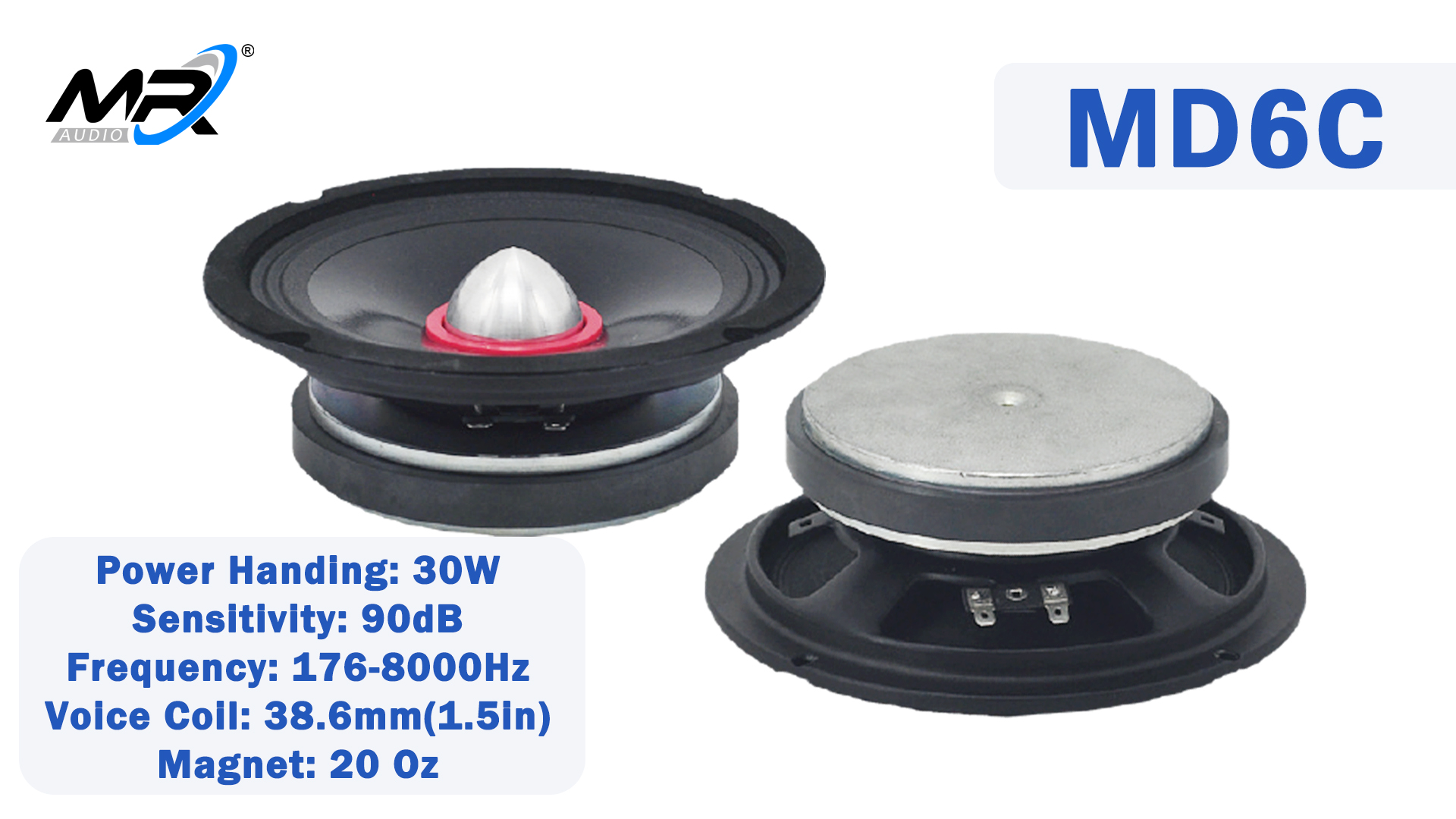

MD6C

6.5″Mid-Range Speaker
  • 4Ω nominal impedance
  • 3.6Ω minimum impedance
  • 30W RMS capacity
  • 90 dB sensitivity
  • 176-8000 Hz response
  • 38.6mm(1.5in) inside-outside voice coil

MD6C is not only a companion of the background, but also an extension of emotions. It is good at restoring the texture of the sound, especially in the performance of mid-frequencies, which is warm and clear, and the layers are clear, as if the singer is whispering right next to you. With strong matching and flexible system adaptation, it can be easily integrated into the original car system upgrade or high-end modification scheme, releasing far beyond the size of the energy.

  • GENERAL SPECIFICATIONS
  • THIELE-SMALL PARAMETERS
  • EXTRA INFO
Nominal Diameter6.5/166 in/mm
MAX Power60 Watts
RMS Power30 Watts
Impedance4 Ohm
Resonance Frequency176 Hz
Frequency Response176-8000 Hz
Sensitivity(1W/1m)90 dB
Voice Coil Diameter1.5”/38.6mm
Voice Coil MaterialKSV
Magnet20 Oz
FS176 Hz
RE3.6 ohm
Qms11
Qes1.2
Qts1.1
BL5 T/m
MMS9 grams
Xmax2 mm
Sd139 cm²
Efficiency1 %
Overall Diameter6.5/166 in/mm
Bolt Circle Diameter6.1/155 in/mm
Baffle cutout Diameter5.6/142 in/mm
Depth2.2/55 in/mm
Net Weight1.65 kgs
Shipping Weight1.85 kgs
Shipping Box18.5X18.5X10.5cm

Highlights

  • 1.5”Inside/Out KSV voice coil wounded for hi-temp performance
  • 30watts continuous power rating makes high acoustical output
  • Sleek look, smooth figure
  • 90dB sensitivity, Superior voice reproduction performance.
  • Powerful sound , high fidelity response

Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Enhanced bass control with precise acoustic algorithms.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Clear vocals and rich bass for an immersive music experience.
