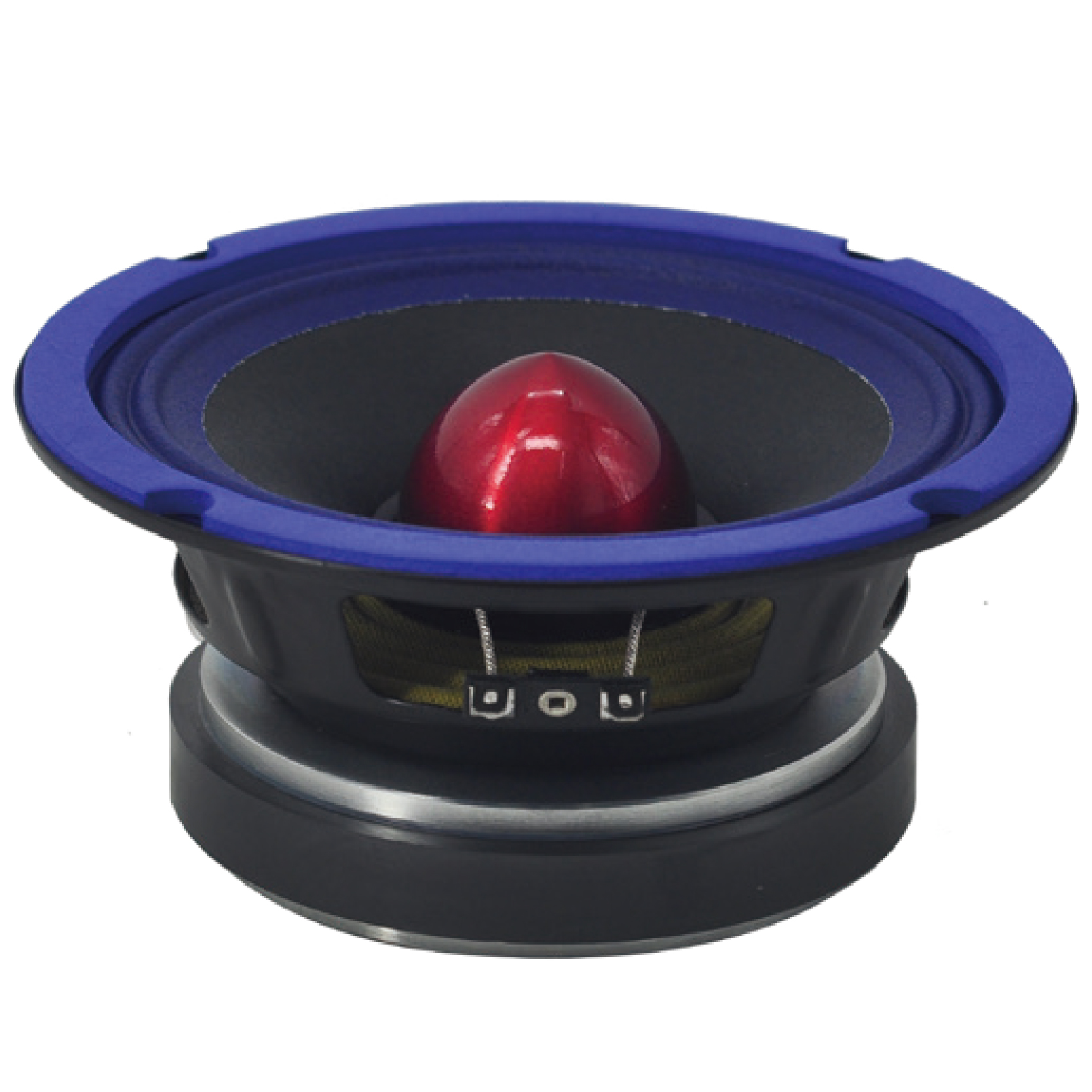

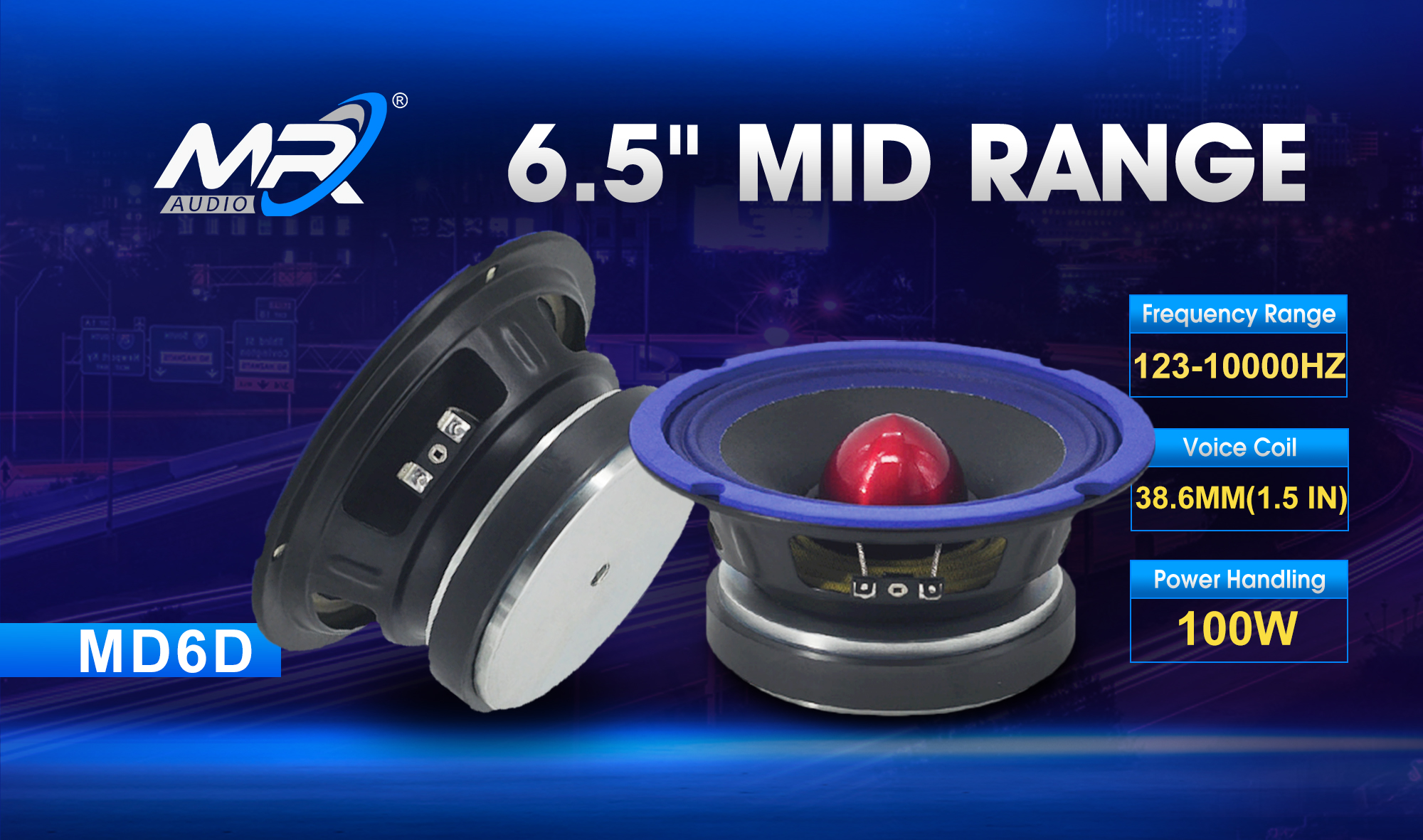

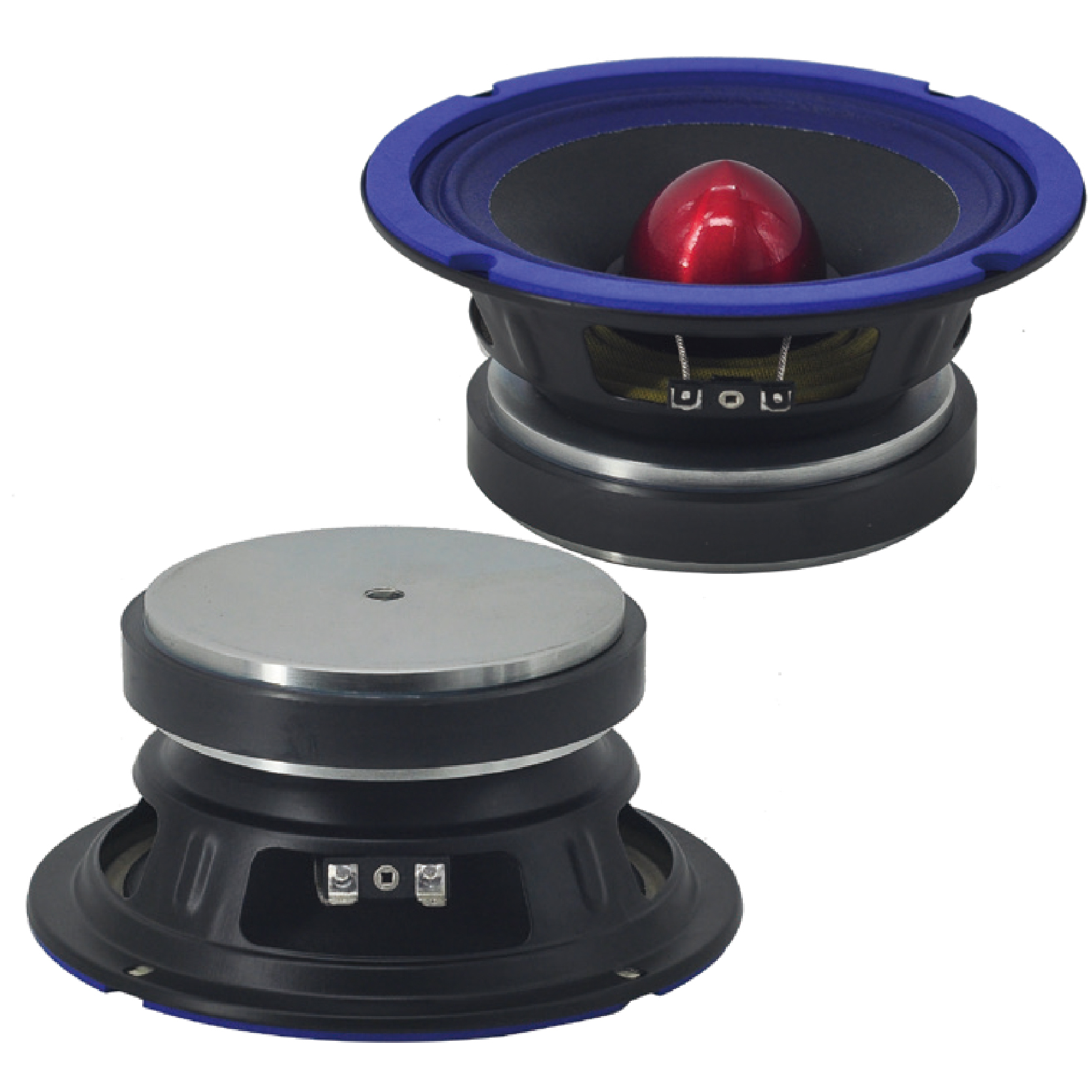

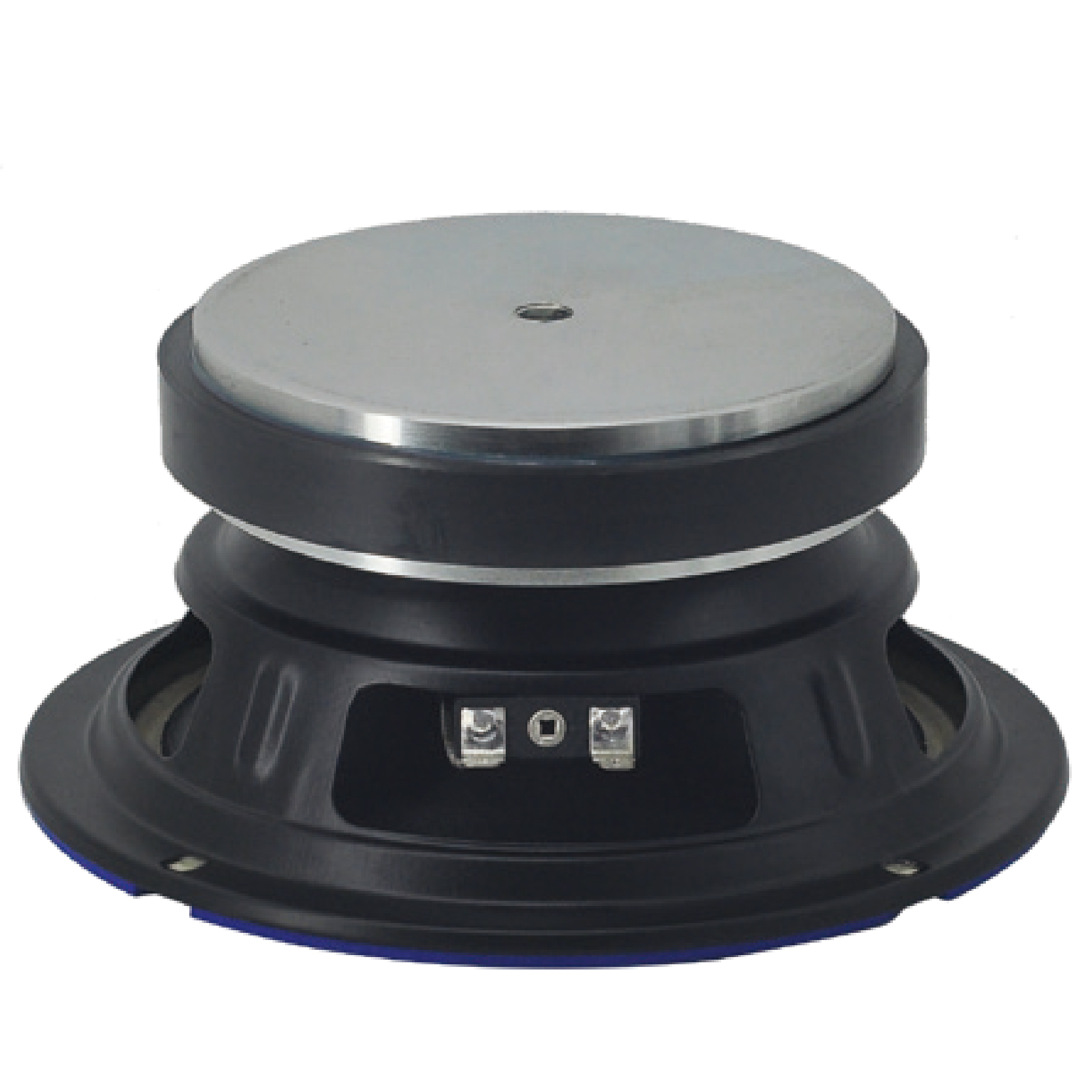

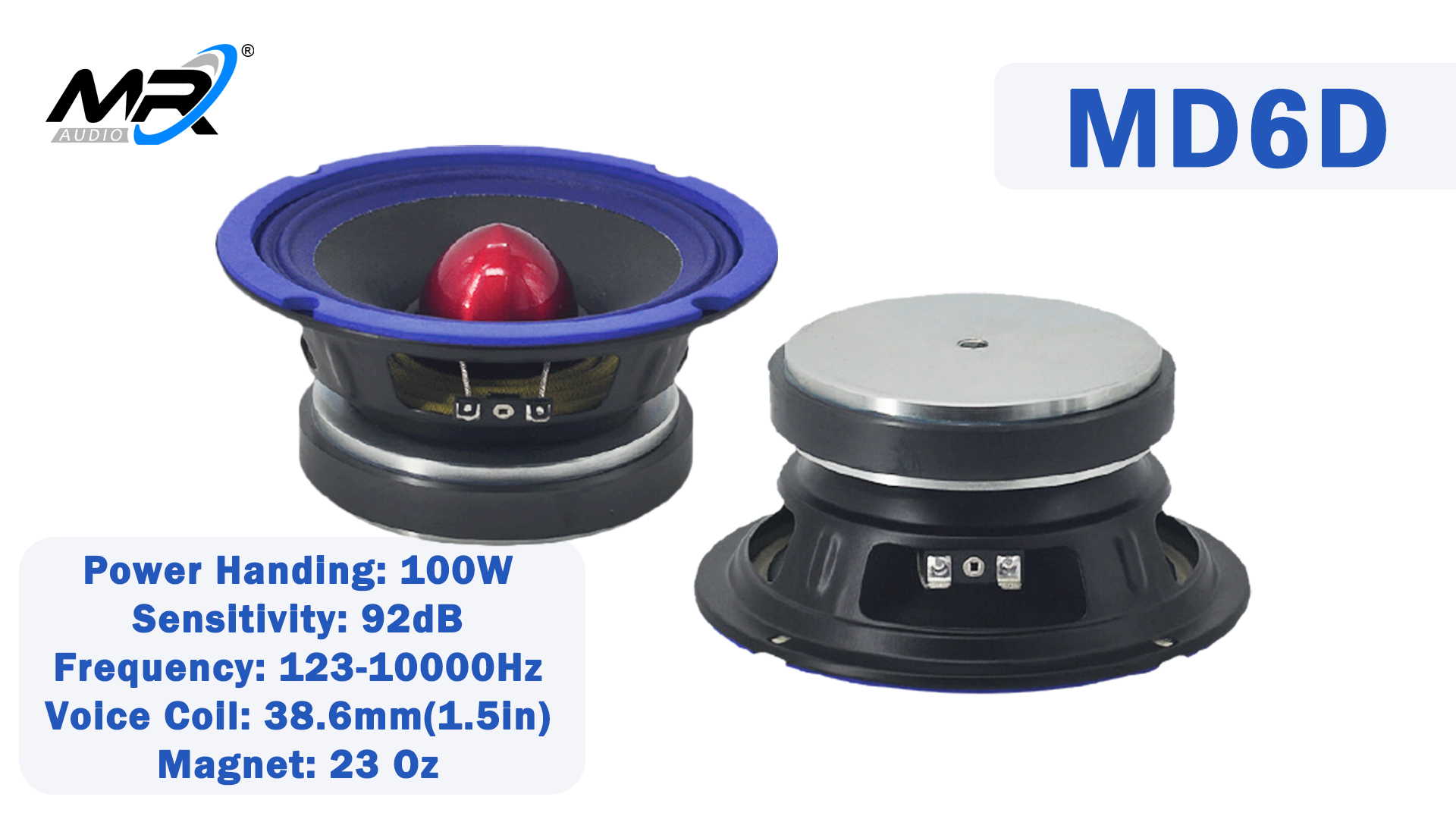

MD6D
6.5″Mid-Range Speaker
- 4Ω nominal impedance
- 3.6Ω minimum impedance
- 100W RMS capacity
- 50W AES capacity
- 92 dB sensitivity
- 123-10000 Hz response
- 38.6mm(1.5in) inside-outside voice coil
MD6D is designed to strike a balance between sound quality and performance. With excellent sound resolution and powerful power performance, it injects a vivid listening experience into every journey. It covers the most acute hearing area of the human ear. Driven by high power, it remains stable and calm, giving you a powerful and controlled midrange performance. With every clear echo, it paints infinite auditory possibilities in a limited space.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 6.5/166 in/mm |
| MAX Power | 200 Watts |
| RMS Power | 100 Watts |
| Impedance | 4 Ohm |
| Resonance Frequency | 123 Hz |
| Frequency Response | 123-10000 Hz |
| Sensitivity(1W/1m) | 92 dB |
| Voice Coil Diameter | 1.5”/38.6mm |
| Voice Coil Material | KSV |
| Magnet | 23 Oz |
| FS | 123 Hz |
| RE | 3.6 ohm |
| Qms | 7.7 |
| Qes | 0.53 |
| Qts | 0.5 |
| BL | 10 T/m |
| MMS | 19.6 grams |
| Xmax | 2.2 mm |
| Sd | 140 cm² |
| Efficiency | 0.83 % |
| Overall Diameter | 6.5/166 in/mm |
| Bolt Circle Diameter | 6.1/155 in/mm |
| Baffle cutout Diameter | 5.7/147 in/mm |
| Depth | 3/75 in/mm |
| Net Weight | 1.9 kgs |
| Shipping Weight | 2.4 kgs |
| Shipping Box | 18.5X18.5X10.5cm |
Highlights
- 1.5”Inside/Out KSV voice coil wounded for hi-temp performance
- 100watts continuous power rating makes high acoustical output
- Sleek look, smooth figure
- 92dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Clear vocals and rich bass for an immersive music experience.
