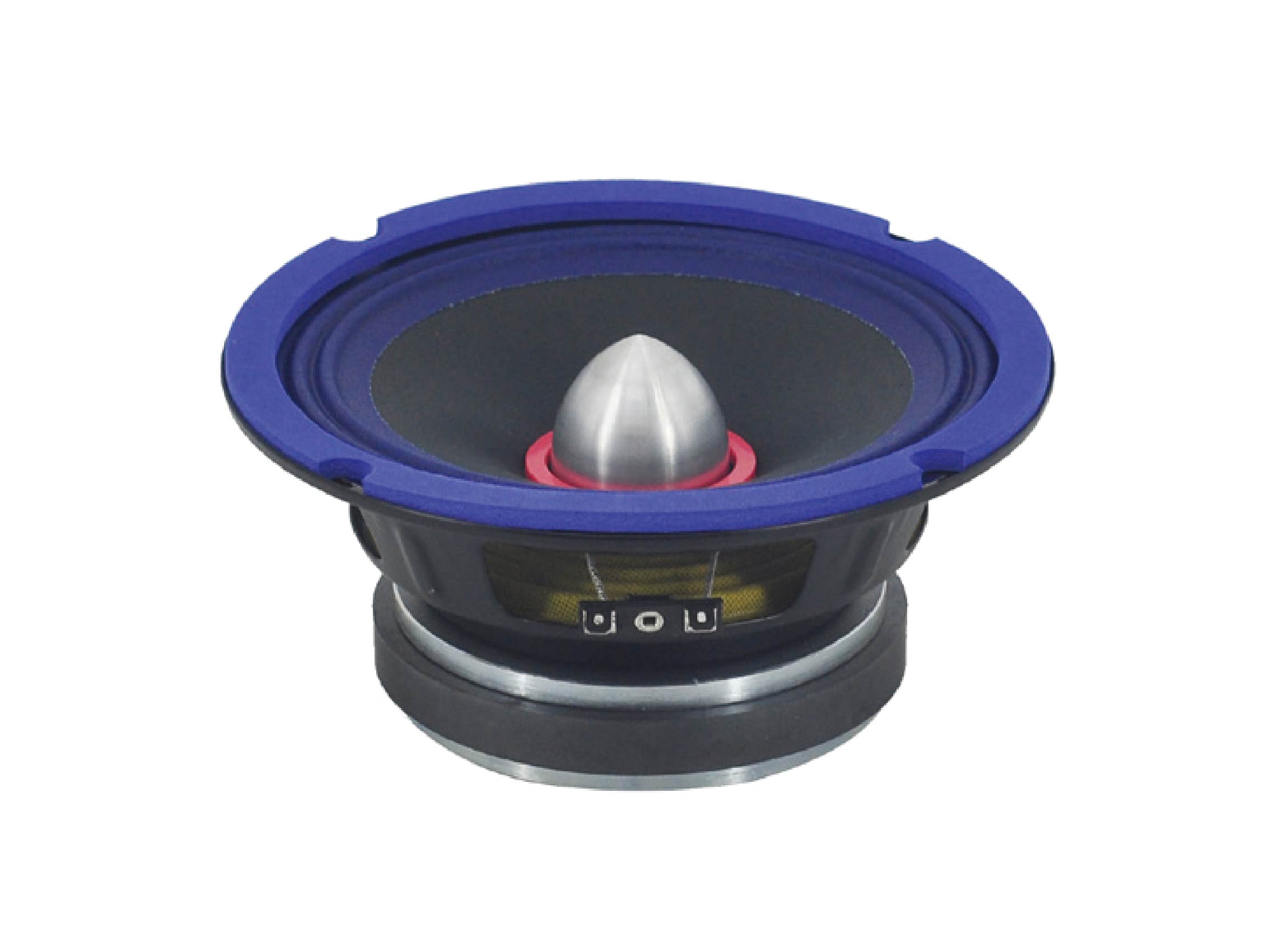

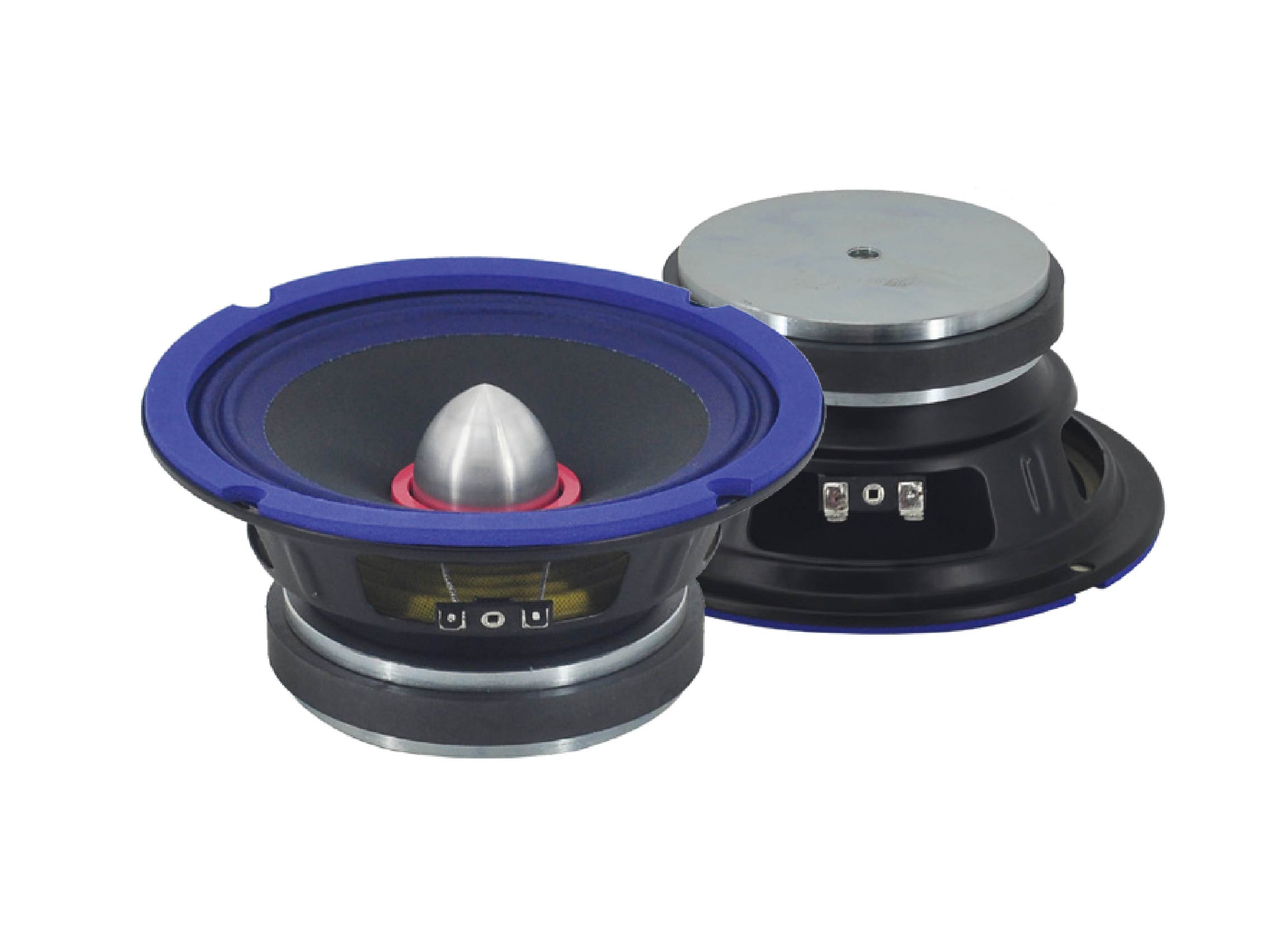

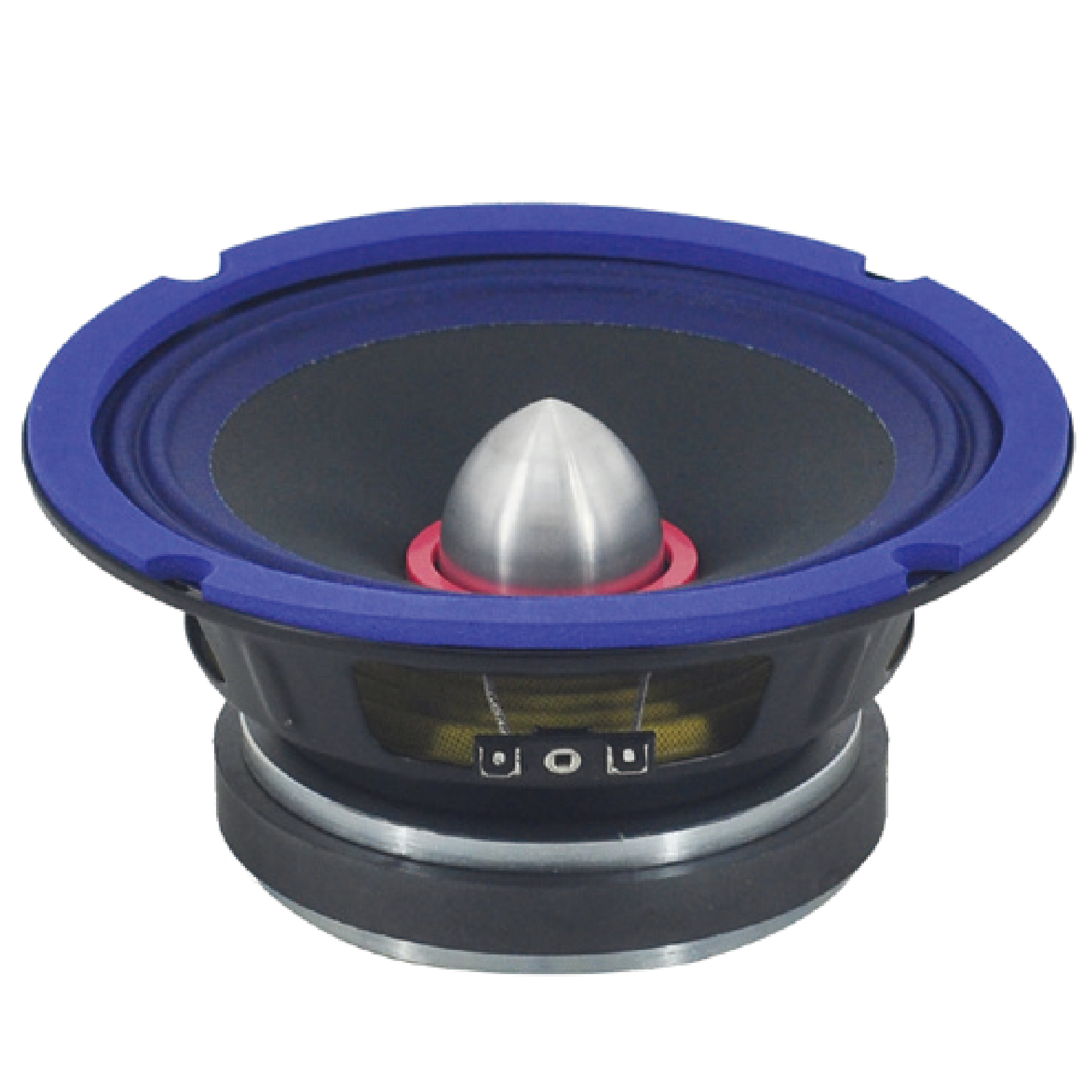

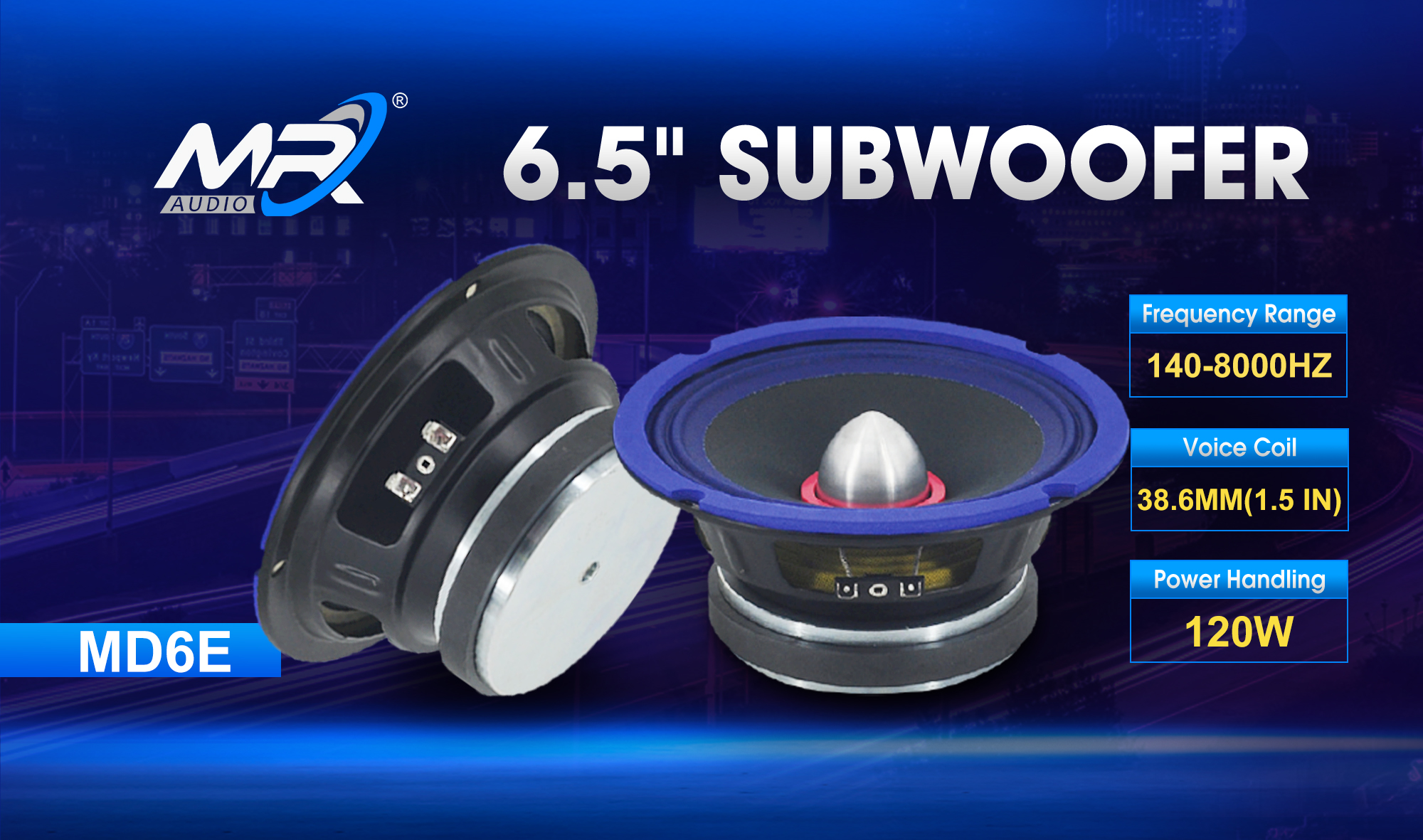

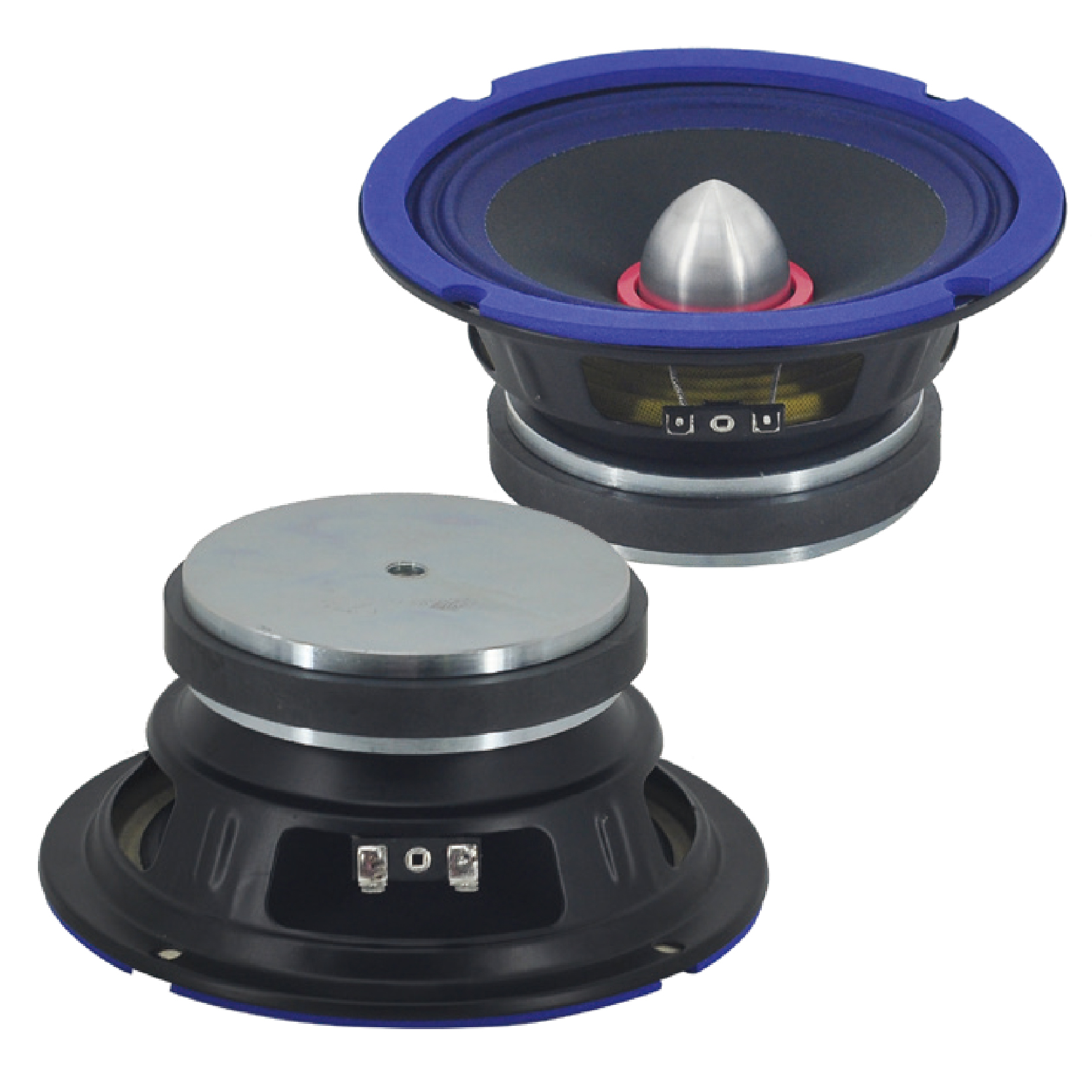

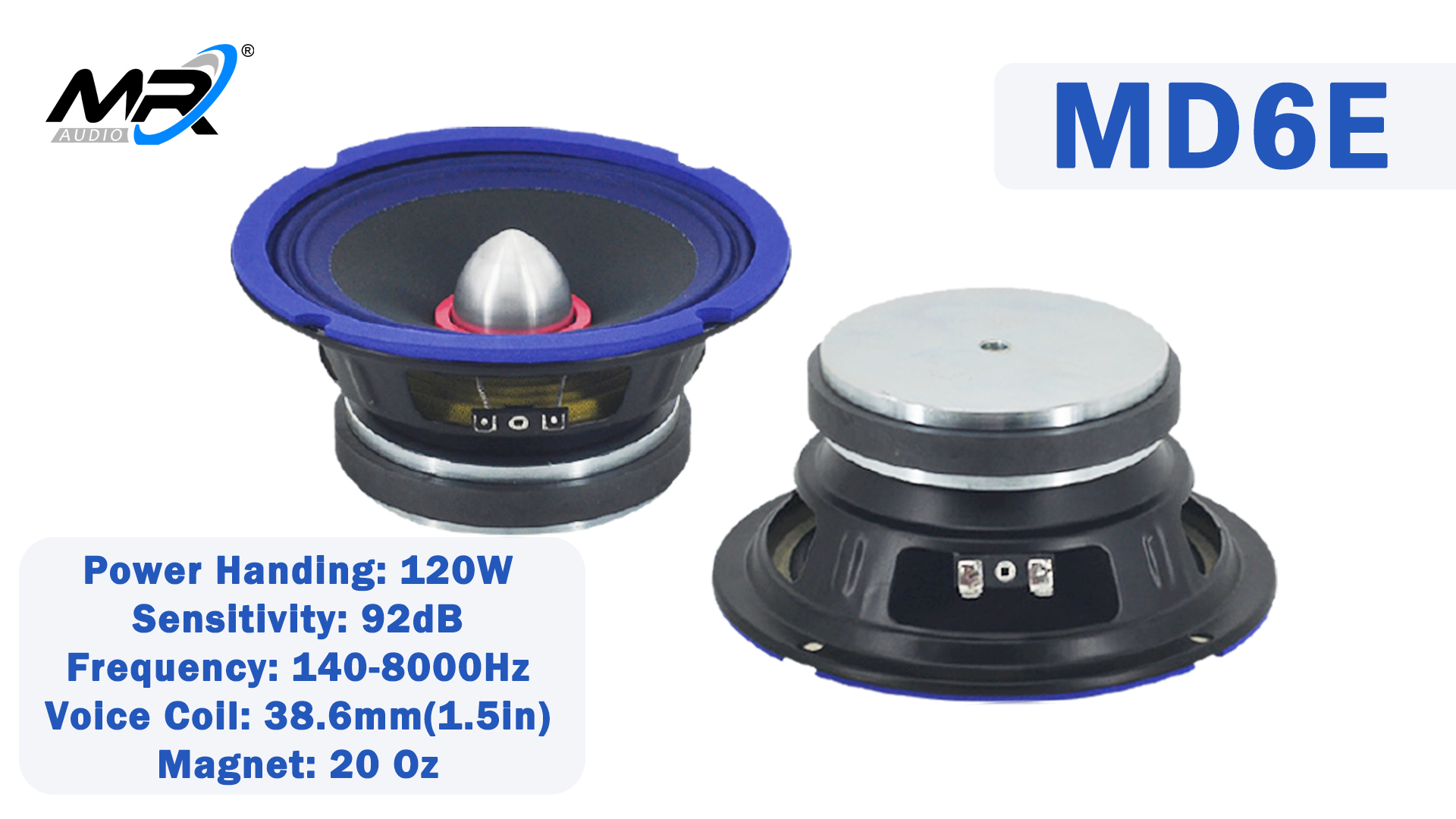

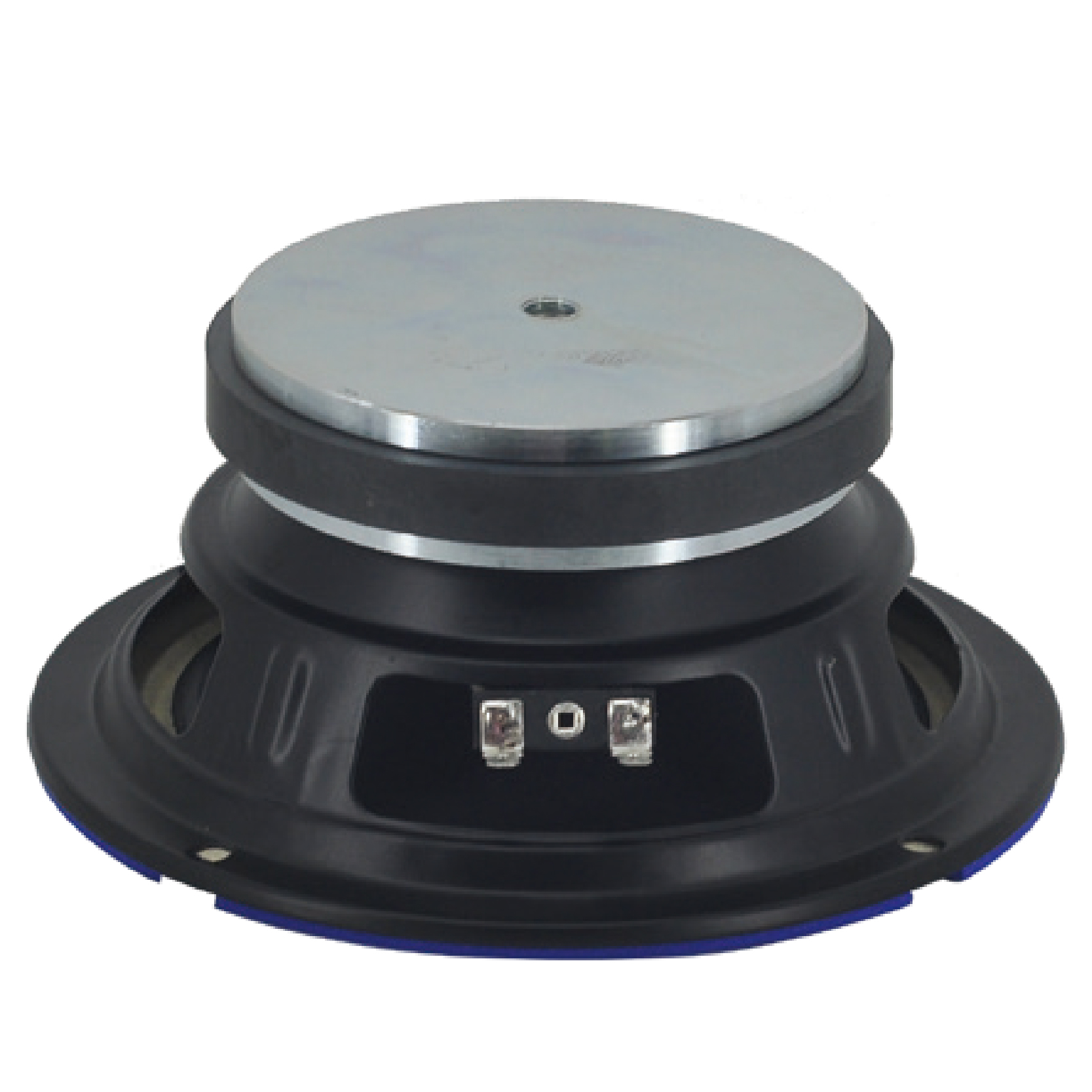

MD6E
6.5″Mid-Range Speaker
- 4Ω nominal impedance
- 3.6Ω minimum impedance
- 120W RMS capacity
- 60W AES capacity
- 92 dB sensitivity
- 140-8000 Hz response
- 38.6mm(1.5in) inside-outside voice coil
MD6E allows you to immerse yourself in a vivid world of sound. It’s compact yet powerful, with a delicate balance between surging and smooth. The sound response is fast and sensitive, and it can burst out with abundant energy without relying on stacking power; It can easily adapt to a variety of mainstream audio systems, flexible and professional. It‘s not just about hearing, it‘s about really understanding the temperature and intensity of the music.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 6.5/165 in/mm |
| MAX Power | 240 Watts |
| RMS Power | 120 Watts |
| Impedance | 4 Ohm |
| Resonance Frequency | 140 Hz |
| Frequency Response | 140-8000 Hz |
| Sensitivity(1W/1m) | 92 dB |
| Voice Coil Diameter | 1.5”/38.6mm |
| Voice Coil Material | KEI |
| Magnet | 20 Oz |
| FS | 140 Hz |
| RE | 3.6 ohm |
| Qms | 17 |
| Qes | 0.88 |
| Qts | 0.83 |
| BL | 6 T/m |
| MMS | 6.7 grams |
| Xmax | 2.2 mm |
| Sd | 117 cm² |
| Efficiency | 1 % |
| Overall Diameter | 6.5/166 in/mm |
| Bolt Circle Diameter | 6.1/155 in/mm |
| Baffle cutout Diameter | 5.7/147 in/mm |
| Depth | 3/75 in/mm |
| Net Weight | 1.8 kgs |
| Shipping Weight | 1.85 kgs |
| Shipping Box | 18.5X18.5X10.5cm |
Highlights
- 1.5”Inside/Out KEI voice coil wounded for hi-temp performance
- 120watts continuous power rating makes high acoustical output
- Sleek look, smooth figure
- 92dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Clear vocals and rich bass for an immersive music experience.
