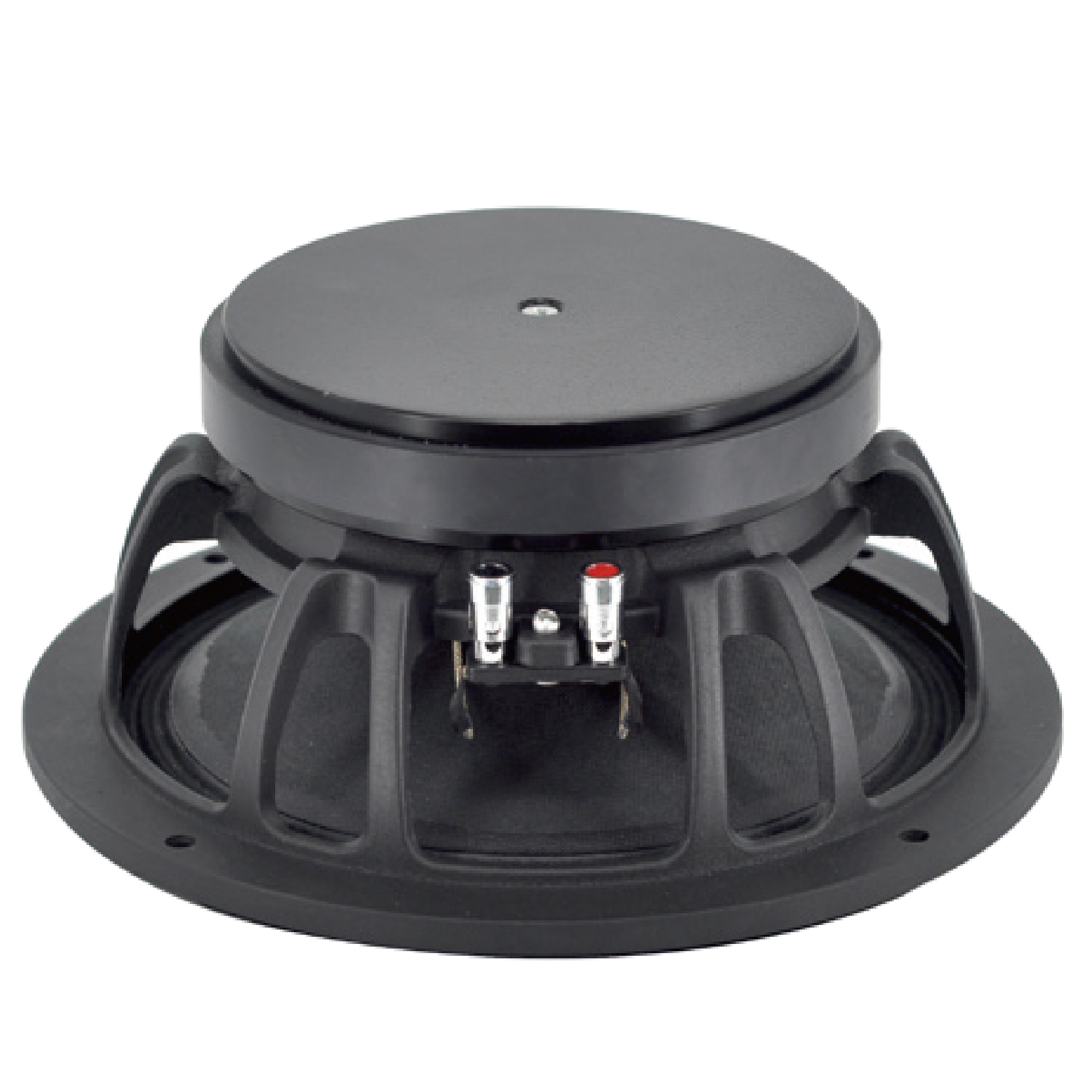

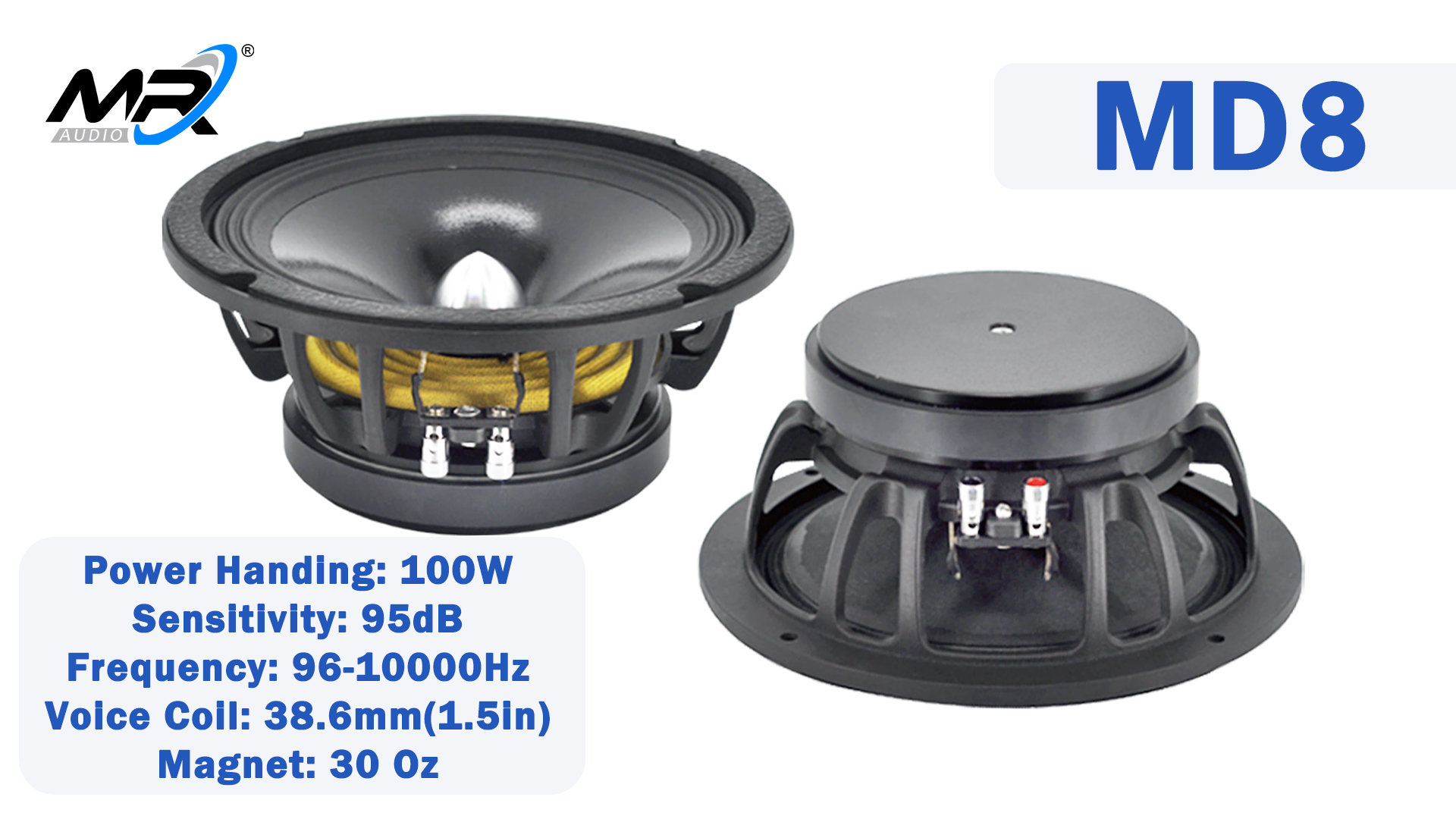

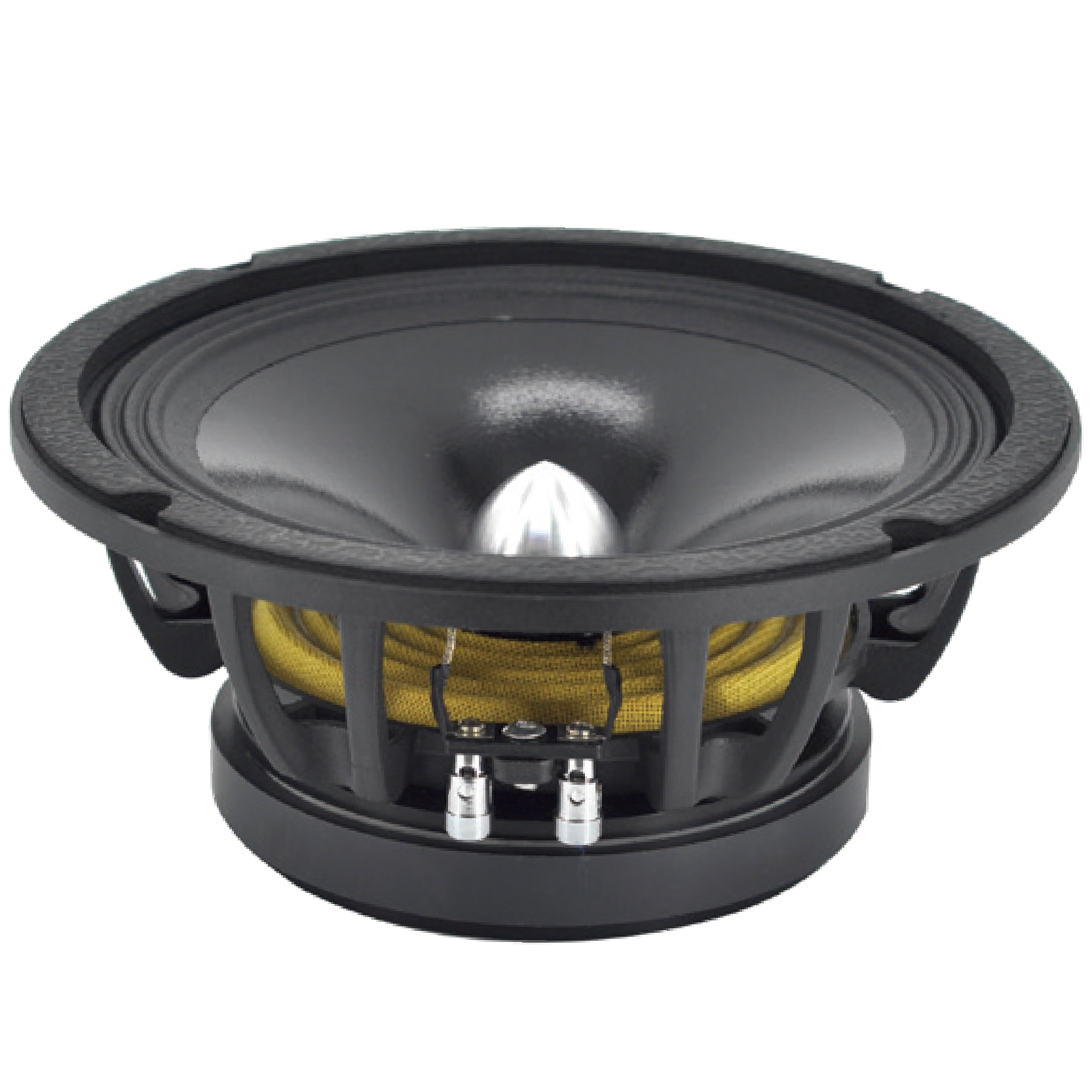

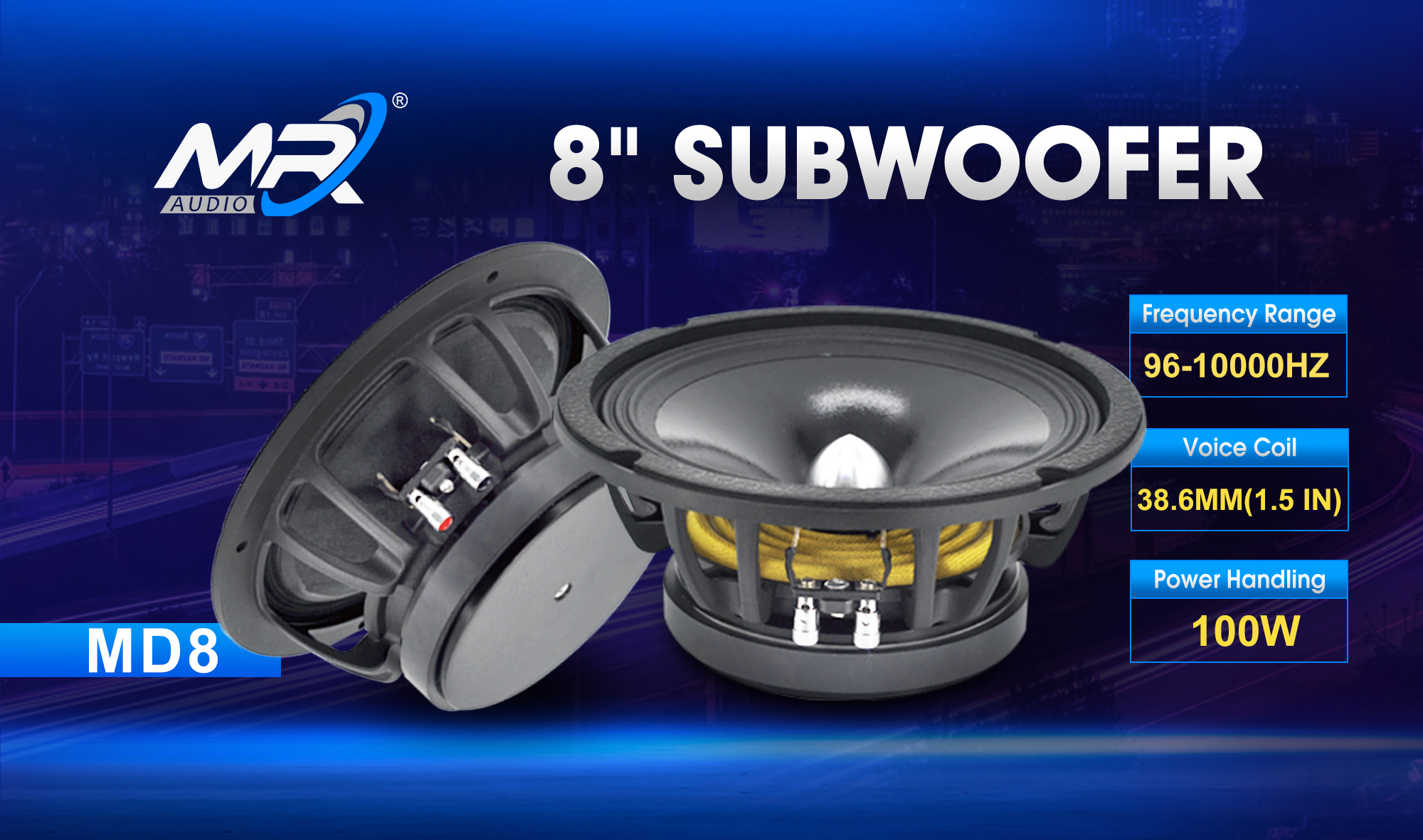

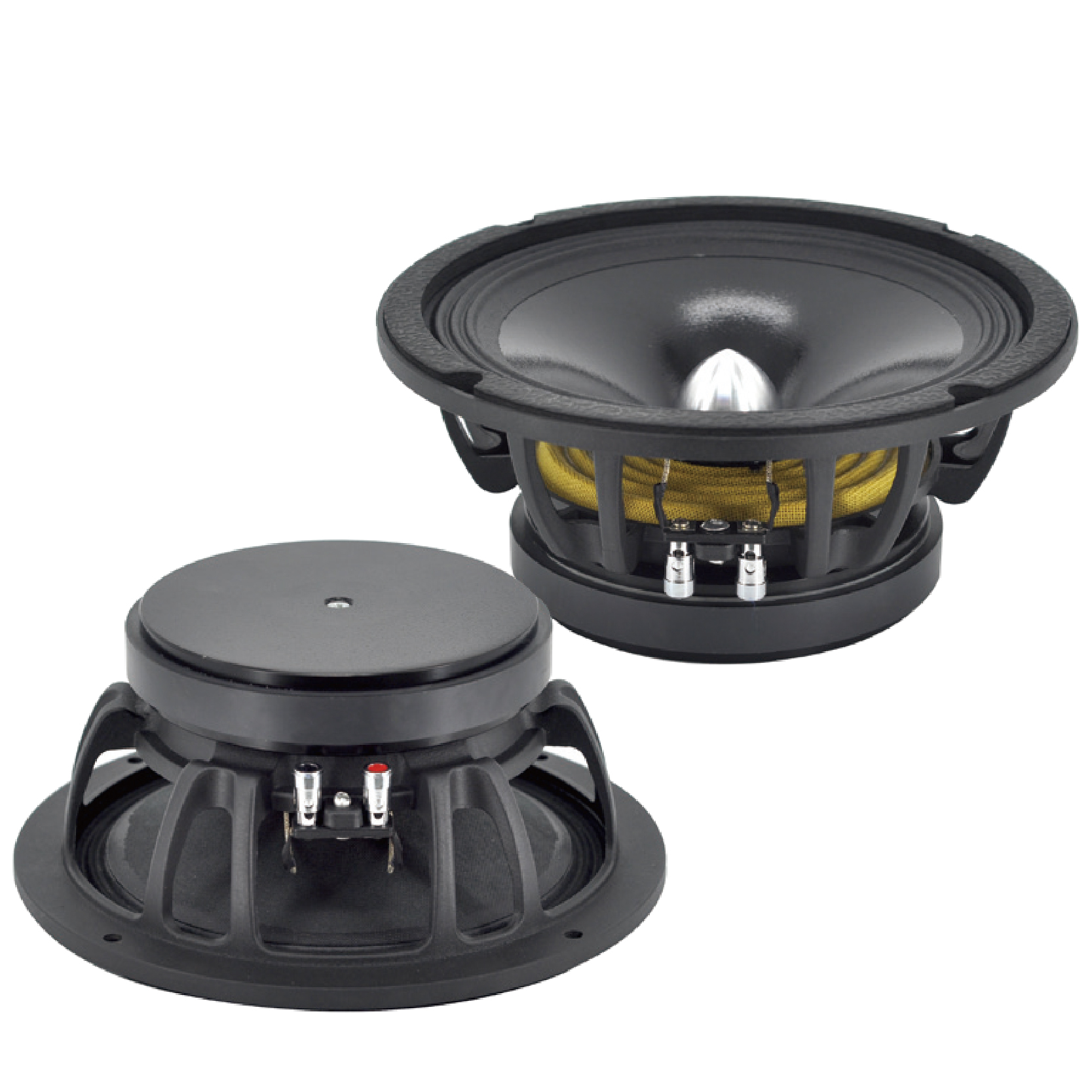

MD8
8″Mid-Range Speaker
- 4Ω nominal impedance
- 3.6Ω minimum impedance
- 100W RMS capacity
- 50W AES capacity
- 95 dB sensitivity
- 96-10000 Hz response
- 38.6mm(1.5in) inside-outside voice coil
MD8 effortlessly navigates complex audio outputs. Ensure there is high resolution and penetration in the middle and high segments, so that each melody can be clearly restored, as if you are in the scene. Excellent heat dissipation performance, even under high-intensity operation, can stabilize the output, to ensure long-term use. Inject professional–grade midrange performance into your car‘s audio system, so that every start is accompanied by clear and full sound.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 8/210 in/mm |
| MAX Power | 200 Watts |
| RMS Power | 100 Watts |
| Impedance | 4 Ohm |
| Resonance Frequency | 96 Hz |
| Frequency Response | 96-10000 Hz |
| Sensitivity(1W/1m) | 95 dB |
| Voice Coil Diameter | 1.5”/38.6mm |
| Voice Coil Material | Copper wire |
| Magnet | 30 Oz |
| FS | 96 Hz |
| RE | 3.6 ohm |
| Qms | 11.5 |
| Qes | 0.55 |
| Qts | 0.53 |
| BL | 9.6 T/m |
| MMS | 23 grams |
| Xmax | 3.5 mm |
| Sd | 210 cm² |
| Efficiency | 1.4 % |
| Overall Diameter | 8/210 in/mm |
| Bolt Circle Diameter | 7.5/192 in/mm |
| Baffle cutout Diameter | 7/180 in/mm |
| Depth | 3.7/95 in/mm |
| Net Weight | 2.4 kgs |
| Shipping Weight | 3.1 kgs |
| Shipping Box | 23.5X23.5X13.5cm |
Highlights
- 1.5”Inside/Out SV voice coil wounded for hi-temp performance
- 100watts continuous power rating makes high acoustical output
- Sleek look, smooth figure
- 95dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Clear vocals and rich bass for an immersive music experience.
