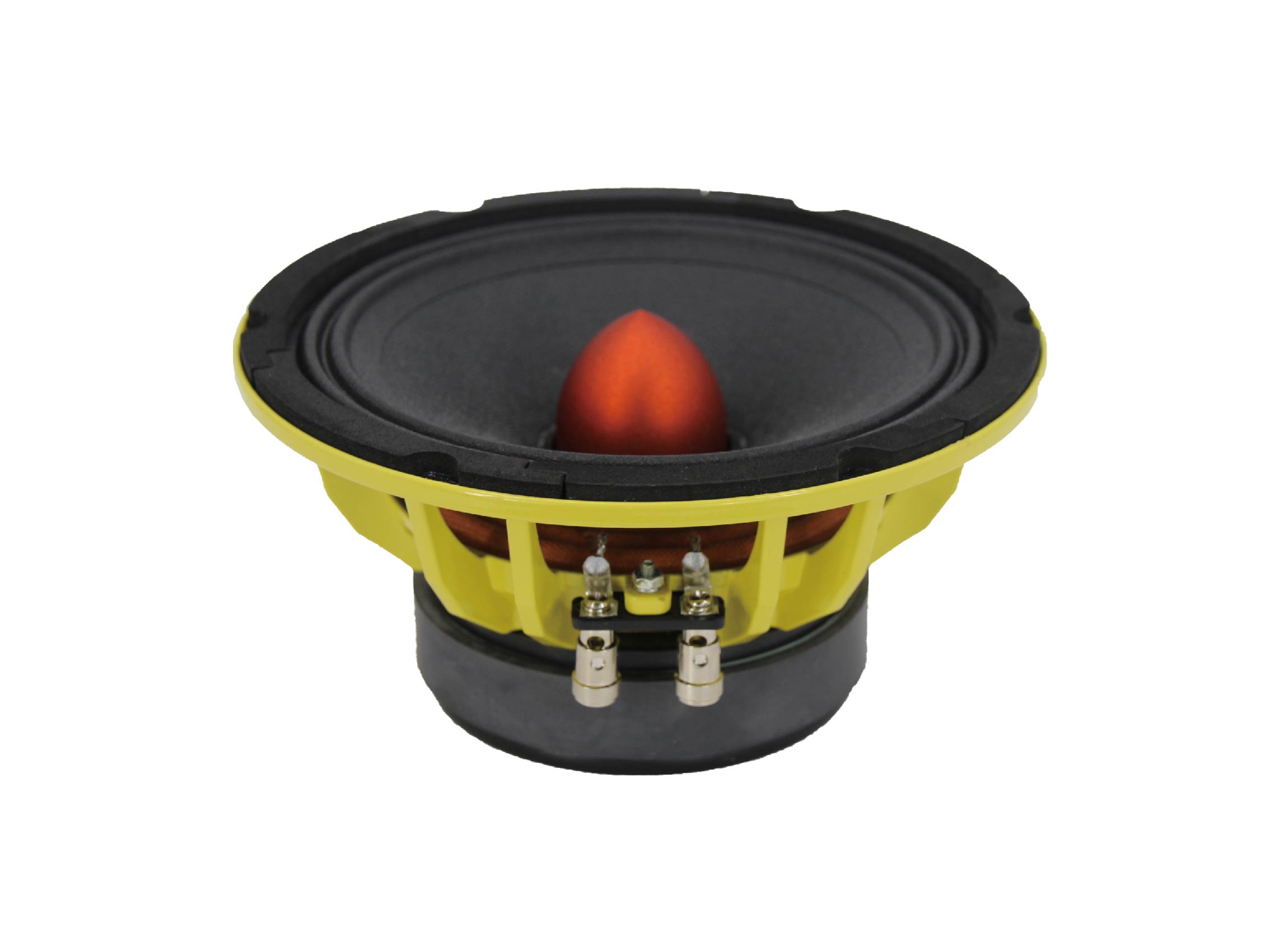

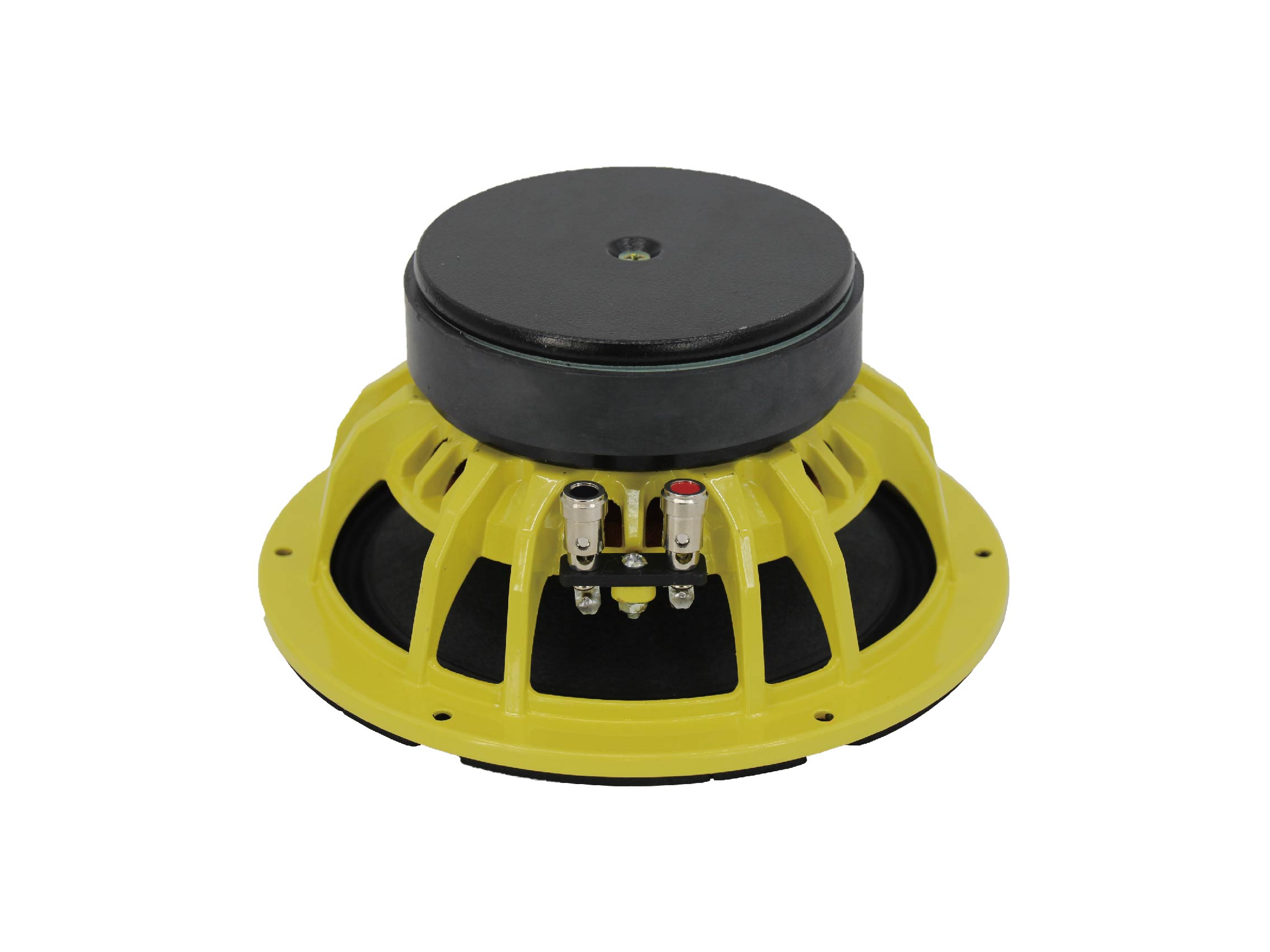

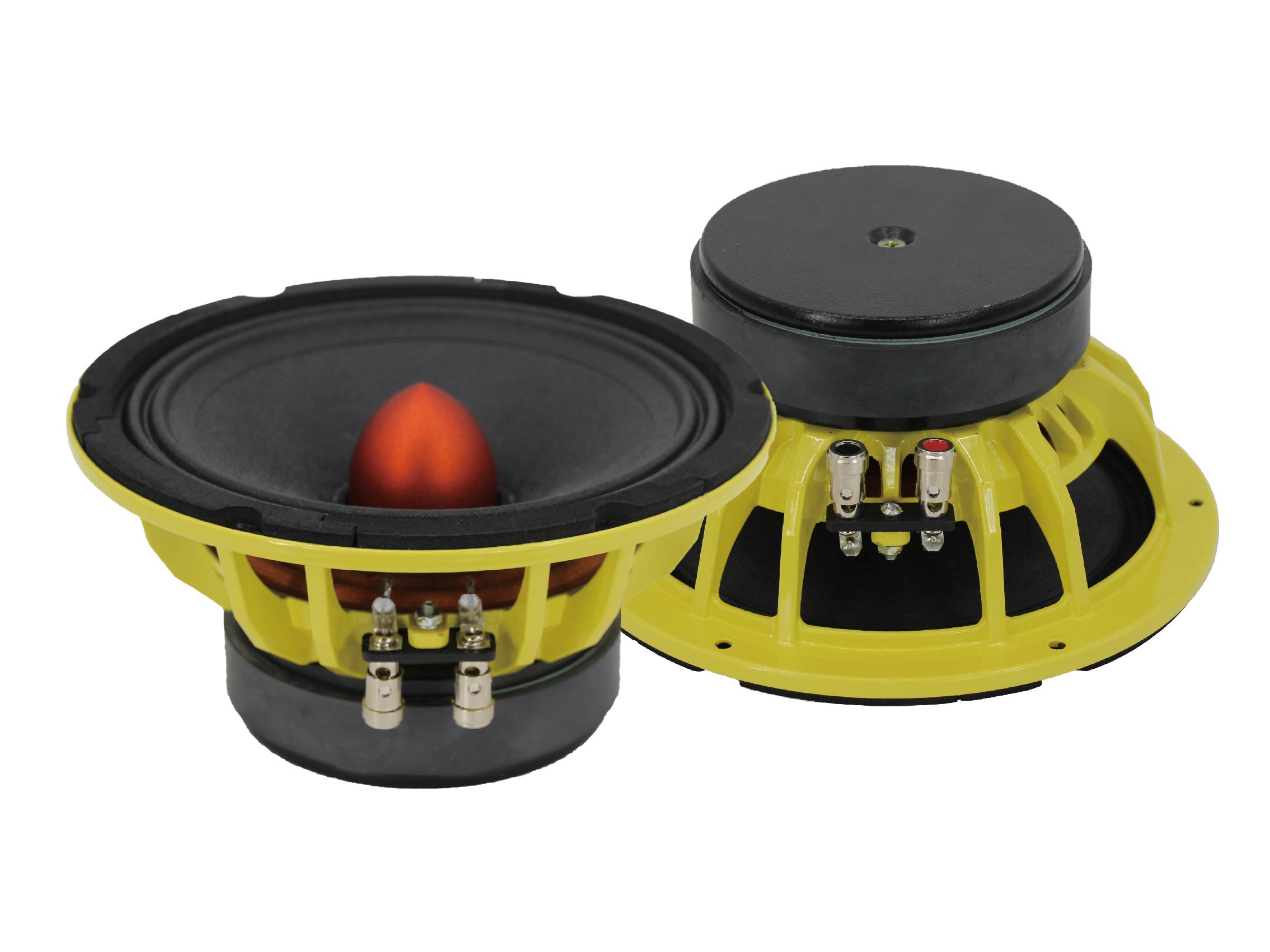

MD860
8″Mid-Range Speaker
- 4Ω nominal impedance
- 3.6Ω minimum impedance
- 240W RMS capacity
- 120W AES capacity
- 94 dB sensitivity
- 110-9000 Hz response
- 38.6mm(1.5in) inside-outside voice coil
MD860 is more than just a speaker, it‘s the soul that resonates with you while driving. No fear of long-term high-intensity driving, so that the sound is always stable and pure. It injects strong power into the audio system, accurately restores every inch of thickness and strength of the mid-range. It not only improves energy efficiency, but also gives the music a rich level of detail. It can be easily matched with a variety of audio configurations, and is an ideal mid–frequency service.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 10/250 in/mm |
| MAX Power | 1000 Watts |
| RMS Power | 500 Watts |
| Impedance | 4+4 Ohm |
| Resonance Frequency | 35 Hz |
| Frequency Response | 35-400 Hz |
| Sensitivity(1W/1m) | 83 dB |
| Voice Coil Diameter | 2.4”/60.6mm |
| Voice Coil Material | BASV |
| Magnet | 112 Oz |
| FS | 35 Hz |
| RE | 3.2+3.2 ohm |
| Qms | 5.4 |
| Qes | 0.82 |
| Qts | 0.71 |
| BL | 13 T/m |
| MMS | 207 grams |
| Xmax | 21 mm |
| Sd | 340 cm² |
| Efficiency | 0% |
| Le(1k Hz) | 49 mH |
| Overall Diameter | 10/262 in/mm |
| Bolt Circle Diameter | 6.1/243 in/mm |
| Baffle cutout Diameter | 9/232 in/mm |
| Depth | 6.7/172 in/mm |
| Net Weight | 7.25 kgs |
| Shipping Weight | 8.05 kgs |
| Shipping Box | 28.5X28.5X20cm |
Highlights
- 10’’Inside/Out BASV voice coil wounded for hi-temp performance, 4+4ohms
- 800watts continuous program power rating makes high acoustical output
- Sleek look, smooth figure
- 81dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Enhanced bass control with precise acoustic algorithms.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Deep, powerful bass with realistic, elastic drum sounds.
Clear vocals and rich bass for an immersive music experience.
