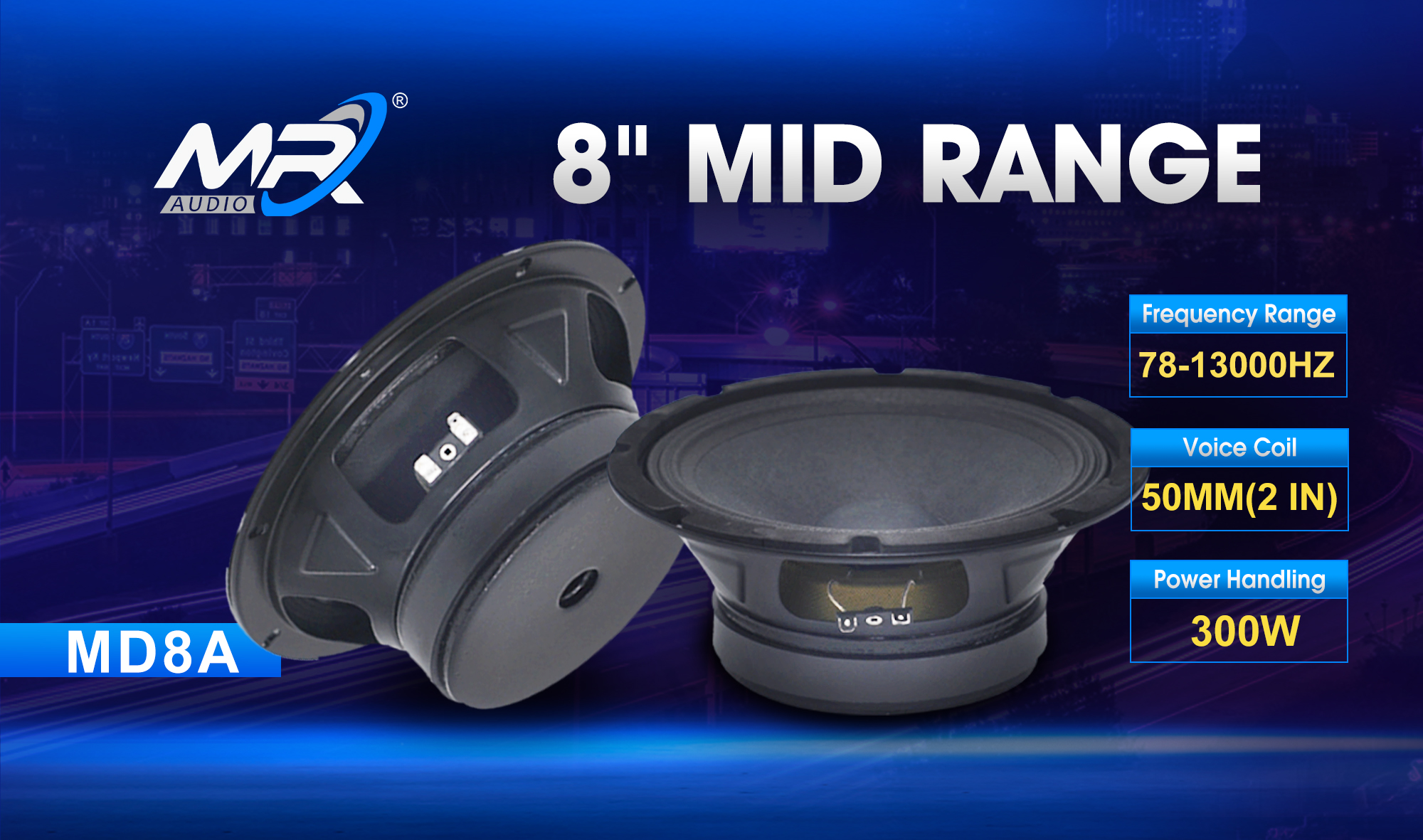

MD8A

8″Mid-Range Speaker
  • 8Ω nominal impedance
  • 6.2Ω minimum impedance
  • 300W RMS capacity
  • 96 dB sensitivity
  • 78-13000 Hz response
  • 50mm(2in) inside-outside voice coil

MD8A has found a balance between surging sound and precise restoration. Effectively improve the stability of system and adapt to a wide range of audio architectures. Unleash the dynamics and master any tonal challenge. With every detail in your ears, here are wide midrange, full timbre and clear layers. Efficient heat dissipation and stable output provide reliable guarantee for high-intensity playback. It‘s not just sound, it‘s auditory art.

  • GENERAL SPECIFICATIONS
  • THIELE-SMALL PARAMETERS
  • EXTRA INFO
Nominal Diameter10/250 in/mm
MAX Power1000 Watts
RMS Power500 Watts
Impedance4+4 Ohm
Resonance Frequency35 Hz
Frequency Response35-400 Hz
Sensitivity(1W/1m)83 dB
Voice Coil Diameter2.4”/60.6mm
Voice Coil MaterialBASV
Magnet112 Oz
FS35 Hz
RE3.2+3.2 ohm
Qms5.4
Qes0.82
Qts0.71
BL13 T/m
MMS207 grams
Xmax21 mm
Sd340 cm²
Efficiency0%
Le(1k Hz)49 mH
Overall Diameter10/262 in/mm
Bolt Circle Diameter6.1/243 in/mm
Baffle cutout Diameter9/232 in/mm
Depth6.7/172 in/mm
Net Weight7.25 kgs
Shipping Weight8.05 kgs
Shipping Box28.5X28.5X20cm

Highlights

  • 10’’Inside/Out BASV voice coil wounded for hi-temp performance, 4+4ohms
  • 800watts continuous program power rating makes high acoustical output
  • Sleek look, smooth figure
  • 81dB sensitivity, Superior voice reproduction performance.
  • Powerful sound , high fidelity response

Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Enhanced bass control with precise acoustic algorithms.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Deep, powerful bass with realistic, elastic drum sounds.
Clear vocals and rich bass for an immersive music experience.

8 INCH MID RANGE SPEAKER
