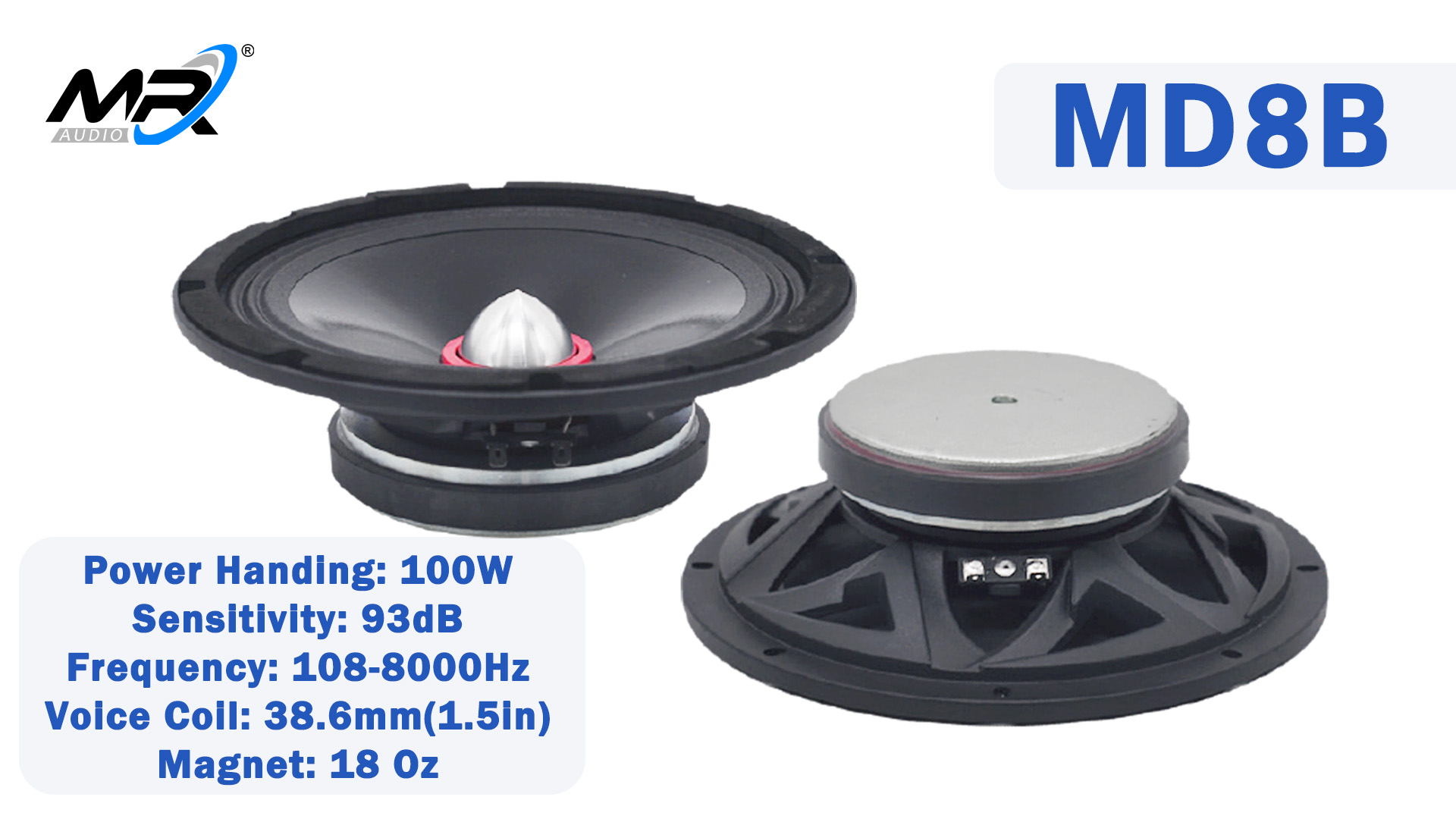

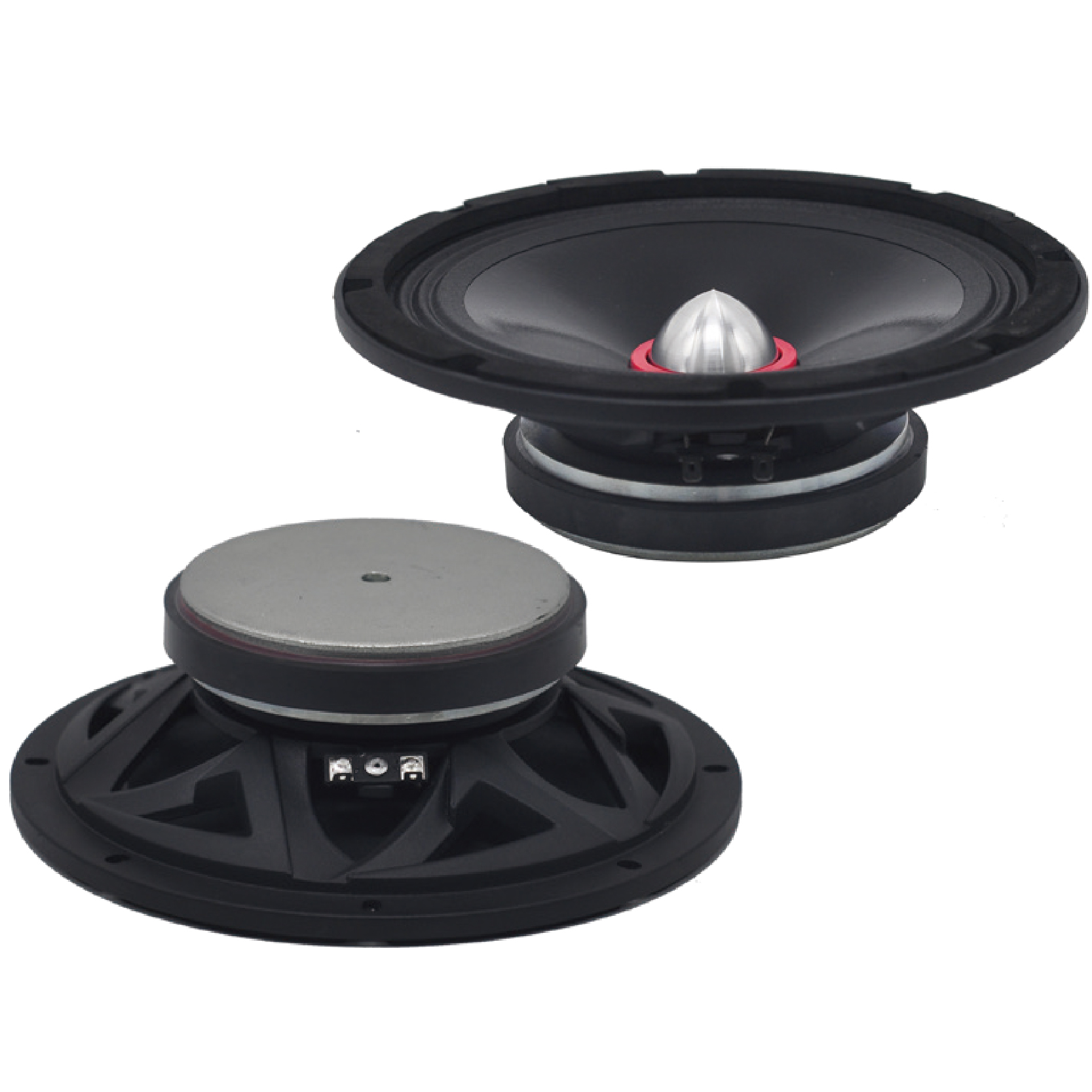

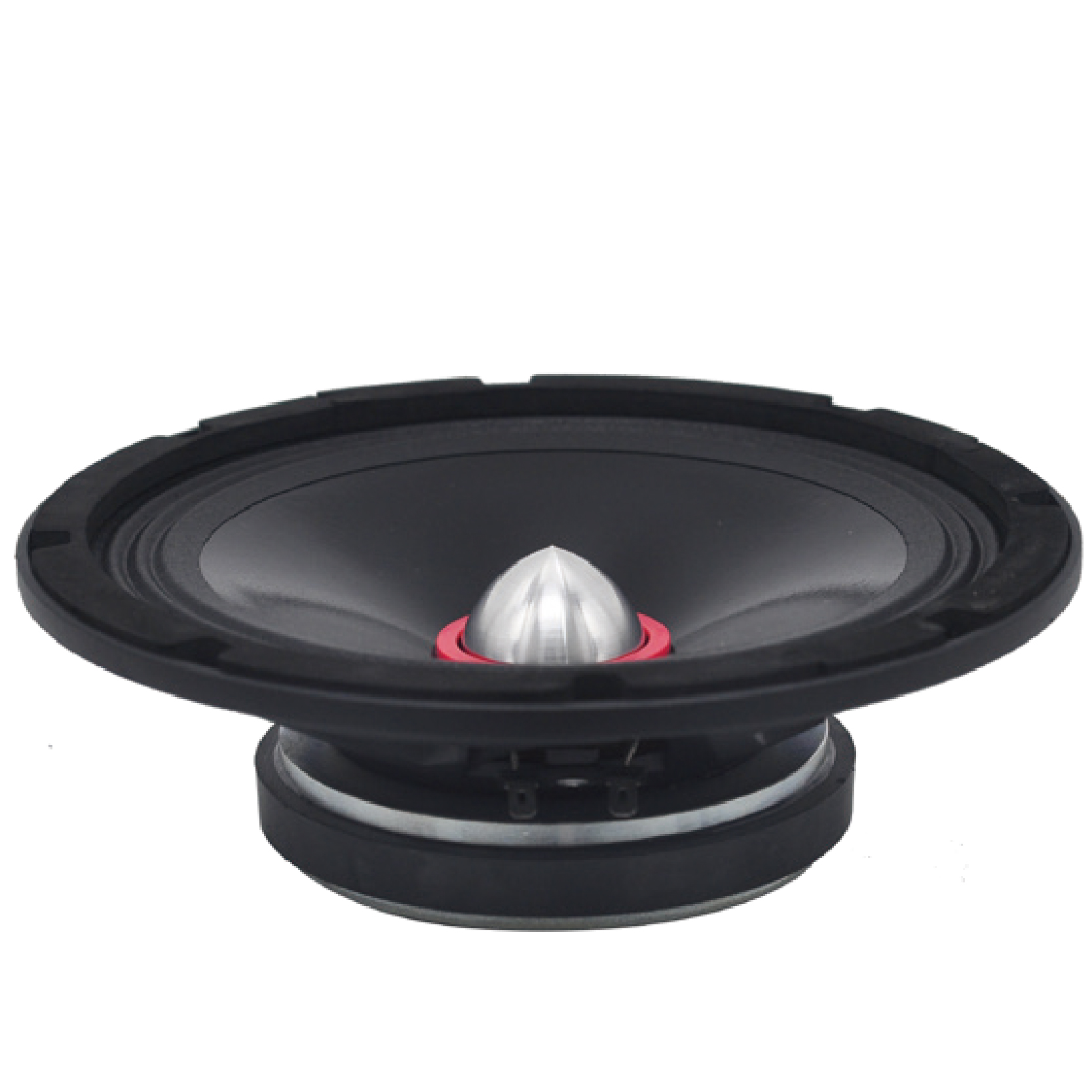

MD8B

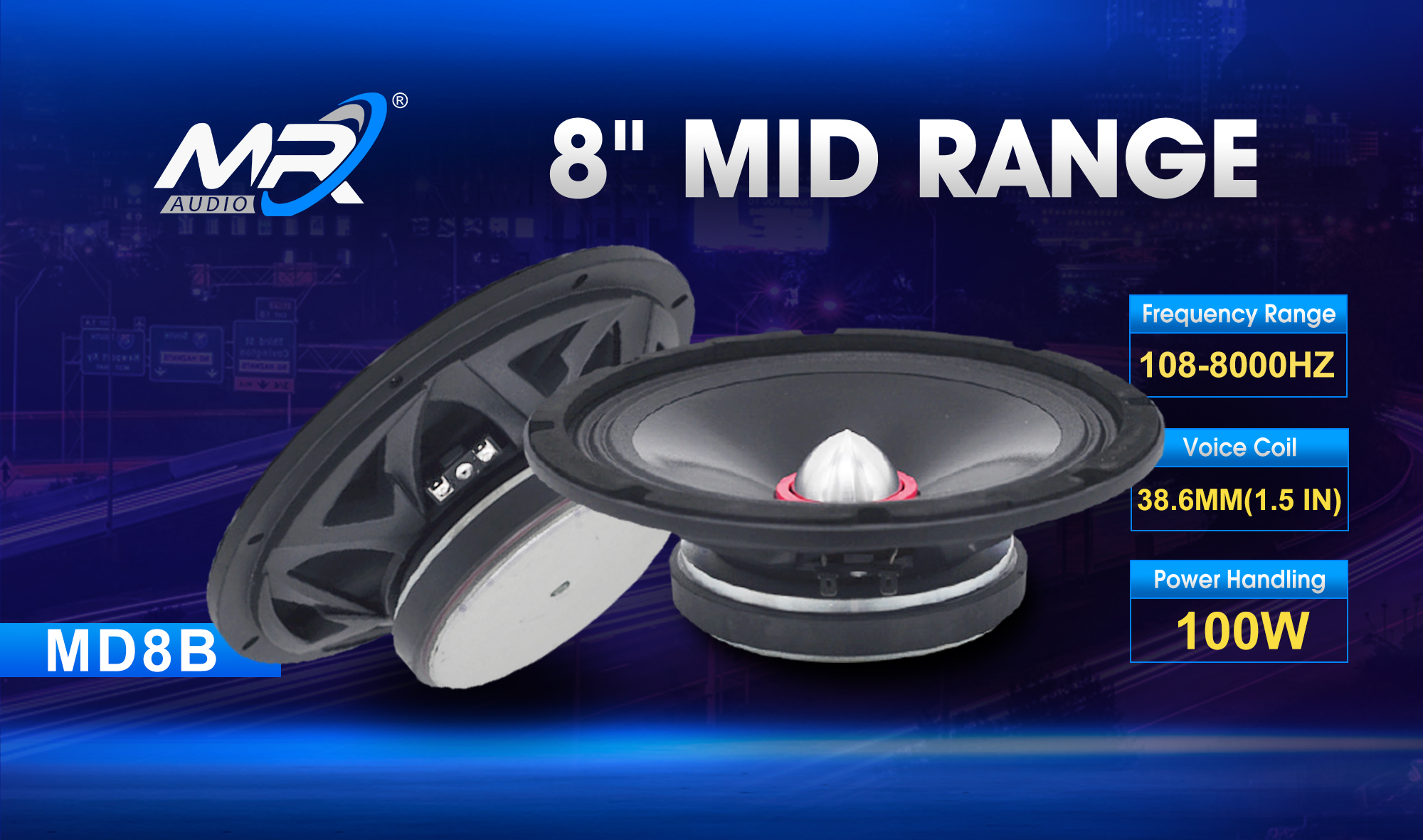

8″Mid-Range Speaker
- 4Ω nominal impedance
- 3.6Ω minimum impedance
- 100W RMS capacity
- 50W AES capacity
- 93 dB sensitivity
- 108-8000 Hz response
- 38.6mm(1.5in) inside-outside voice coil
MD8B does not compromise from the “middle“. Matched with a variety of power amplifier systems, the output is stable, and the surging medium frequency power is released to meet the needs of long-term and high-intensity work. The sound is penetrating, detailed and responsive. Wideband response, accurately capture the key of the midrange, bringing a transparent and clear listening experience. Whether it‘s stage–level shock or in–car listening enjoyment, it can hold.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 8/210 in/mm |
| MAX Power | 200 Watts |
| RMS Power | 100 Watts |
| Impedance | 4 Ohm |
| Resonance Frequency | 108 Hz |
| Frequency Response | 108-8000 Hz |
| Sensitivity(1W/1m) | 93 dB |
| Voice Coil Diameter | 1.5”/38.6mm |
| Voice Coil Material | KSV |
| Magnet | 18 Oz |
| FS | 108 Hz |
| RE | 3.6 ohm |
| Qms | 9.8 |
| Qes | 0.69 |
| Qts | 0.65 |
| BL | 8 T/m |
| MMS | 15 grams |
| Xmax | 1 mm |
| Sd | 214 cm² |
| Efficiency | 1.5 % |
| Overall Diameter | 8.2/210 in/mm |
| Bolt Circle Diameter | 7.9/202 in/mm |
| Baffle cutout Diameter | 7.3/186 in/mm |
| Depth | 3.4/87 in/mm |
| Net Weight | 1.95 kgs |
| Shipping Weight | 2.35 kgs |
| Shipping Box | 23.5X23.5X13.5cm |
Highlights
- 1.5”Inside/Out KSV voice coil wounded for hi-temp performance
- 100watts continuous power rating makes high acoustical output
- Sleek look, smooth figure
- 93dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Clear vocals and rich bass for an immersive music experience.
