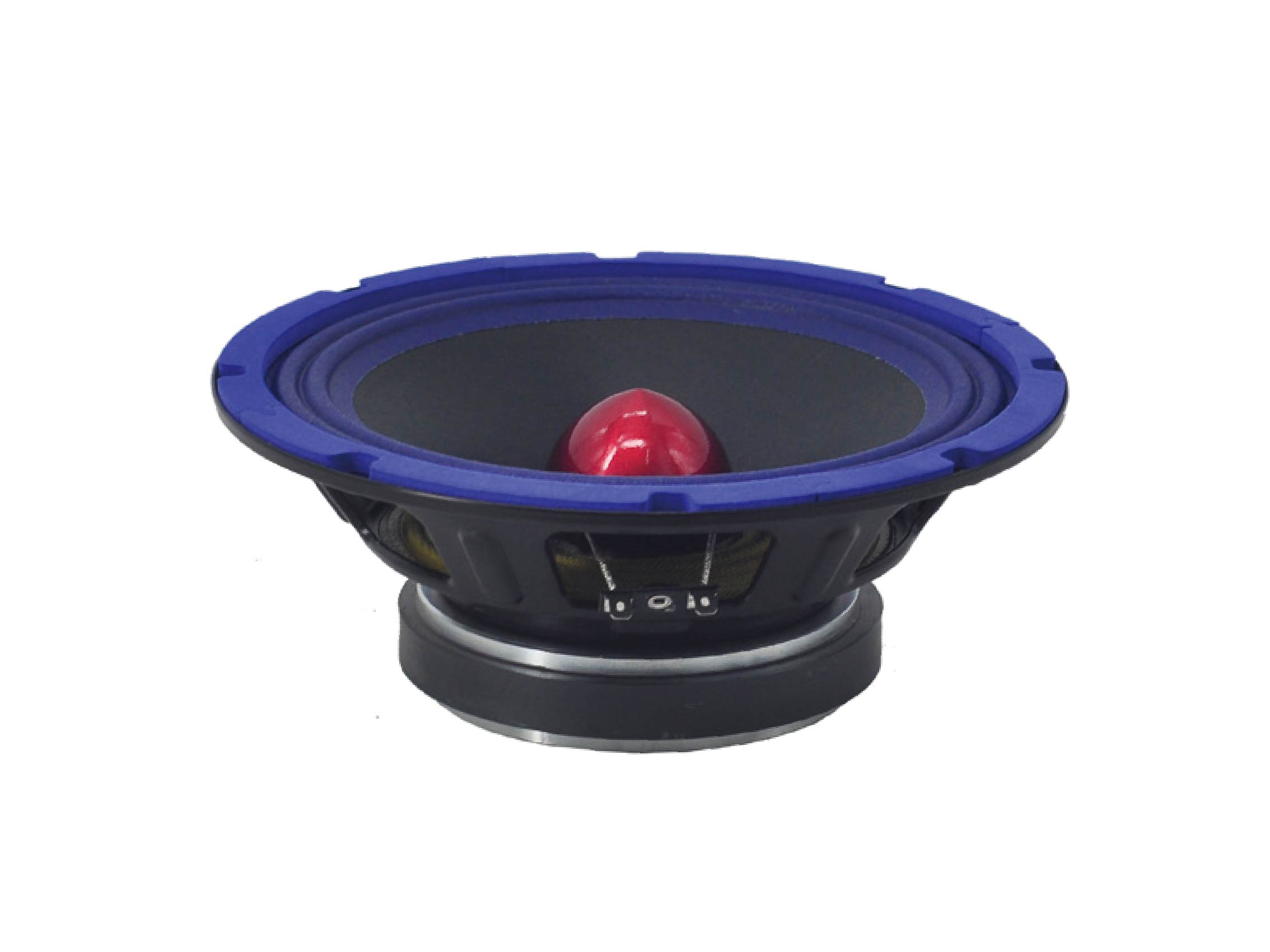

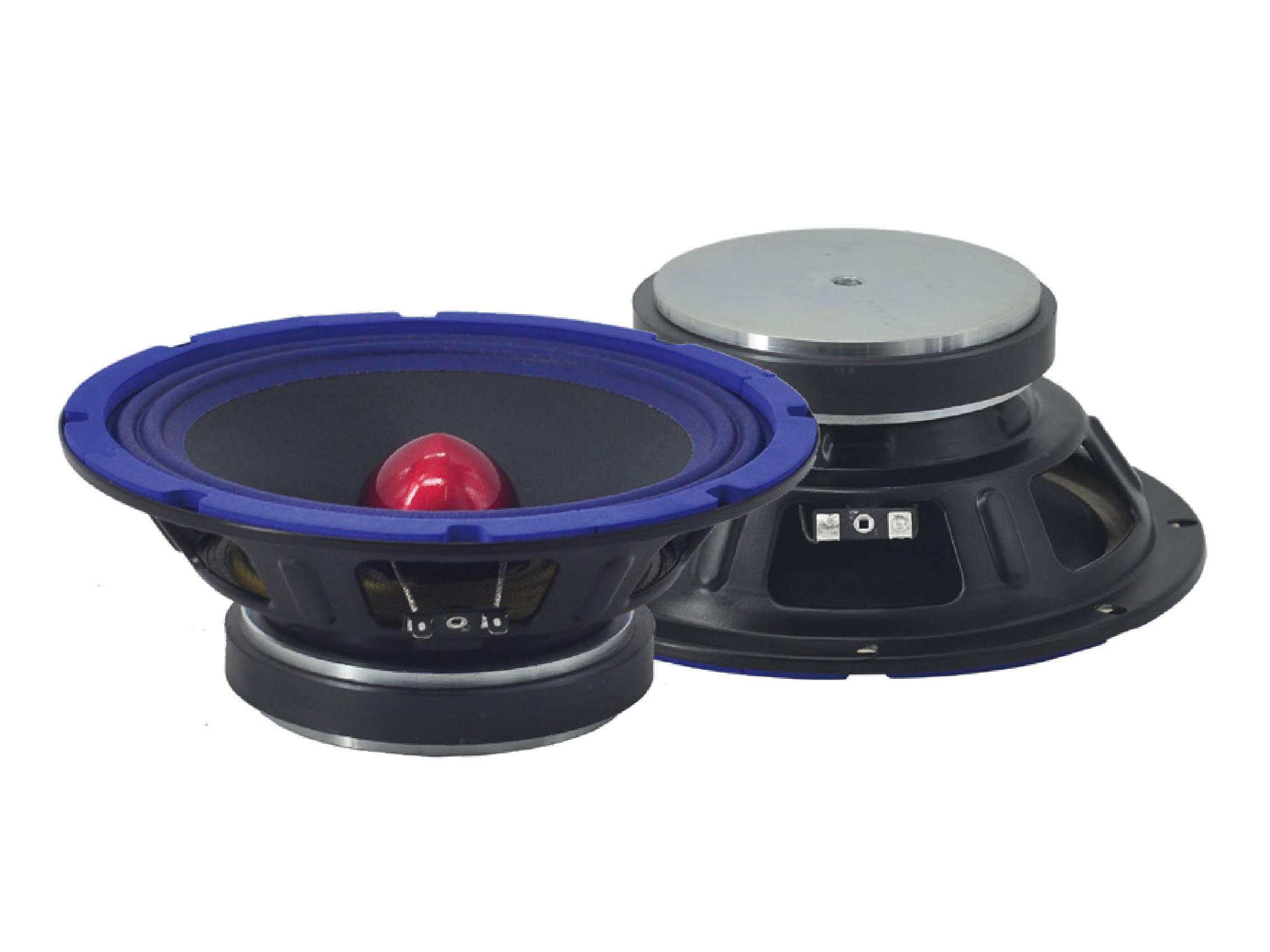

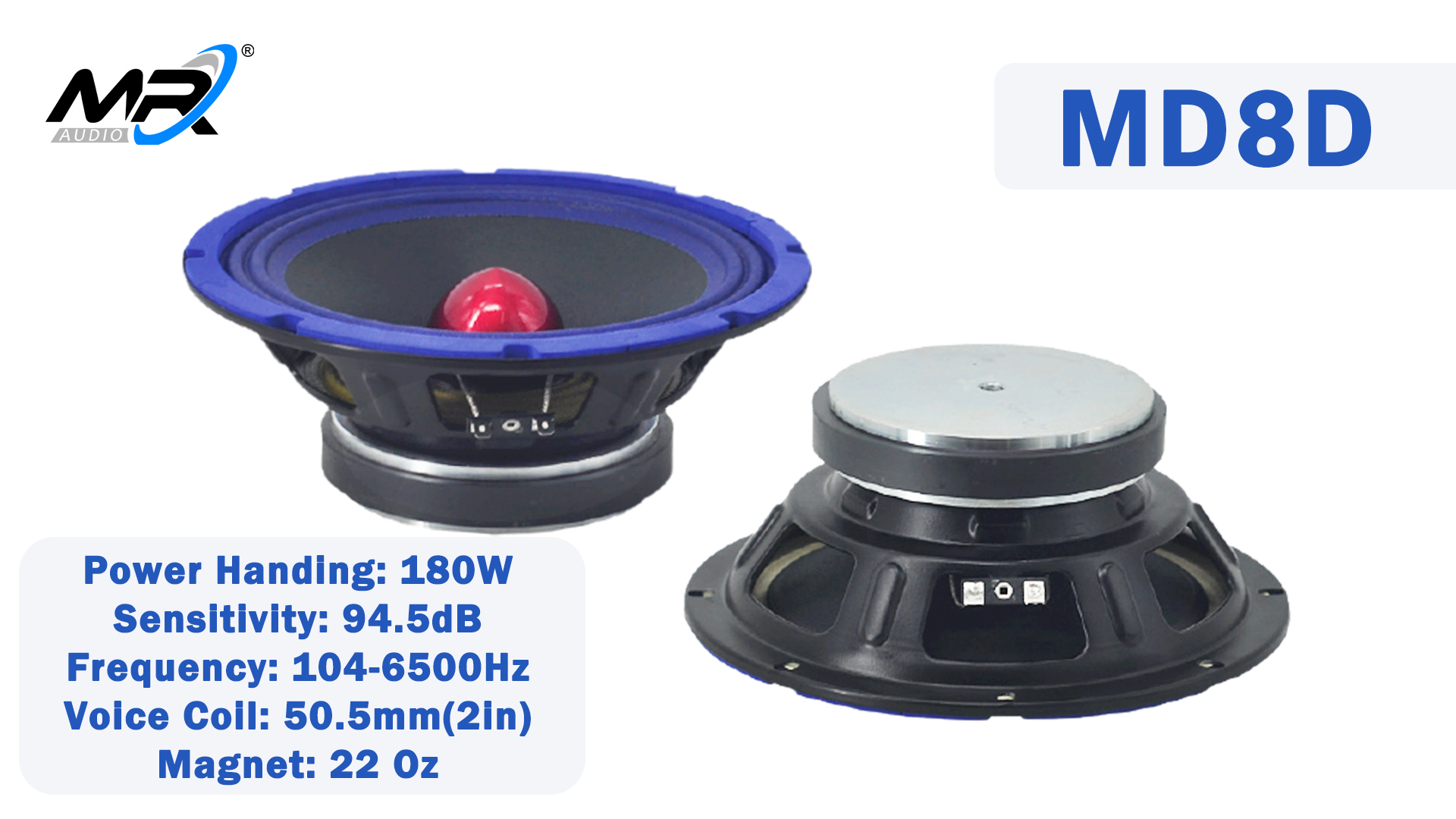

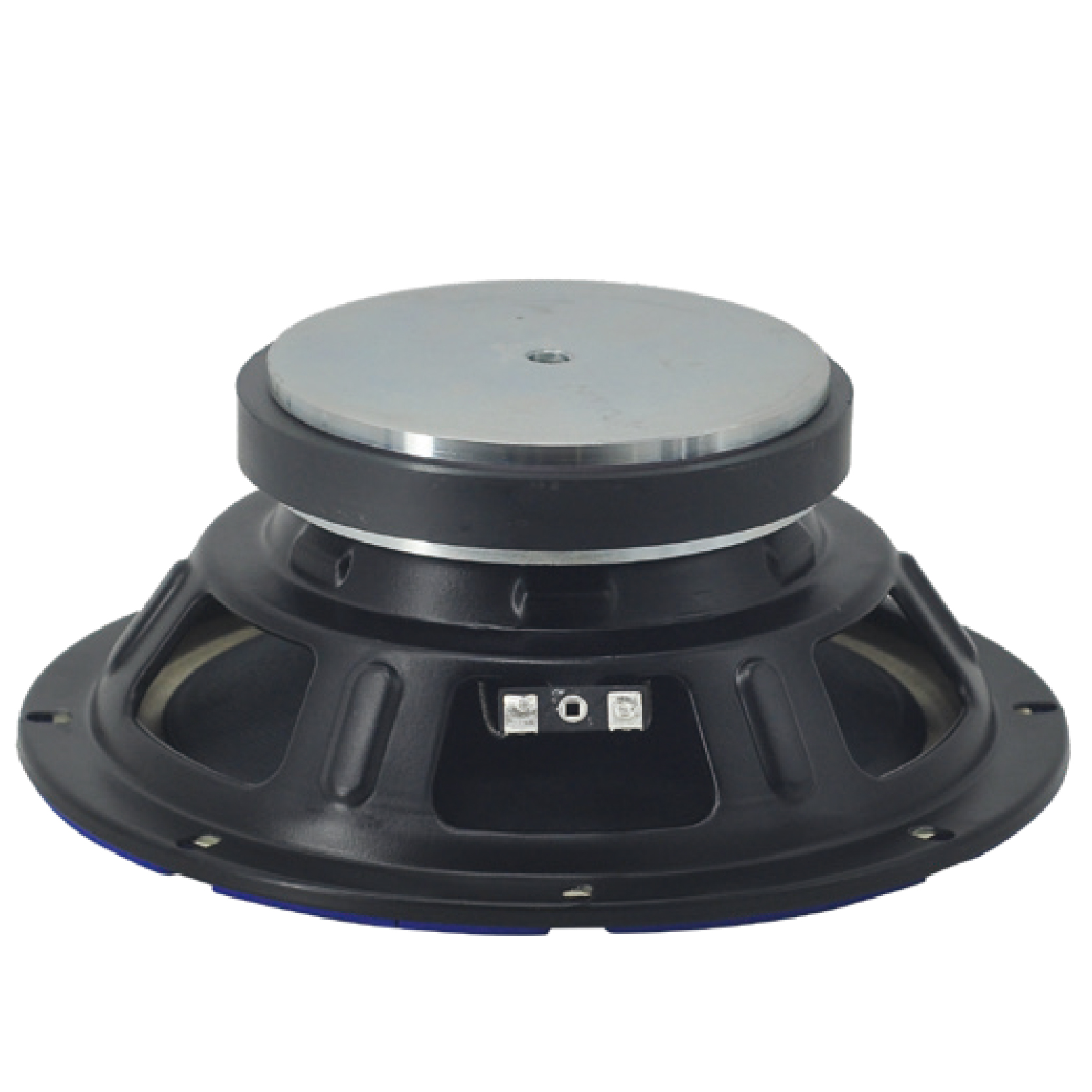

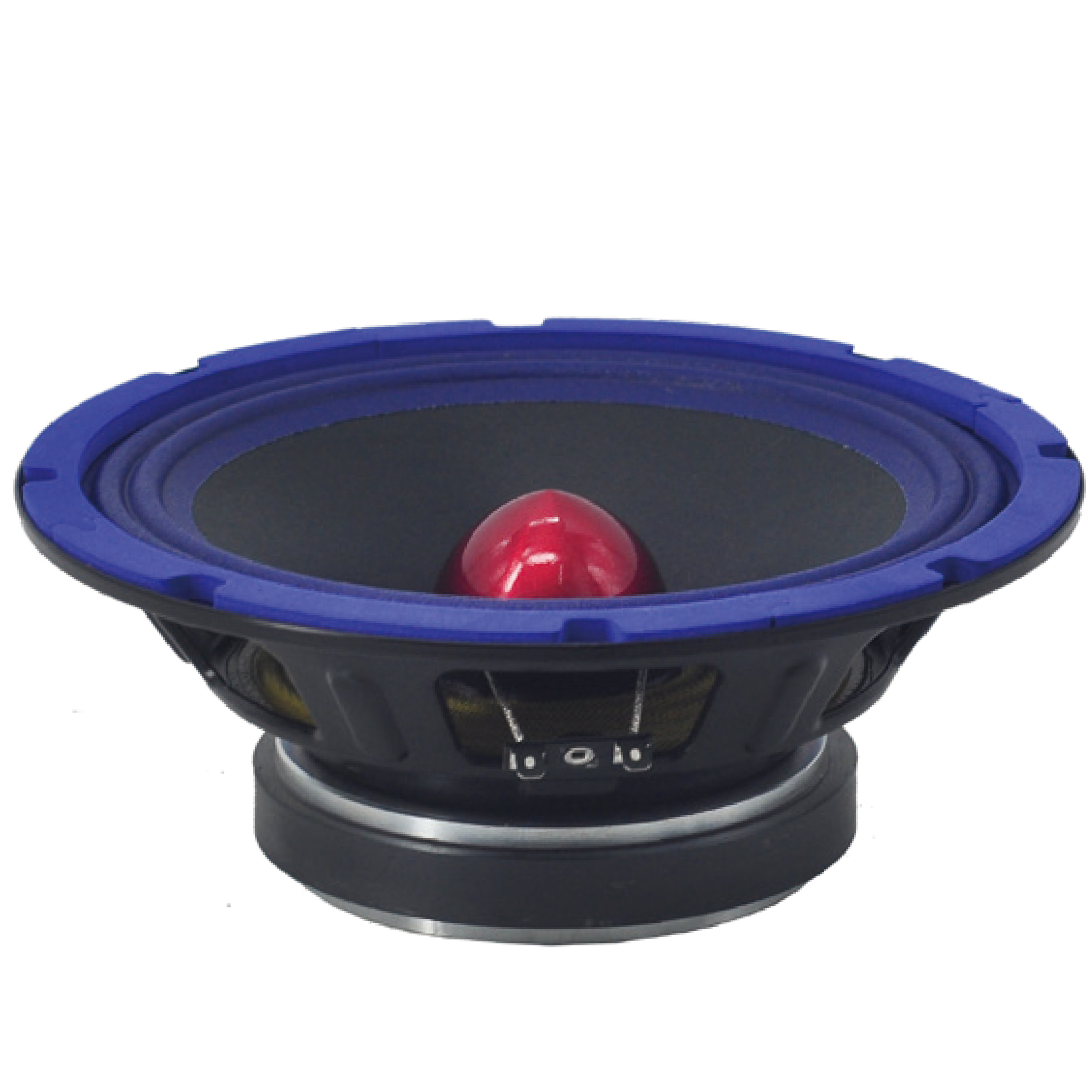

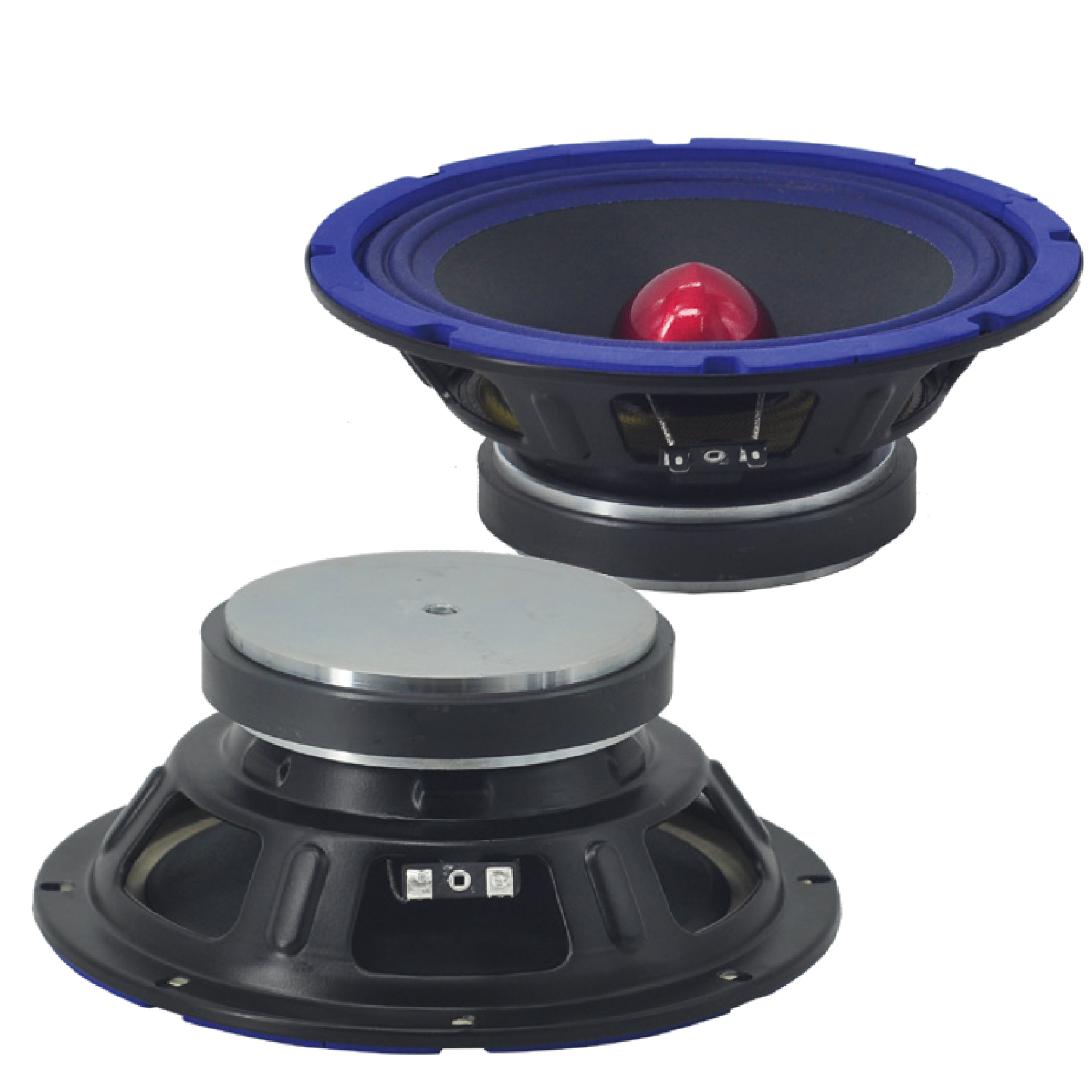

MD8D
8″Mid-Range Speaker
- 4Ω nominal impedance
- 3.6Ω minimum impedance
- 180W RMS capacity
- 90W AES capacity
- 94.5 dB sensitivity
- 104-6500 Hz response
- 50.5mm(2in) inside-outside voice coil
MD8D opens up a new dimension to listening. Unleash powerful output and easily harness highly dynamic sound sources to meet the sound demands of intense driving environments. This ensures that the sound is powerful even at low power inputs. Accurately covers the mid-frequency core, reshaping the realism and layering of the sound field in the car. It performs well over long periods of time under high loads. Listen to it and make a difference.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 8/210 in/mm |
| MAX Power | 360 Watts |
| RMS Power | 180 Watts |
| Impedance | 4 Ohm |
| Resonance Frequency | 104 Hz |
| Frequency Response | 104-6500 Hz |
| Sensitivity(1W/1m) | 94.5 dB |
| Voice Coil Diameter | 2”/50.5mm |
| Voice Coil Material | KEI |
| Magnet | 22 Oz |
| FS | 104 Hz |
| RE | 3.6 ohm |
| Qms | 13.8 |
| Qes | 0.79 |
| Qts | 0.75 |
| BL | 5.9 T/m |
| MMS | 12 grams |
| Xmax | 2.2 mm |
| Sd | 216 cm² |
| Efficiency | 1.7 % |
| Overall Diameter | 8/210 in/mm |
| Bolt Circle Diameter | 7.8/198 in/mm |
| Baffle cutout Diameter | 7.1/181 in/mm |
| Depth | 3.3/84 in/mm |
| Net Weight | 2.1 kgs |
| Shipping Weight | 2.8 kgs |
| Shipping Box | 23.5X23.5X13.5cm |
Highlights
- 2”Inside/Out KEI voice coil wounded for hi-temp performance
- 180watts continuous power rating makes high acoustical output
- Sleek look, smooth figure
- 94.5dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Clear vocals and rich bass for an immersive music experience.
