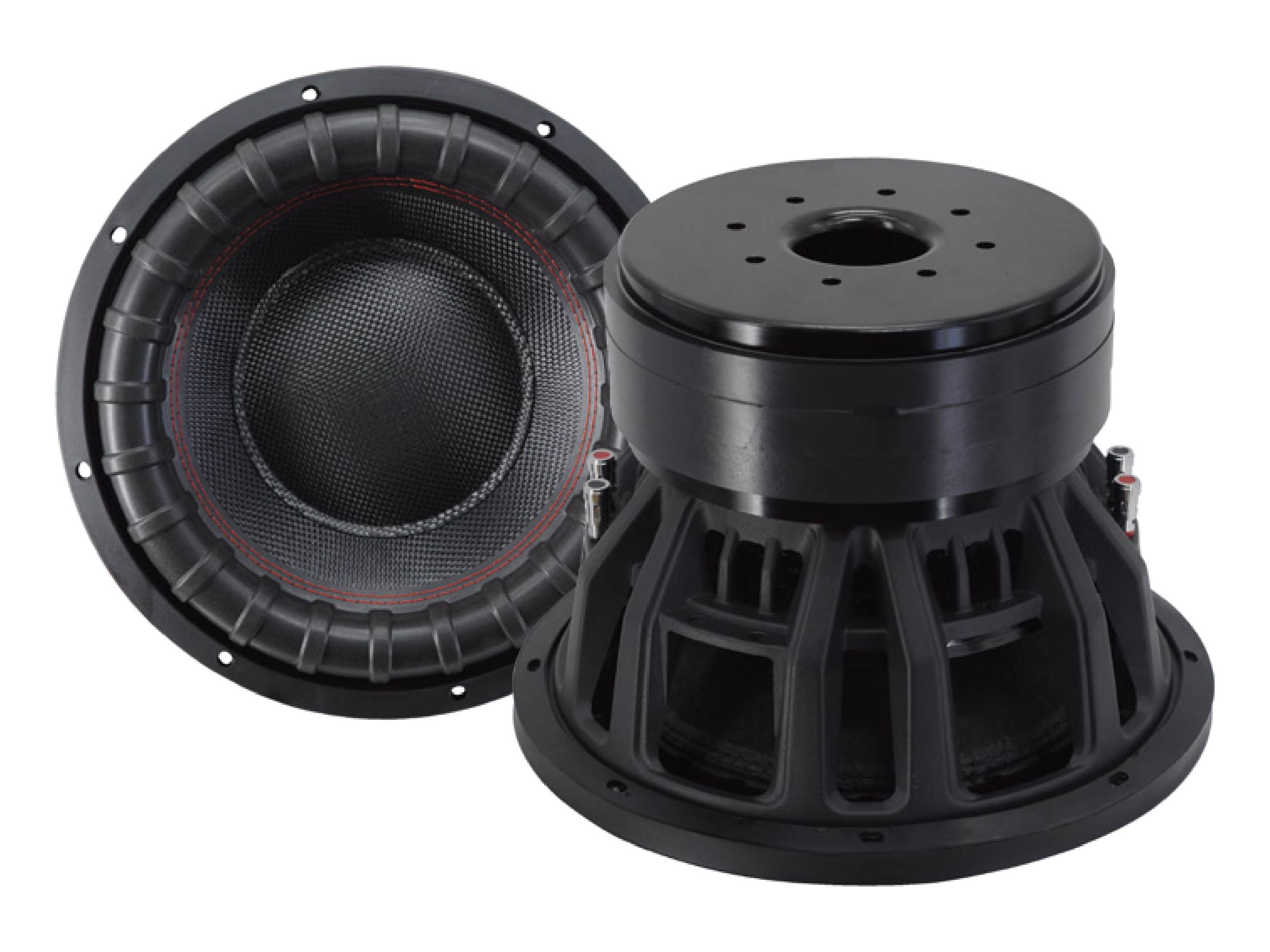

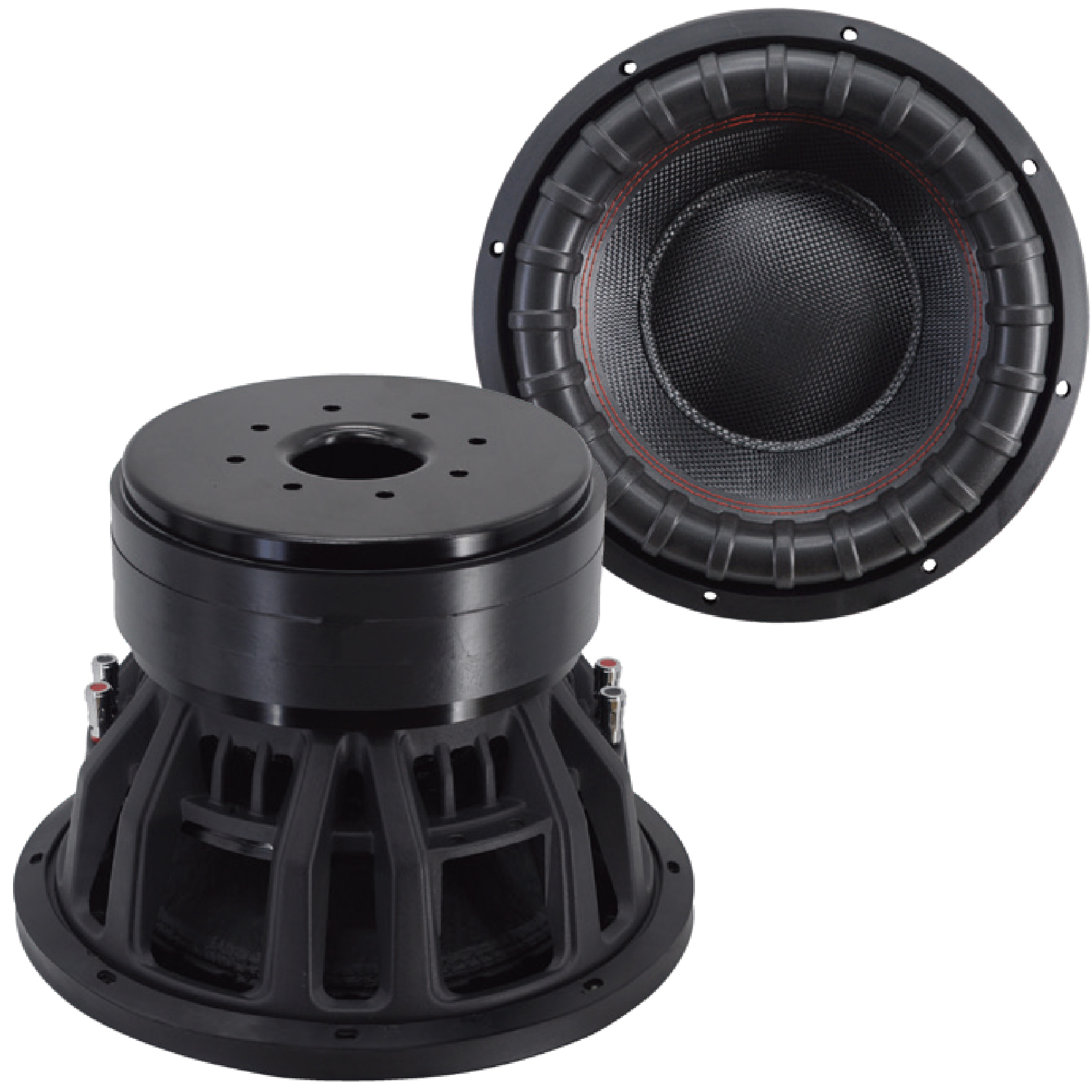

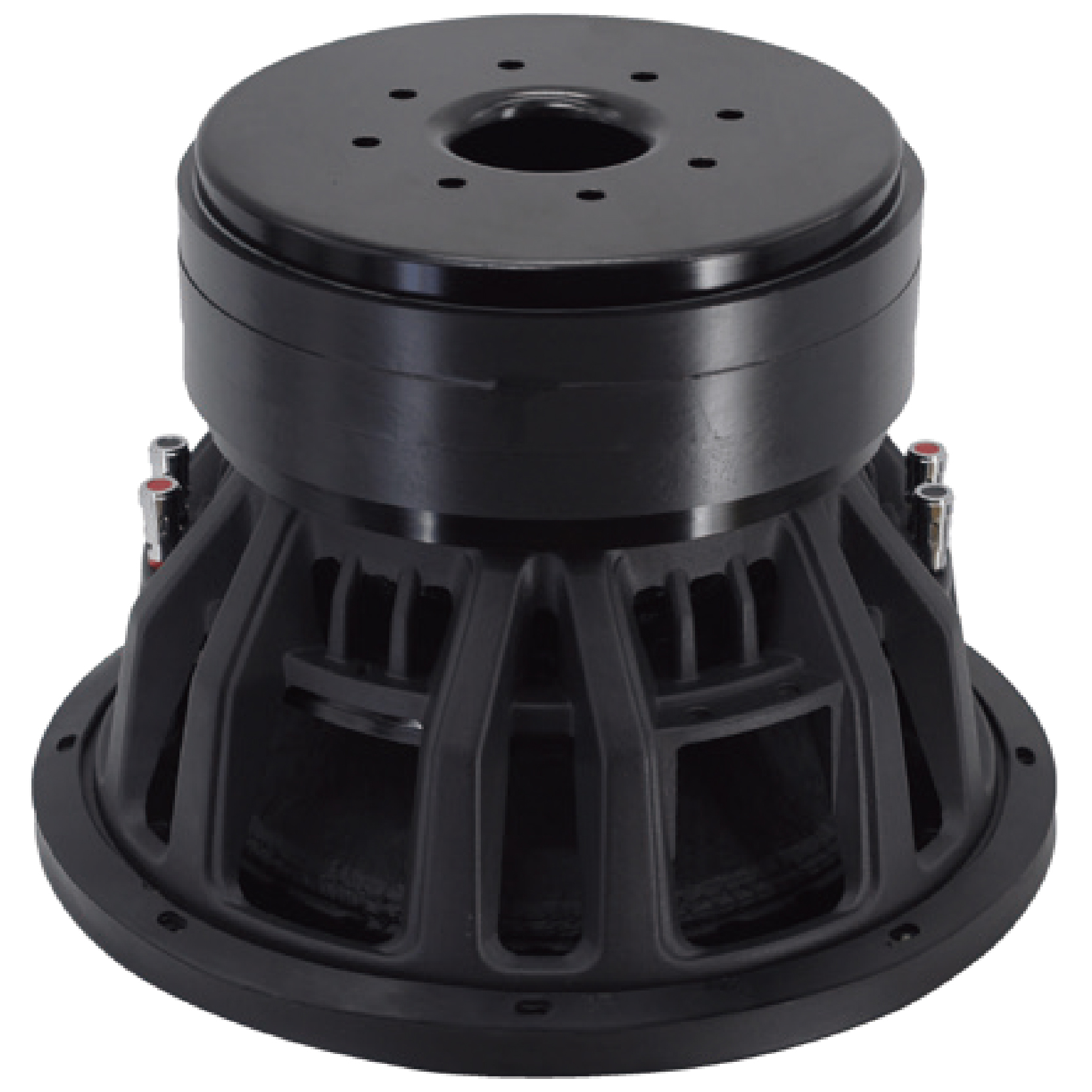

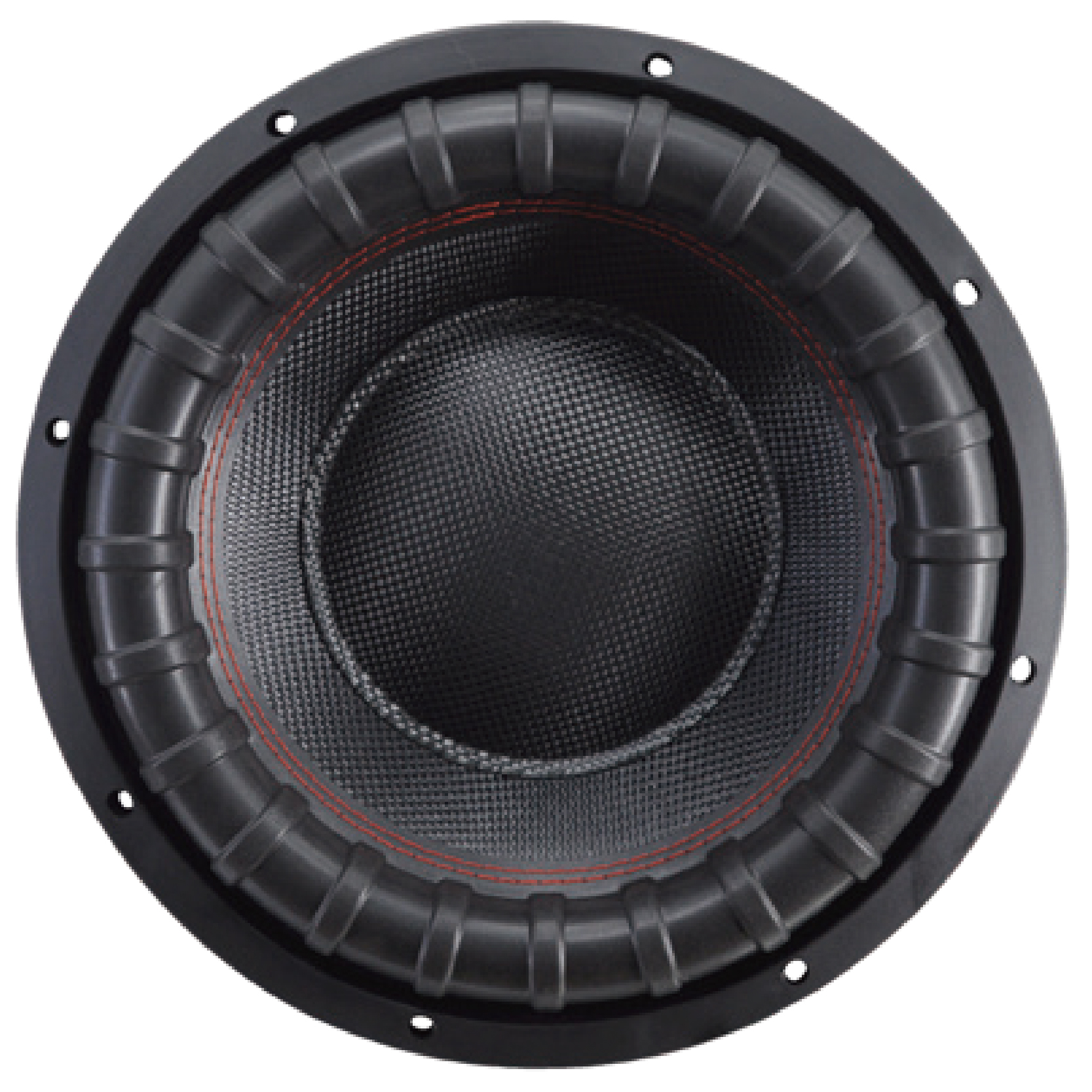

SB1211
12″SUBWOOFER
- 4+4Ω nominal impedance
- 3.6+3.6Ω minimum impedance
- 2*6000W RMS capacity
- 2*3000W AES capacity
- 86 dB sensitivity
- 49-800 Hz response
- 100mm(4in) inside-outside voice coil
SB1211 is driven by great energy, the shock is born from the “sound“.This flagship woofer unleashes the potential of your system. It can easily cope with extreme dynamic output. It has a strong, well-layered low-frequency performance. The large-size structure brings stronger bearing capacity and excellent heat dissipation performance, escorting the extreme output. The low–frequency fierce general born for large systems, tough, is its background color.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| NOMINAL SPECIFICATIONS | |
| Nominal Diameter | 18/460 in/mm |
| MAX Power | 1600 Watts |
| RMS Power | 800 Watts |
| Impedance | 2+2 Ohm |
| Resonance Frequency | 21 Hz |
| Frequency Response | 21-800 Hz |
| Sensitivity(1W/1m) | 86 dB |
| Voice Coil Diameter | 3”/75mm |
| Voice Coil Material | ASV |
| Magnet | 232 O |
| FS | 21 Hz |
| RE | 2+2 ohm |
| Qms | 5.6 |
| Qes | 0.60 |
| Qts | 0.54 |
| BL | 16.6 T/m |
| MMS | 694 grams |
| Xmax | 20 mm |
| Sd | 115.209 cm² |
| Efficiency | 0.23% |
| Le(1k Hz) | 38 mH |
| Overall Diameter | 18/463 in/mm |
| Bolt Circle Diameter | 17.3/442 in/mm |
| Baffle cutout Diameter | 16.6/423 in/mm |
| Depth | 11/280 in/mm |
| Net Weight | 15.75 kgs |
| Shipping Weight | 16.75 kgs |
| Shipping Box | 50X50X31cm |
Highlights
- 4’’ASV (Aluminum-magnesium alloy oxygen-free copper) voice coil wounded for hi-temp performance, 2+2 ohms
- 1,600 watts max power continuous program power rating makes high acoustical output
- Classic and stylish design, a tasteful choice.
- 86 dB sensitivity, top in the similar class!
- Excellent low frequency ability, high fidelity response
This series started to be developed as early as 2016, but it was not available until 2017 because when our engineers strived to achieve the best quality. Our company also invested a lot of money to Customized the mold because the common materials on the market could not meet the requirements. So from the design to the materials used, it took all the engineers’ efforts. Good parameters are obtained from the design, there is no sewing process. The process of research and development will not be revealed, I believe that a slight understanding of the picture can feel the overall quality of the product, is indeed a rare speaker unit, do not miss a good partner!
