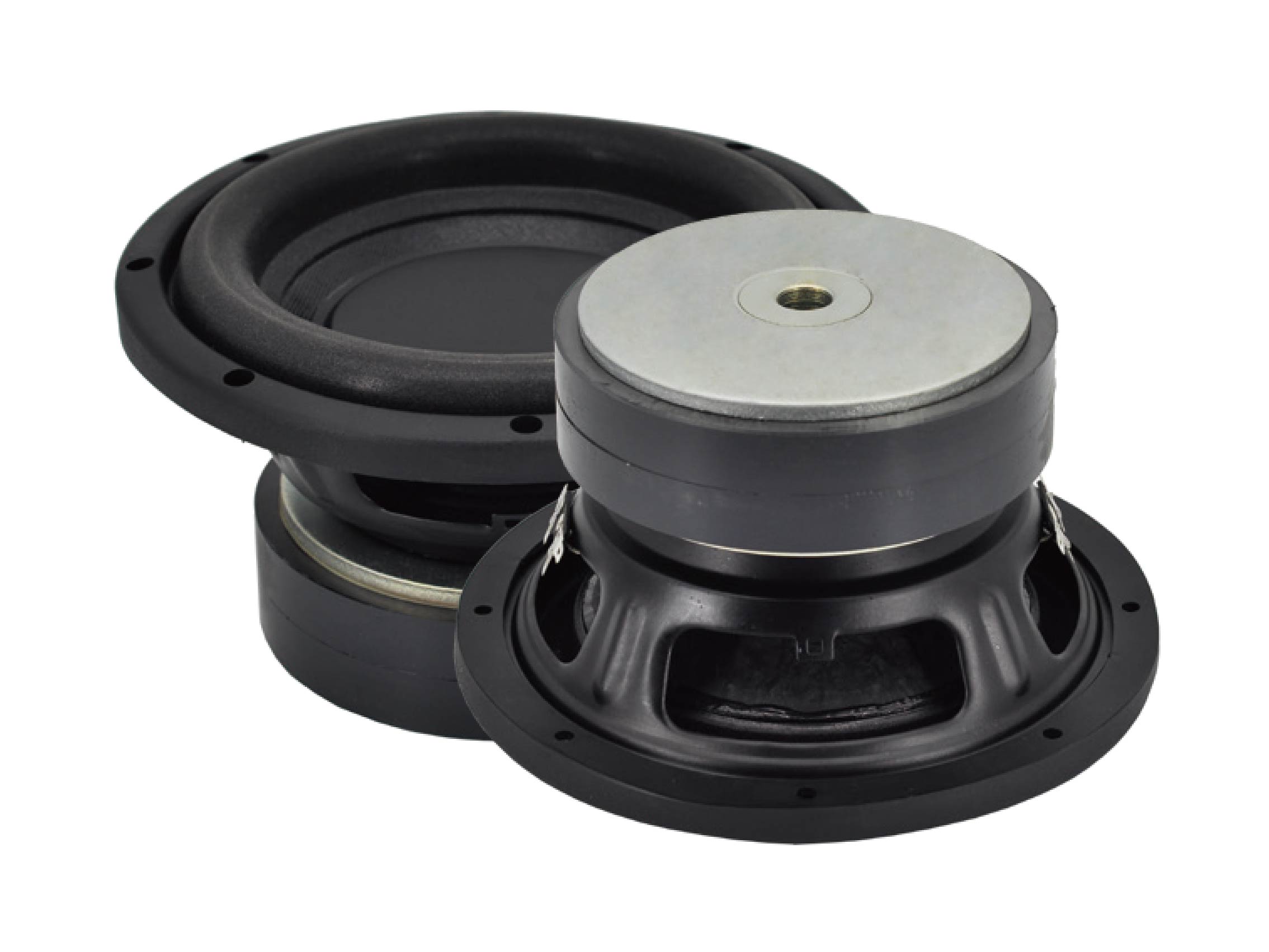

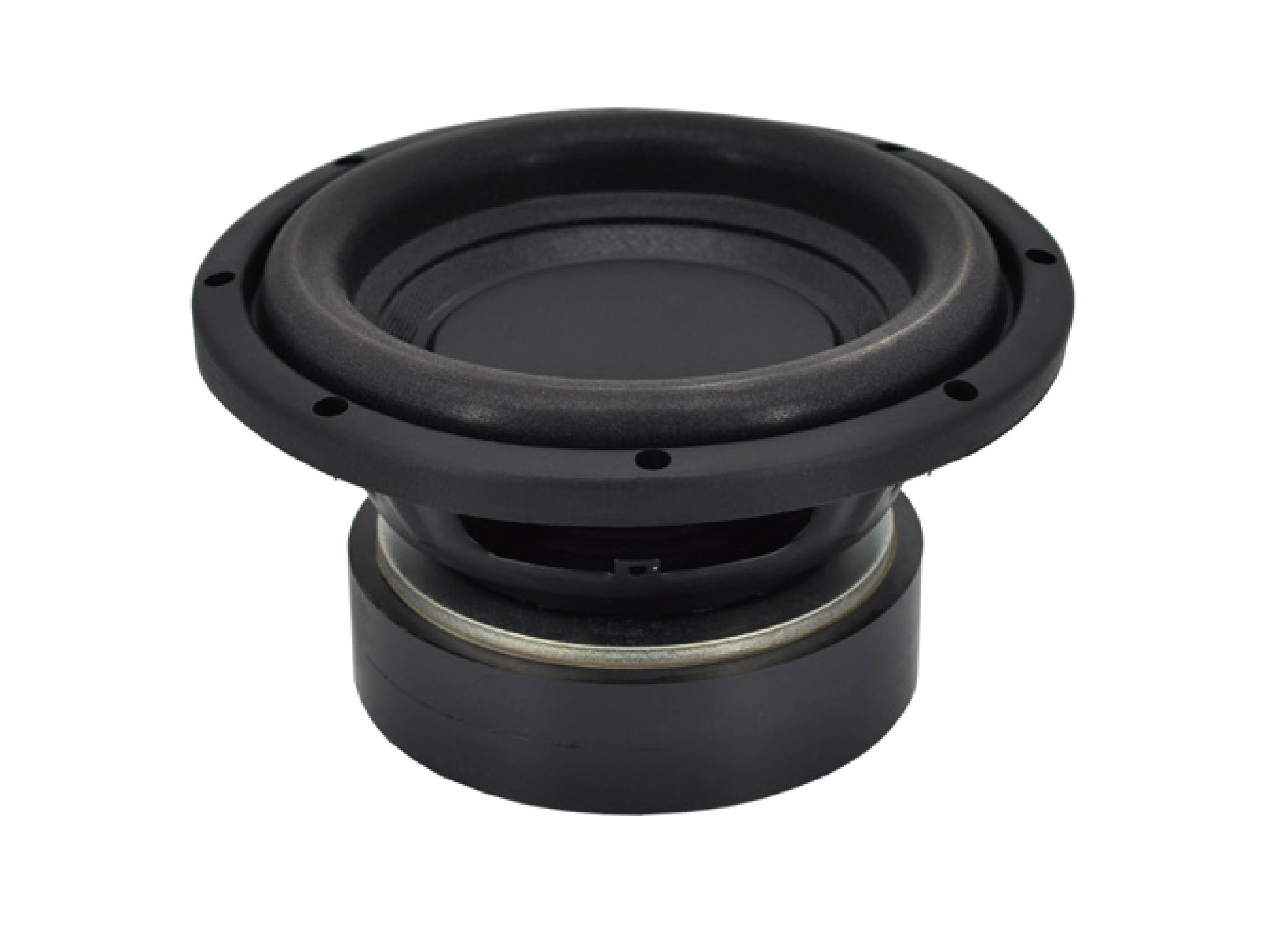

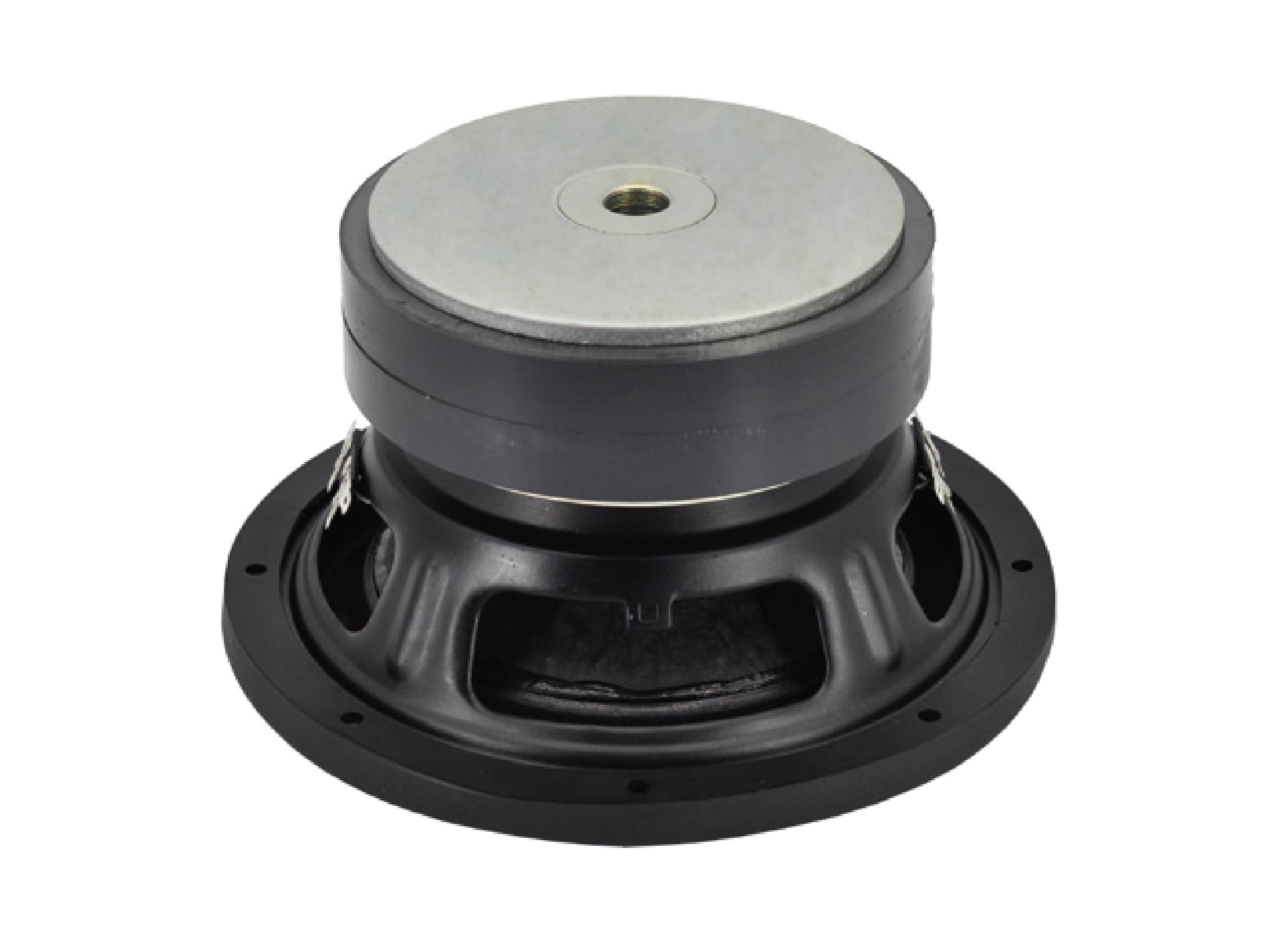

SW0812
8″SUBWOOFER
- 4+4Ω nominal impedance
- 3.6+3.6Ω minimum impedance
- 300W RMS capacity
- 86 dB sensitivity
- 55-1000 Hz response
- 38.6mm(1.5in) inside-outside voice coil
SW0812 Small size, shakes the whole field. Built for tight spaces, without compromising on sound performance. With a clean, low-frequency response, it delivers an incredible punch that hits the heart with every beat. The voice coil ensures stable output, even under long-term high-intensity work, it is still calm and powerful. It’s the most reliable low-frequency service in your sound system. Small, not the same as low-key; From the first sound, it is destined to be impossible to ignore.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 10/250 in/mm |
| MAX Power | 600 Watts |
| RMS Power | 300 Watts |
| Impedance | 4+4 Ohm |
| Resonance Frequency | 55 Hz |
| Frequency Response | 55-1000 Hz |
| Sensitivity(1W/1m) | 86 dB |
| Voice Coil Diameter | 2.4”/60.6mm |
| Voice Coil Material | BASV |
| Magnet | 112 Oz |
| FS | 35 Hz |
| RE | 3.2+3.2 ohm |
| Qms | 5.4 |
| Qes | 0.82 |
| Qts | 0.71 |
| BL | 13 T/m |
| MMS | 207 grams |
| Xmax | 21 mm |
| Sd | 340 cm² |
| Efficiency | 0% |
| Le(1k Hz) | 49 mH |
| Overall Diameter | 10/262 in/mm |
| Bolt Circle Diameter | 6.1/243 in/mm |
| Baffle cutout Diameter | 9/232 in/mm |
| Depth | 6.7/172 in/mm |
| Net Weight | 7.25 kgs |
| Shipping Weight | 8.05 kgs |
| Shipping Box | 28.5X28.5X20cm |
Highlights
- 10’’Inside/Out BASV voice coil wounded for hi-temp performance, 4+4ohms
- 800watts continuous program power rating makes high acoustical output
- Sleek look, smooth figure
- 81dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber offers efficient sound performance.
Carefully tuned crossovers provide sound better suited to Eastern listening.
Enhanced bass control with precise acoustic algorithms.
Digital audio processing delivers 3D surround and high-power output.
Hi-Fi signal processing makes tones transparent and detailed.
Deep, powerful bass with realistic, elastic drum sounds.
Clear vocals and rich bass for an immersive music experience.
