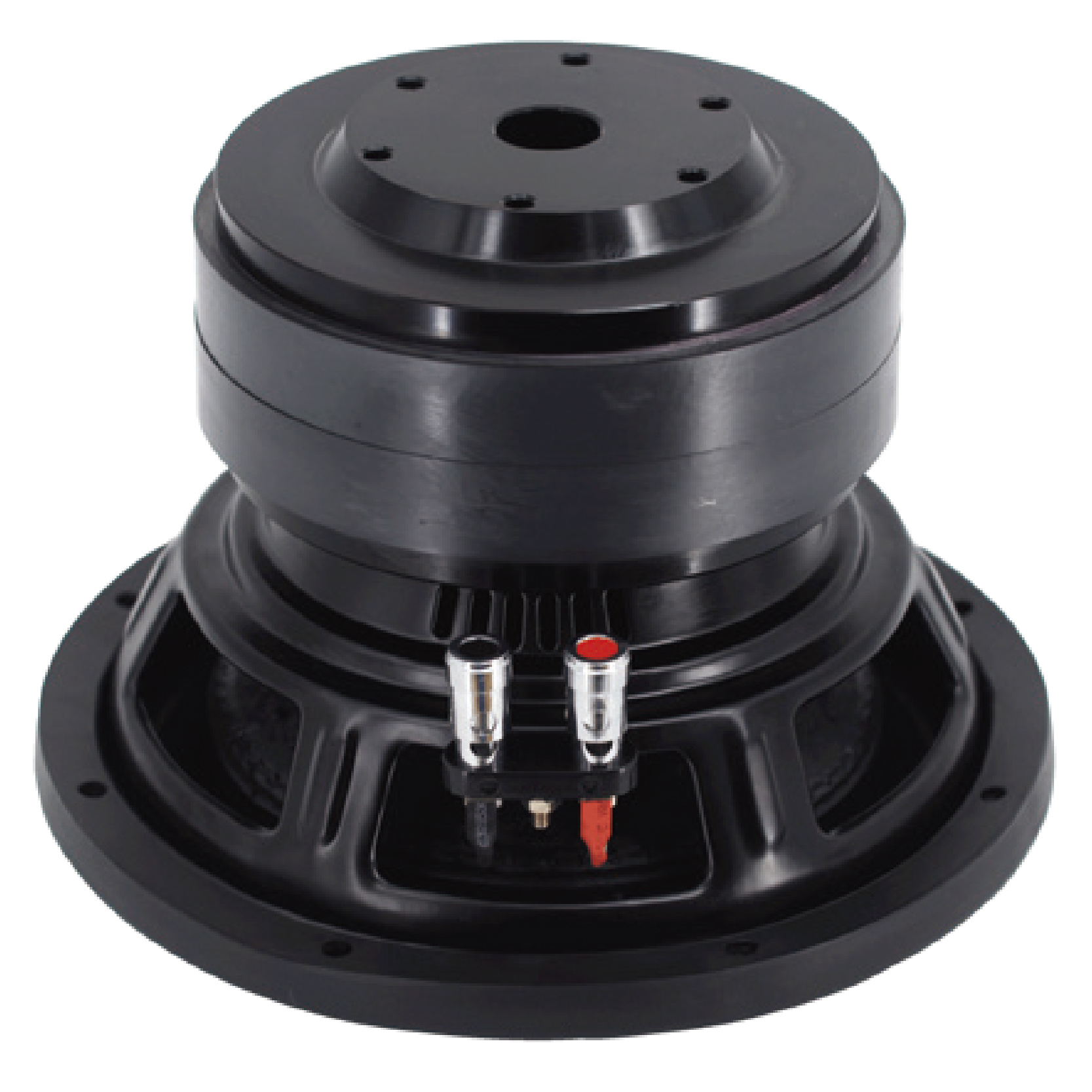

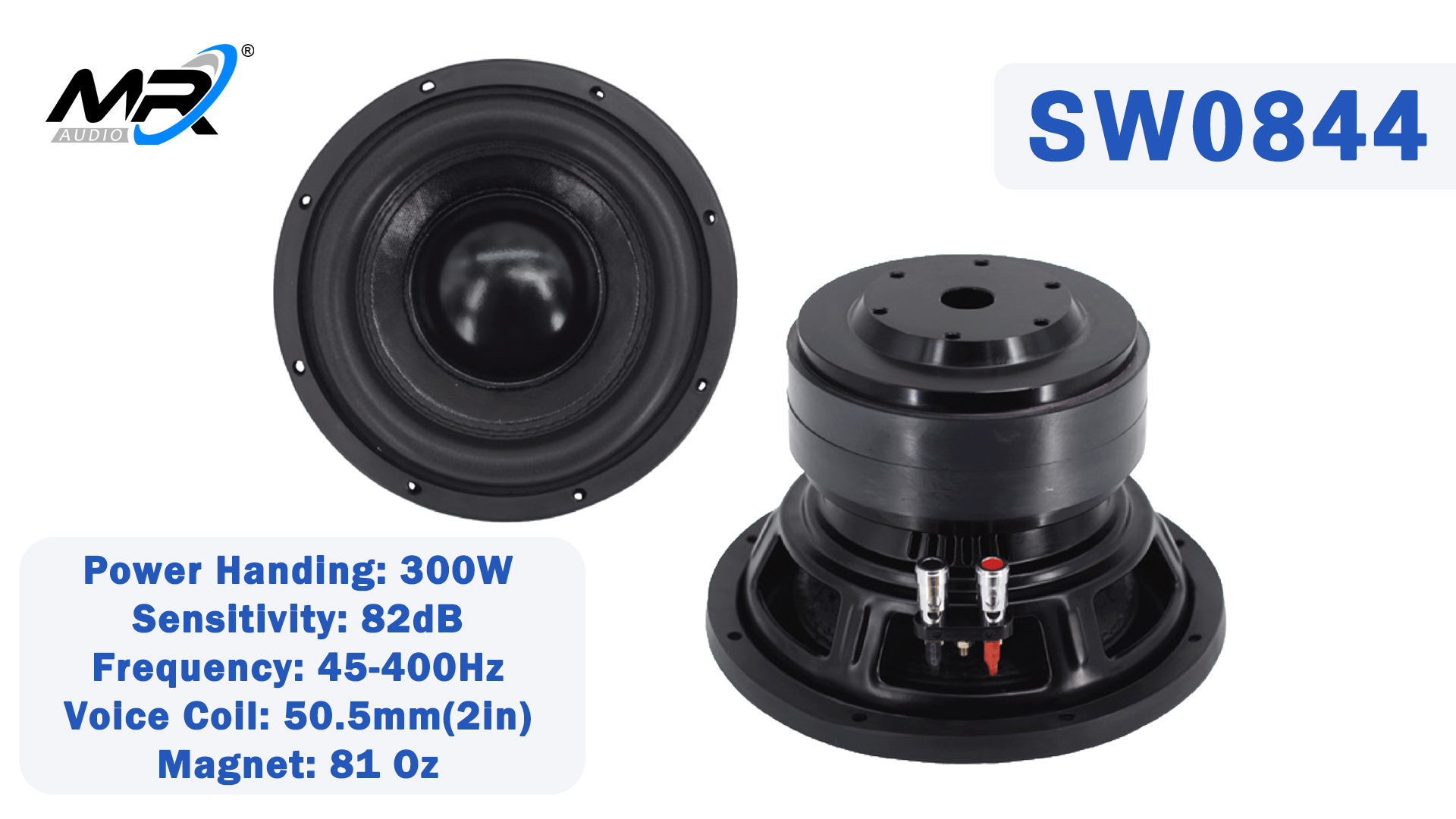

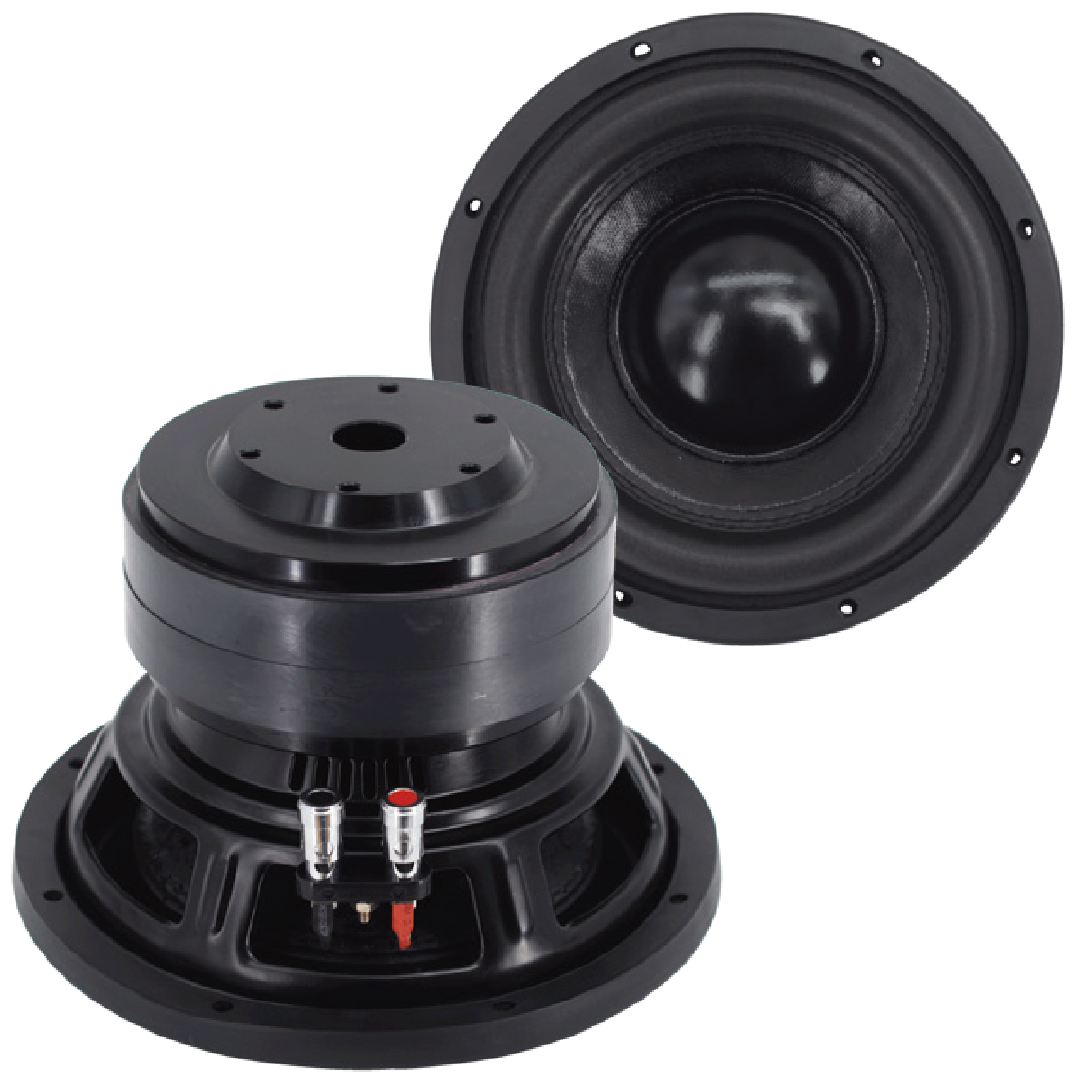

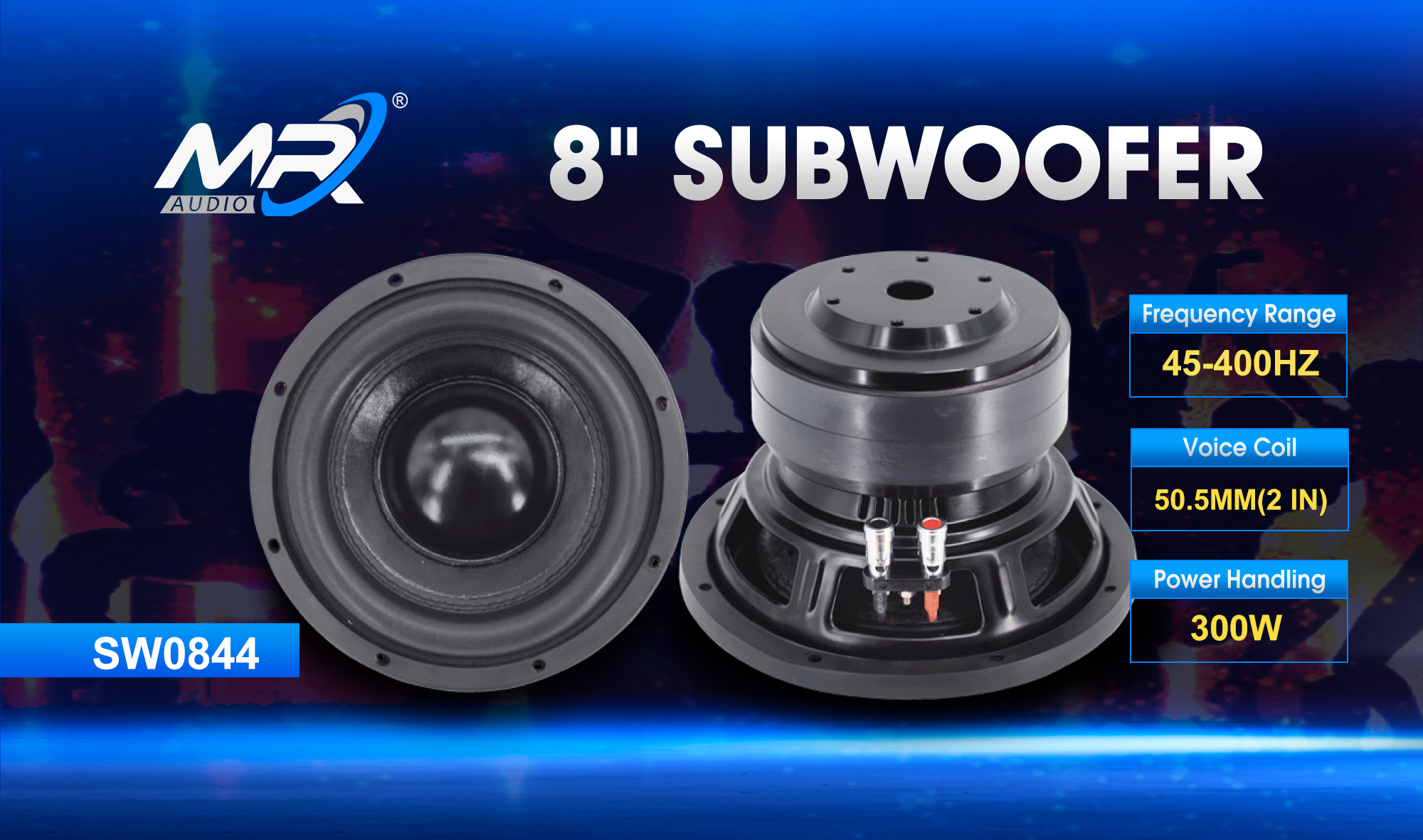

SW0844
8″SUBWOOFER
- 4+4Ω nominal impedance
- 3.6+3.6Ω minimum impedance
- 300W RMS capacity
- 82 dB sensitivity
- 45-400 Hz response
- 50.5mm(2in) inside-outside voice coil
SW0844 is a star product of MR audio. Tough and precise bass transmission, the paper cone is added with aramid fiber and resin, these materials are both tough and precise, with a specification of 8 inches,at the same time, it is high-temperature resistance, good conduction performance, lightweight, better low frequency extension and higher efficiency.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 8/215 in/mm |
| MAX Power | 600 Watts |
| RMS Power | 300 Watts |
| Impedance | 4+4 Ohm |
| Resonance Frequency | 45 Hz |
| Frequency Response | 45-400 Hz |
| Sensitivity(1W/1m) | 82 dB |
| Voice Coil Diameter | 2”/50.5mm |
| Voice Coil Material | BASV |
| Magnet | 81 Oz |
| FS | 45 Hz |
| RE | 3.2+3.2 ohm |
| Qms | 5.3 |
| Qes | 0.83 |
| Qts | 0.72 |
| BL | 12 T/m |
| MMS | 143 grams |
| Xmax | 17.7 mm |
| Sd | 200 cm² |
| Efficiency | 0 % |
| Overall Diameter | 8/218 in/mm |
| Bolt Circle Diameter | 5/199 in/mm |
| Baffle cutout Diameter | 7.2/186 in/mm |
| Depth | 6/153 in/mm |
| Net Weight | 5.35 kgs |
| Shipping Weight | 5.8 kgs |
| Shipping Box | 25.5X25.5X18cm |
Highlights
- 300W RMS Power/600W Max Power
- 2 inch BASV voice coilwith rubber roll surround and carbon weave finish all in black
- Powerful 5-inch large magnet woofer with built-in low pass filter
- 8 layer voice coil for superb performance
- Frequency response of 45Hz -400Hz with an SPL of 82dB
- amazing design is perfectly suited for DIY car speaker, excellent low frequency ability, high fidelity response

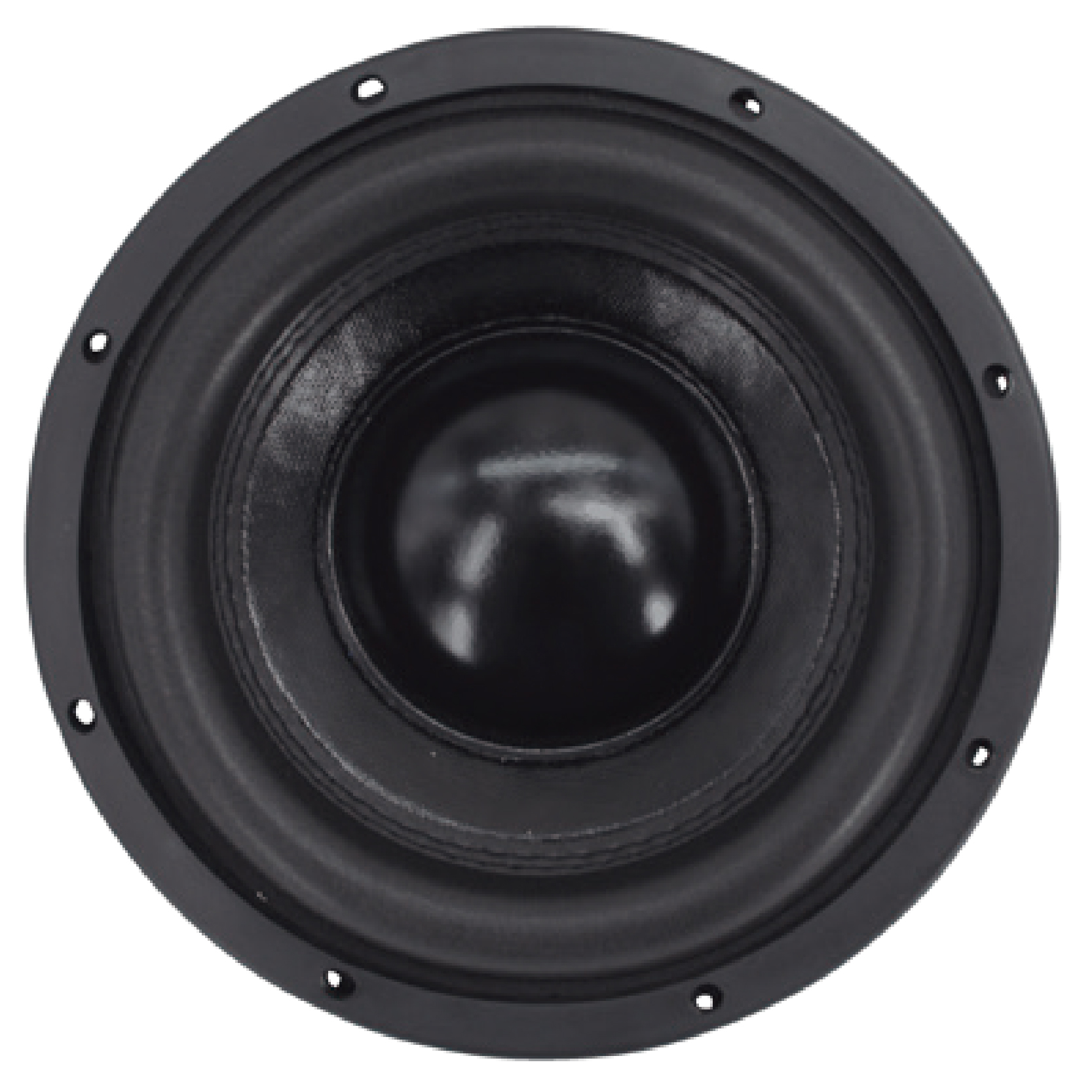

The paper cone adopts Taiwan’s high-end new technology special formula foamed edge pitted paper cone, which has a high elastic modulus and a good combination of rigidity and flexibility. Compared with ordinary paper cones, the degree of compression of the fibers is relatively low, and the overall cone is relatively thick. , The natural frequency is relatively low, can withstand a large vibration stroke, increase the low frequency dive and the compliance of the speaker, the special formula of the cone material, make the sound more solid and durable.
