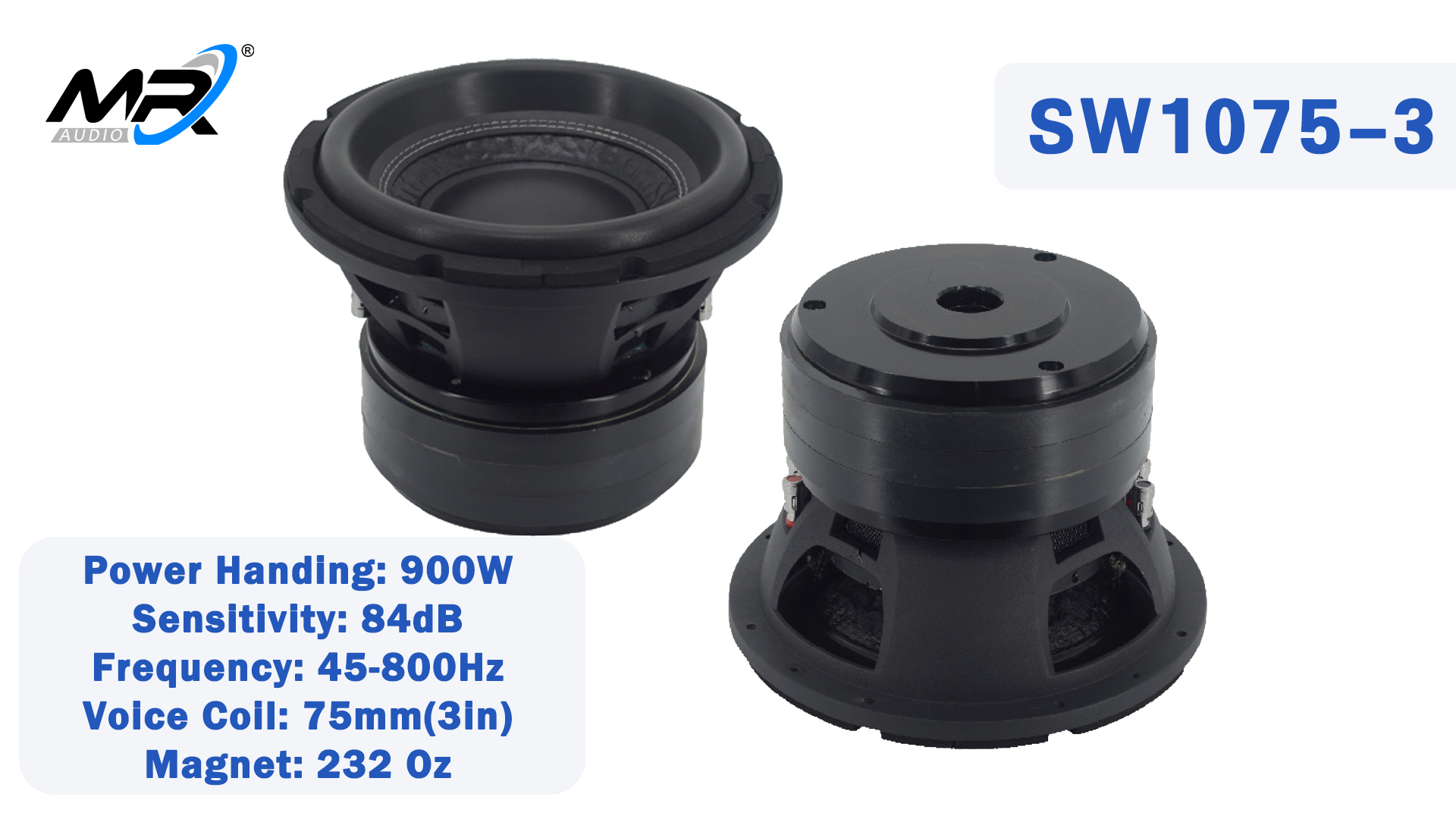

SW1075-3
10″SUBWOOFER
- 2+2Ω nominal impedance
- 2+2Ω minimum impedance
- 900 RMS capacity
- 450 AES capacity
- 84 dB sensitivity
- 45-800 Hz response
- 75mm(3in) inside-outside voice coil
SW1075-3 With its unique power efficiency, it delivers deep and powerful low–end effects with ease. The ohmic design guarantees stable output, and the 89dB sensitivity makes it excellent for high performance. At the same time, the wide frequency response range focuses on precise low–frequency reproduction, and the 3–inch voice coil design ensures strong control, whether it‘s a home theater or a professional audio system.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 10/260 in/mm |
| MAX Power | 1800 Watts |
| RMS Power | 900 Watts |
| Impedance | 2+2 Ohm |
| Resonance Frequency | 45 Hz |
| Frequency Response | 45-800 Hz |
| Sensitivity(1W/1m) | 84 dB |
| Voice Coil Diameter | 3”/75mm |
| Voice Coil Material | ASV |
| Magnet | 232 Oz |
| FS | 45 Hz |
| RE | 2+2 ohm |
| Qms | 4 |
| Qes | 0.56 |
| Qts | 0.5 |
| BL | 16 T/m |
| MMS | 256 grams |
| Xmax | 19 mm |
| Sd | 490 cm² |
| Efficiency | 0.1 % |
| Overall Diameter | 10/260 in/mm |
| Bolt Circle Diameter | 9.4/240 in/mm |
| Baffle cutout Diameter | 8.9/228 in/mm |
| Depth | 7.6/195 in/mm |
| Net Weight | 14.4 kgs |
| Shipping Weight | 15.4 kgs |
| Shipping Box | 30X30X22.5cm |
Highlights
- 10”Inside/Out ASV voice coil wounded for hi-temp performance
- 900watts continuous program power rating makes high acoustical output
- Sleek look, smooth figure
- 84dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber has a more efficient sound performance.
Carefully selected capacitors, inductors, resistors, professional debugging out of the sound crossover better suited to Eastern listening.
Shock bass
Through a reasonable acoustic algorithm, the bass channel for independent and precise control and frequency distribution.
Digital audio dynamic processing, 3D surround
