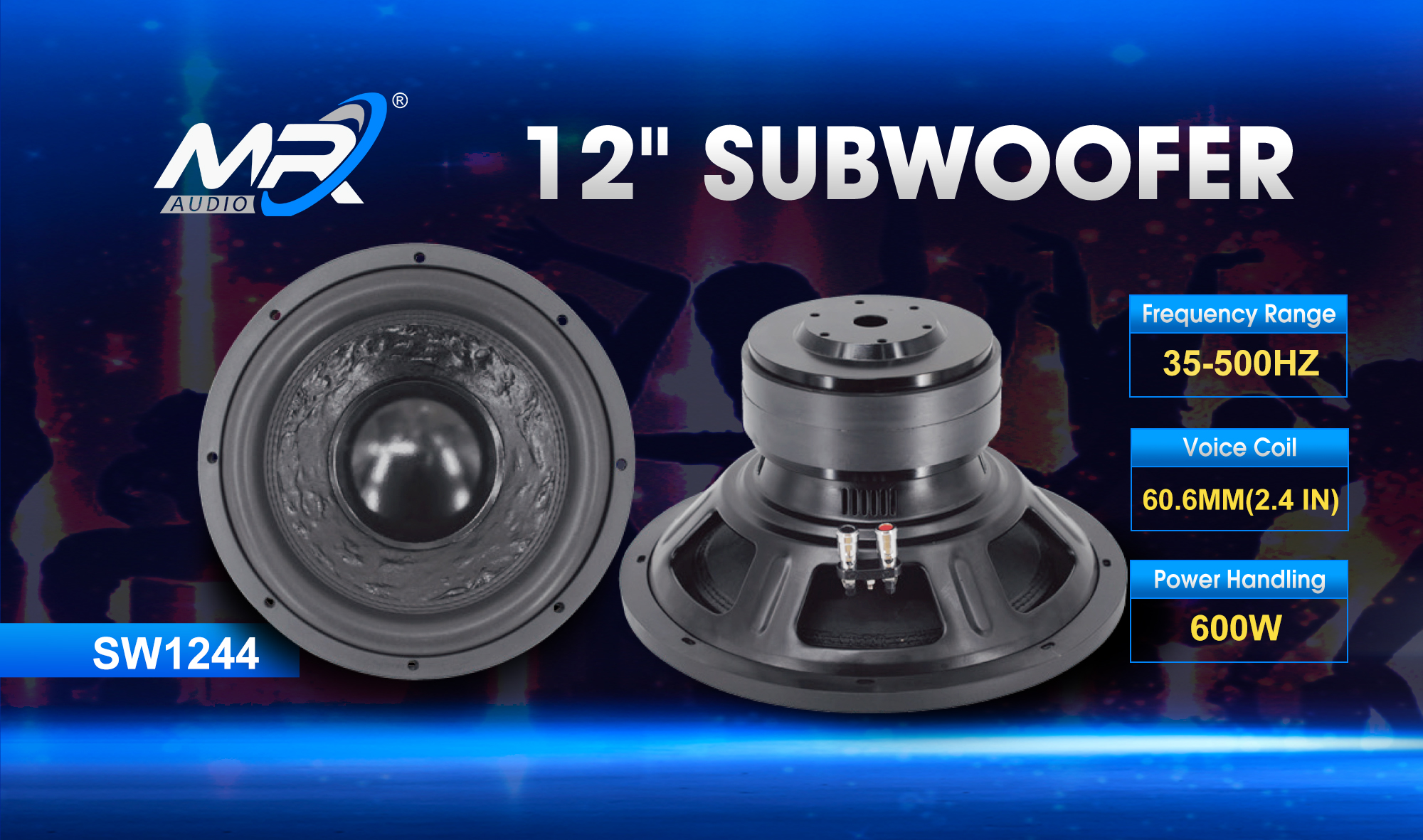

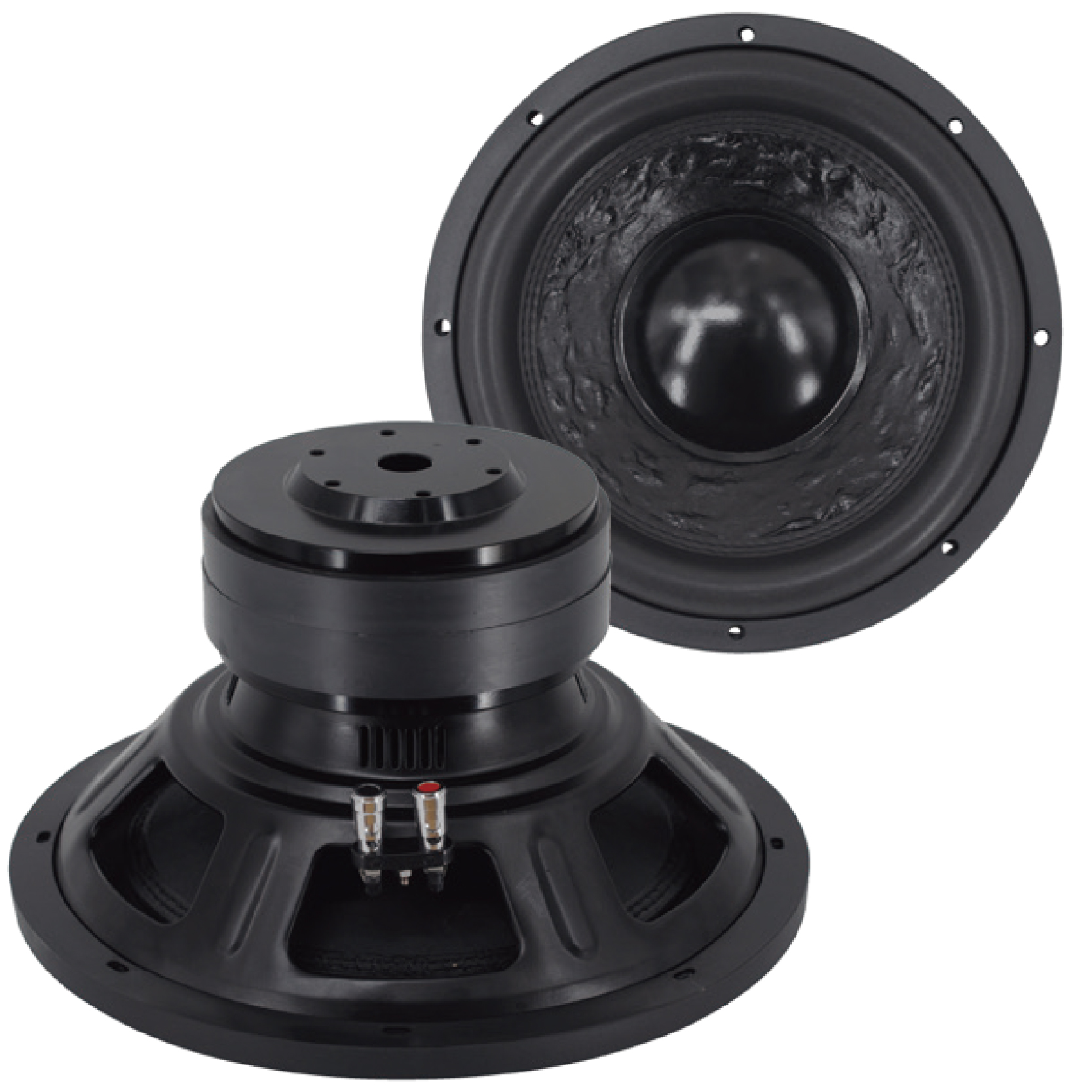

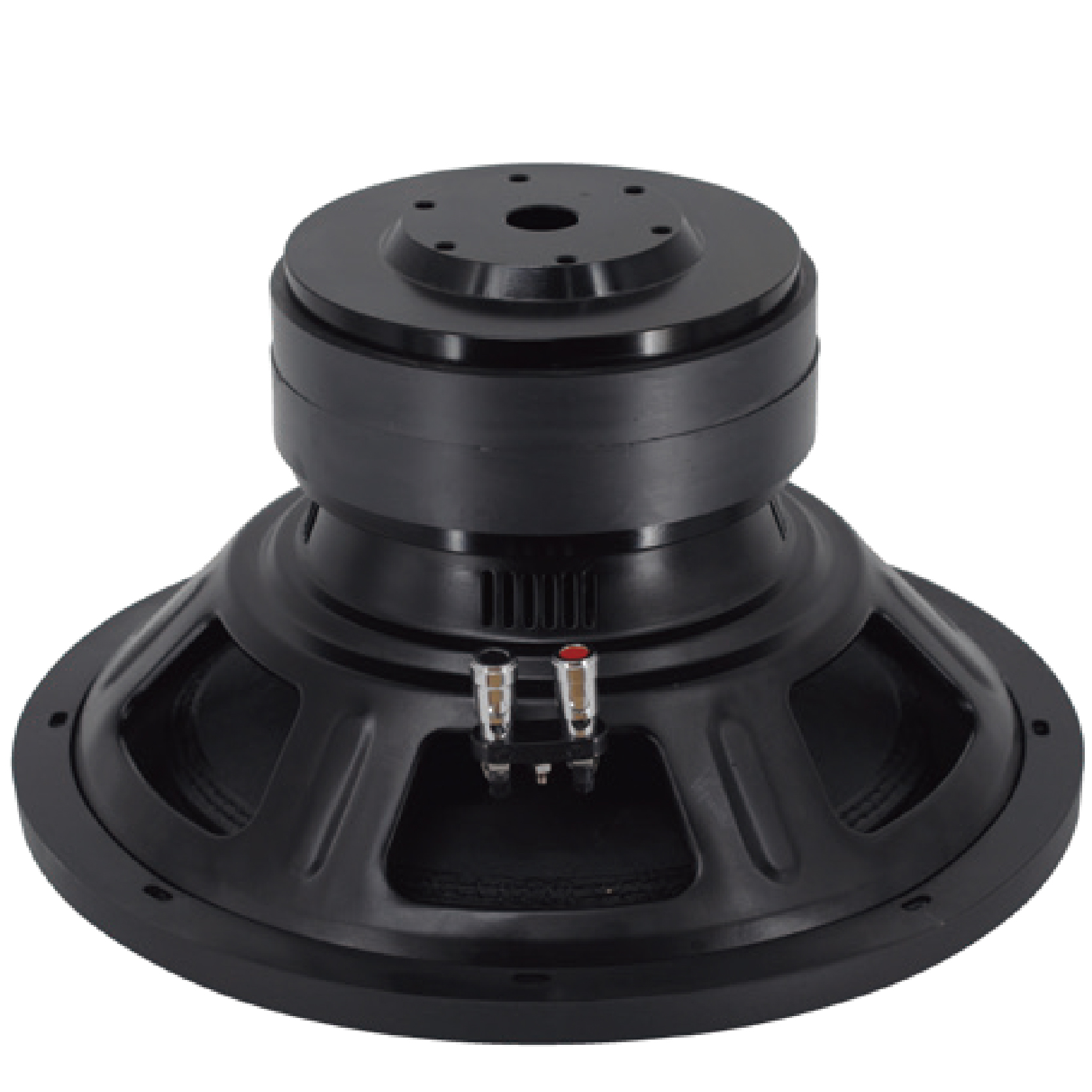

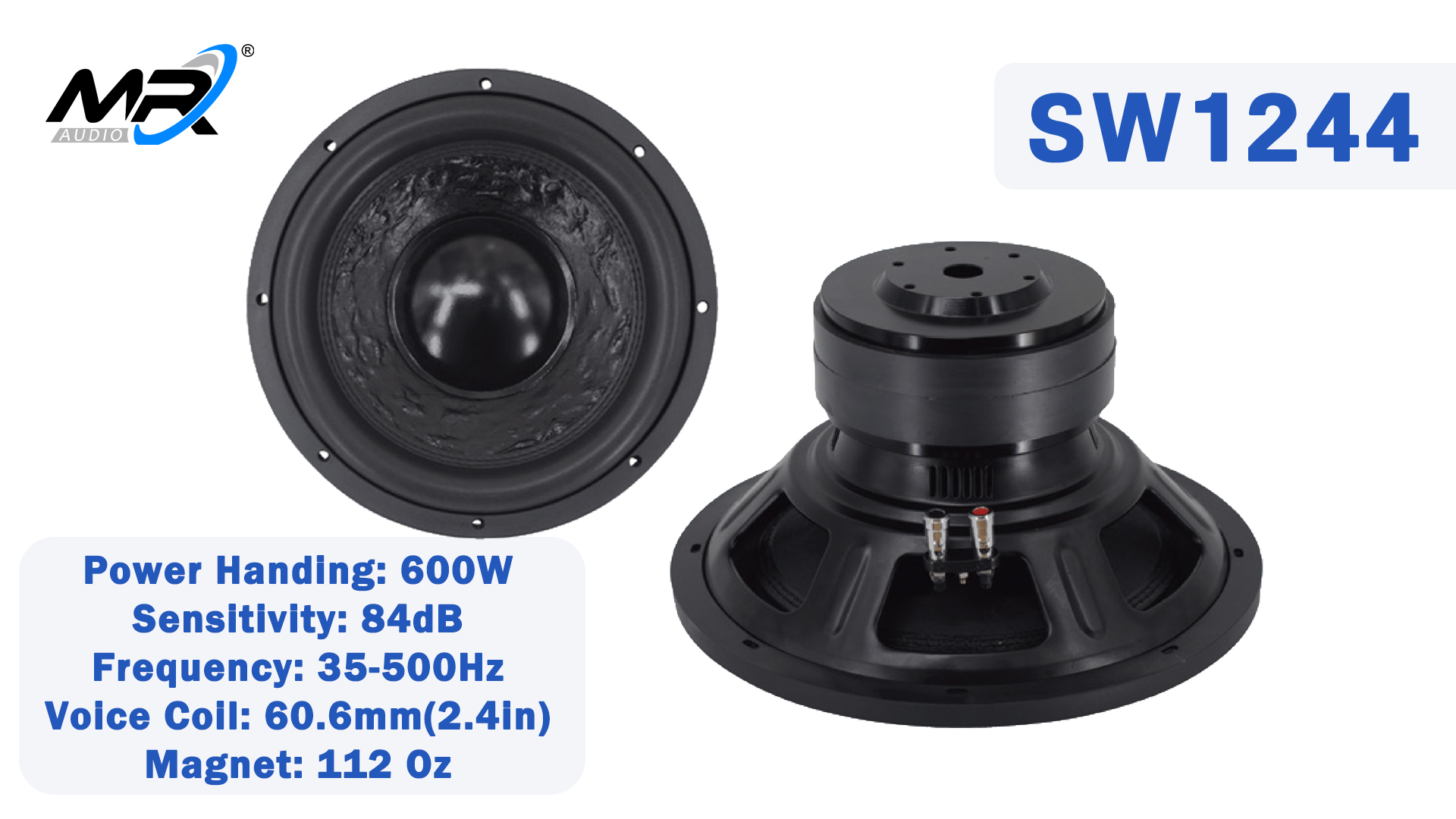

SW1244
12″SUBWOOFER
- 4+4Ω nominal impedance
- 3.6+3.6Ω minimum impedance
- 600W RMS capacity
- 300W AES capacity
- 84 dB sensitivity
- 35-500 Hz response
- 60.6mm(2.4in) inside-outside voice coil
SW1244 Deep dives, powerful drives – easily meet the rigors of high–power systems. It delivers solid and powerful low-frequency dive and precise control for a wide range of professional soundstages. It is the core driving force of high–power low–frequency systems, unleashing shocking low–frequency and unhurried performance.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 12/315 in/mm |
| MAX Power | 1200 Watts |
| RMS Power | 600 Watts |
| Impedance | 4+4 Ohm |
| Resonance Frequency | 35 Hz |
| Frequency Response | 35-500 Hz |
| Sensitivity(1W/1m) | 84 dB |
| Voice Coil Diameter | 2.4”/60.6mm |
| Voice Coil Material | BASV |
| Magnet | 112 Oz |
| FS | 35 Hz |
| RE | 3.6+3.6 ohm |
| Qms | 4.7 |
| Qes | 0.98 |
| Qts | 0.81 |
| BL | 13 T/m |
| MMS | 218 grams |
| Xmax | 18 mm |
| Sd | 510 cm² |
| Efficiency | 0.14 % |
| Overall Diameter | 12/315 in/mm |
| Bolt Circle Diameter | 11.5/295 in/mm |
| Baffle cutout Diameter | 11/283 in/mm |
| Depth | 7.1/183 in/mm |
| Net Weight | 7.45 kgs |
| Shipping Weight | 8.45 kgs |
| Shipping Box | 33.5X33.5X21cm |
Highlights
- 600W RMS Power/1200W Max Power
- 2.4 inch BASV voice coilwith rubber roll surround and carbon weave finish all in black
- Powerful 5-inch large magnet woofer with built-in low pass filter
- 8 layer voice coil for superb performance
- Frequency response of 35Hz -500Hz with an SPL of 84dB
- amazing design is perfectly suited for DIY car speaker, excellent low frequency ability, high fidelity response

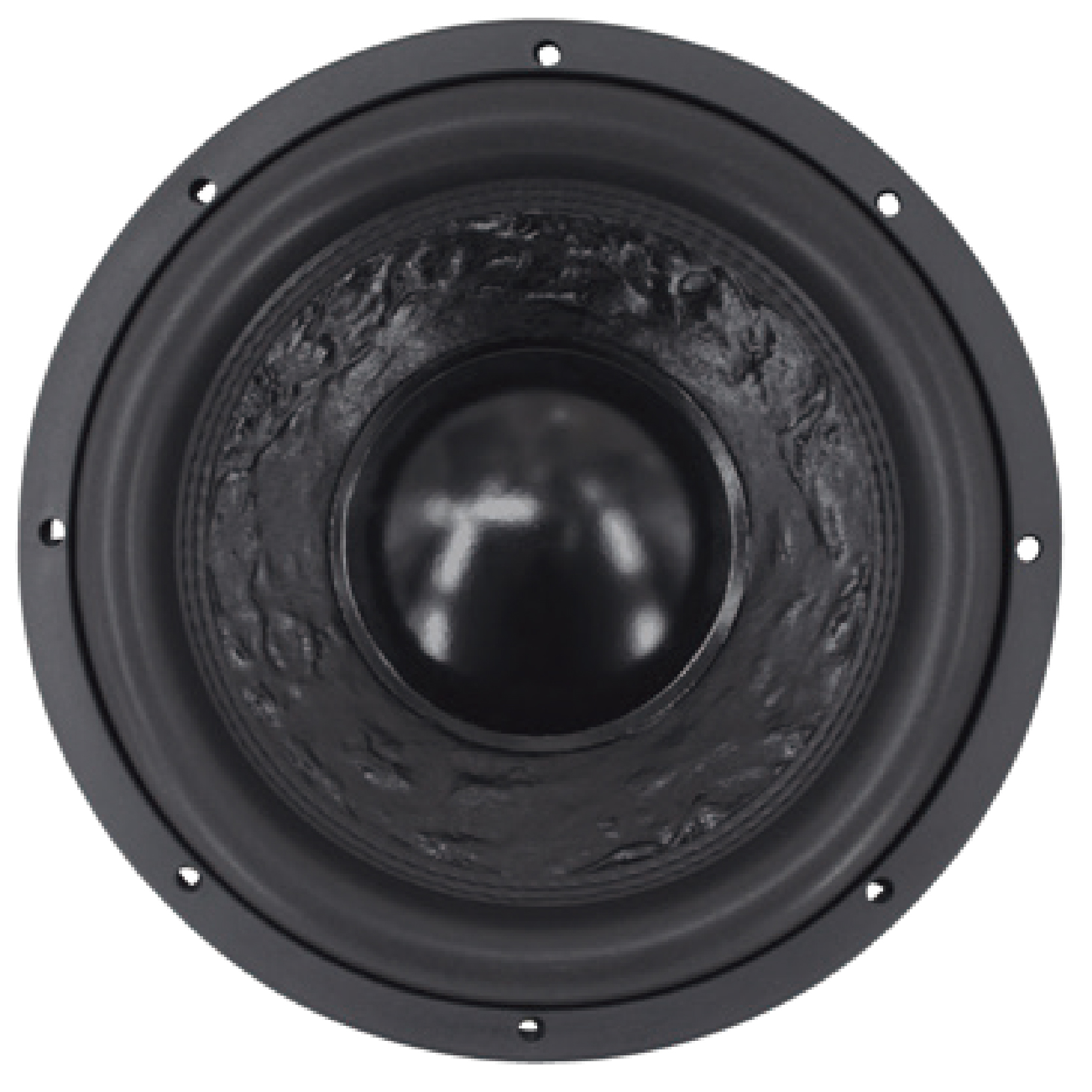

The paper cone adopts Taiwan’s high-end new technology special formula foamed edge pitted paper cone, which has a high elastic modulus and a good combination of rigidity and flexibility. Compared with ordinary paper cones, the degree of compression of the fibers is relatively low, and the overall cone is relatively thick. , The natural frequency is relatively low, can withstand a large vibration stroke, increase the low frequency dive and the compliance of the speaker, the special formula of the cone material, make the sound more solid and durable.
