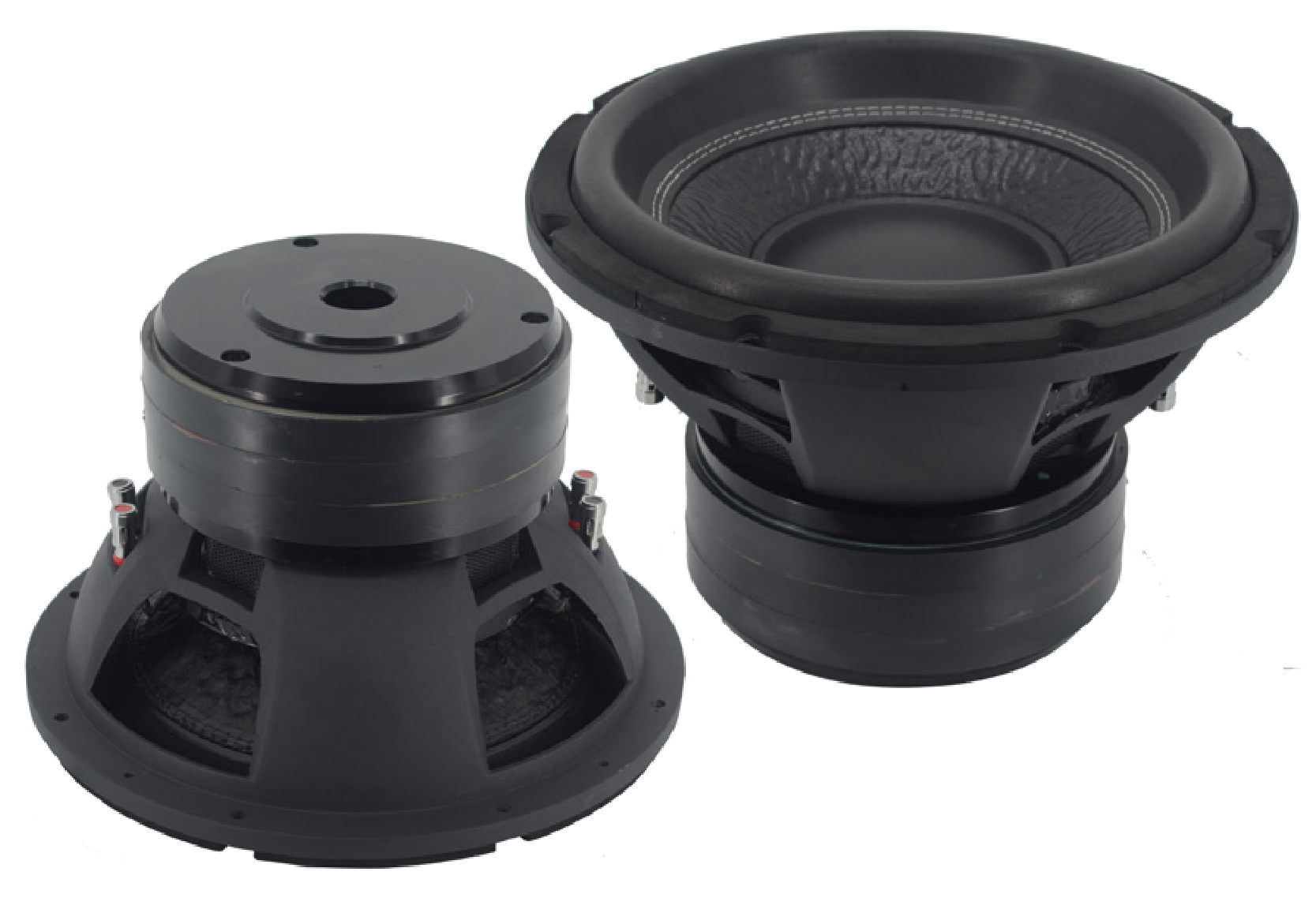

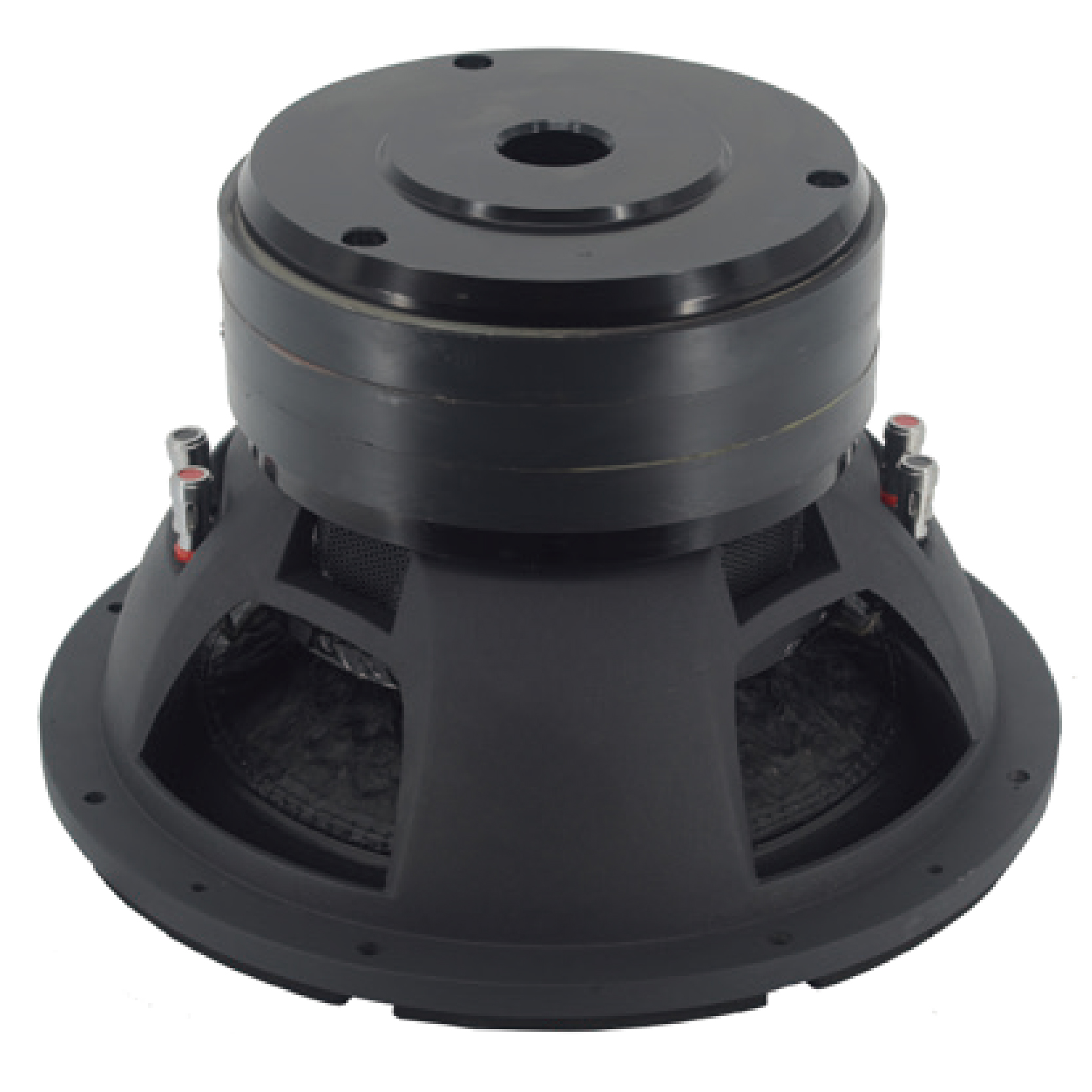

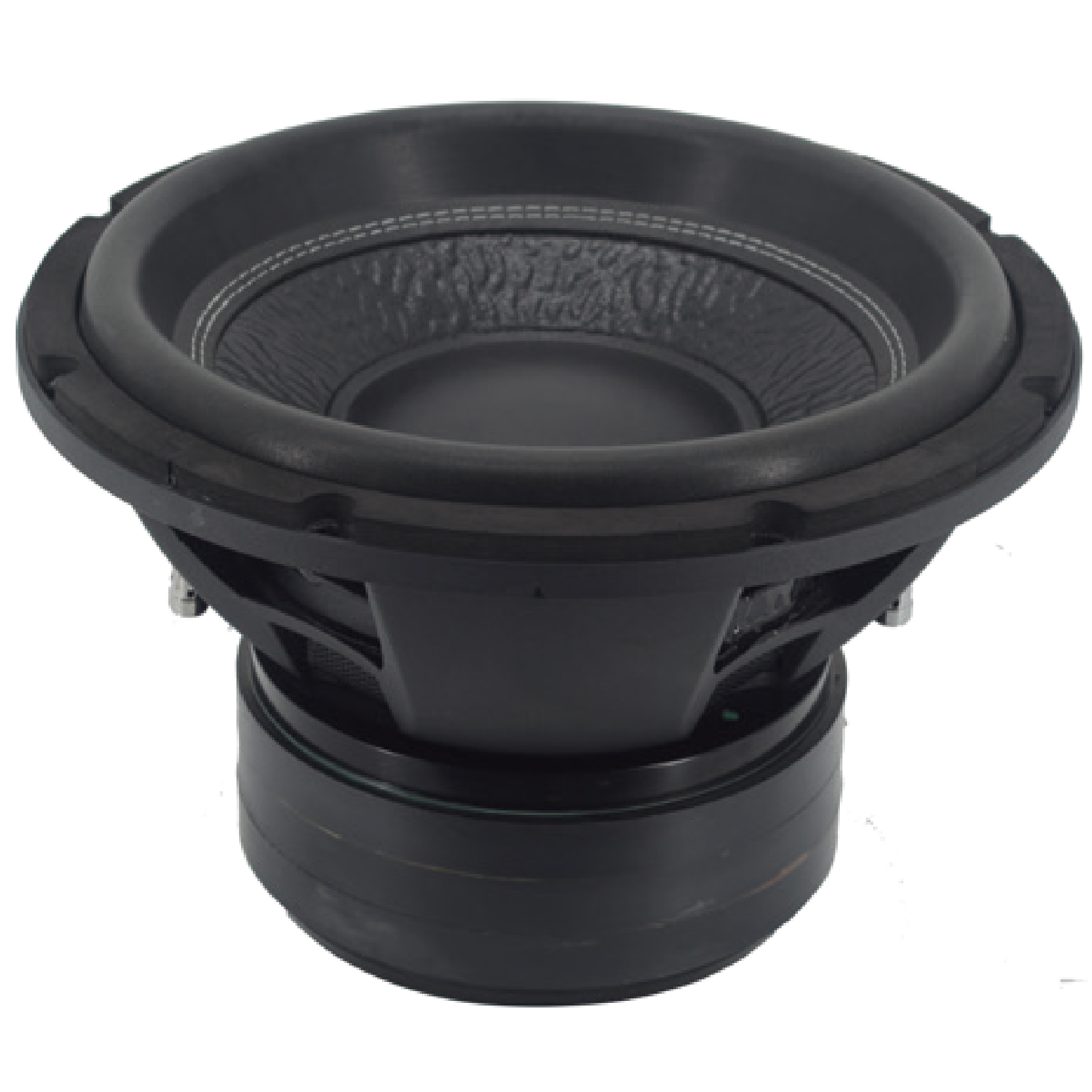

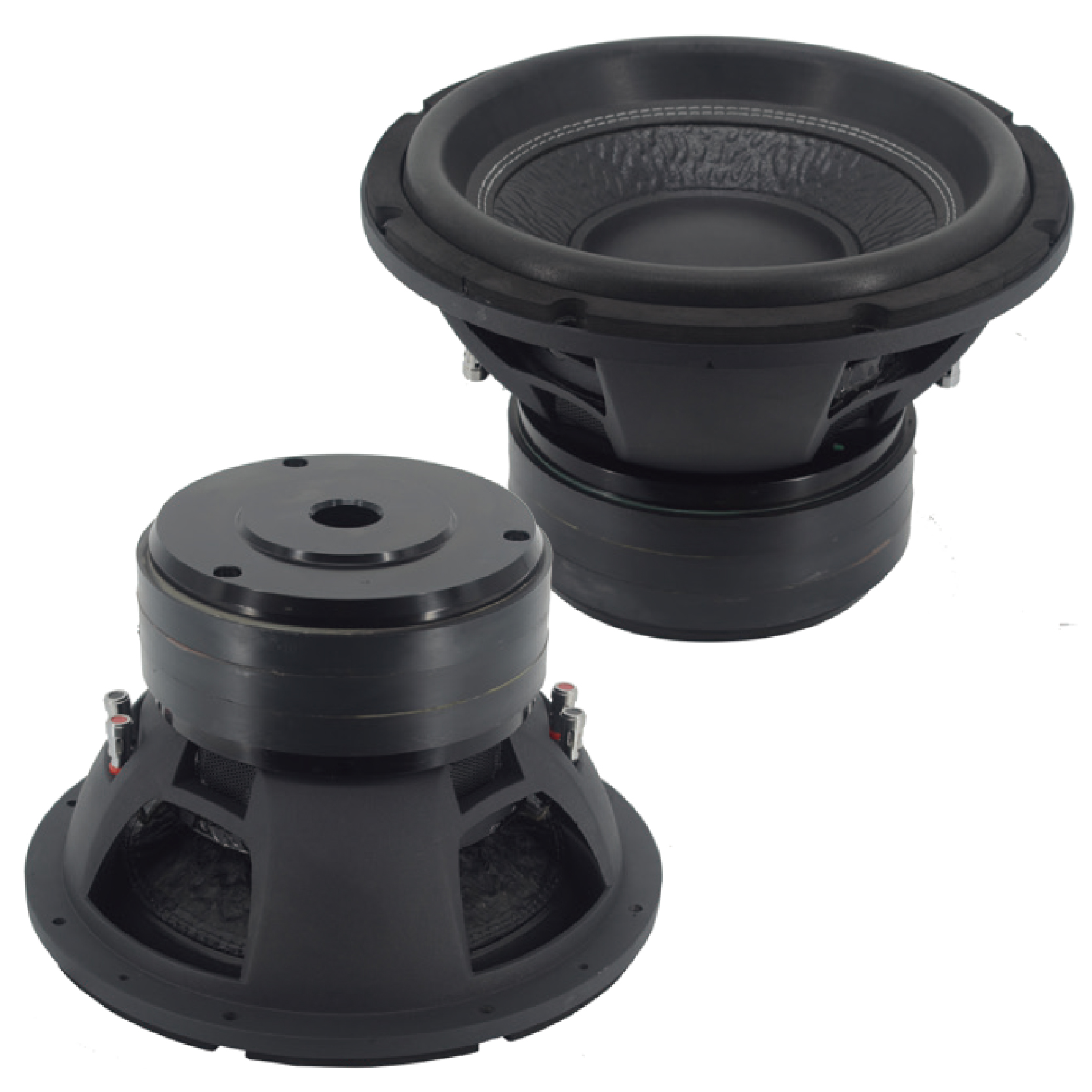

SW1275-3

12″SUBWOOFER
  • 4+4Ω nominal impedance
  • 3.6+3.6Ω minimum impedance
  • 800 RMS capacity
  • 400 AES capacity
  • 89 dB sensitivity
  • 30-500 Hz response
  • 75mm(3in) inside-outside voice coil

SW12753  Surging low frequency, released by the core“. It can handle a wide range of dynamic outputs easily. It accurately reproduces the details of deep dives at low frequencies. The voice coil not only provides strong magnetronic power, but also ensures thermal stability and durability, injecting a steady stream of low-frequency energy into audio systems. Breathe soul into a bass-heavy system. Let the shock erupt from the bottom of my heart.

Nominal Diameter 12/312 in/mm
MAX Power 1600 Watts
RMS Power 800 Watts
Impedance 4+4 Ohm
Resonance Frequency 55 Hz
Frequency Response 30-500 Hz
Sensitivity(1W/1m) 89 dB
Voice Coil Diameter 3”/75mm
Voice Coil Material BACCAW
Magnet 231 Oz
FS 55 Hz
RE 3.6+3.6 ohm
Qms 12.6
Qes 2.2
Qts 1.9
BL 15 T/m
MMS 188 grams
Xmax 19 mm
Sd 511 cm²
Efficiency 0.2 %
Overall Diameter 12 /312 in/mm
Bolt Circle Diameter 11.5/294 in/mm
Baffle cutout Diameter 10.7 /274 in/mm
Depth 7.8 /200 in/mm
Net Weight 14.4 kgs
Shipping Weight 15.4 kgs
Shipping Box 38.5X38.5X26.5cm



Highlights
  • 3”BACCAW voice coil wounded for hi-temp performance
  • 1600 watts max power continuous program power rating makes high acoustical output
  • Classic and stylish design, a tasteful choice.
  • 89 dB sensitivity, top in the similar class!
  • Excellent low frequency ability, high fidelity response
