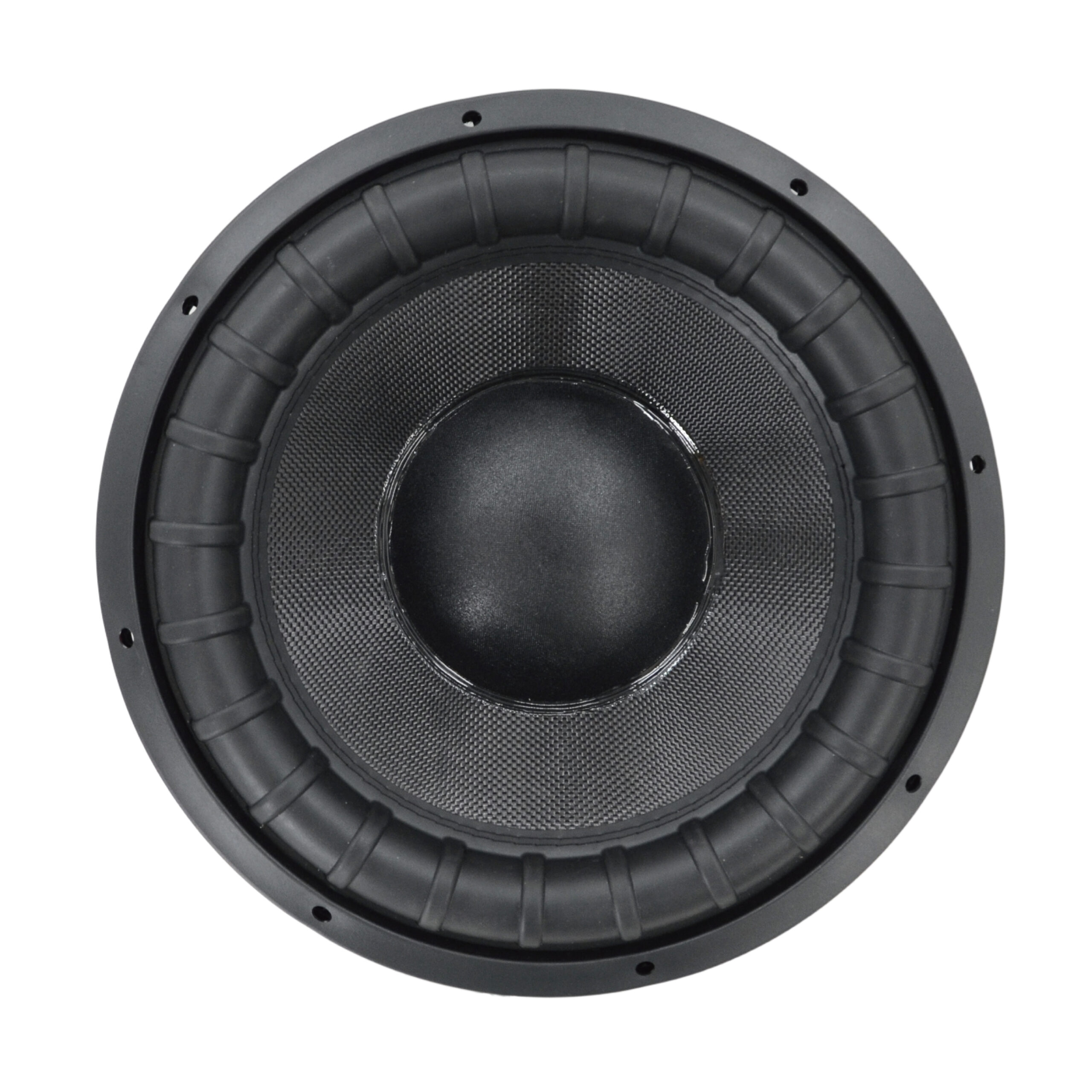

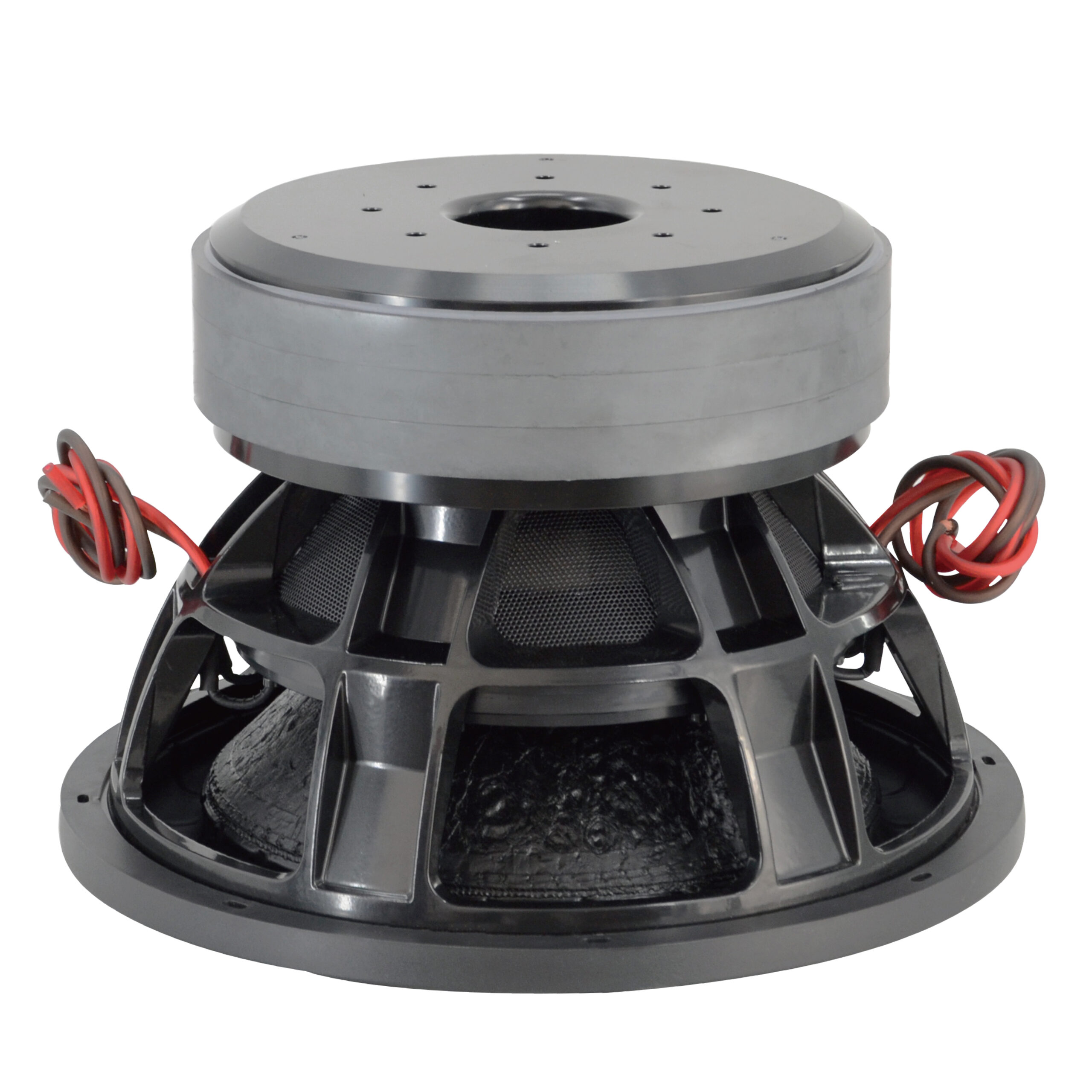

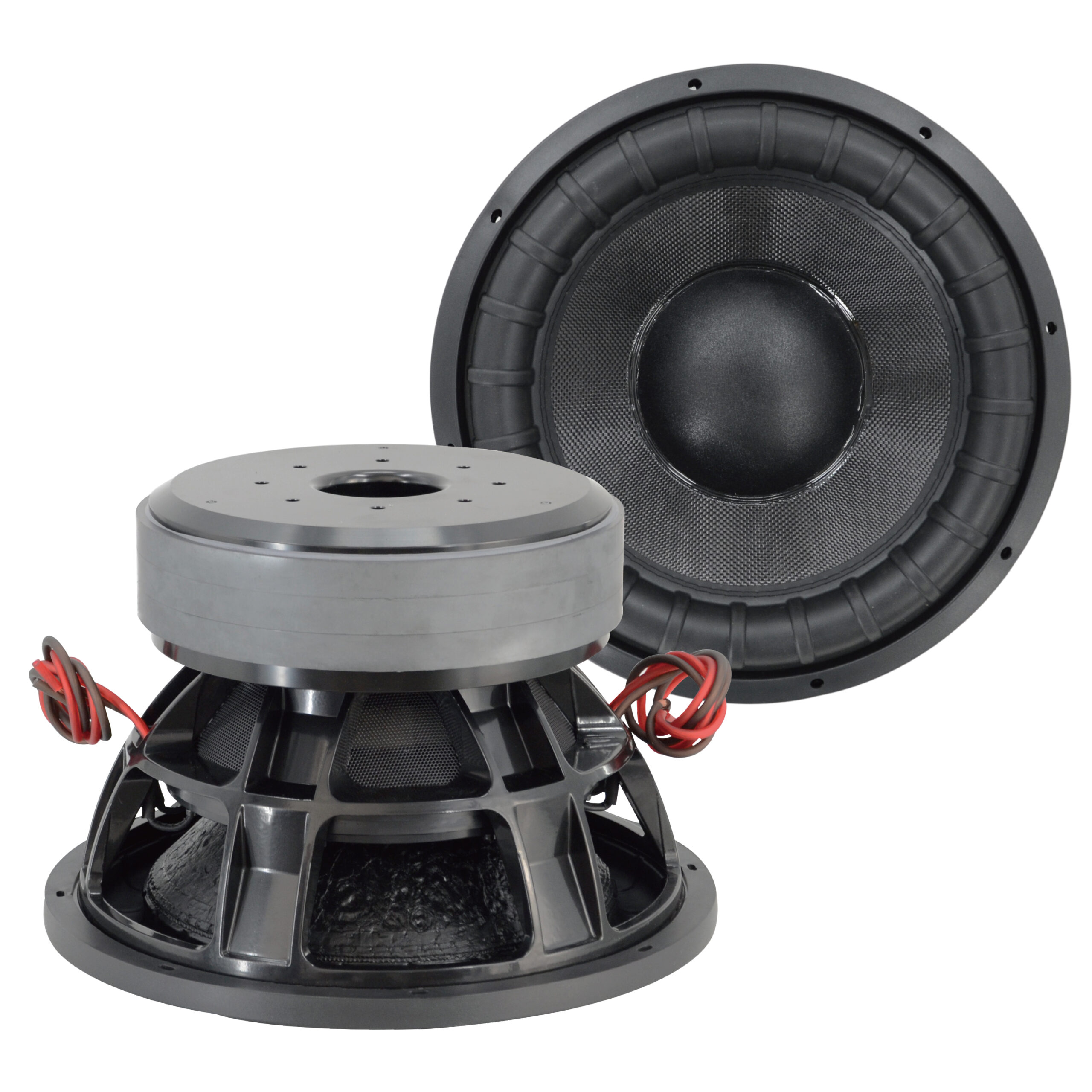

SW15127

15″ SUBWOOFER
  • 4+4Ω nominal impedance
  • 3.6+3.6Ω minimum impedance
  • 2x3000W RMS capacity
  • 84 dB sensitivity
  • 38-800 Hz response
  • 127 mm(5 in) inside-outside voice coil
SW15127 Experience intense bass with this subwoofer, designed to take your car’s audio system to new heights. The oversized cone provides superior low-frequency output, ensuring full and rich sound. Built to handle high power and tough conditions, it ensures long-lasting reliability.Perfect for those who crave deep, thunderous bass that fills the car. Enhance your listening experience with premium sound quality.
Nominal Chassis Diameter15/385 in/mm
MAX Power2X6000 Watts
RMS Power2X3000 Watts
Impedance4+4 Ohm
Resonance Frequency38 Hz
Frequency Response38-800 Hz
Sensitivity(1W/1m)84 dB
Voice Coil Diameter5” / 127mm
Winding materialPI
Magnet464 Oz
280X150X20 mm(3pcs)



FS38 Hz
Vas17.3 L
RE3.6+3.6 ohm
Qms4.98
Qes0.63
Qts0.56
BL48.5 T/m
MMS808 grams
Xmax32 mm
Sd755 cm²
Efficiency0.15 %
EBP60



Overall Diameter15.6/398 in/mm
Bolt Cirde Diameter14.8/378 in/mm
Baffle cutout Diameter14.1/358 in/mm
Depth11/280 in/mm
Net Weight31 kgs
Shipping Weight33 kgs
Shipping Box42X42X30 cm
