SW18127

18″ SUBWOOFER
  • 4+4Ω nominal impedance
  • 3.6+3.6Ω minimum impedance
  • 2x3000W RMS capacity
  • 92 dB sensitivity
  • 39-800 Hz response
  • 127 mm(5 in) voice coil

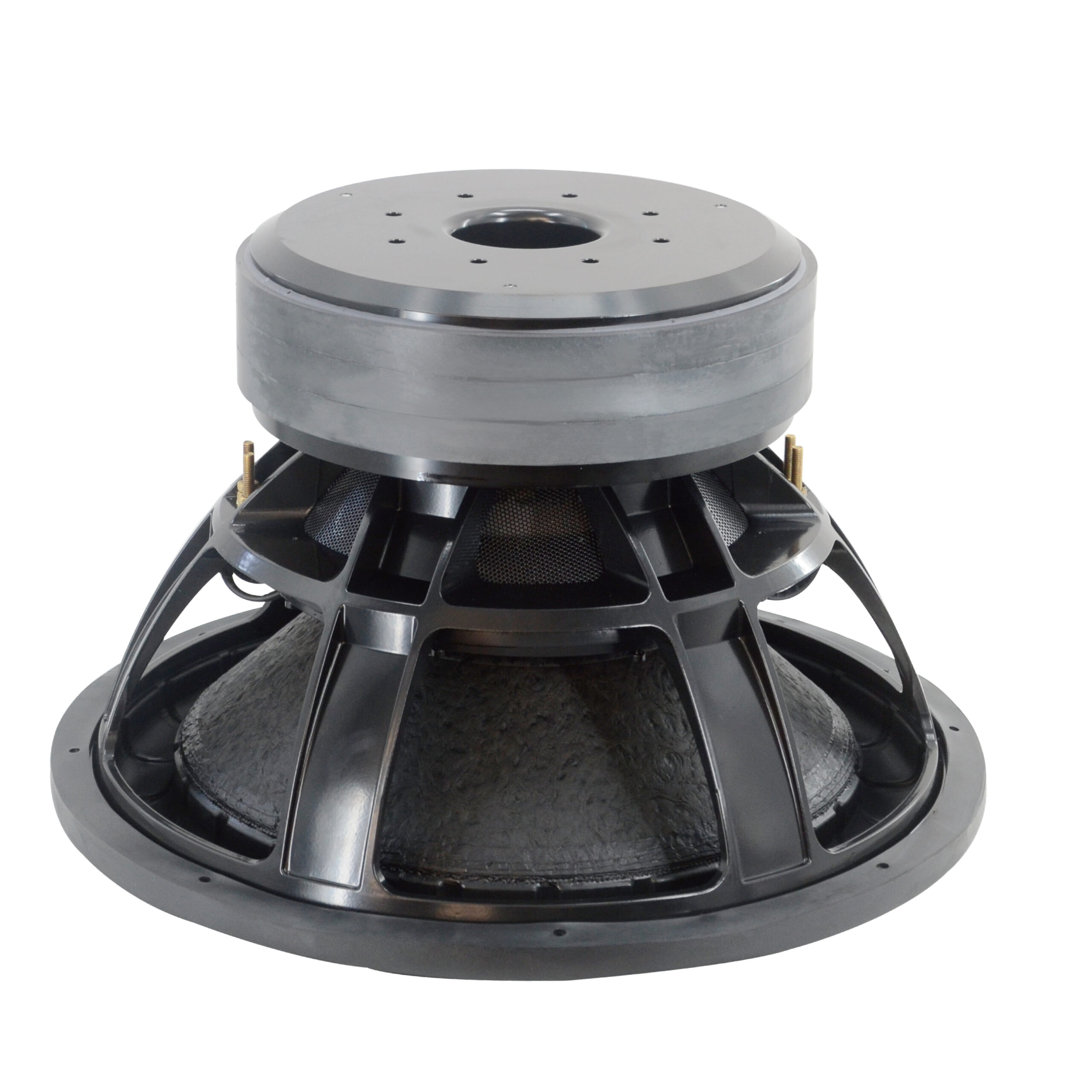

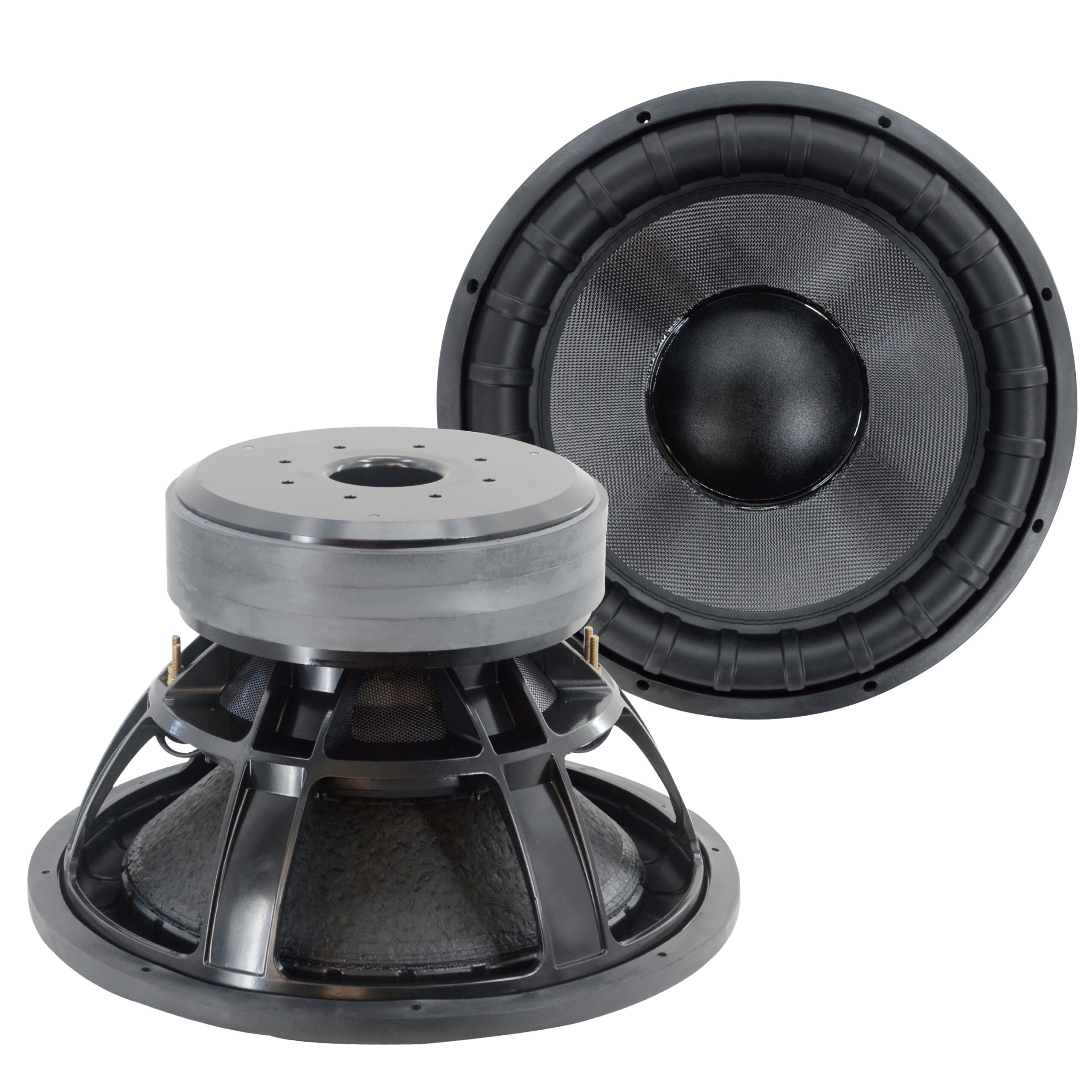

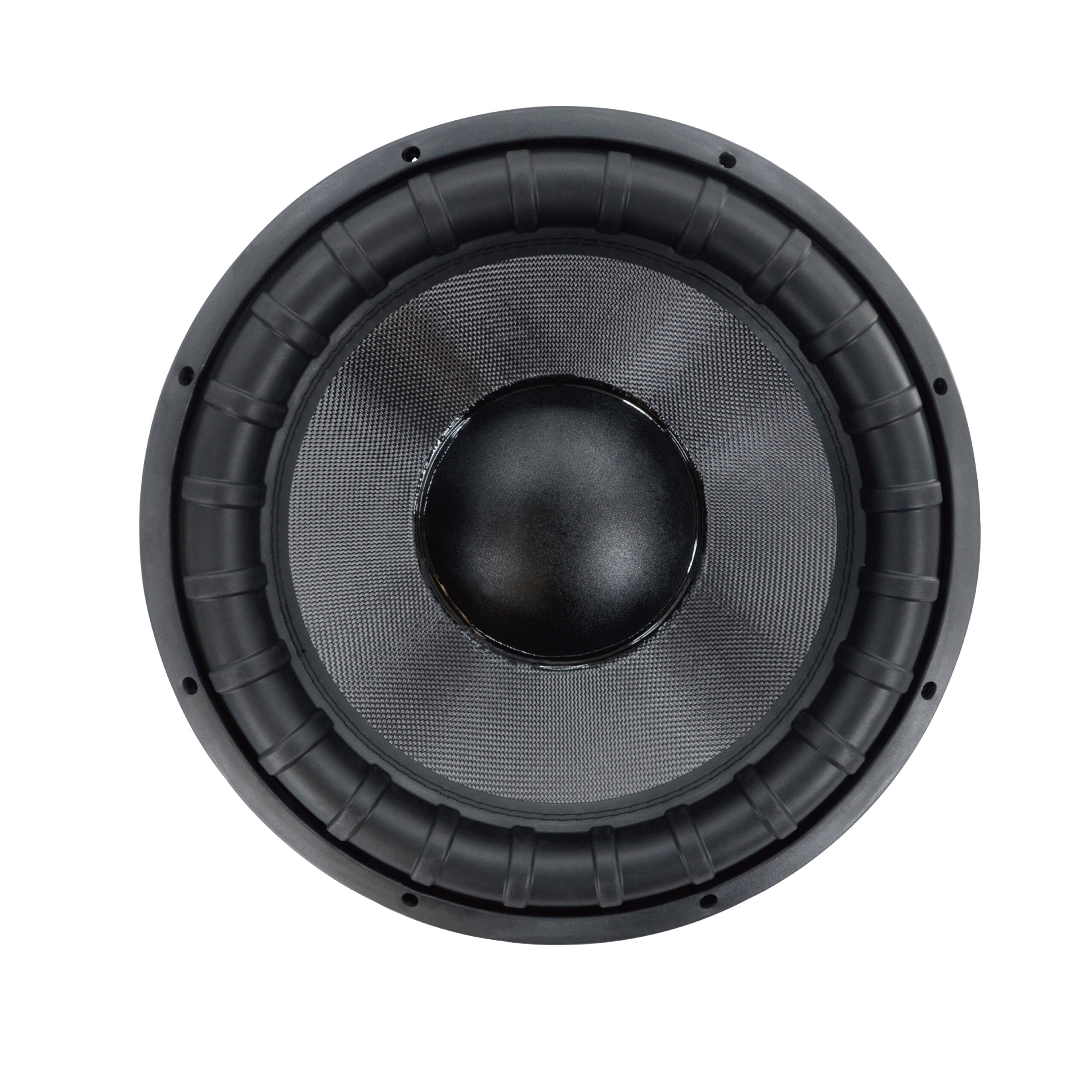

SW18127 This subwoofer produces deep, resonant bass that gives your car’s audio system a powerful boost. Its large cone ensures exceptional low-frequency output, creating a rich and immersive sound. Crafted for resilience, it stands up to tough conditions and consistent use. It provides heart-pounding bass without any distortion.Take your car’s sound system to the next level with this premium subwoofer.
Nominal Chassis Diameter18/460 in/mm
MAX Power2X6000 Watts
RMS Power2X3000 Watts
Impedance4+4 Ohm
Resonance Frequency39 Hz
Frequency Response39-800 Hz
Sensitivity(1W/1m)92 dB
Voice Coil Diameter5″ / 127mm
Winding materialPI
Magnet464 Oz
280X150X20 mm(3pcs)



FS39 Hz
Vas37.5 L
RE3.6+3.6 ohm
Qms4.43
Qes0.73
Qts0.63
BL48 T/m
MMS1006 grams
Xmax32 mm
Sd1134 cm²
Efficiency0.21 %
EBP48



Overall Diameter18.5/470 in/mm
Bolt Cirde Diameter17.5/445 in/mm
Baffle cutout Diameter16.7/424 in/mm
Depth12.2/310 in/mm
Net Weight31.6 kgs
Shipping Weight34 kgs
Shipping Box50X50X35 cm
