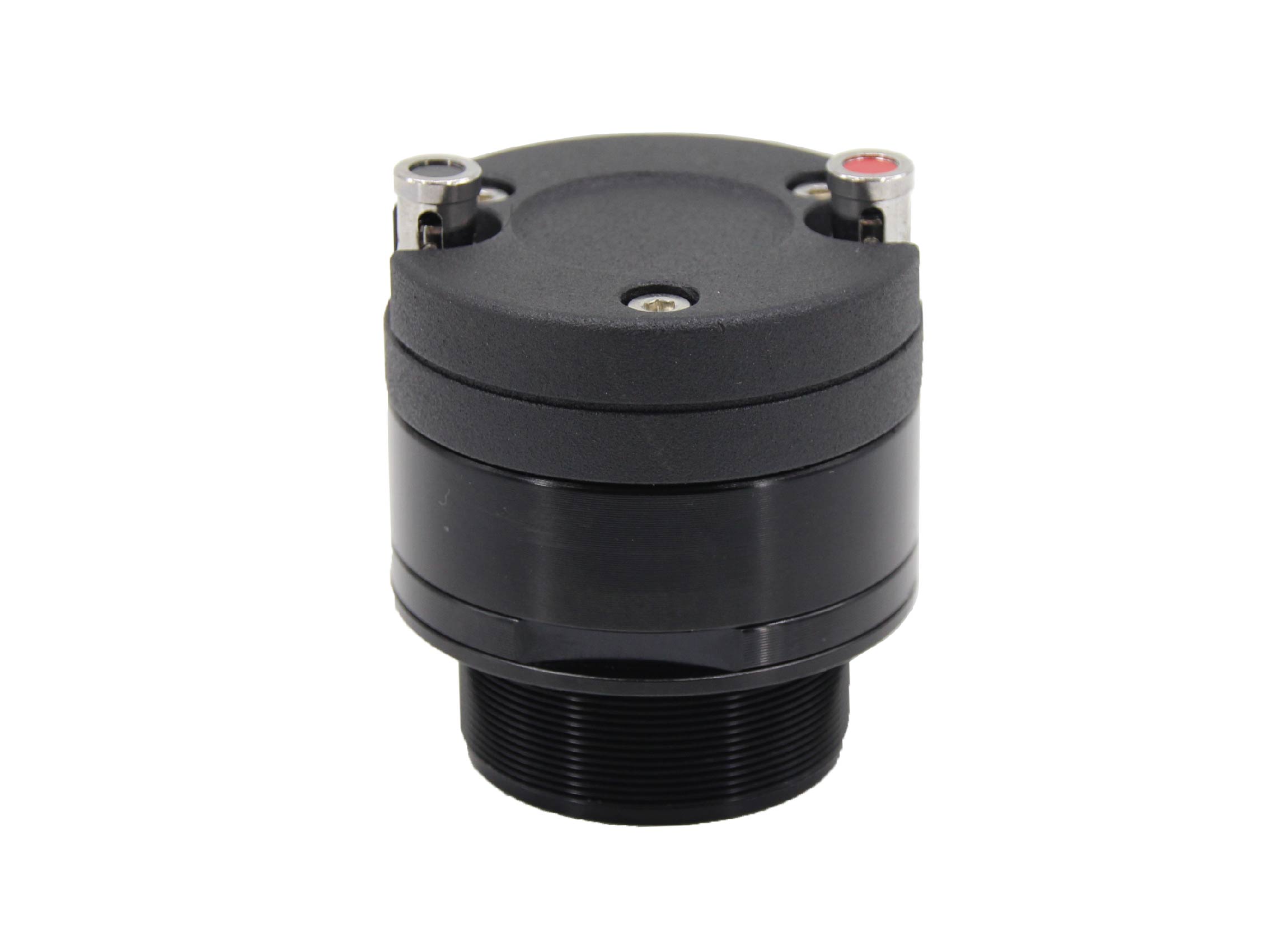

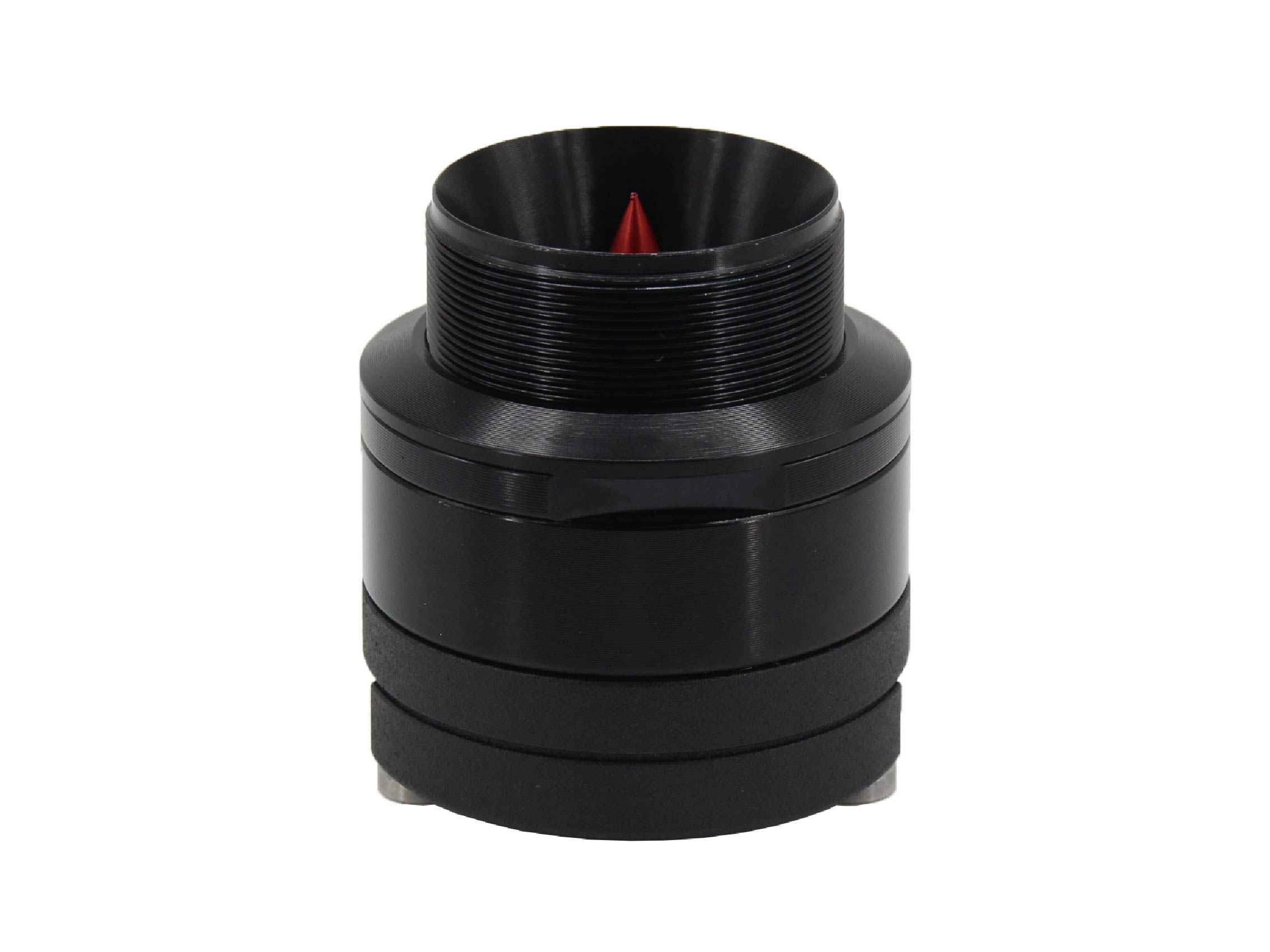

TW050
Neodymium Super Tweeter
- 4Ω or 8Ω impedance
- 30W RMS capacity
- 106 dB sensitivity
- 3k-20k Hz response
- Titanium diaphragm
- 25mm(1in) voice coil
TW050 is designed to capture high–frequency details. Accurately restores the rhythm in the music, which is clear and transparent, and has strong penetration, creating a layered sound field experience. The neodymium magnetic structure brings strong magnetic flux density and response efficiency, and outputs pure and fast high-frequency performance while ensuring a small size. Widely compatible with different systems, it is indispensable in audio modifications.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 10/250 in/mm |
| MAX Power | 1000 Watts |
| RMS Power | 500 Watts |
| Impedance | 4+4 Ohm |
| Resonance Frequency | 35 Hz |
| Frequency Response | 35-400 Hz |
| Sensitivity(1W/1m) | 83 dB |
| Voice Coil Diameter | 2.4”/60.6mm |
| Voice Coil Material | BASV |
| Magnet | 112 Oz |
| FS | 35 Hz |
| RE | 3.2+3.2 ohm |
| Qms | 5.4 |
| Qes | 0.82 |
| Qts | 0.71 |
| BL | 13 T/m |
| MMS | 207 grams |
| Xmax | 21 mm |
| Sd | 340 cm² |
| Efficiency | 0% |
| Le(1k Hz) | 49 mH |
| Overall Diameter | 10/262 in/mm |
| Bolt Circle Diameter | 6.1/243 in/mm |
| Baffle cutout Diameter | 9/232 in/mm |
| Depth | 6.7/172 in/mm |
| Net Weight | 7.25 kgs |
| Shipping Weight | 8.05 kgs |
| Shipping Box | 28.5X28.5X20cm |
Highlights
- 10’’Inside/Out BASV voice coil wounded for hi-temp performance, 4+4ohms
- 800watts continuous program power rating makes high acoustical output
- Sleek look, smooth figure
- 81dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber has a more efficient sound performance.
Carefully selected capacitors, inductors, resistors, professional debugging out of the sound crossover better suited to Eastern listening.
Shock bass
Through a reasonable acoustic algorithm, the bass channel for independent and precise control and frequency distribution.
Digital audio dynamic processing, 3D surround
