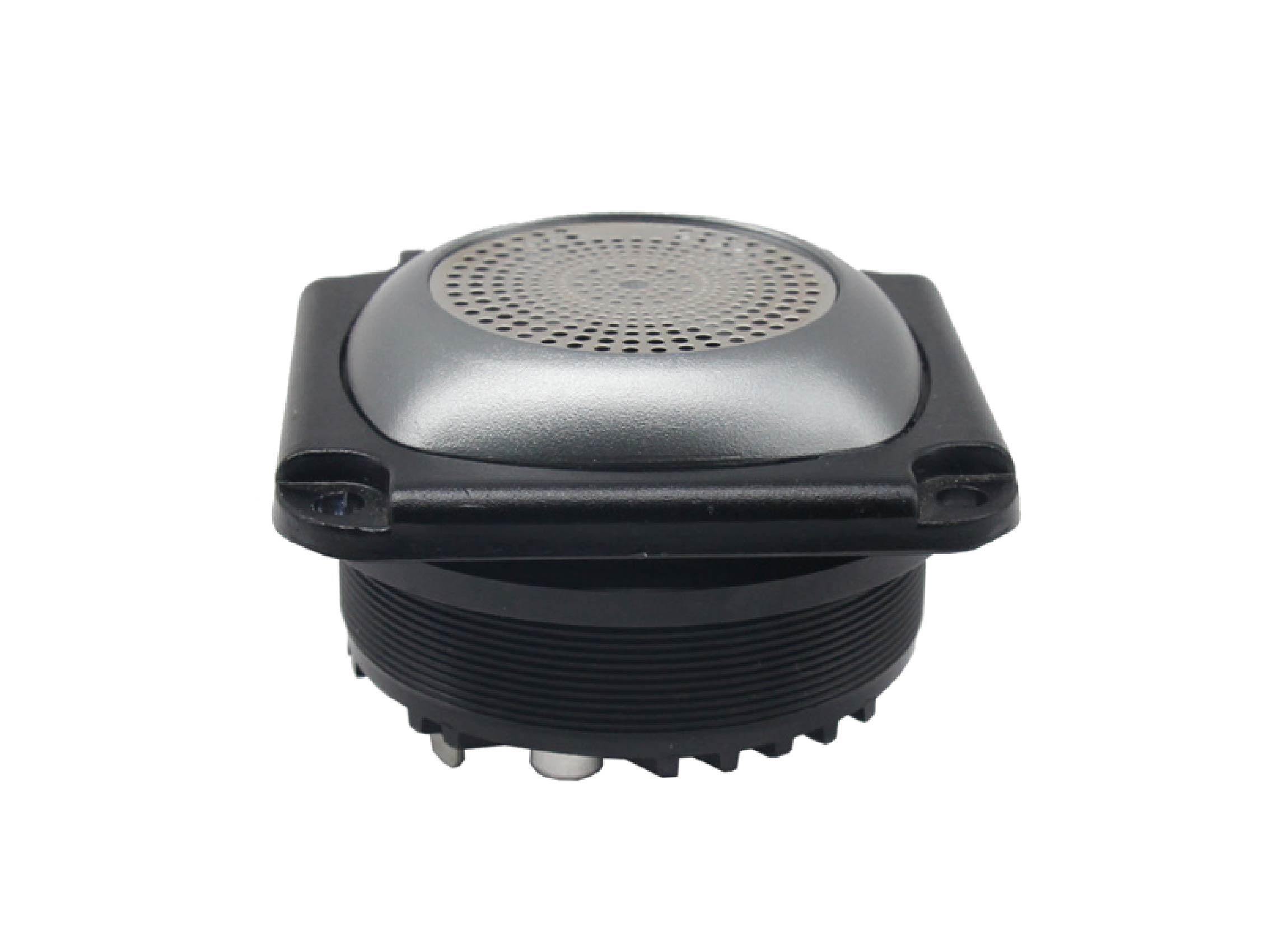

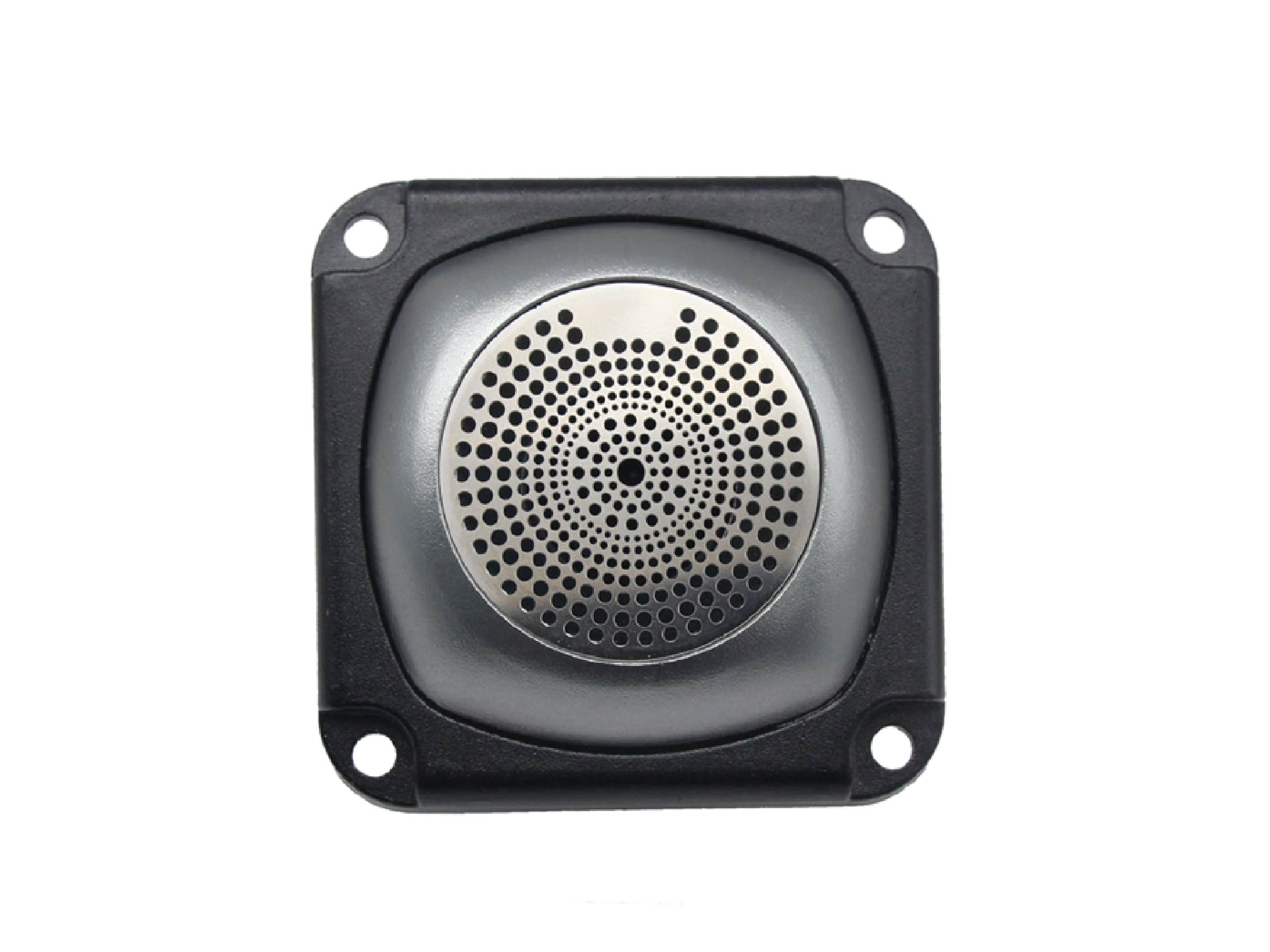

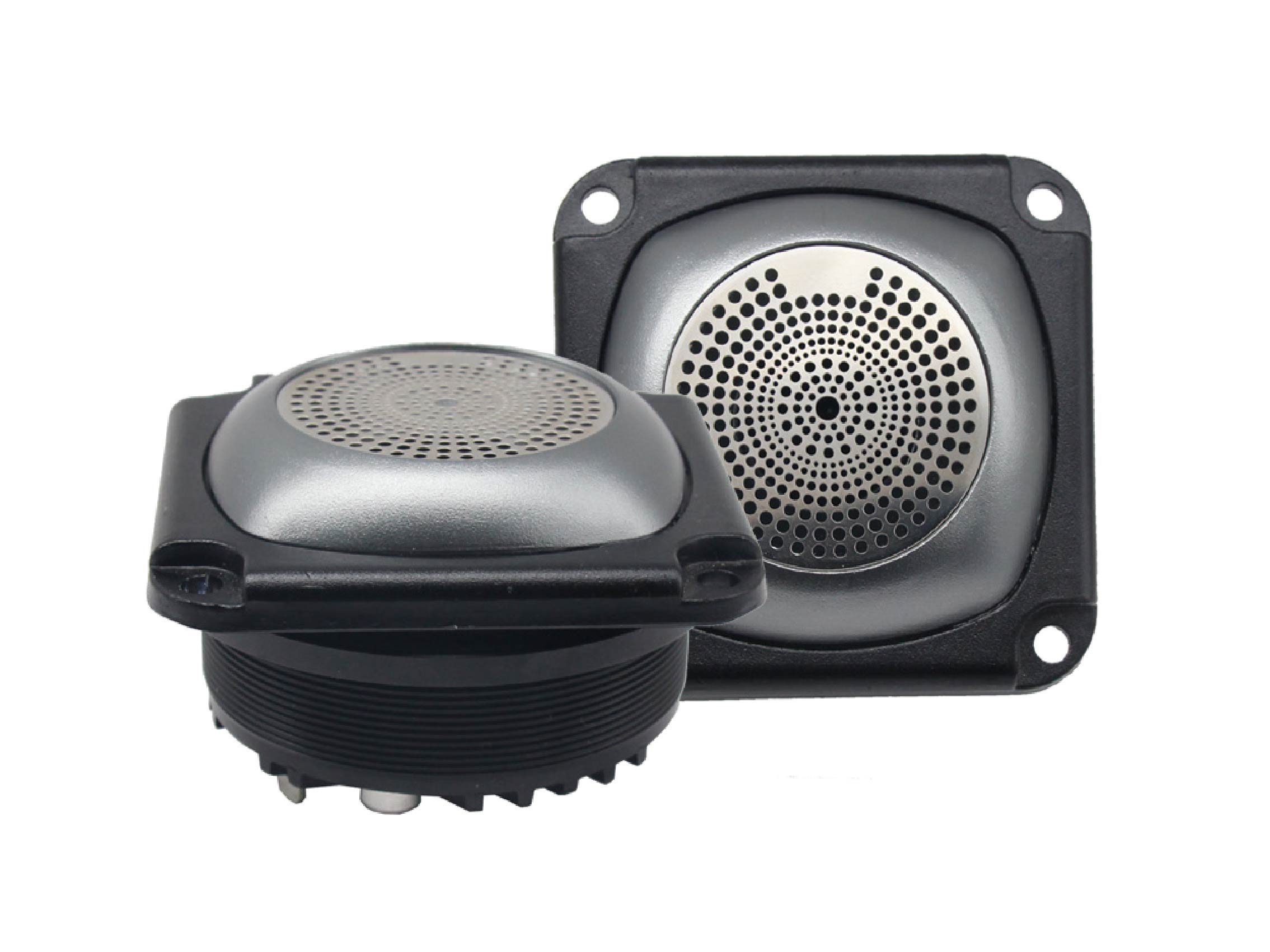

TW328
Neodymium Super Tweeter
- 4Ω or 8Ω impedance
- 38W RMS capacity
- 107 dB sensitivity
- 2k-20k Hz response
- Titanium diaphragm
- 28mm(1.1in) voice coil
TW328 ignites the soul of high frequencies and unleashes extreme penetration. Lightweight yet tough, with a fast response, it delivers clear and sharp high-frequency reproduction. Whether it is delicate vocals or metal instruments, they are clearly presented. Stable power output makes it easy to navigate a wide range of amplifier solutions. Wide frequency response range expands deeper sound field details. Strong compatibility, adaptable to varieties of audio systems. It is for you pursue the ultimate sound quality.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 10/250 in/mm |
| MAX Power | 1000 Watts |
| RMS Power | 500 Watts |
| Impedance | 4+4 Ohm |
| Resonance Frequency | 35 Hz |
| Frequency Response | 35-400 Hz |
| Sensitivity(1W/1m) | 83 dB |
| Voice Coil Diameter | 2.4”/60.6mm |
| Voice Coil Material | BASV |
| Magnet | 112 Oz |
| FS | 35 Hz |
| RE | 3.2+3.2 ohm |
| Qms | 5.4 |
| Qes | 0.82 |
| Qts | 0.71 |
| BL | 13 T/m |
| MMS | 207 grams |
| Xmax | 21 mm |
| Sd | 340 cm² |
| Efficiency | 0% |
| Le(1k Hz) | 49 mH |
| Overall Diameter | 10/262 in/mm |
| Bolt Circle Diameter | 6.1/243 in/mm |
| Baffle cutout Diameter | 9/232 in/mm |
| Depth | 6.7/172 in/mm |
| Net Weight | 7.25 kgs |
| Shipping Weight | 8.05 kgs |
| Shipping Box | 28.5X28.5X20cm |
Highlights
- 10’’Inside/Out BASV voice coil wounded for hi-temp performance, 4+4ohms
- 800watts continuous program power rating makes high acoustical output
- Sleek look, smooth figure
- 81dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber has a more efficient sound performance.
Carefully selected capacitors, inductors, resistors, professional debugging out of the sound crossover better suited to Eastern listening.
Shock bass
Through a reasonable acoustic algorithm, the bass channel for independent and precise control and frequency distribution.
Digital audio dynamic processing, 3D surround
