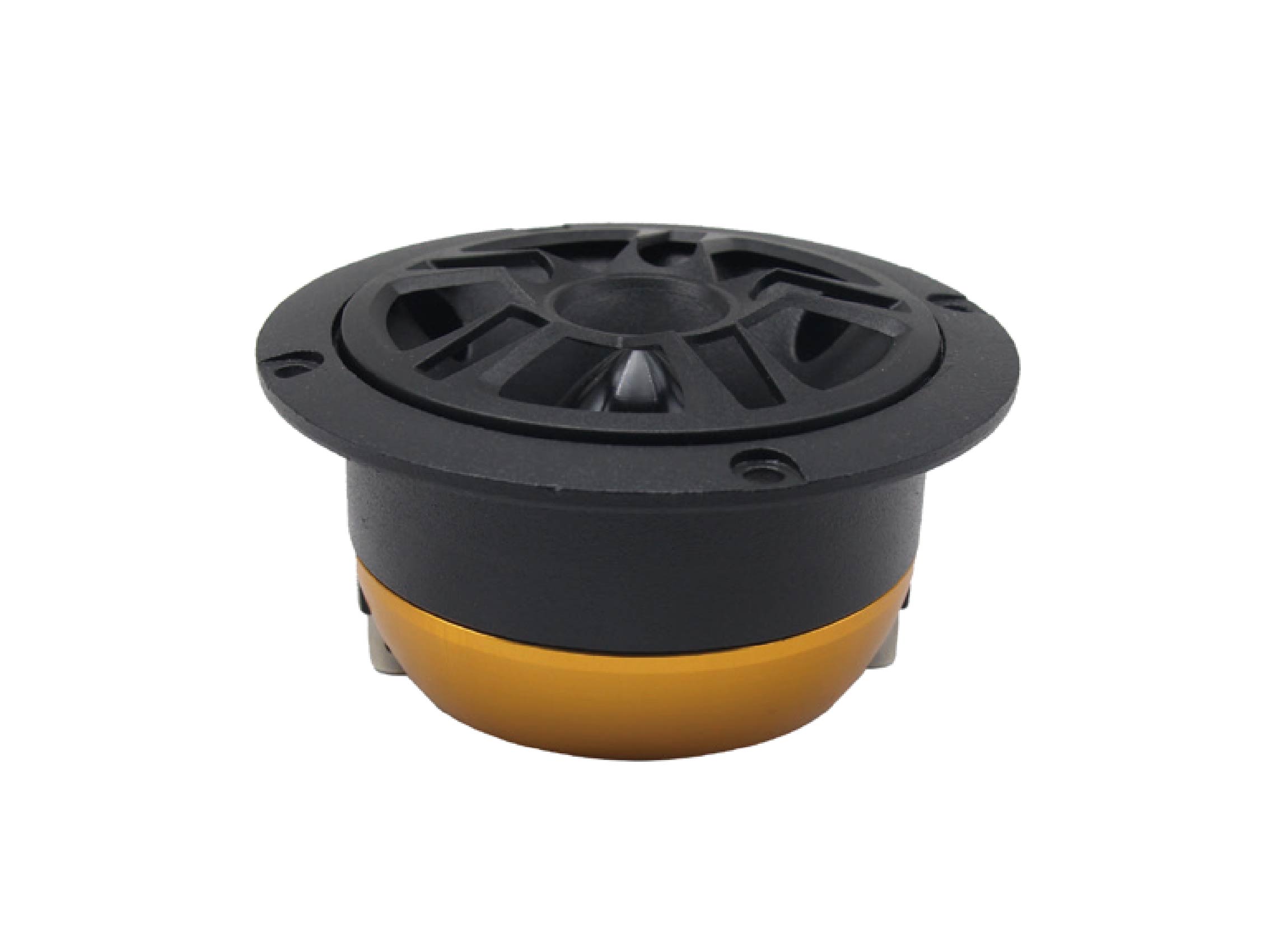

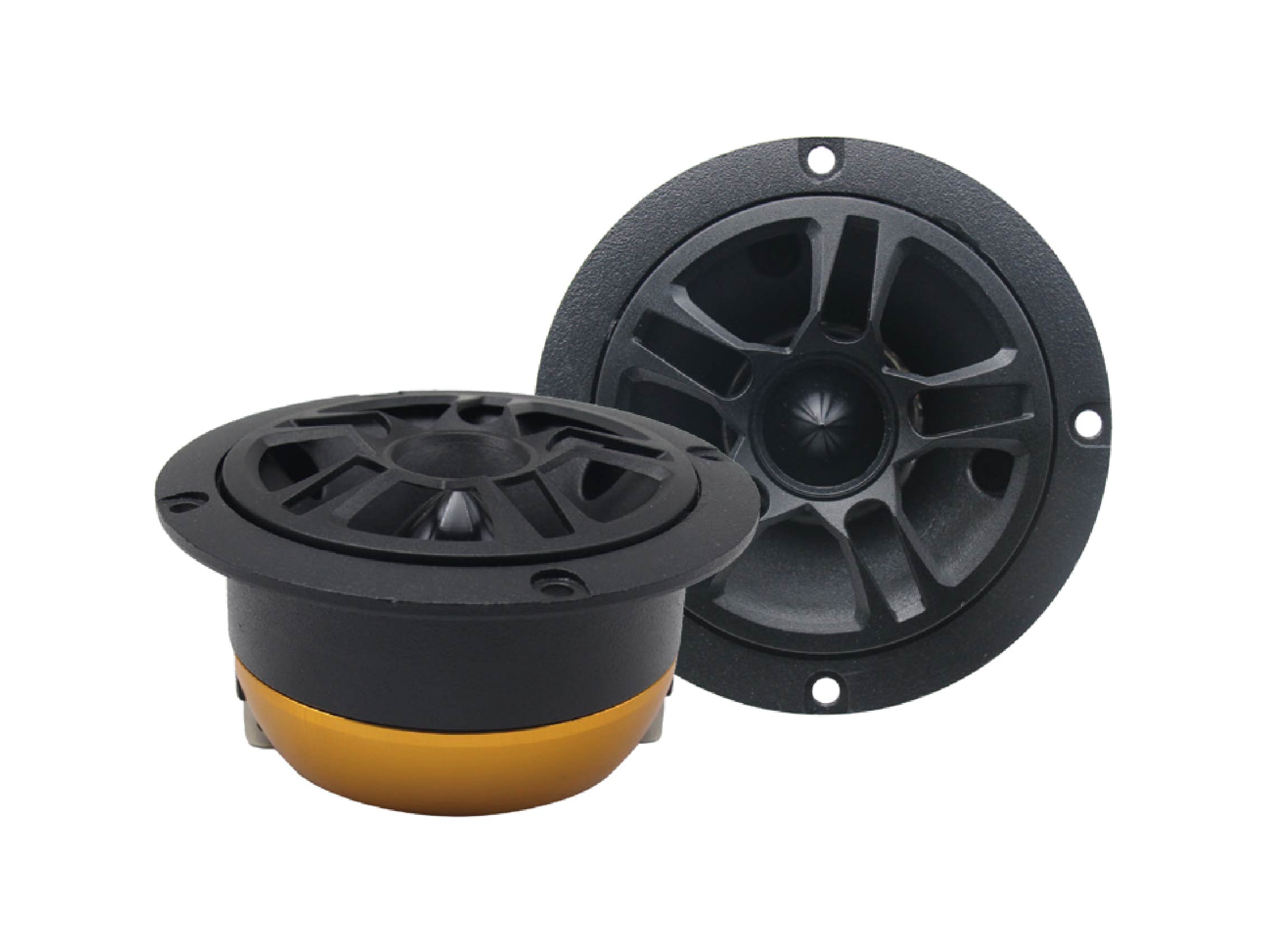

TW525

Neodymium Super Tweeter
  • 4Ω or 8Ω impedance
  • 35W RMS capacity
  • 103 dB sensitivity
  • 3k-20k Hz response
  • Titanium diaphragm
  • 25mm(1in) voice coil

TW525 adopts a strong and lightweight titanium diaphragm structure to achieve fast response speed and high–frequency sound wave resolution capabilities, presenting clear, transparent and delicate high–frequency performance. The neodymium magnetic system provides strong and efficient flux support, making sound penetrating and malleable. Broadband response enriches the details of the soundstage and improves the overall sound performance. Make the car audio system clear and layered.

  • GENERAL SPECIFICATIONS
  • THIELE-SMALL PARAMETERS
  • EXTRA INFO
Nominal Diameter10/250 in/mm
MAX Power1000 Watts
RMS Power500 Watts
Impedance4+4 Ohm
Resonance Frequency35 Hz
Frequency Response35-400 Hz
Sensitivity(1W/1m)83 dB
Voice Coil Diameter2.4”/60.6mm
Voice Coil MaterialBASV
Magnet112 Oz
FS35 Hz
RE3.2+3.2 ohm
Qms5.4
Qes0.82
Qts0.71
BL13 T/m
MMS207 grams
Xmax21 mm
Sd340 cm²
Efficiency0%
Le(1k Hz)49 mH
Overall Diameter10/262 in/mm
Bolt Circle Diameter6.1/243 in/mm
Baffle cutout Diameter9/232 in/mm
Depth6.7/172 in/mm
Net Weight7.25 kgs
Shipping Weight8.05 kgs
Shipping Box28.5X28.5X20cm

Highlights
  • 10’’Inside/Out BASV voice coil wounded for hi-temp performance, 4+4ohms
  • 800watts continuous program power rating makes high acoustical output
  • Sleek look, smooth figure
  • 81dB sensitivity, Superior voice reproduction performance.
  • Powerful sound , high fidelity response

Crumpled paper cone with fiber has a more efficient sound performance.

Carefully selected capacitors, inductors, resistors, professional debugging out of the sound crossover better suited to Eastern listening.

Shock bass

Through a reasonable acoustic algorithm, the bass channel for independent and precise control and frequency distribution.

Digital audio dynamic processing, 3D surround

tweeter
