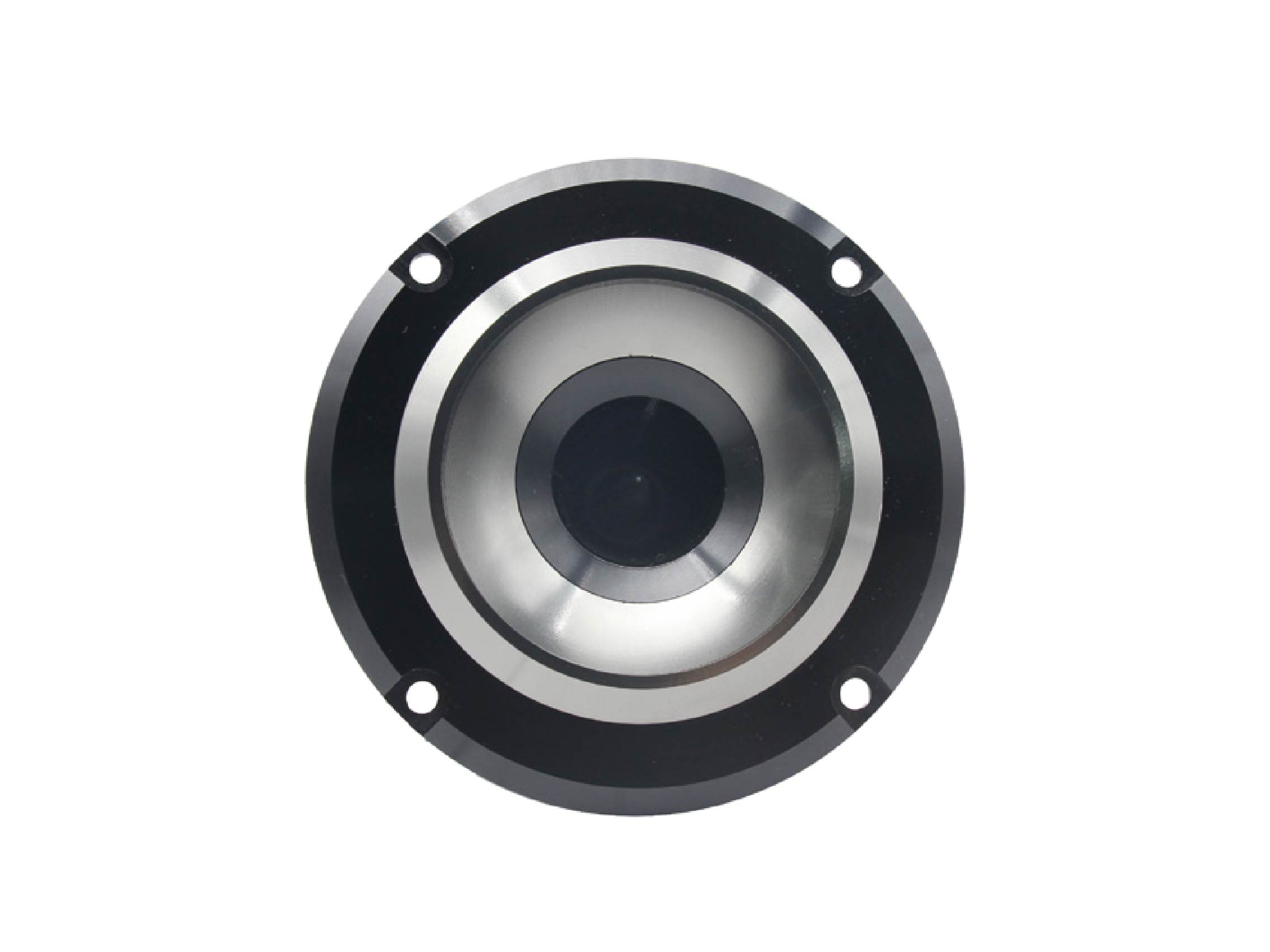

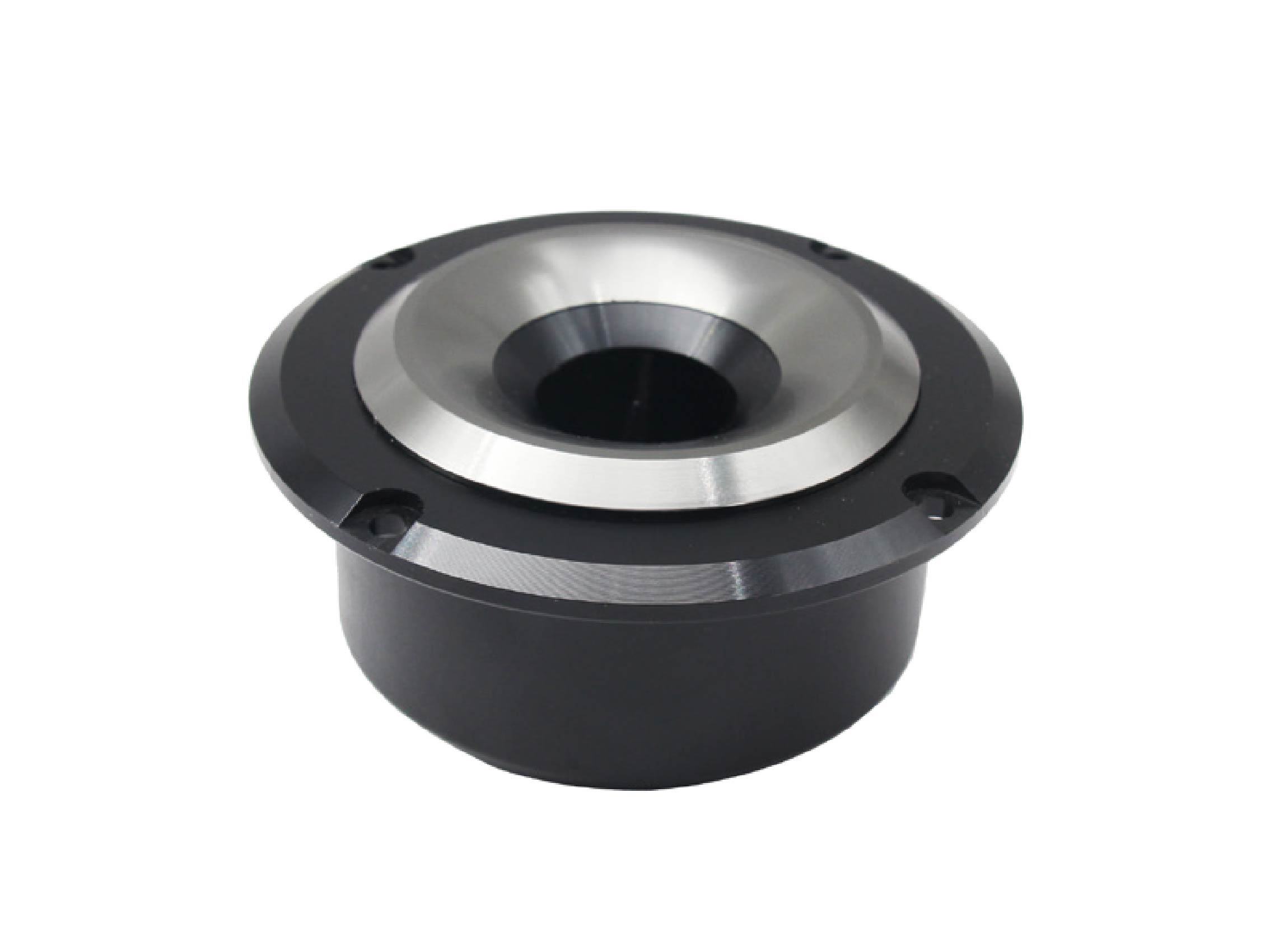

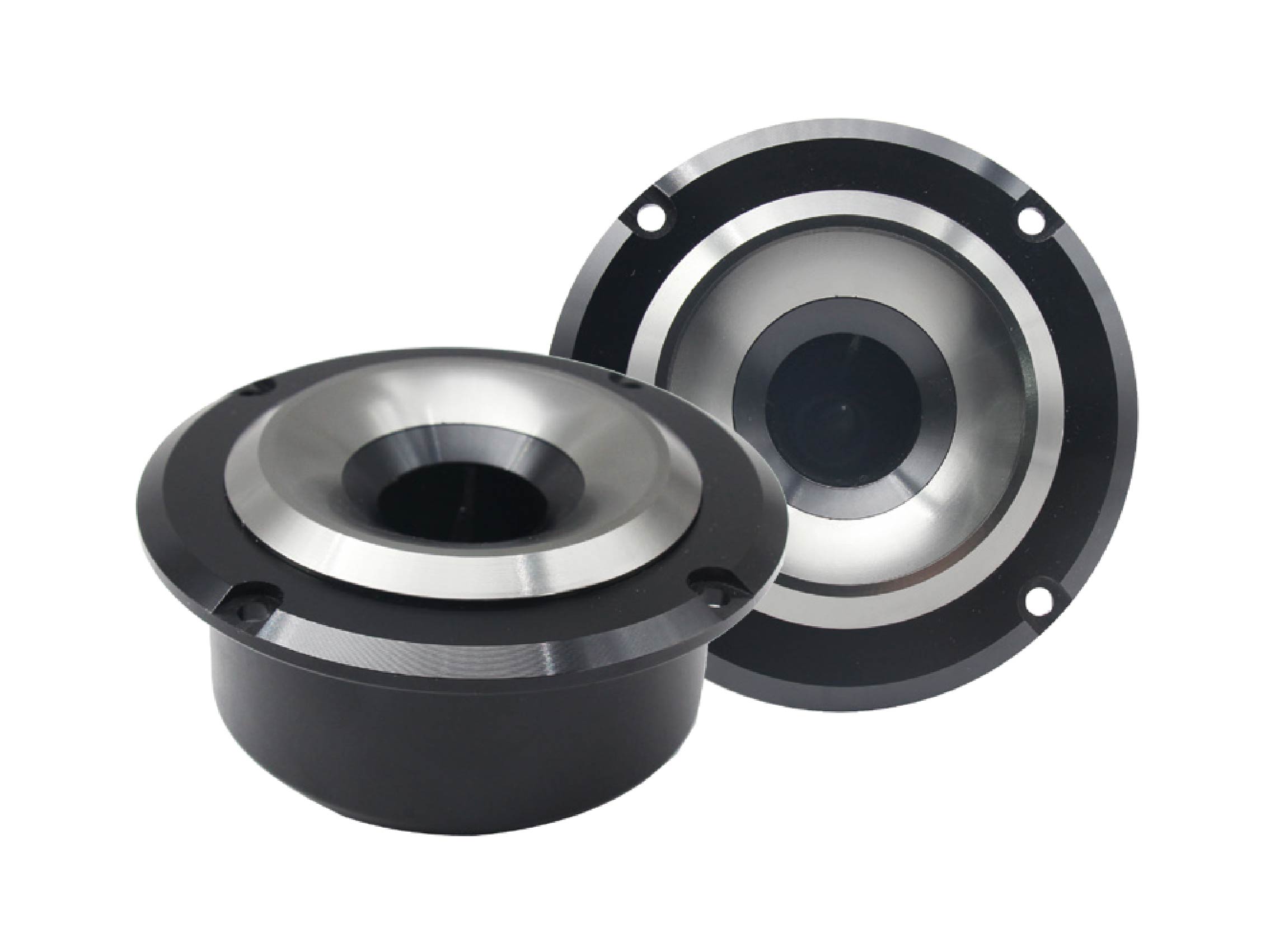

TW838
Ferrite Super Tweeter
- 4Ω or 8Ω impedance
- 50W RMS capacity
- 107 dB sensitivity
- 1.5k-20k Hz response
- Titanium diaphragm
- 37.8mm(1.49in) voice coil
- 13Oz
TW838 is clear and detailed. The magnetic flux is stable and strong, the drive is efficient, and the pure energy is released. The sound penetrates the cabin effortlessly, with clear details and dynamic performance. Compatible with a variety of amplifier systems, flexible installation and hassle-free modification. Whether it‘s an audiophile–grade modification or a high–fidelity pursuit, it infuses your audio system with transparent, sharp high–frequency power.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 10/250 in/mm |
| MAX Power | 1000 Watts |
| RMS Power | 500 Watts |
| Impedance | 4+4 Ohm |
| Resonance Frequency | 35 Hz |
| Frequency Response | 35-400 Hz |
| Sensitivity(1W/1m) | 83 dB |
| Voice Coil Diameter | 2.4”/60.6mm |
| Voice Coil Material | BASV |
| Magnet | 112 Oz |
| FS | 35 Hz |
| RE | 3.2+3.2 ohm |
| Qms | 5.4 |
| Qes | 0.82 |
| Qts | 0.71 |
| BL | 13 T/m |
| MMS | 207 grams |
| Xmax | 21 mm |
| Sd | 340 cm² |
| Efficiency | 0% |
| Le(1k Hz) | 49 mH |
| Overall Diameter | 10/262 in/mm |
| Bolt Circle Diameter | 6.1/243 in/mm |
| Baffle cutout Diameter | 9/232 in/mm |
| Depth | 6.7/172 in/mm |
| Net Weight | 7.25 kgs |
| Shipping Weight | 8.05 kgs |
| Shipping Box | 28.5X28.5X20cm |
Highlights
- 10’’Inside/Out BASV voice coil wounded for hi-temp performance, 4+4ohms
- 800watts continuous program power rating makes high acoustical output
- Sleek look, smooth figure
- 81dB sensitivity, Superior voice reproduction performance.
- Powerful sound , high fidelity response
Crumpled paper cone with fiber has a more efficient sound performance.
Carefully selected capacitors, inductors, resistors, professional debugging out of the sound crossover better suited to Eastern listening.
Shock bass
Through a reasonable acoustic algorithm, the bass channel for independent and precise control and frequency distribution.
Digital audio dynamic processing, 3D surround
