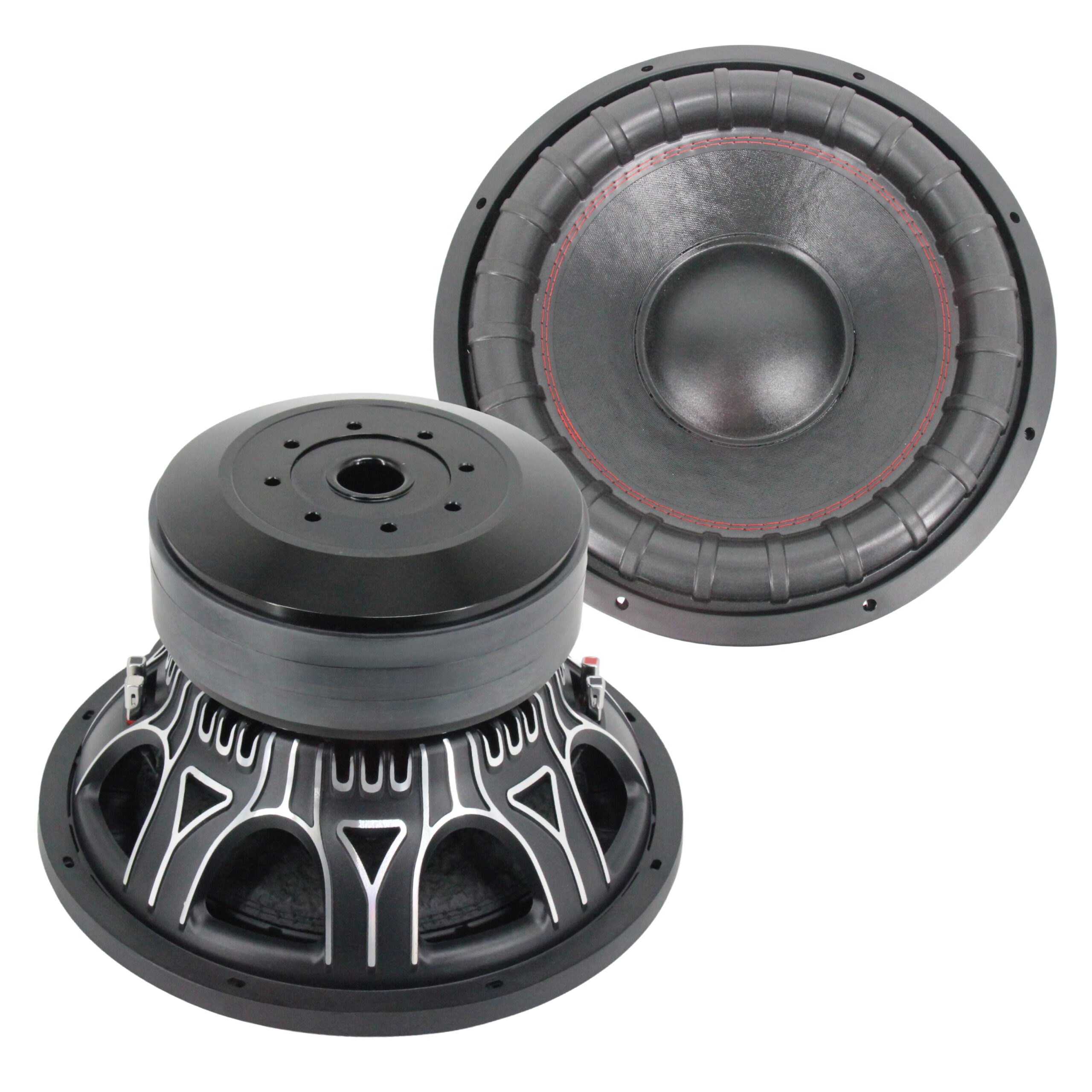

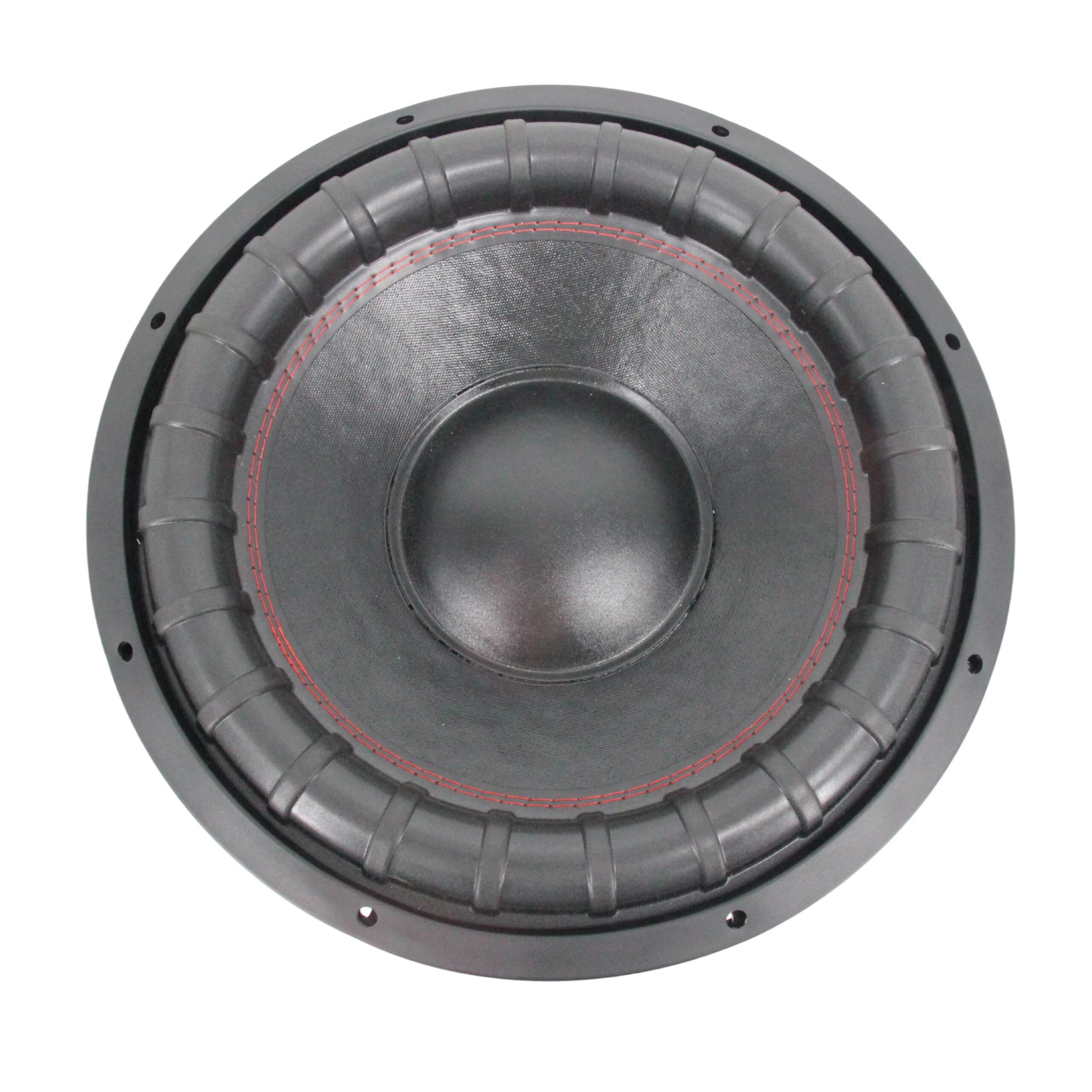

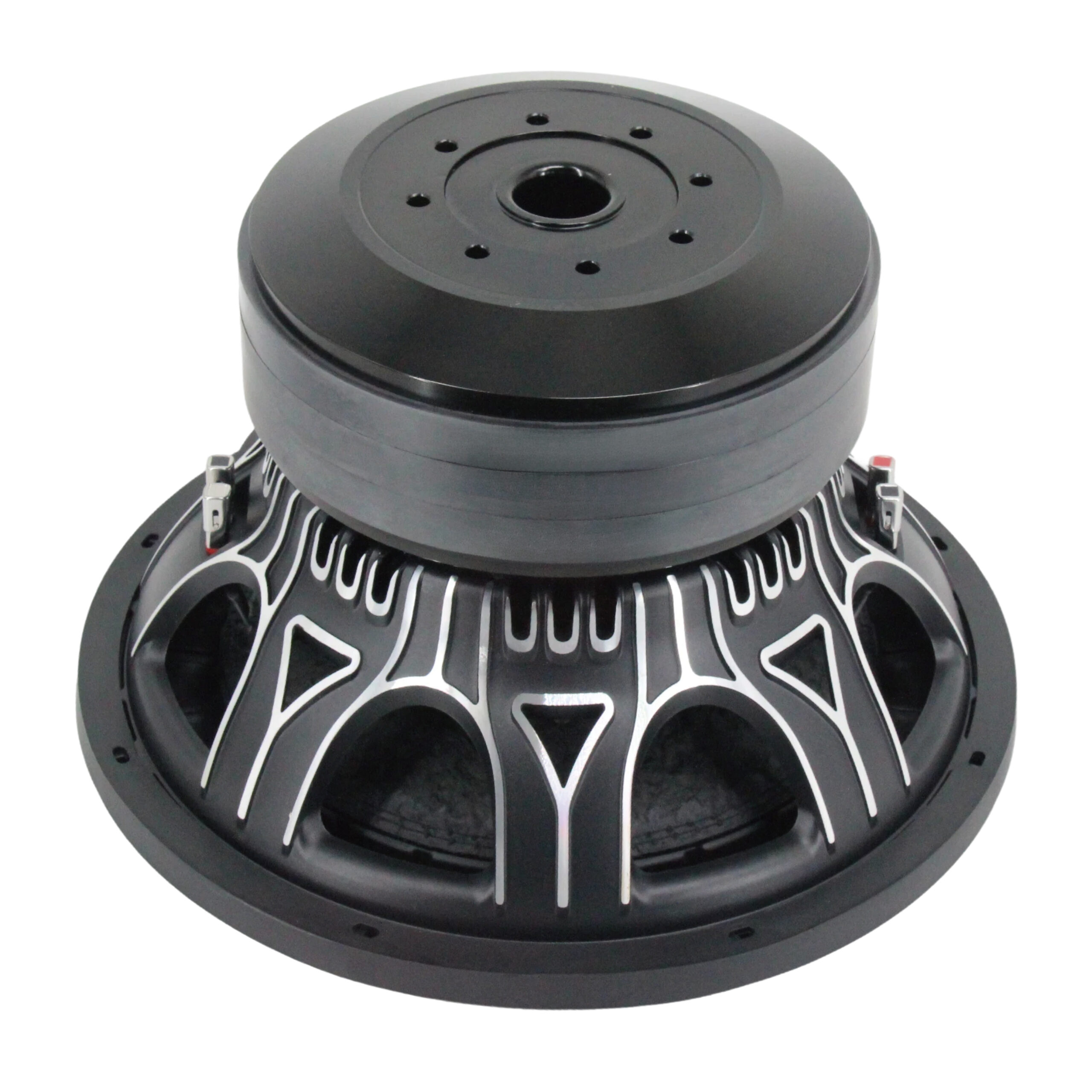

XW151

15″ SUBWOOFER
  • 4+4Ω nominal impedance
  • 3.6+3.6Ω minimum impedance
  • 2x2250W RMS capacity
  • 89 dB sensitivity
  • 38-800 Hz response
  • 100 mm(4 in) inside-outside voice coil

XW151 Designed to deliver powerful, deep bass, this subwoofer transforms your car’s audio into an exhilarating sound experience. The large cone ensures outstanding low-frequency response and deep, thumping bass. Built to endure the toughest environments, it’s perfect for continuous use. It provides clear, distortion-free bass, even at high power levels. Perfect for bass lovers who demand intensity and clarity. Bring your car’s audio system to life with rich, immersive sound.

Nominal Chassis Diameter15/385 in/mm
MAX Power2×2250 Watts
RMS Power2×4500 Watts
Impedance4+4 Ohm
Resonance Frequency38 Hz
Frequency Response38-800 Hz
Sensitivity(1W/1m)89 dB
Voice Coil Diameter4” / 100mm
Winding materialPI
Magnet412 Oz
254x120x20mm(3pcs)



FS38 Hz
Vas19.78 L
RE3.6+3.6 ohm
Qms6.26
Qes0.4
Qts0.38
BL49.5 T/m
MMS542.8 grams
Xmax23.3 mm
Sd779.31 cm²
Efficiency0.38 %
EBP100



Overall Diameter15.7/398 in/mm
Bolt Cirde Diameter14.7/377 in/mm
Baffle cutout Diameter14.1/356 in/mm
Depth7.5/258 in/mm
Net Weight31.2 kgs
Shipping Weight32.7 kgs
Shipping Box42X42X30 cm
