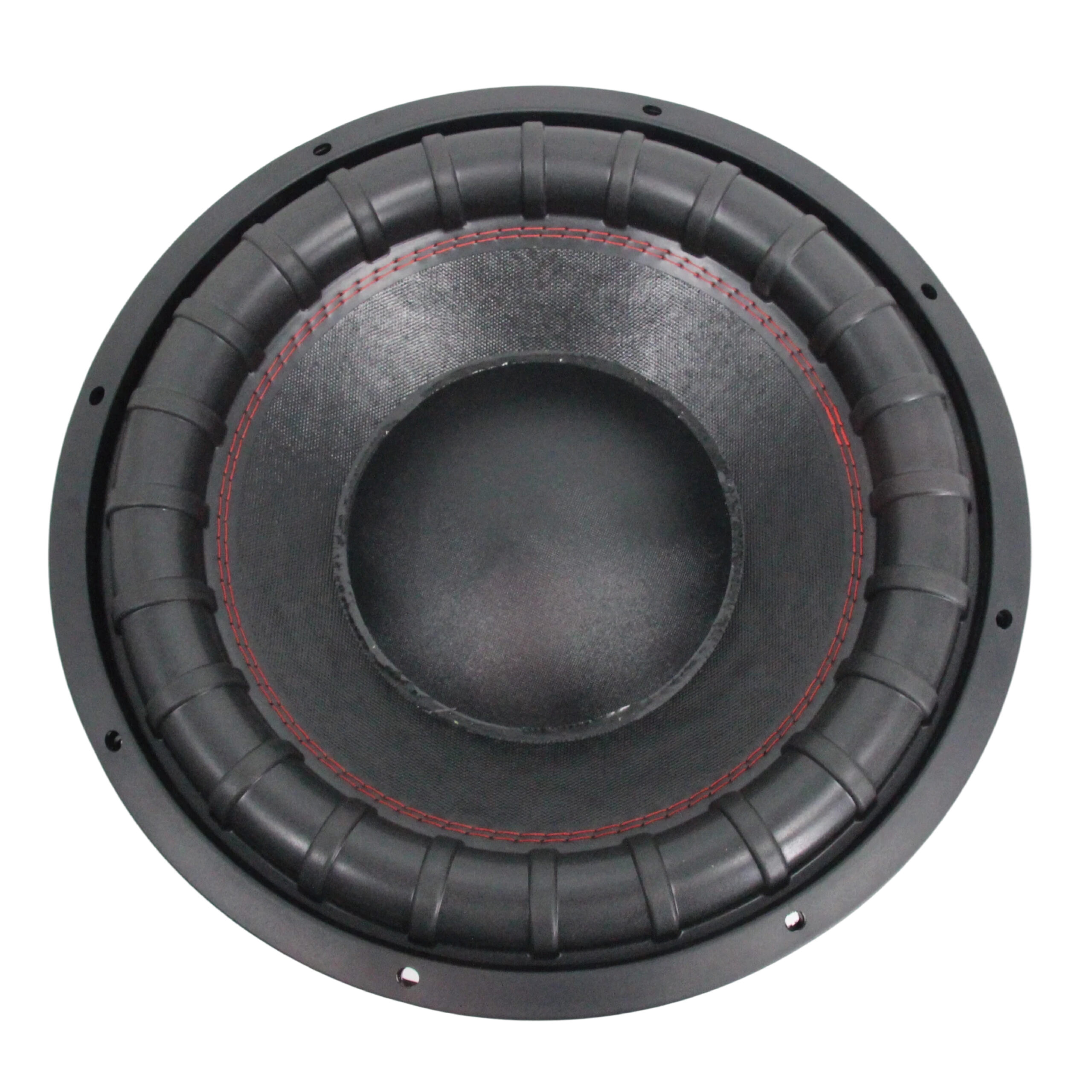

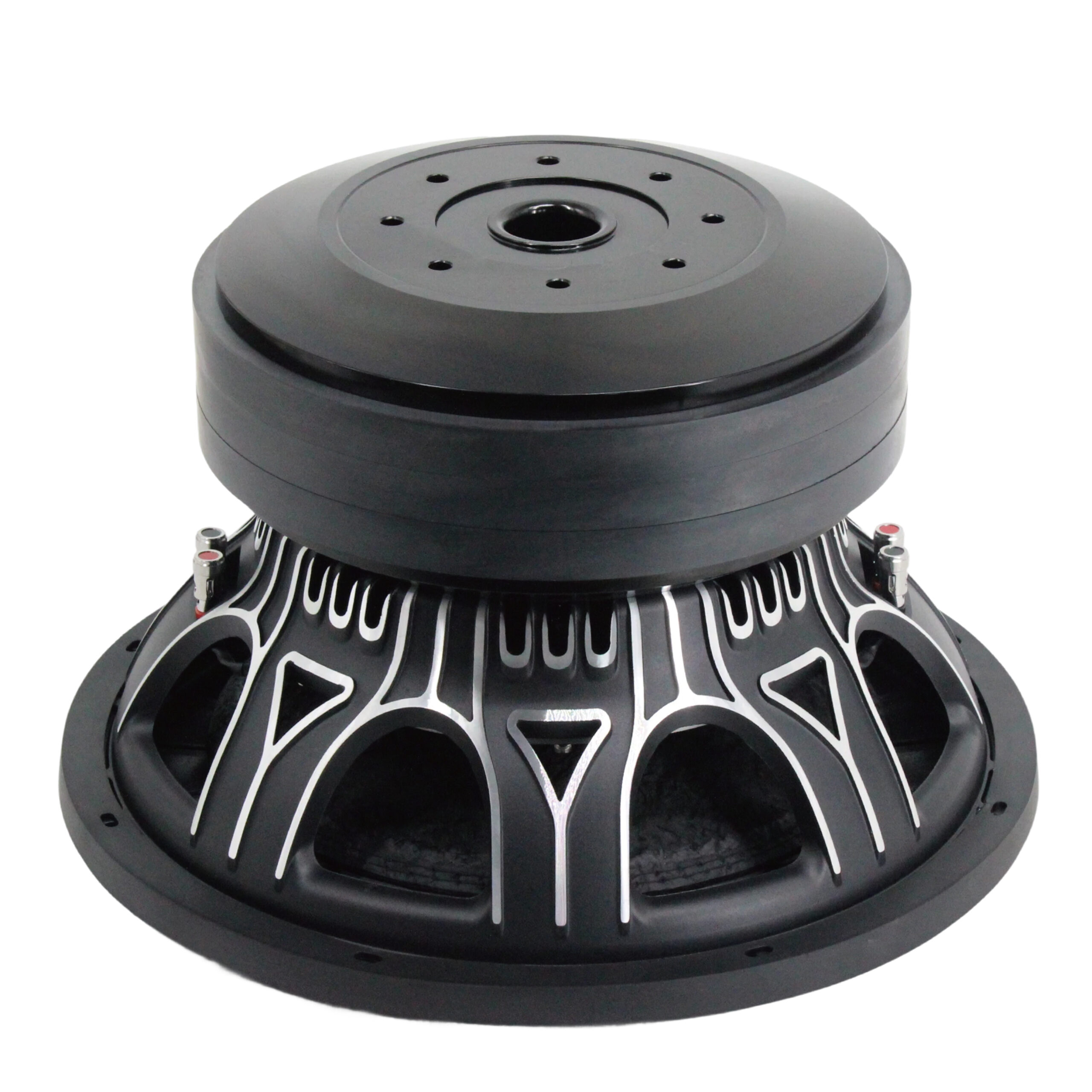

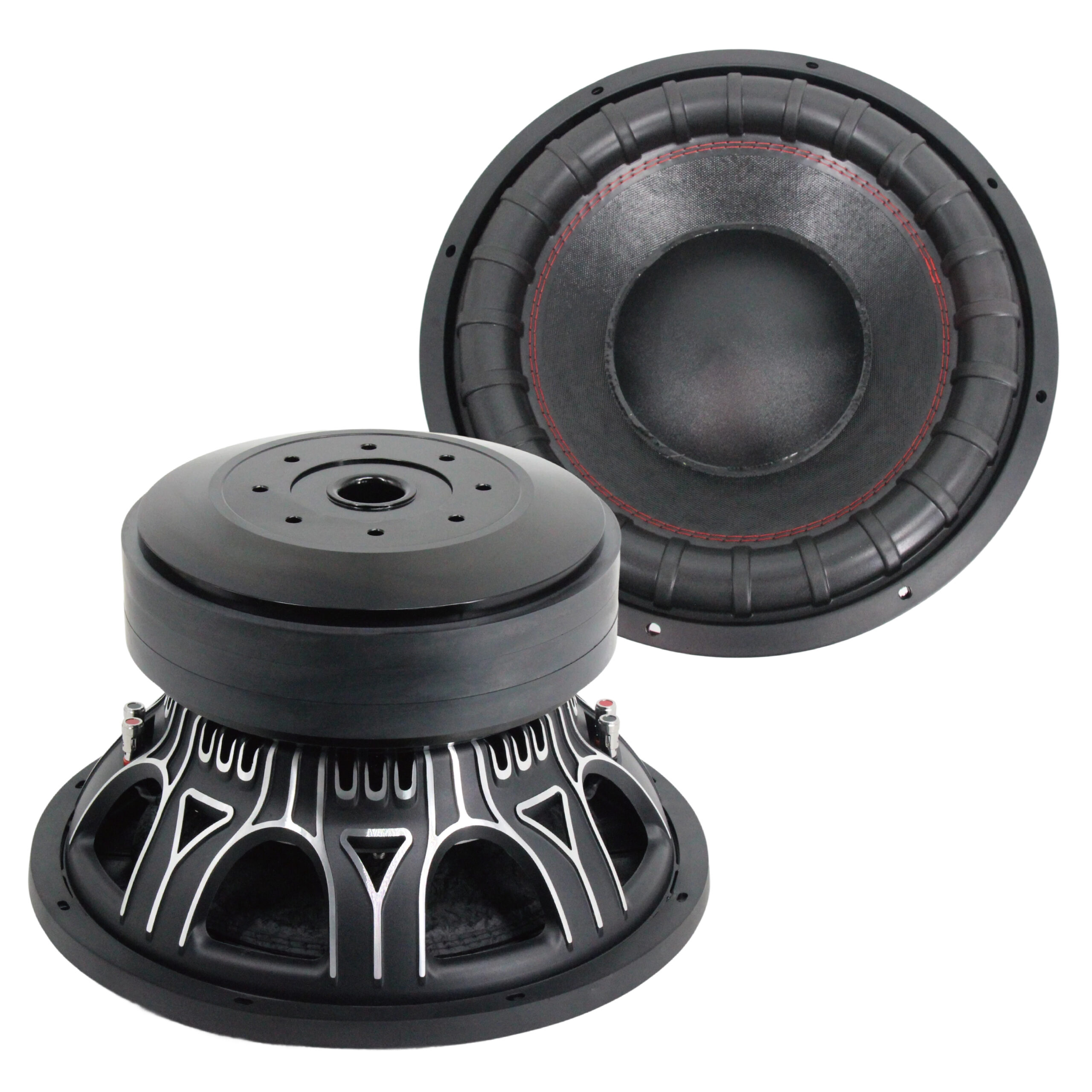

XW152

15″ SUBWOOFER
  • 4+4Ω nominal impedance
  • 3.6+3.6Ω minimum impedance
  • 2x2500W RMS capacity
  • 88 dB sensitivity
  • 40-800 Hz response
  • 114 mm(4.5 in) inside-outside voice coil
XW152 elevates your car’s audio system with deep, booming bass that fills the vehicle with rich sound. Its large cone guarantees an excellent low-frequency response for powerful, impactful bass. Built to last, it thrives in demanding environments and long-term use. The subwoofer delivers high output without distortion, ensuring clarity at all volumes. Ideal for audiophiles who demand premium sound quality and deep bass. Experience the ultimate in car audio with reliable, consistent performance.
Nominal Chassis Diameter15/385 in/mm
MAX Power2×5000 Watts
RMS Power2×2500 Watts
Impedance4+4 Ohm
Resonance Frequency40 Hz
Frequency Response40-800 Hz
Sensitivity(1W/1m)88 dB
Voice Coil Diameter4.5” / 114mm
Winding materialPI
Magnet464 Oz
253X127x20mm (3pc)



FS40 Hz
Vas18.1 L
RE3.6+3.6 ohm
Qms5.78
Qes0.39
Qts0.36
BL55.3 T/m
MMS577.1 grams
Xmax23.3 mm
Sd779.31 cm2
Efficiency0.43 %
EBP97



Overall Diameter15.7/398 in/mm
Bolt Cirde Diameter14.7/377 in/mm
Baffle cutout Diameter14.1/356 in/mm
Depth10.2/258 in/mm
Net Weight36.8 kgs
Shipping Weight38.8 kgs
Shipping Box42X42X30 cm
