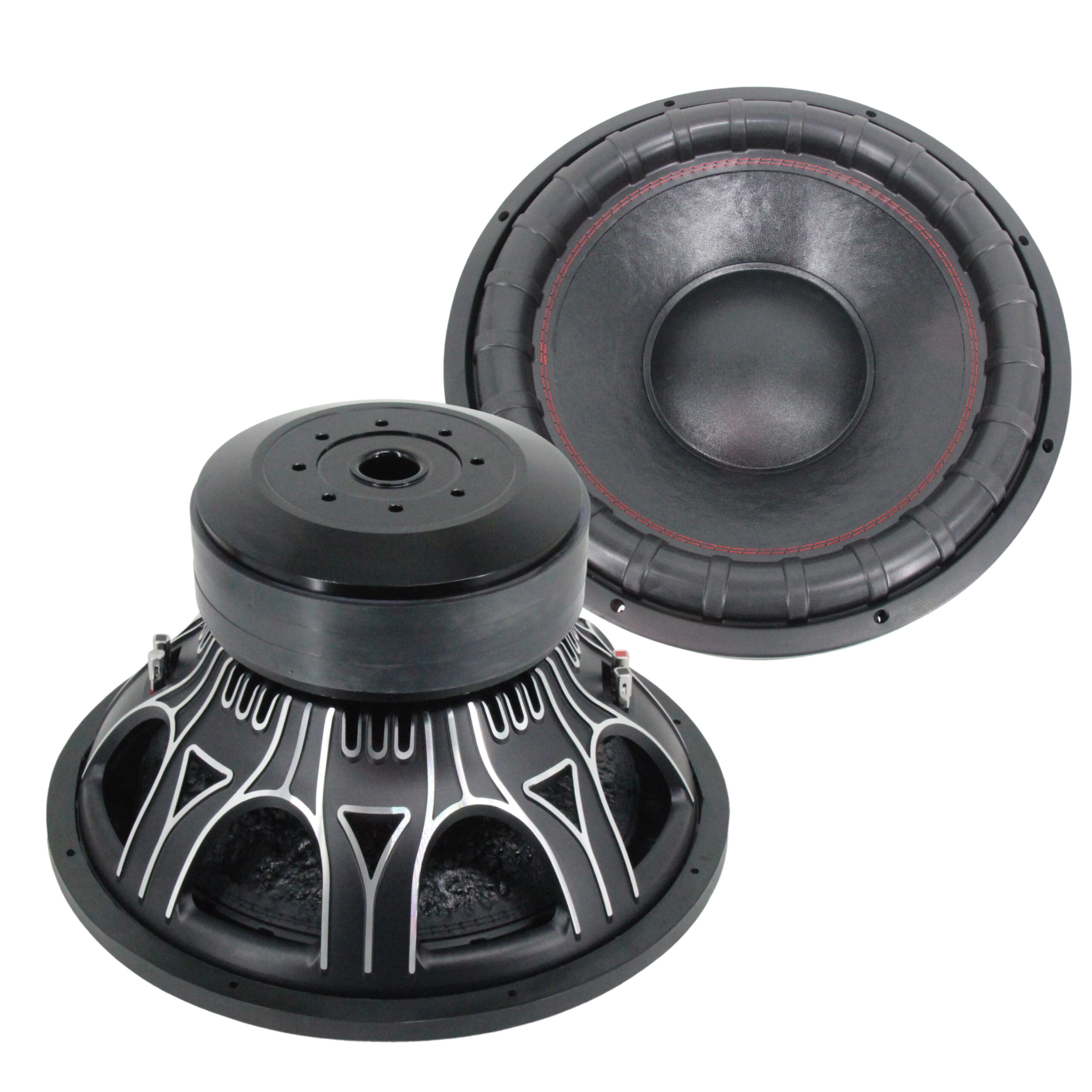

XW182

18″ SUBWOOFER
  • 4+4Ω nominal impedance
  • 3.6+3.6Ω minimum impedance
  • 2x3000W RMS capacity
  • 87 dB sensitivity
  • 35-800 Hz response
  • 127 mm(5 in) voice coil
XW182 Experience superior bass with this subwoofer, designed to take your car’s audio to the next level. Its large cone ensures powerful low-end frequencies that create deep, immersive sound. Crafted for durability, it can withstand tough conditions and continuous use without losing performance. The subwoofer delivers clear, high-output bass even at maximum levels. Perfect for those who demand impactful bass and pristine sound quality. Elevate your car’s audio system with this durable, high-performance subwoofer.
Nominal Chassis Diameter18/460 in/mm
MAX Power2×6000 Watts
RMS Power2×3000 Watts
Impedance4+4 Onm
Resonance Frequency35 Hz
Frequency Response35-800 Hz
Sensitivity(1W/1m)87 dB
Voice Coil Diameter5” / 127 mm
Winding materialPICCAW
Magnet464 Oz
280X150x60 mm



FS35 Hz
Vas55 L
RE3.6+3.6 ohm
Qms5.7
Qes0.89
Qts0.77
BL25 T/m
MMS671 grams
Xmax29 mm
Sd1134.12 cm²
Efficiency0.3 %
EBP39



Overall Diameter18.2/462 in/mm
Bolt Cirde Diameter17.5/445 in/mm
Baffle cutout Diameter16.6/442 in/mm
Depth11/280 in/mm
Net Weight34.2 kgs
Shipping Weight36.2 kgs
Shipping Box50X50X35 cm
