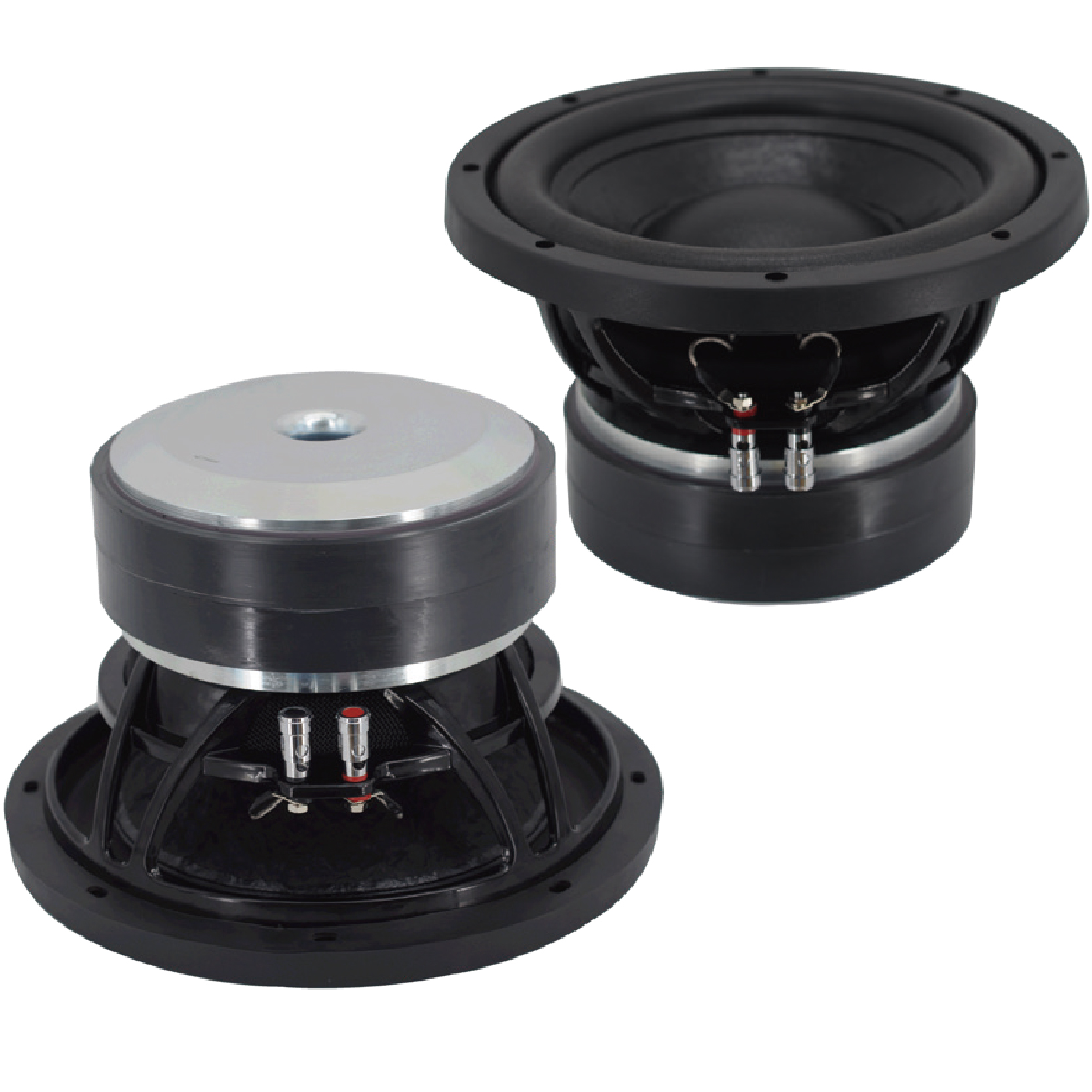

SW1066
10″SUBWOOFER
- 1500W RMS capacity
- 75mm(3 in) inside-outside BASV voice coil
- 65-500Hz response
- 80 dB sensitivity
- 2+2Ω nominal impedance
SW1066 is an unmissable product, the effect will be beyond your expectations, the bass is deep, the drop is deep, the noise is very small, almost inaudible, the reverberation is very powerful, and the sound is pure and live. First-class selection of materials, extraordinary quality, Well-balanced audio bands performs outstanding at all times.
- GENERAL SPECIFICATIONS
- THIELE-SMALL PARAMETERS
- EXTRA INFO
| Nominal Diameter | 10/250 in/mm |
| MAX Power | 4000 Watts |
| RMS Power | 2000 Watts |
| Impedance | 2+2 Ohm |
| Resonance Frequency | 63 Hz |
| Frequency Response | 63-500 Hz |
| Sensitivity(1W/1m) | 80 dB |
| Voice Coil Diameter | 3”/75mm |
| Voice Coil Material | BASV |
| Magnet | 232 Oz |
| FS | 63 Hz |
| RE | 2+2 ohm |
| Qms | 5.4 |
| Qes | 1.0 |
| Qts | 0.84 |
| BL | 17 T/m |
| MMS | 388 grams |
| Xmax | 25.5 mm |
| Sd | 370 cm² |
| Efficiency | 0.07% |
| Le(1k Hz) | 75 mH |
| Overall Diameter | 10/276 in/mm |
| Bolt Circle Diameter | 9.9/253 in/mm |
| Baffle cutout Diameter | 9.5/244 in/mm |
| Depth | 8.3/212 in/mm |
| Net Weight | 13.9 kgs |
| Shipping Weight | 14.7 kgs |
| Shipping Box | 28.5X28.5X23.5cm |
Highlights
- A 10″ Subwooferprovides larger and more robust characteristics, with organized vibrations and the ability to layer large dynamic music. 2+2 Ohms
- 1500 Watts, high output power, wide dynamic range, fast response time, strong impact, the sound is tense and stimulating, sounding strong and bold.
- 80dB compact, powerful bass with a majestic soundstage and soft handling.
- 75mm(3in) BASV voice coil wounded for hi-temp performance

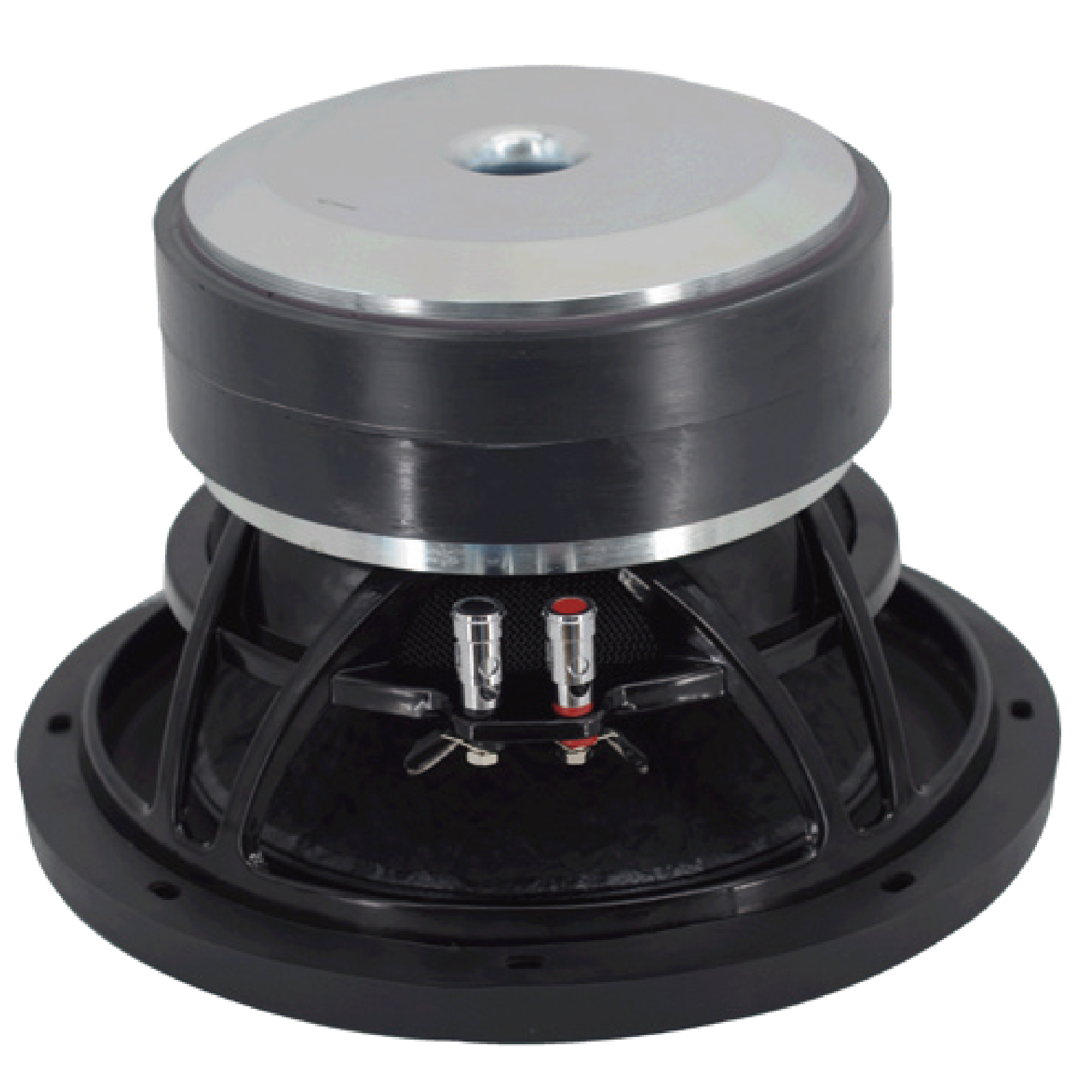

Ultra-large magnet, in addition to the large hole at the bottom, there are also small holes to ensure effective heat dissipation during work, and the thickened rubber edge ensures the freedom of bounce back and forth, making the low frequency more flexible. High-performance y35 magnet, strong and high-quality magnetism, guarantee a strong thrust and makes the sound shocking reproduction.

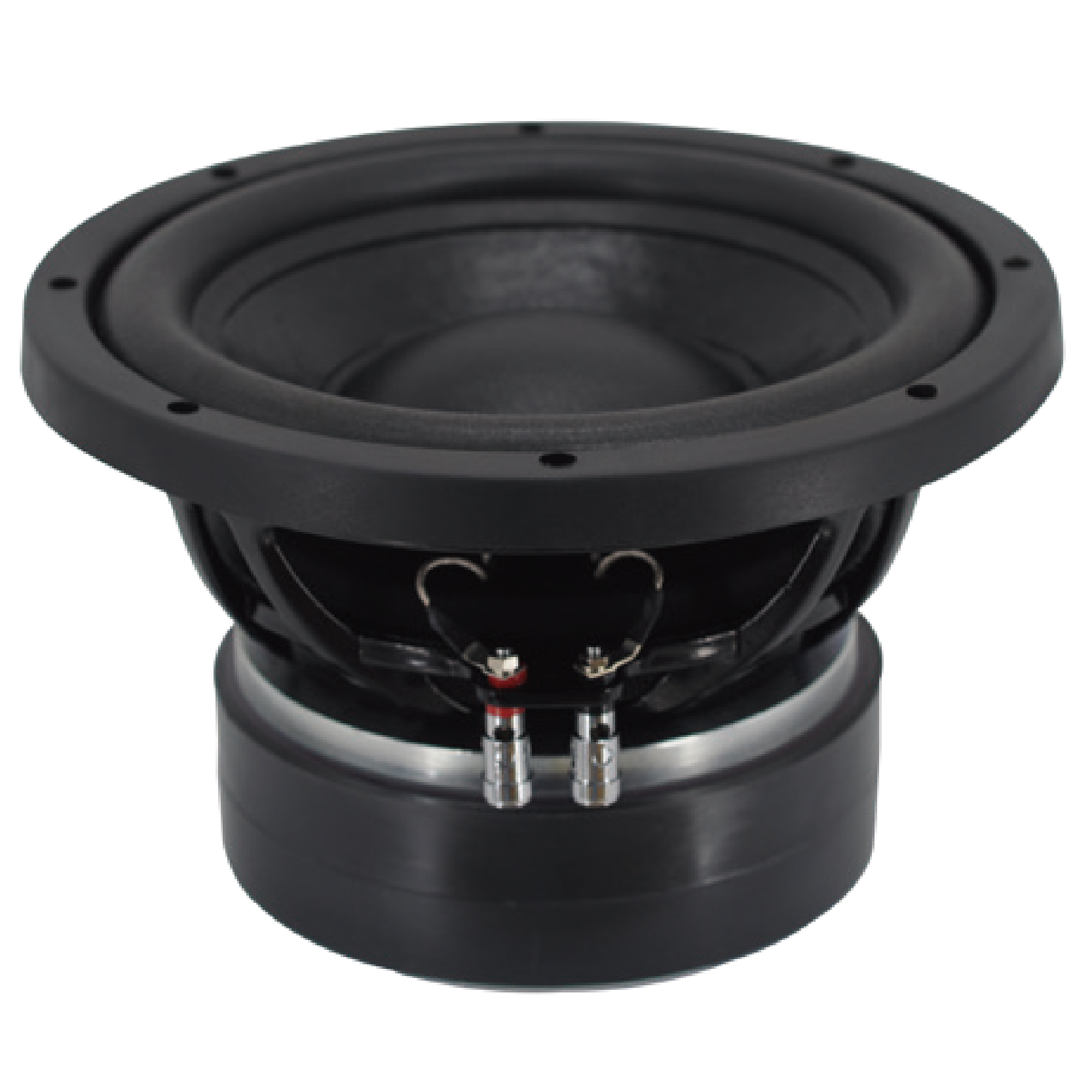

With a patterned paper cone, the thickness can be adjusted many times to ensure the rigidity of the paper cone without losing its bounce. Each voice coil uses custom brass wire to better dissipate internal heat and withstand higher power.
Blended damper – strong bouncing, instant explosive power, excellent rigidity, and positioning, but also very precise, make a more powerful rebound and better bass effect.
